NSN 5325-00-597-3302 MS124695, MS21208F115, MS21208F1-15

Product Details | SCREW THREAD INSERT

5325-00-597-3302 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS124695, MS21208F115, MS21208F1-15, 54B6710H46, 54B6716H46, 6454012, 645401-2, 81385000, 813850-00, 82570402, 825704-02, 8901872, 890187-2, 90750501, 907505-01, 134395-001, 208F10285, 208F1-0285, 218212, 3799948 FIND 37, 3799948FIND37, 41693652, 416936-52, 4575698, 457-5698 , 5235361695, 523536-1695, 11913CN0285, 1191-3CN0285, 11913CNX285, 1191-3CNX285, 5325-00-597-3302, 00-597-3302, 5340005973302, 5325005973302 , 005973302, 134395001

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-597-3302	11444 ( INSERT, SCREW THREAD )

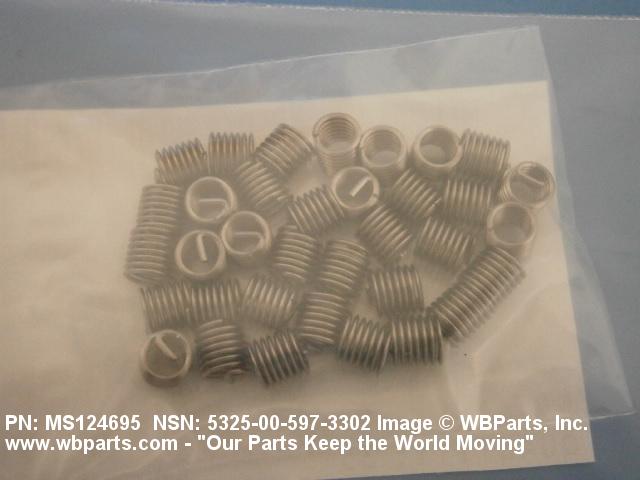

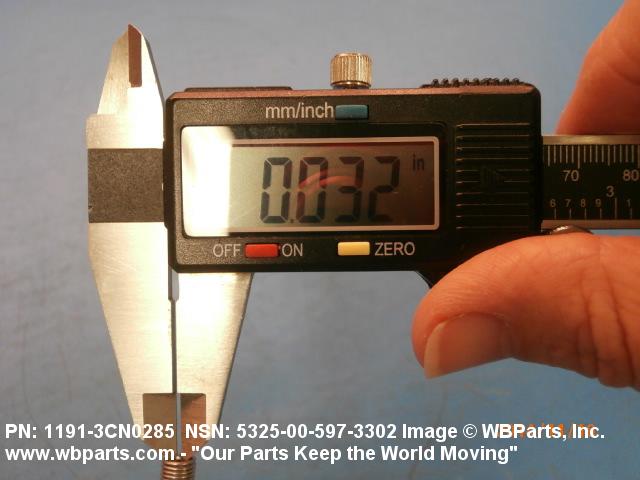

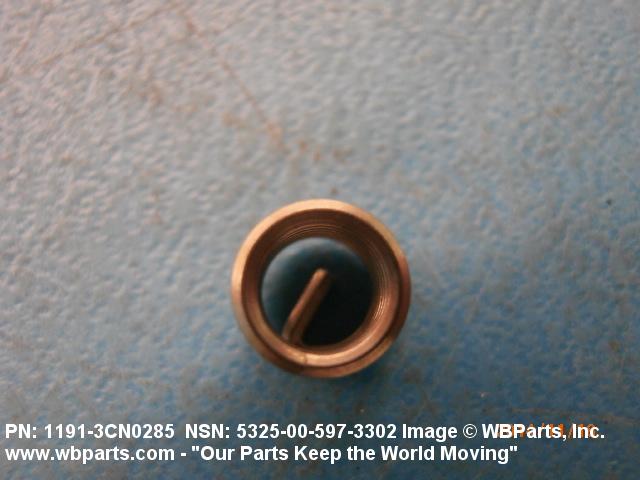

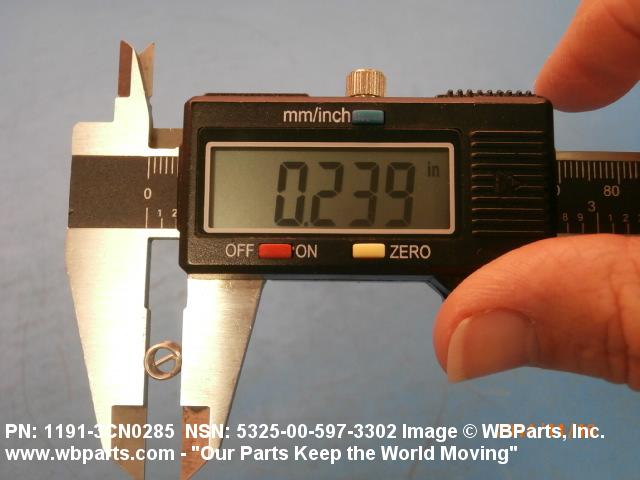

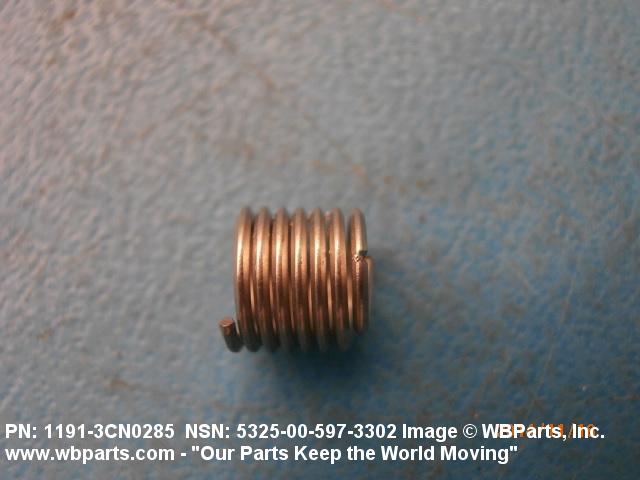

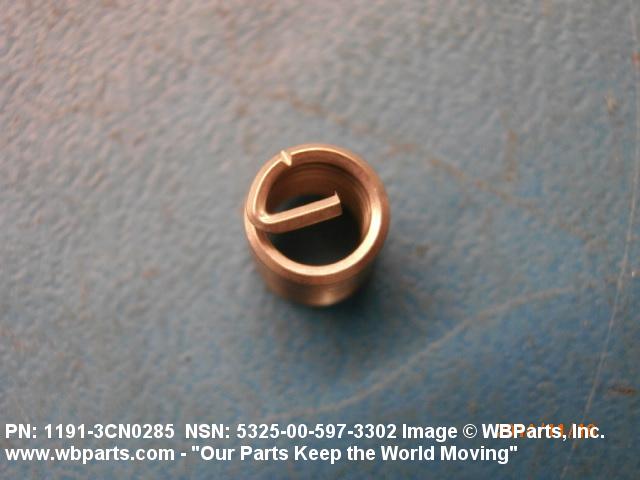

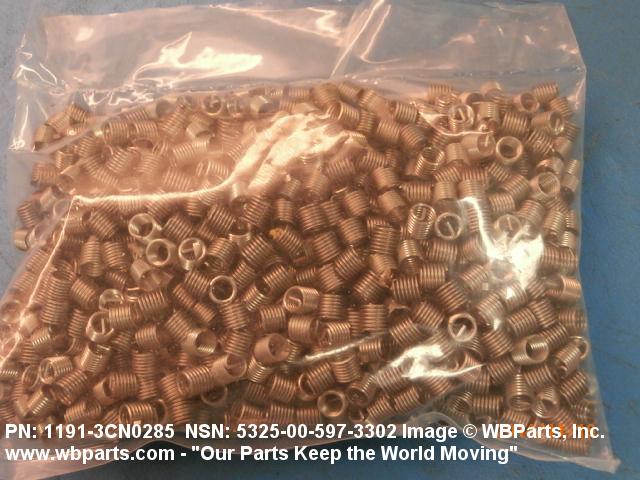

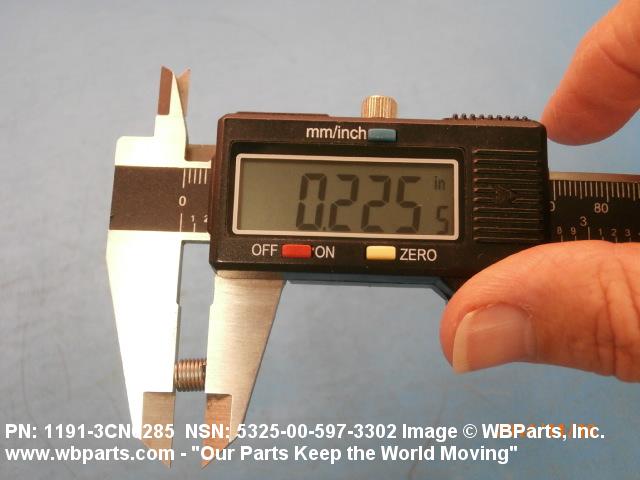

Drawings & Photos | NSN 5325-00-597-3302

Part Number	Request Date	QTY	Origin
5325-00-597-3302	2025-06-176	500	US
MS21208F115	2024-09-249	4400	United States
MS124695	2024-07-192	200	Japan
MS124695	2024-04-109	3000	United States
MS124695	2023-10-299	3390	United States
5325-00-597-3302	2022-06-164	1200	United States
5325-00-597-3302	2022-06-164	2400	United States
5325-00-597-3302	2022-06-159	1200	United States
5325-00-597-3302	2021-11-321	7900	TW
MS124695	2020-09-258	500	US
5325-00-597-3302	2020-07-188	3	SA
5325-00-597-3302	2020-06-162	6	VI
MS124695	2019-11-310	100	United States
MS124695	2019-01-24	12	India
MS124695	2018-11-310	13660	Israel
5325-00-597-3302	2018-09-255	31150	DIBBS
5325-00-597-3302	2018-09-247	31150	DIBBS
5325-00-597-3302	2018-08-221	20091	DIBBS
5325-00-597-3302	2018-06-166	11059	DIBBS
5325-00-597-3302	2018-06-158	11059	DIBBS
6454012	2017-12-345	30	US
6454012	2017-12-345	60	US
6454012	2017-12-345	90	US
5325-00-597-3302	2016-11-312	3030	DIBBS
5325-00-597-3302	2016-08-216	5219	DIBBS
5325-00-597-3302	2016-07-203	8041	DIBBS
MS124695	2016-05-132	40	us
5325-00-597-3302	2016-04-94	8041	DIBBS
5325-00-597-3302	2015-11-329	2	DIBBS
MS124695	2015-07-208	100	TW
MS124695	2015-07-208	100	TW
5325-00-597-3302	2015-03-77	6250	DIBBS
5325-00-597-3302	2014-11-331	6250	DIBBS
5325-00-597-3302	2014-11-317	1000	United States
MS21208F115	2014-09-262	50	US
MS21208F115	2014-06-168	43	UM
MS124695	2014-06-157	50	AT
MS124695	2014-01-27	128	IL
MS124695	2013-11-319	1000	US
MS124695	2013-11-319	500	US
MS124695	2013-11-319	200	US
MS124695	2013-11-305	12	United States
MS124695	2013-10-294	50	Australia
41693652	2013-10-287	36	US
MS124695	2012-05-150	945	Israel
MS124695	2012-05-142	30	us
MS124695	2012-02-52	1000	CN
MS124695	2011-12-339	35	United States
5325-00-597-3302	2011-03-75	100	United States
MS124695	2011-02-32	1	United States
5325-00-597-3302	2011-01-07	16535	DIBBS
5325-00-597-3302	2009-10-289	28	US
MS124695	2009-07-212	8	US
5325-00-597-3302	2008-09-247	5	US
MS124695	2008-05-148	50	US

Cross Reference | NSN 5325-00-597-3302

Part Number	Cage Code	Manufacturer
1191-3CN0285	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
1191-3CN0285	26014	ELECTROFORMERS INC. DBA GAR ELECTROFORMING DIV
1191-3CNX285	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
134395-001	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
208F1-0285	12360	ALBANY FASTENERS PAWTUCKET FASTENERS DIV
218212	66503	WOODWARD, INC. DBA WOODWARD
3799948 FIND 37	59364	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
416936-52	96214	RAYTHEON COMPANY DBA RAYTHEON
523536-1695	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5325005973302	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5340005973302	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
54B6710H46	79500	WESTINGHOUSE ELECTRIC CORP
54B6710H46	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
54B6716H46	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
645401-2	99551	GOODRICH CORPORATION DIV POWER TRANSMISSION SYSTEMS
813850-00	32345	DEFENSE REDUCTION AGENCY
825704-02	37695	RAYTHEON COMPANY DBA RAYTHEON
890187-2	64547	HONEYWELL INTERNATIONAL INC DBA HONEYWELL
890187-2	83298	ALLIED SIGNAL INC AEROSPACE EQUIPMENT SYSTEMS
907505-01	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
907505-01	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
MS124695	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
MS124695	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS124695	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21208F1-15	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-597-3302

Compare

Related Products | NSN 5325-00-597-3302

5325-00-597-3304, 5325-00-597-3305, 5325-00-597-3306, 5325-00-597-3309, 5325-00-597-3328

Technical Data | NSN 5325-00-597-3302

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
STYLE DESIGNATOR	H1 COIL
LENGTH	0.285 INCHES NOMINAL
INSERT SIZE	0.236 IN MIN 0.256 IN MAX
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS124695

Restrictions/Controls & Freight Information | NSN 5325-00-597-3302

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-597-3302

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
