NSN 5330-00-805-9257 370474, 00-805-9257, 008059257
Product Details | SPIRAL WOUND GASKET
5330-00-805-9257 A circular or moderately noncircular shaped item with an aperture. It is constructed of spring-like metal strips, preformed into a vee shape, laminated with a soft filler. It is designed to seal between two nondeforming surfaces. It may have an inner and/or outer, solid or spiral wound compression ring(s).
Part Alternates: 370474, 5330-00-805-9257, 00-805-9257, 5330008059257, 008059257
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-805-9257 | 37840 ( GASKET, SPIRAL WOUND ) |

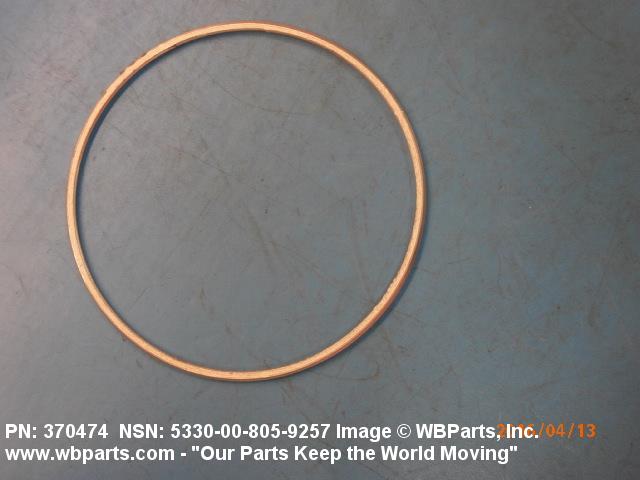

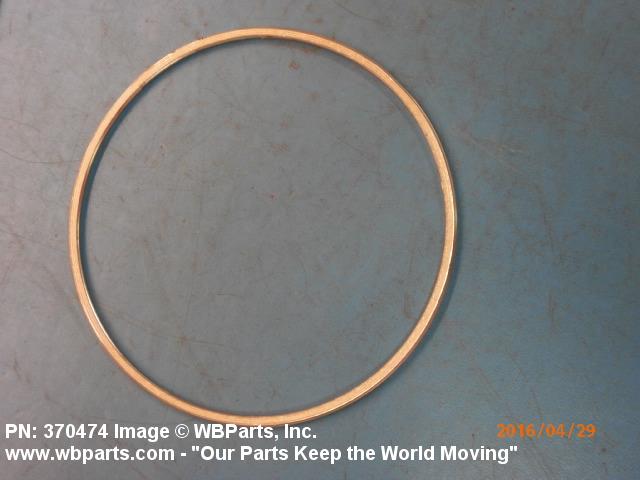

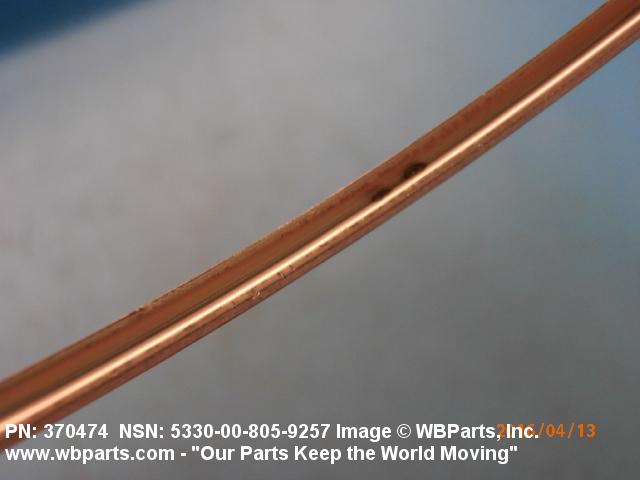

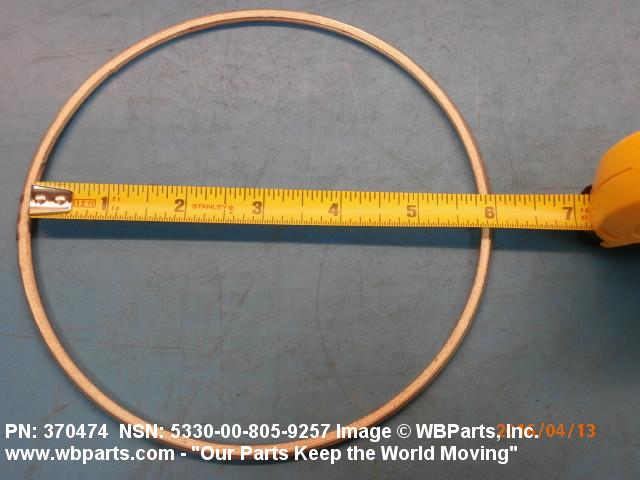

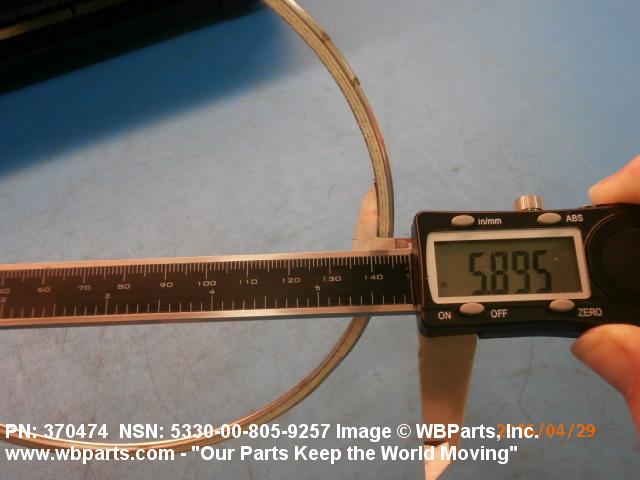

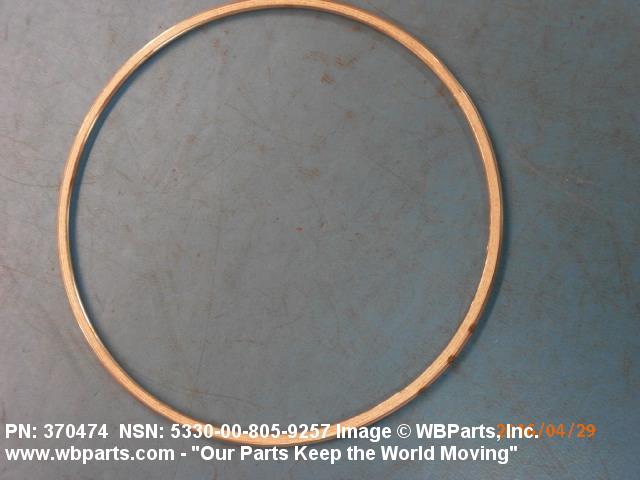

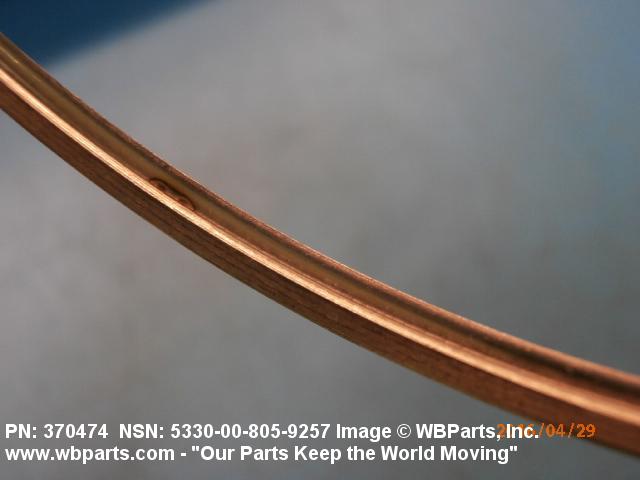

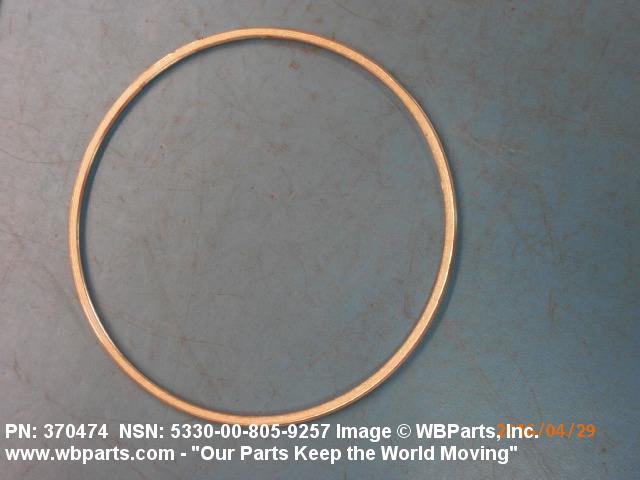

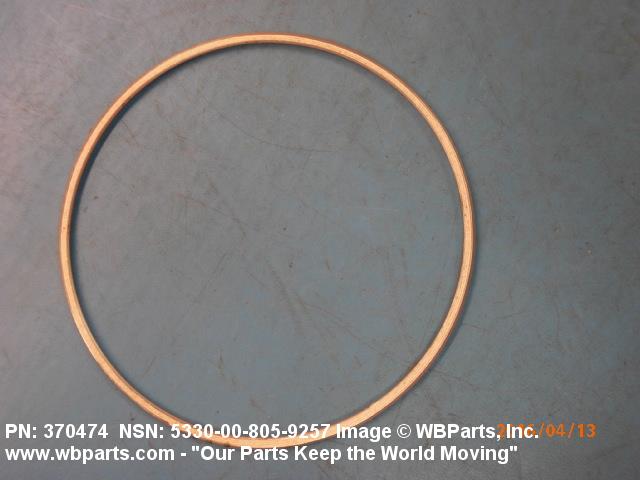

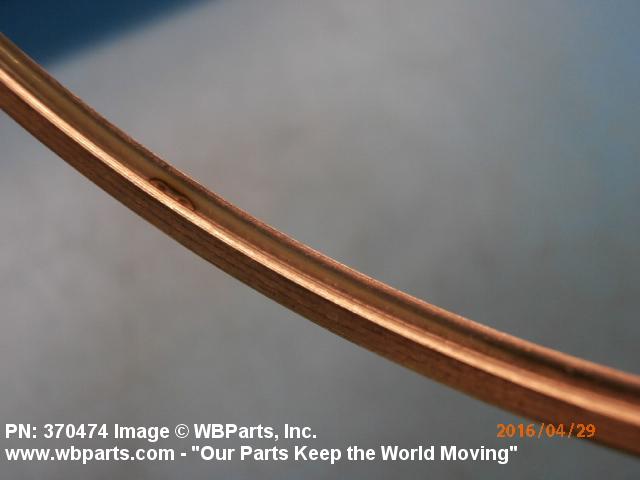

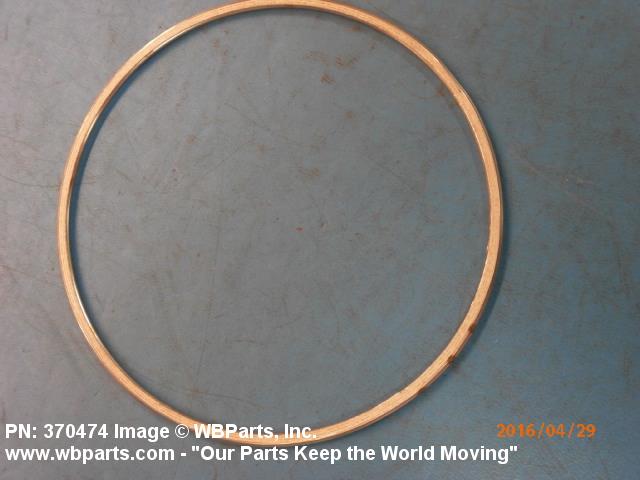

Drawings & Photos | NSN 5330-00-805-9257
Demand History | NSN 5330-00-805-9257
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 370474 | 2016-04-104 | 51 | United States |
| 370474 | 2016-03-88 | 2 | United States |
| 5330-00-805-9257 | 2010-11-323 | 25 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-805-9257
Technical Data | NSN 5330-00-805-9257
| Characteristic | Specifications |
|---|---|
| MATERIAL | ASBESTOS AND STEEL COMP 316L OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F45 METAL WINDING W/SOFT FILLER |

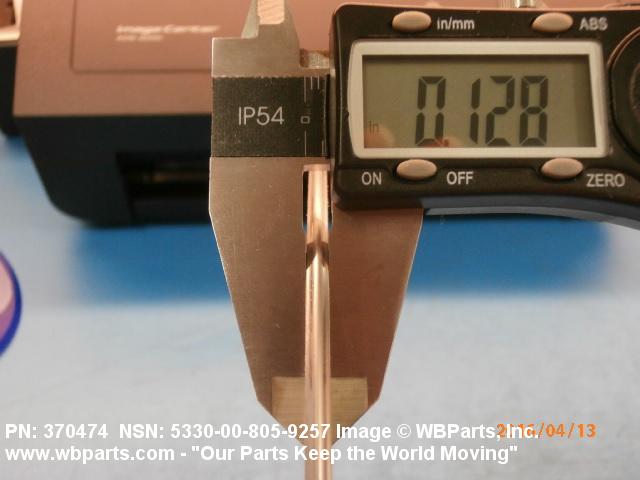

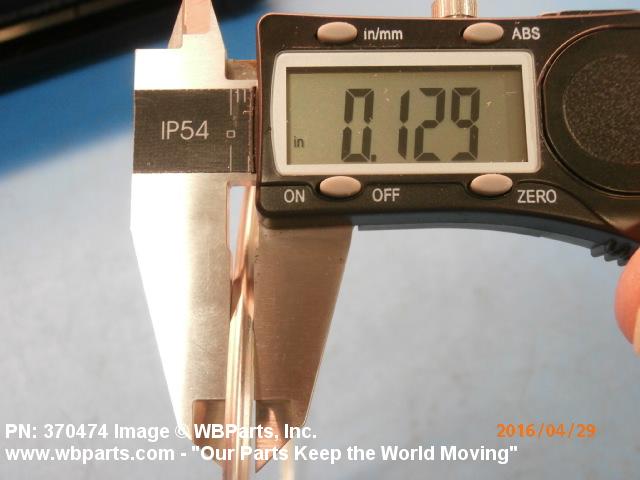

| CROSS-SECTIONAL THICKNESS | 0.120 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| STYLE DESIGNATOR | B1 CIRCULAR |
| OUTSIDE DIAMETER | 6.158 INCHES MINIMUM AND 6.218 INCHES MAXIMUM |
| APERTURE DIAMETER | 5.798 INCHES MINIMUM AND 5.828 INCHES MAXIMUM |
| III FSC APPLICATION DATA | ENGINE,AIRCRAFT,TURBO-JET |
Restrictions/Controls & Freight Information | NSN 5330-00-805-9257
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
