Product Details | SPIRAL WOUND GASKET

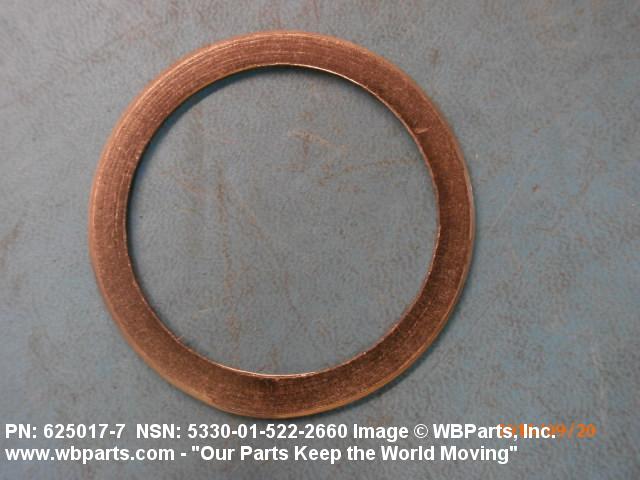

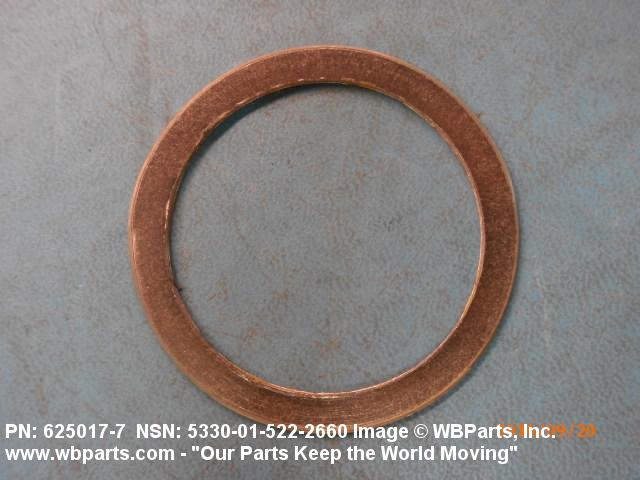

5330-01-522-2660 A circular or moderately noncircular shaped item with an aperture. It is constructed of spring-like metal strips, preformed into a vee shape, laminated with a soft filler. It is designed to seal between two nondeforming surfaces. It may have an inner and/or outer, solid or spiral wound compression ring(s).
Part Alternates: 00212045 , 6250177, 625017-7 , 625017-7 NON-ASBESTOS, 6250177NONASBESTOS, 7502447, 750244-7 , 5330-01-522-2660, 01-522-2660, 5330015222660, 015222660
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JUL 2004 | 01-522-2660 | 37840 ( GASKET, SPIRAL WOUND ) |

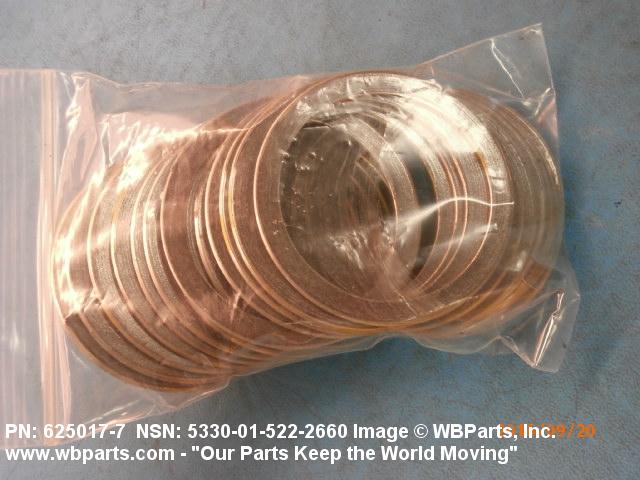

Drawings & Photos | NSN 5330-01-522-2660
Demand History | NSN 5330-01-522-2660
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7502447 | 2024-02-06 | 545 | PH |
| 7502447 | 2023-10-23 | 10 | United States |
| 7502447 | 2023-08-29 | 10 | United States |
| 625017-7 | 2023-04-27 | 1030 | DIBBS |
| 625017-7 NON-ASBESTOS | 2023-04-27 | 1030 | DIBBS |
| 6250177 | 2021-05-12 | 20 | Malaysia |
| 6250177 | 2021-05-03 | 20 | Malaysia |
| 7502447 | 2021-04-16 | 108 | Malaysia |
| 7502447 | 2021-04-12 | 108 | Malaysia |
| 625017-7 | 2020-12-10 | 1663 | DIBBS |
| 625017-7 NON-ASBESTOS | 2020-12-10 | 1663 | DIBBS |
| 625017-7 | 2020-04-16 | 1440 | DIBBS |
| 625017-7 NON-ASBESTOS | 2020-04-16 | 1440 | DIBBS |
| 5330-01-522-2660 | 2018-01-28 | 1200 | DIBBS |
| 5330-01-522-2660 | 2017-11-14 | 90 | MY |
| 5330-01-522-2660 | 2017-04-16 | 1587 | DIBBS |
| 5330-01-522-2660 | 2016-09-06 | 24 | Malaysia |
| 7502447 | 2016-08-27 | 36 | Malaysia |
| 5330-01-522-2660 | 2016-08-24 | 30 | Malaysia |
| 5330-01-522-2660 | 2016-08-22 | 8 | United States |
| 5330-01-522-2660 | 2016-08-22 | 24 | Malaysia |
| 6250177 | 2016-06-21 | 30 | Malaysia |
| 7502447 | 2016-06-21 | 30 | Malaysia |
| 5330-01-522-2660 | 2016-06-20 | 12 | Malaysia |
| 7502447 | 2016-06-16 | 20 | Malaysia |
| 5330-01-522-2660 | 2015-05-19 | 2050 | DIBBS |
| 5330-01-522-2660 | 2014-10-30 | 62 | Malaysia |
| 7502447 | 2014-01-17 | 181 | Indonesia |
| 5330-01-522-2660 | 2013-11-28 | 1530 | DIBBS |
| 5330-01-522-2660 | 2012-07-25 | 1531 | DIBBS |
| 5330-01-522-2660 | 2012-01-03 | 1370 | DIBBS |
| 6250177 | 2011-07-07 | 229 | US |
| 6250177 | 2011-06-28 | 229 | US |
| 5330-01-522-2660 | 2010-11-19 | 2000 | DIBBS |
| 5330-01-522-2660 | 2010-05-12 | 1000 | DIBBS |
| 7502447 | 2009-07-09 | 73 | Malaysia |
| 7502447 | 2009-07-09 | 73 | Malaysia |
| 7502447 | 2009-07-07 | 73 | Malaysia |
| 7502447 | 2009-01-07 | 73 | Malaysia |
| 5330-01-522-2660 | 2008-05-01 | 5320 | DIBBS |
| 7502447 | 2006-10-22 | 2 | Turkey |
| 7502447 | 2006-10-21 | 2 | Turkey |
| 7502447 | 2006-10-21 | 2 | Turkey |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5330-01-522-2660
Related Products | NSN 5330-01-522-2660
5330-01-522-2681, 5330-01-522-2684, 5330-01-522-2686, 5330-01-522-2775, 5330-01-522-2776
Technical Data | NSN 5330-01-522-2660
| Characteristic | Specifications |
|---|---|

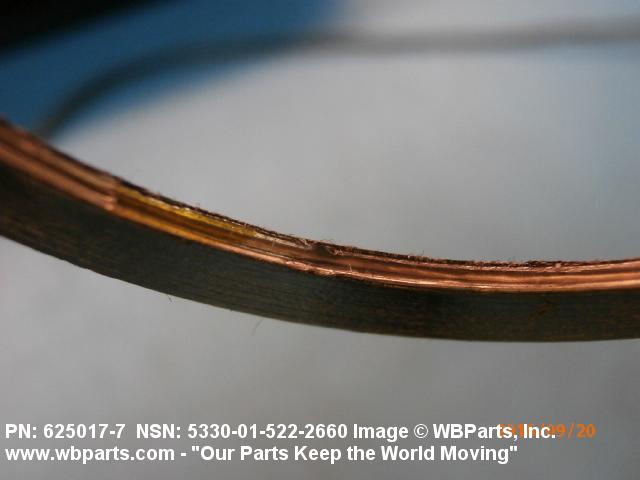

| CROSS-SECTIONAL SHAPE STYLE | F45 METAL WINDING W/SOFT FILLER |

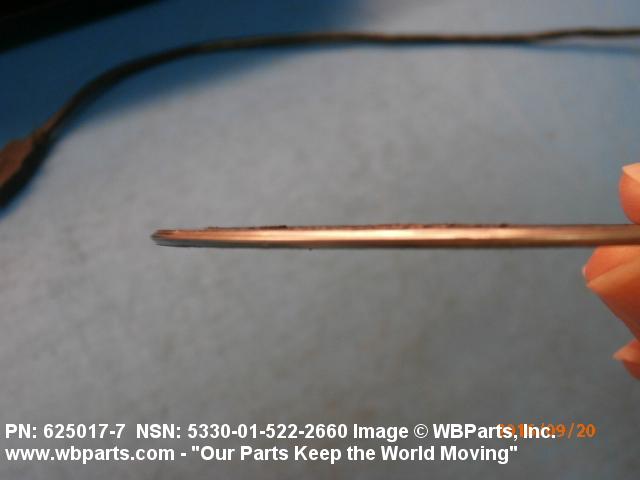

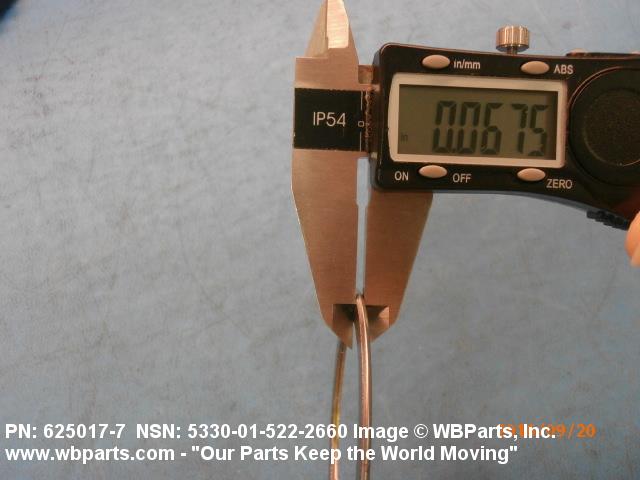

| CROSS-SECTIONAL THICKNESS | 0.061 INCHES MINIMUM AND 0.068 INCHES MAXIMUM |
| STYLE DESIGNATOR | B1 CIRCULAR |

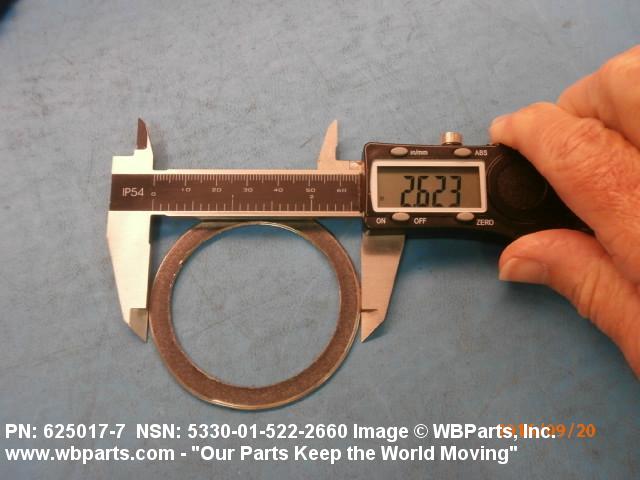

| OUTSIDE DIAMETER | 2.594 INCHES MINIMUM AND 2.656 INCHES MAXIMUM |

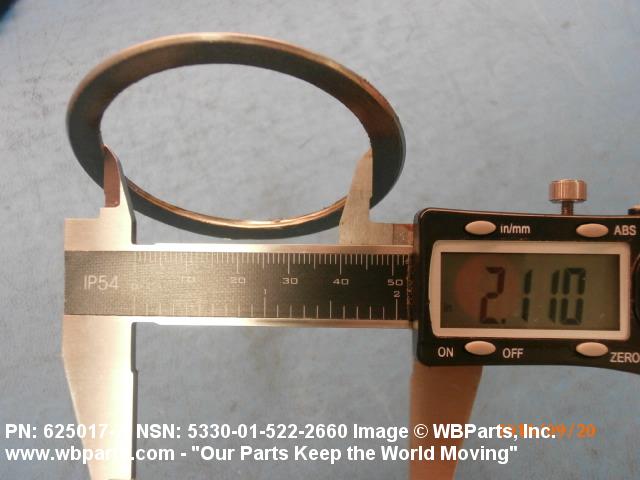

| APERTURE DIAMETER | 2.109 INCHES MINIMUM AND 2.141 INCHES MAXIMUM |
