Product Details | SPIRAL WOUND GASKET
5330-01-297-7573 A circular or moderately noncircular shaped item with an aperture. It is constructed of spring-like metal strips, preformed into a vee shape, laminated with a soft filler. It is designed to seal between two nondeforming surfaces. It may have an inner and/or outer, solid or spiral wound compression ring(s).
Part Alternates: LS933611, LS9336-11, 00312270, 62501711, 625017-11, 75024411, 750244-11, 5330-01-297-7573, 01-297-7573, 5330012977573, 012977573
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 APR 1989 | 01-297-7573 | 37840 ( GASKET, SPIRAL WOUND ) |

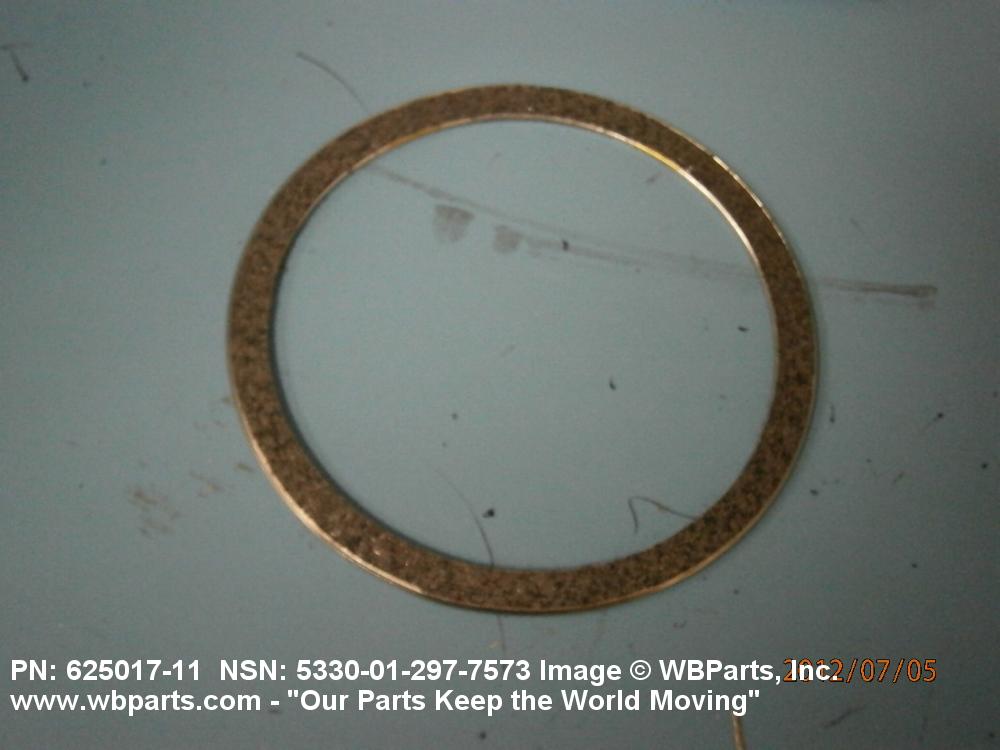

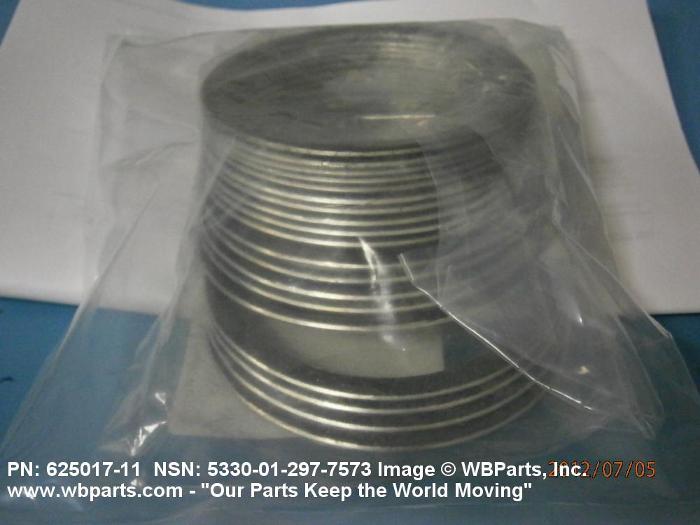

Drawings & Photos | NSN 5330-01-297-7573
Demand History | NSN 5330-01-297-7573
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-297-7573 | 2021-08-09 | 11 | PH |
| 5330-01-297-7573 | 2021-05-17 | 10 | Malaysia |
| 75024411 | 2021-04-12 | 77 | Malaysia |
| 5330-01-297-7573 | 2021-04-01 | 77 | MY |
| 5330-01-297-7573 | 2020-07-26 | 10 | AE |
| 5330012977573 | 2018-03-09 | 12 | US |
| 5330-01-297-7573 | 2018-02-09 | 16 | Malaysia |
| 5330-01-297-7573 | 2016-11-01 | 39 | DIBBS |
| 62501711 | 2016-10-05 | 81 | Malaysia |
| 5330-01-297-7573 | 2016-09-01 | 10 | Malaysia |
| 5330-01-297-7573 | 2016-08-22 | 8 | United States |
| 5330-01-297-7573 | 2016-08-22 | 10 | Malaysia |
| 5330-01-297-7573 | 2015-11-18 | 6 | United States |
| 62501711 | 2015-11-03 | 2 | Malaysia |
| 5330-01-297-7573 | 2015-08-19 | 2 | Malaysia |
| 62501711 | 2015-08-19 | 2 | Malaysia |
| 5330-01-297-7573 | 2014-05-07 | 30 | US |
| 75024411 | 2014-01-17 | 36 | Indonesia |
| 5330-01-297-7573 | 2012-06-13 | 20 | Indonesia |
| 5330-01-297-7573 | 2012-03-20 | 3 | MANUAL |
| 625017-11 | 2012-03-20 | 3 | US |
| 625017-11 | 2010-11-29 | 300 | |
| 5330-01-297-7573 | 2009-10-29 | 8 | Indonesia |
| 5330-01-297-7573 | 2009-10-29 | 8 | Indonesia |
| 5330-01-297-7573 | 2009-10-29 | 8 | Indonesia |
| 5330-01-297-7573 | 2009-08-05 | 1 | US |
| 5330-01-297-7573 | 2009-01-07 | 17 | Malaysia |
| 75024411 | 2009-01-07 | 60 | Malaysia |
| 75024411 | 2008-08-18 | 10 | US |
| 62501711 | 2007-12-11 | 6 | United States |
| 75024411 | 2007-11-19 | 6 | United States |
| 75024411 | 2006-10-22 | 2 | Turkey |
| 75024411 | 2006-10-21 | 2 | Turkey |
| 75024411 | 2006-10-21 | 2 | Turkey |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5330-01-297-7573
5330-01-297-7574, 5330-01-297-7575, 5330-01-297-7576, 5330-01-297-7577, 5330-01-297-7665
Technical Data | NSN 5330-01-297-7573
| Characteristic | Specifications |
|---|---|
| MATERIAL | CHLORITE AND STEEL COMP 304 SPIRAL WOUND FILLER |
| CROSS-SECTIONAL SHAPE STYLE | F45 METAL WINDING W/SOFT FILLER |
| CROSS-SECTIONAL THICKNESS | 0.061 INCHES MINIMUM AND 0.068 INCHES MAXIMUM |
| STYLE DESIGNATOR | B1 CIRCULAR |
| OUTSIDE DIAMETER | 3.594 INCHES MINIMUM AND 3.656 INCHES MAXIMUM |
| APERTURE DIAMETER | 3.109 INCHES MINIMUM AND 3.141 INCHES MAXIMUM |
| SPECIAL FEATURES | ASBESTOS FREE |
| ENVIRONMENTAL ATTRIBUTE CODE | ASBESTOS ALTERNATIVE PRODUCTS |
| MANUFACTURERS CODE | 58156 |
| DESIGN CONTROL REFERENCE | 625017-11 |
Restrictions/Controls & Freight Information | NSN 5330-01-297-7573
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Environmental Attribute Code: | JG |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
