Product Details | ROD END CLEVIS
5340-00-047-3894 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 175579, 5340-00-047-3894, 00-047-3894, 5340000473894, 000473894
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-047-3894 | 03796 ( CLEVIS, ROD END ) |

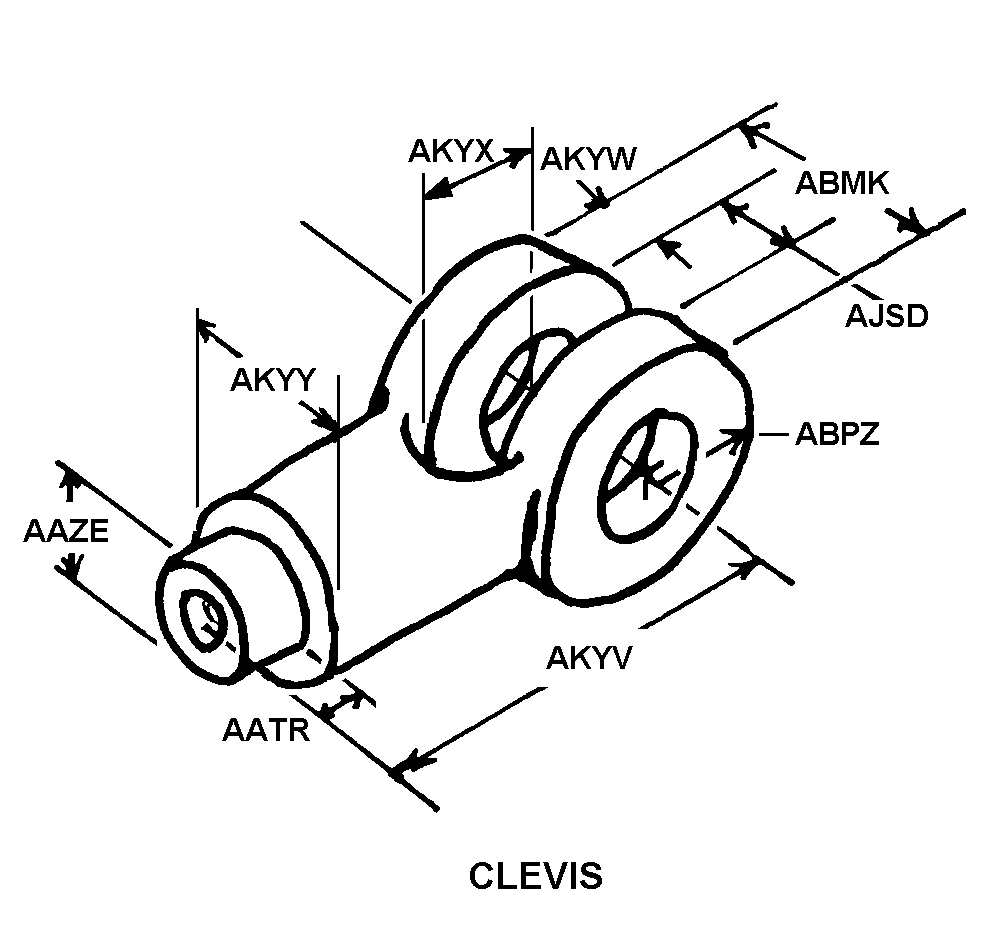

Drawings & Photos | NSN 5340-00-047-3894
Cross Reference | NSN 5340-00-047-3894
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 175579 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-047-3894
Technical Data | NSN 5340-00-047-3894
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 3 CLEVIS |
| SHANK LENGTH | 1.040 INCHES NOMINAL |
| SHANK DIAMETER | 0.404 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| OVERALL WIDTH | 1.053 INCHES MINIMUM AND 1.058 INCHES MAXIMUM |
| END RADIUS | 0.562 INCHES NOMINAL |
| FORK SPAN WIDTH | 0.593 INCHES MINIMUM AND 0.598 INCHES MAXIMUM |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 2.880 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.226 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
| FORK DEPTH | 1.200 INCHES NOMINAL |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 175579 |
