NSN 5340-00-598-9983 7261993, 726199-3, 00-598-9983
Product Details | ROD END CLEVIS
5340-00-598-9983 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 7261993, 726199-3, 5340-00-598-9983, 00-598-9983, 5340005989983, 005989983
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-598-9983 | 03796 ( CLEVIS, ROD END ) |

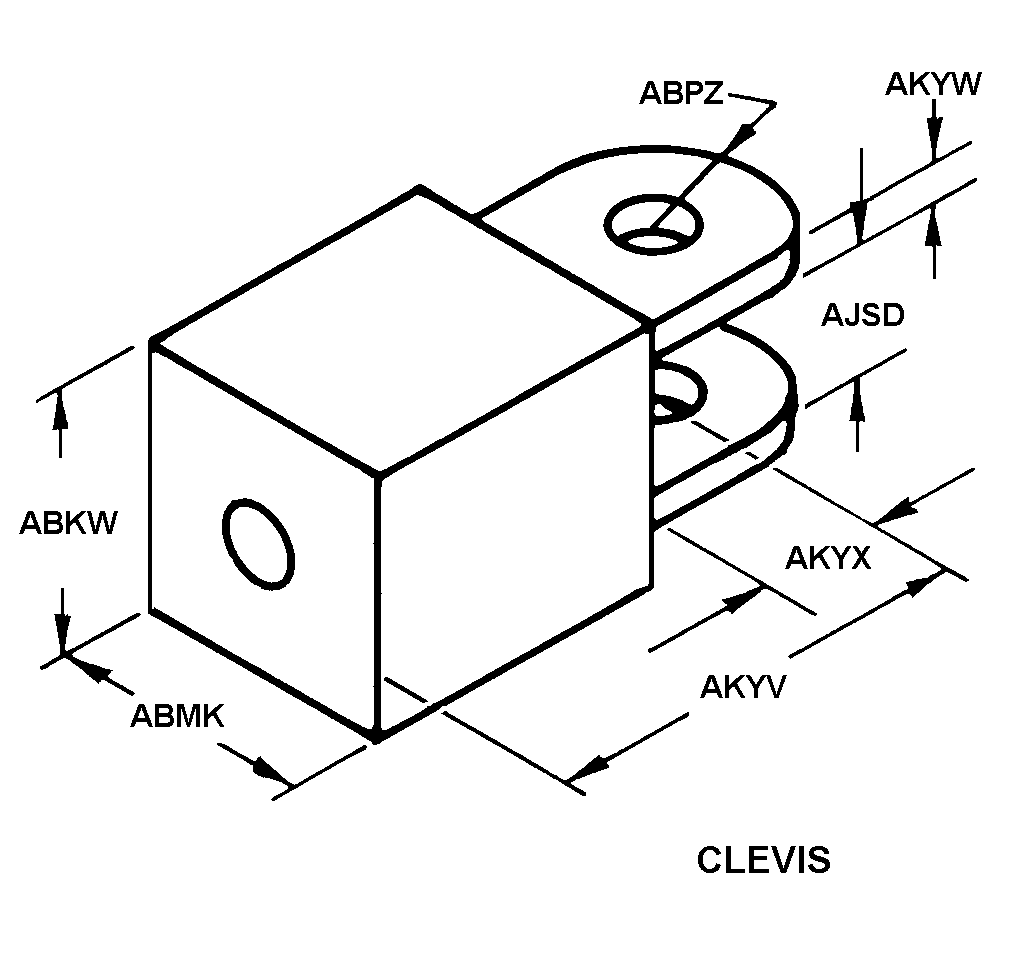

Drawings & Photos | NSN 5340-00-598-9983
Cross Reference | NSN 5340-00-598-9983
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 726199-3 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-598-9983
Technical Data | NSN 5340-00-598-9983
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6050 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| METALLIC HARDNESS RATING | 26.0 MINIMUM ROCKWELL C AND 33.0 MAXIMUM ROCKWELL C |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.312 INCHES ROD CONNECTION |
| THREAD CLASS | 3A ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 0.680 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 22 CLEVIS |
| OVERALL HEIGHT | 0.625 INCHES NOMINAL |
| OVERALL WIDTH | 0.625 INCHES NOMINAL |
| END RADIUS | 0.380 INCHES NOMINAL |
| FORK SPAN WIDTH | 0.185 INCHES NOMINAL |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 1.500 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.120 INCHES NOMINAL |
| FORK DEPTH | 1.125 INCHES NOMINAL |
| SECURING PIN HOLE DIAMETER | 0.071 INCHES NOMINAL |
| DISTANCE FROM CENTER OF SECURING PIN HOLE TO ROD END | 0.390 INCHES NOMINAL |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 726199-3 |
Restrictions/Controls & Freight Information | NSN 5340-00-598-9983
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094140 | CLEVISES IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
