Product Details | BAIL HANDLE
5340-00-848-9619 An item, usually basically semicircular or rectangular, designed to be swivel mounted to another item such as a container, chest, drawer, or door to provide facilities for lifting, opening, pulling, and the like. It may be with or without a mounting plate. Excludes HANDLE, DOOR.
Part Alternates: 1205, 5340-00-848-9619, 00-848-9619, 5340008489619, 008489619
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-848-9619 | 20353 ( HANDLE, BAIL ) |

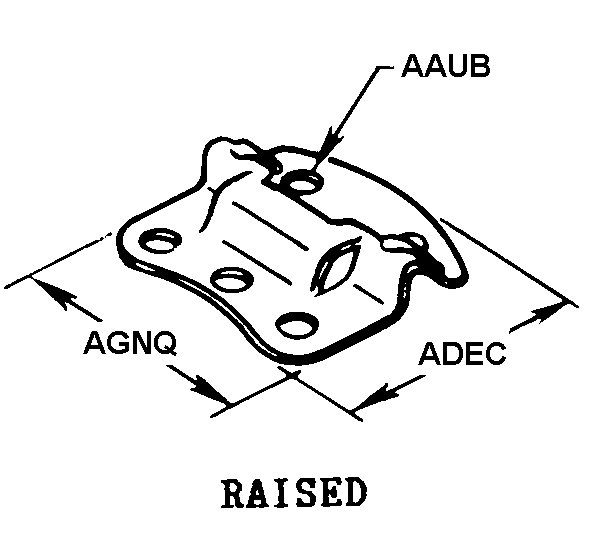

Drawings & Photos | NSN 5340-00-848-9619
Cross Reference | NSN 5340-00-848-9619
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1205 | 57068 | STANLEY WORKS THE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5340-00-848-9619
5340-00-848-9634, 5340-00-848-9644, 5340-00-848-9645, 5340-00-848-9647, 5340-00-848-9660
Technical Data | NSN 5340-00-848-9619
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ENAMEL BAKED OVERALL |
| COLOR | BLACK OVERALL |
| STYLE DESIGNATOR | A15 DELTA OPEN |
| STOCK DIAMETER | 0.312 INCHES NOMINAL |
| INSIDE LENGTH | 3.375 INCHES NOMINAL |
| MOUNTING METHOD | MOUNTING PLATE |
| MOUNTING PLATE STYLE | R3 RECTANGULAR |
| HOLE DIAMETER | 0.171 INCHES NOMINAL |
| PLATE WIDTH | 2.750 INCHES NOMINAL |
| PLATE LENGTH | 3.375 INCHES NOMINAL |
| SPECIAL FEATURES | FURNISHED WITH5 SCREWS |
Restrictions/Controls & Freight Information | NSN 5340-00-848-9619
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
