Product Details | BAIL HANDLE
5340-01-052-9478 An item, usually basically semicircular or rectangular, designed to be swivel mounted to another item such as a container, chest, drawer, or door to provide facilities for lifting, opening, pulling, and the like. It may be with or without a mounting plate. Excludes HANDLE, DOOR.
Part Alternates: 1205234, 1205-2-3-4, 86312050, 863-120-50, 5340-01-052-9478, 01-052-9478, 5340010529478, 010529478
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 DEC 1977 | 01-052-9478 | 20353 ( HANDLE, BAIL ) |

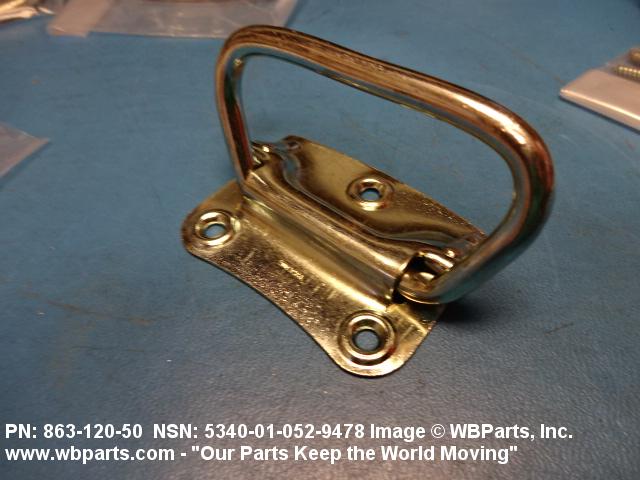

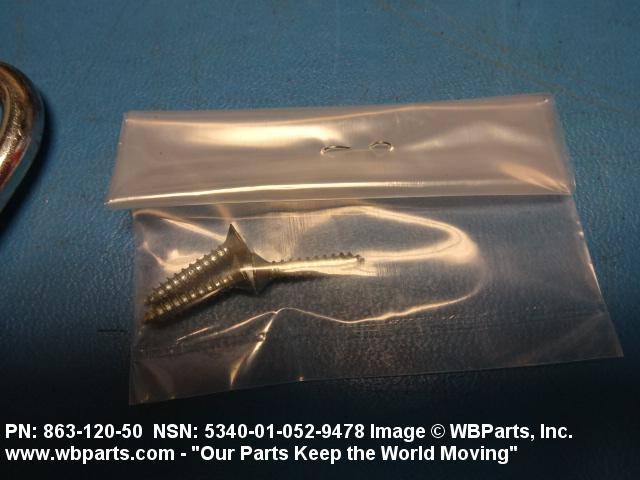

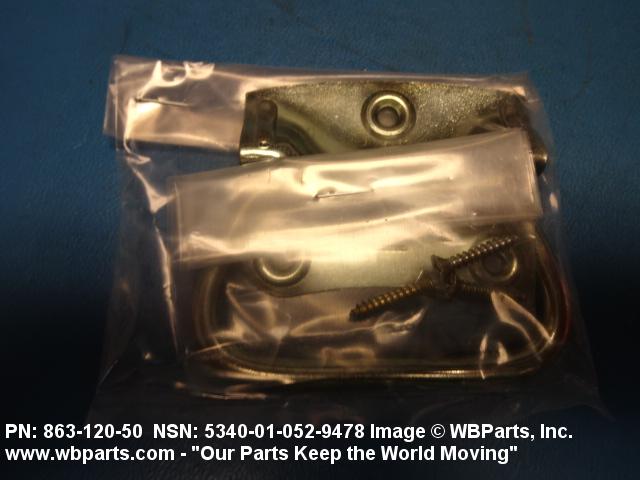

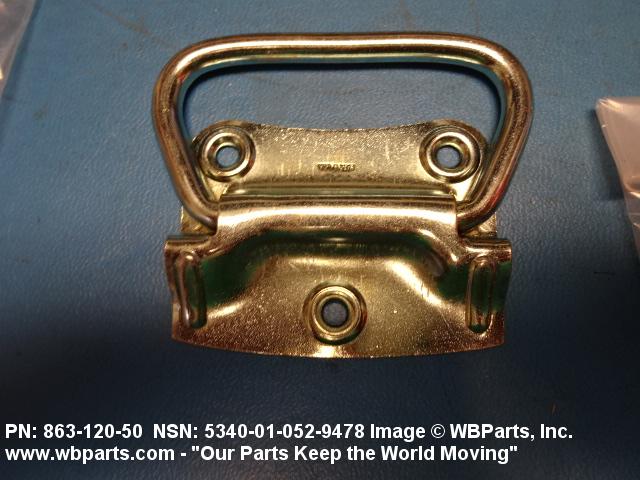

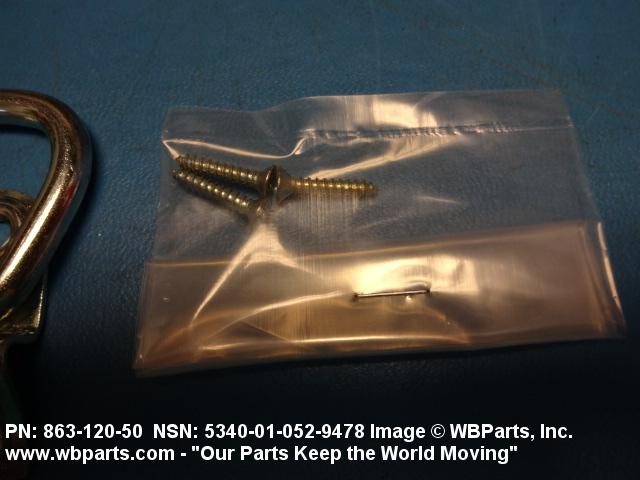

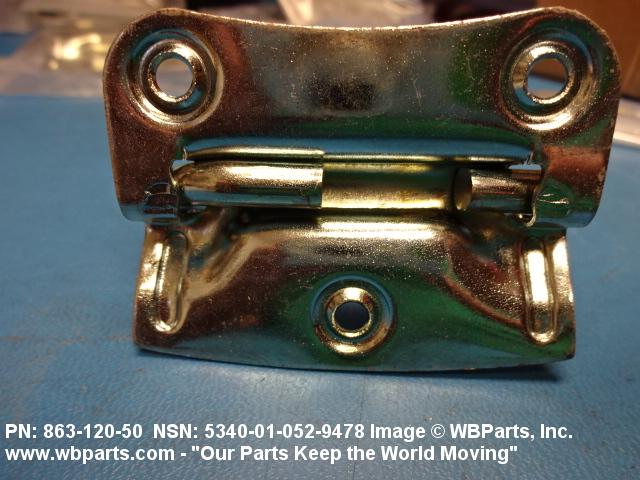

Drawings & Photos | NSN 5340-01-052-9478
Demand History | NSN 5340-01-052-9478
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 863-120-50 | 2019-06-25 | 3 | DIBBS |
| 5340-01-052-9478 | 2018-09-17 | 6 | United States |
| 5340-01-052-9478 | 2018-08-23 | 6 | DIBBS |
| 5340-01-052-9478 | 2018-08-06 | 6 | DIBBS |
| 5340-01-052-9478 | 2017-12-20 | 6 | DIBBS |
| 5340-01-052-9478 | 2017-12-12 | 6 | DIBBS |
| 5340-01-052-9478 | 2009-01-17 | 14 | DIBBS |
| 5340-01-052-9478 | 2008-02-12 | 35 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-01-052-9478
Related Products | NSN 5340-01-052-9478
5340-01-052-9528, 5340-01-052-9597, 5340-01-052-9598, 5340-01-052-9635, 5340-01-052-9678
Technical Data | NSN 5340-01-052-9478
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ENAMEL BAKED OR ZINC OVERALL |
| COLOR | BLACK OVERALL |
| STYLE DESIGNATOR | A15 DELTA OPEN |
| STOCK DIAMETER | 0.058 INCHES NOMINAL |
| INSIDE LENGTH | 2.750 INCHES NOMINAL |
| MOUNTING METHOD | MOUNTING PLATE |
| MOUNTING PLATE STYLE | R3 RECTANGULAR |
| PLATE WIDTH | 2.000 INCHES NOMINAL |
| PLATE LENGTH | 2.688 INCHES NOMINAL |
| MANUFACTURERS CODE | 25965 |
| DESIGN CONTROL REFERENCE | 863-120-50 |
Restrictions/Controls & Freight Information | NSN 5340-01-052-9478
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-052-9478
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
