Product Details | BAIL HANDLE
5340-01-238-0567 An item, usually basically semicircular or rectangular, designed to be swivel mounted to another item such as a container, chest, drawer, or door to provide facilities for lifting, opening, pulling, and the like. It may be with or without a mounting plate. Excludes HANDLE, DOOR.
Part Alternates: 072719, 10049193, 5340-01-238-0567, 01-238-0567, 5340012380567, 012380567
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 AUG 1986 | 01-238-0567 | 20353 ( HANDLE, BAIL ) |

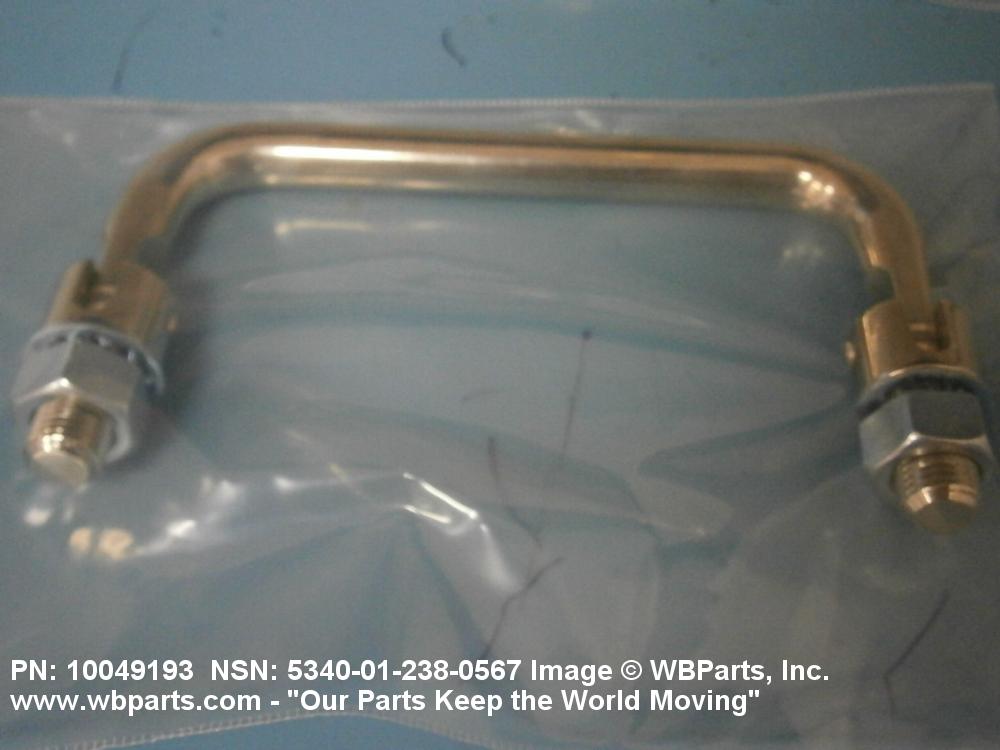

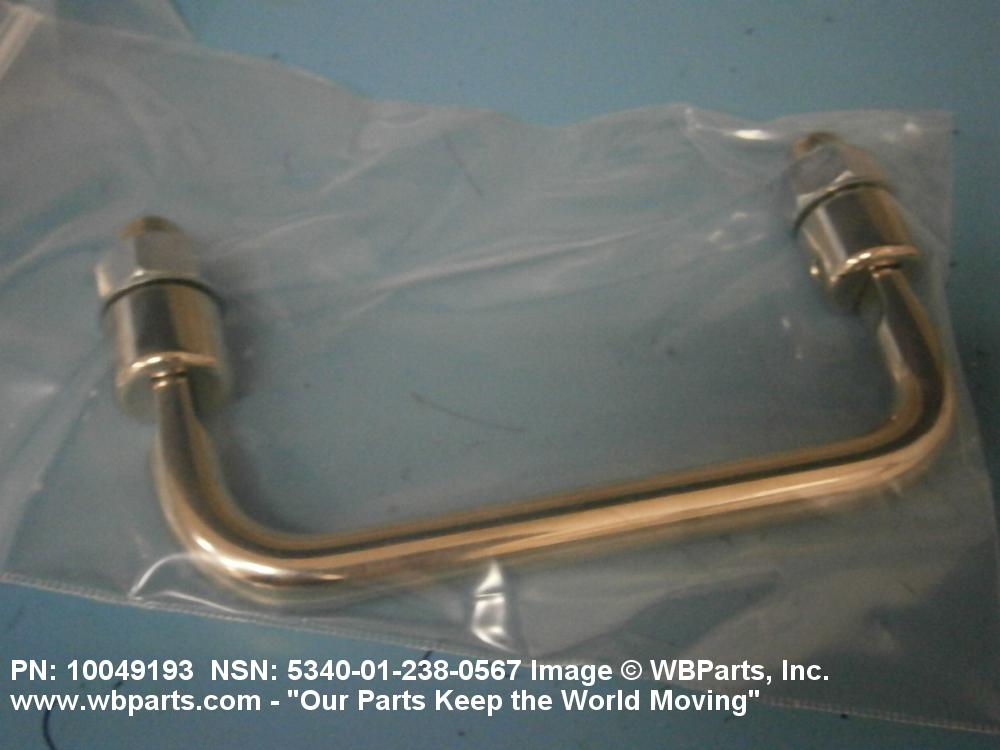

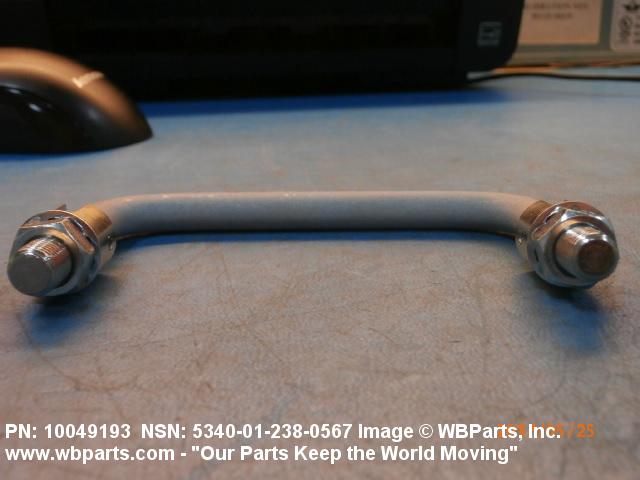

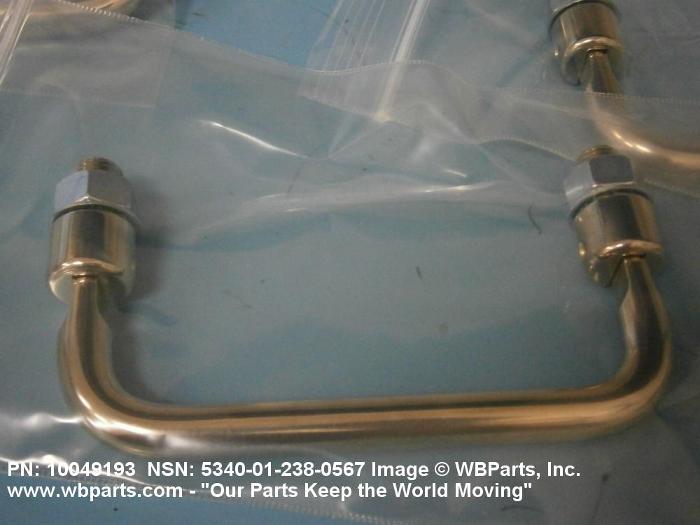

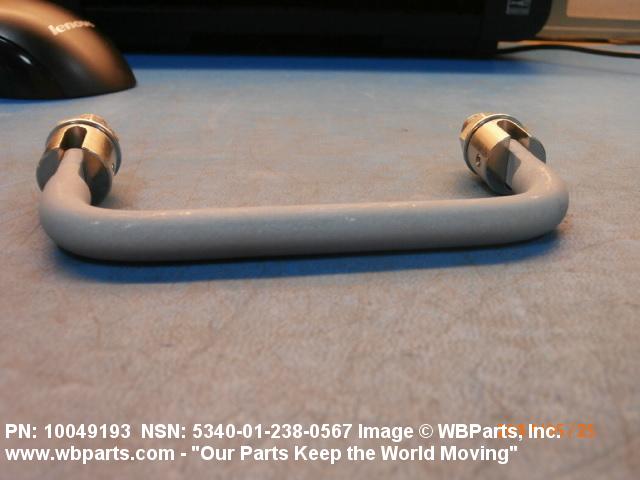

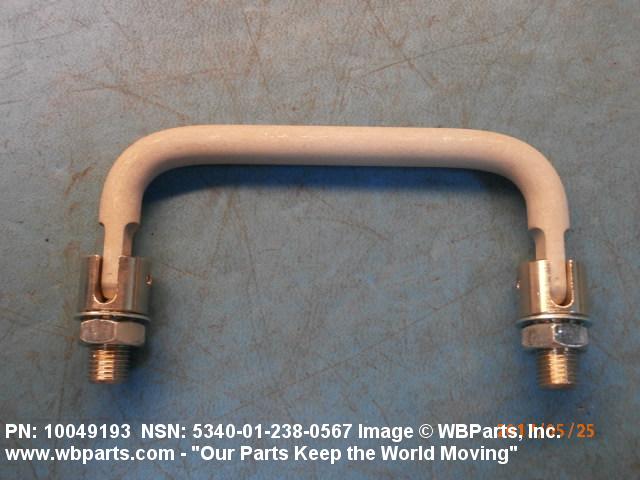

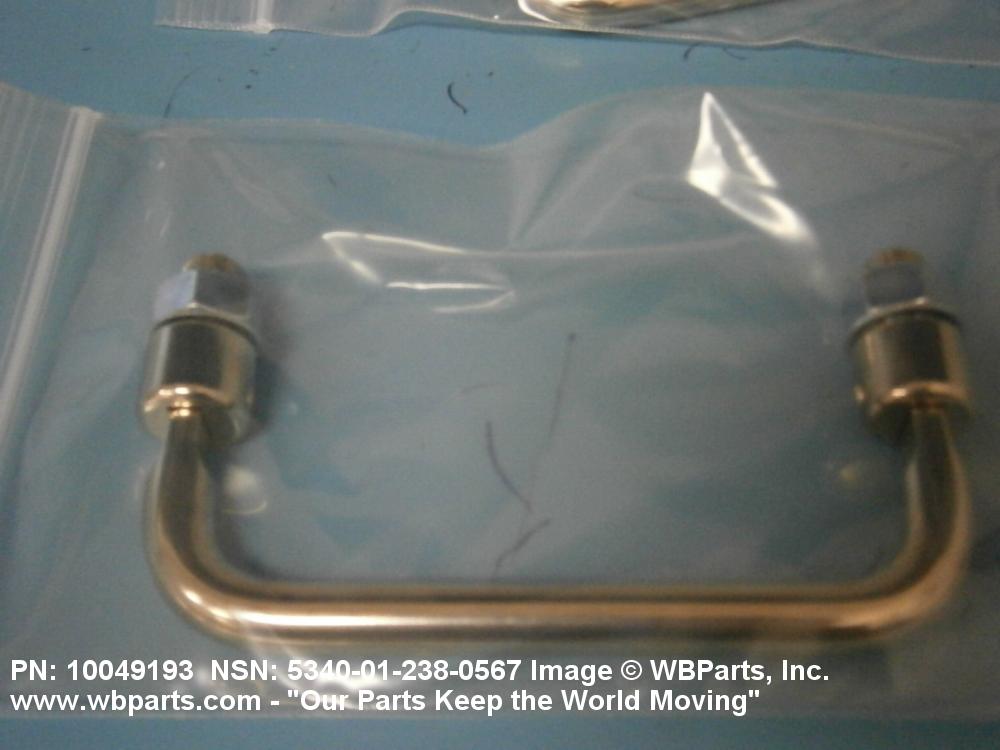

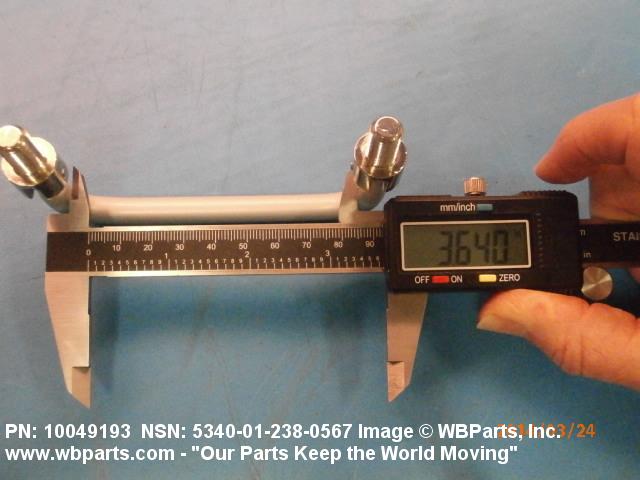

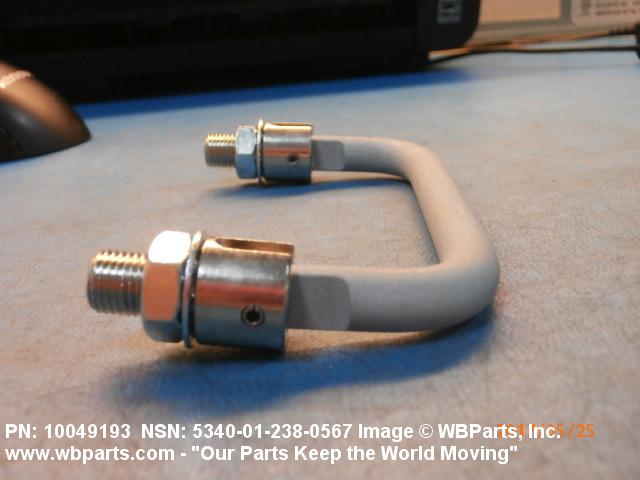

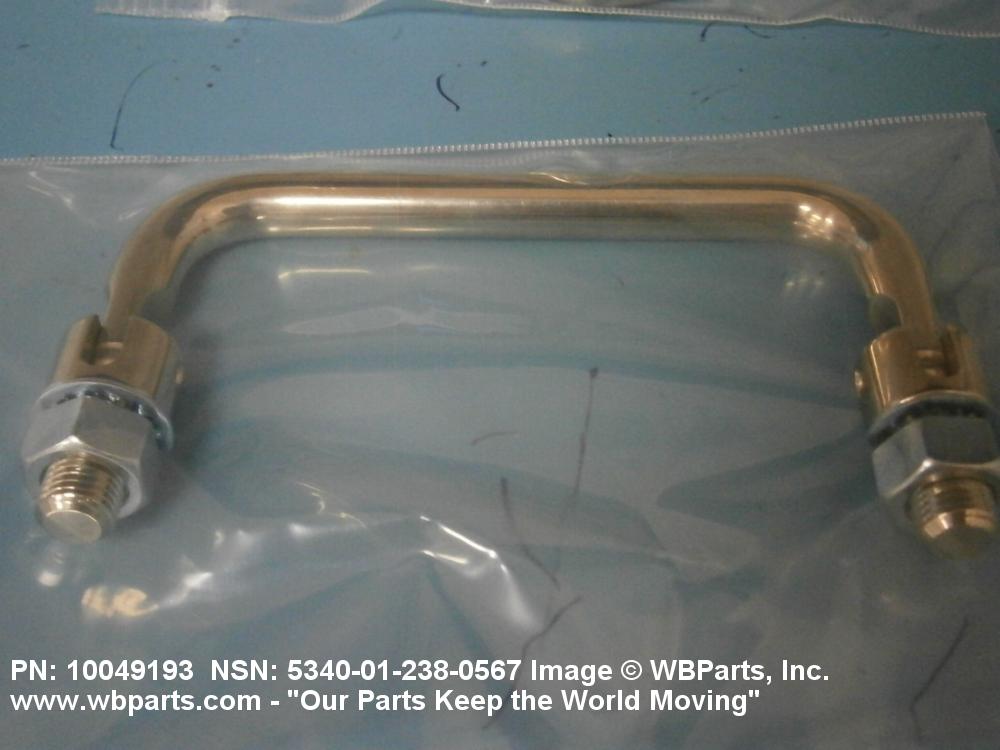

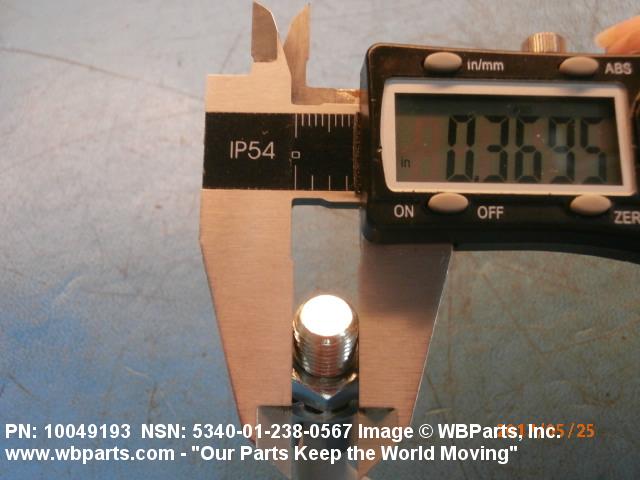

Drawings & Photos | NSN 5340-01-238-0567
Demand History | NSN 5340-01-238-0567
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-238-0567 | 2021-08-31 | 100 | United States |
| 5340-01-238-0567 | 2020-08-10 | 5 | NL |
| 5340-01-238-0567 | 2020-08-10 | 5 | NL |
| 5340-01-238-0567 | 2020-06-12 | 27 | NL |
| 5340-01-238-0567 | 2020-05-06 | 5 | NL |
| 5340-01-238-0567 | 2019-09-30 | 5 | NL |
| 5340-01-238-0567 | 2017-05-11 | 3 | United States |
| 5340-01-238-0567 | 2017-05-11 | 10 | United States |
| 5340-01-238-0567 | 2014-03-19 | 10 | United States |
| 5340-01-238-0567 | 2012-08-24 | 23 | DIBBS |
| 5340-01-238-0567 | 2012-08-02 | 206 | DIBBS |
| 5340-01-238-0567 | 2012-07-19 | 42 | United States |
| 5340-01-238-0567 | 2012-07-06 | 206 | DIBBS |
| 5340-01-238-0567 | 2012-06-29 | 0 | DIBBS |
| 5340-01-238-0567 | 2012-06-29 | 85 | DIBBS |
| 5340-01-238-0567 | 2012-06-29 | 213 | DIBBS |
| 10049193 | 2012-05-01 | 16 | United States |
| 10049193 | 2011-12-09 | 2 | |
| 5340-01-238-0567 | 2011-12-07 | 2 | NATO |
| 5340-01-238-0567 | 2011-08-25 | 105 | DIBBS |
| 5340-01-238-0567 | 2010-12-15 | 150 | DIBBS |
| 5340-01-238-0567 | 2010-12-13 | 100 | DIBBS |
| 5340-01-238-0567 | 2010-09-16 | 2 | RO |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-01-238-0567
Related Products | NSN 5340-01-238-0567
5340-01-238-0574, 5340-01-238-0575, 5340-01-238-0721, 5340-01-238-0724, 5340-01-238-0824
Technical Data | NSN 5340-01-238-0567
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 HANDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6,T4 FED SPEC SINGLE MATERIAL RESPONSE HANDLE |
| SURFACE TREATMENT | ANODIZE HANDLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE HANDLE |
| STYLE DESIGNATOR | A20 EYE HOOK |

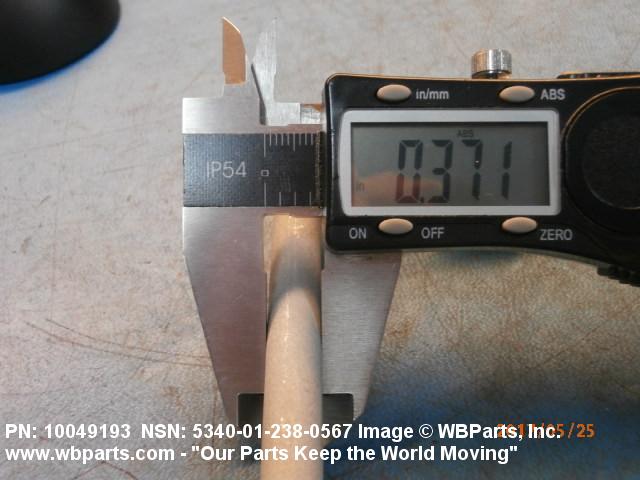

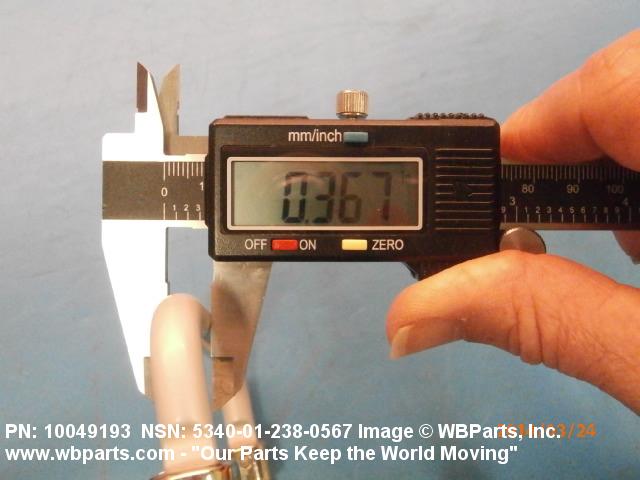

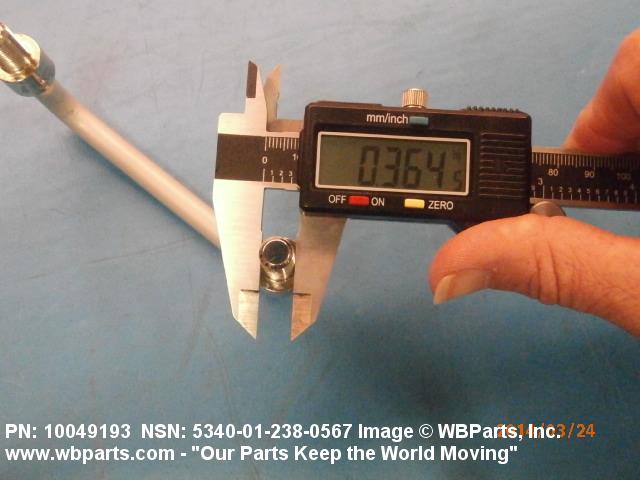

| STOCK DIAMETER | 0.375 INCHES NOMINAL |

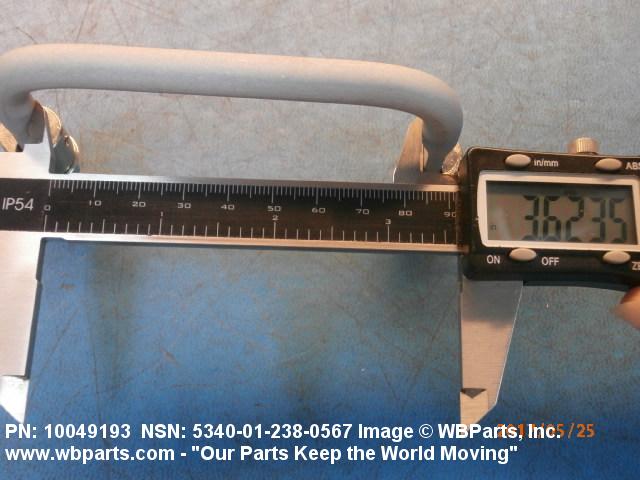

| INSIDE LENGTH | 3.625 INCHES NOMINAL |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING FACILITY QUANTITY | 2 |

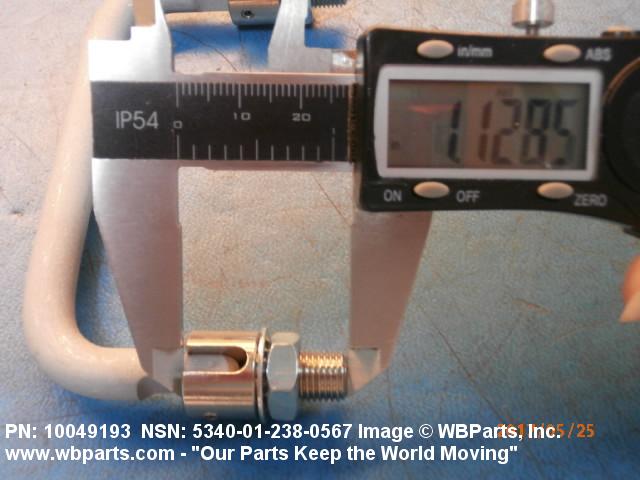

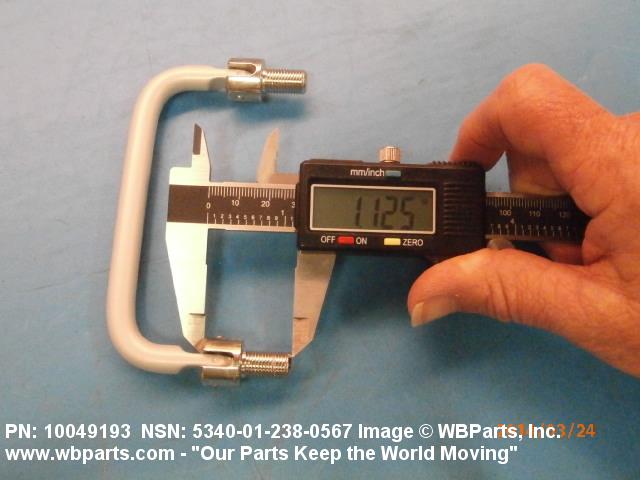

| MOUNTING FACILITY LENGTH | 1.125 INCHES NOMINAL |

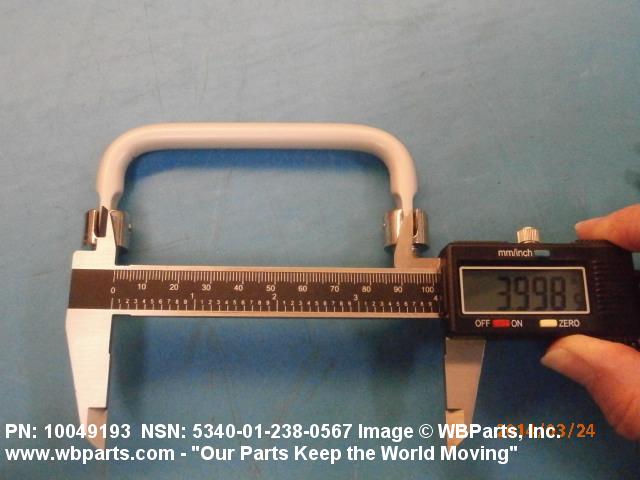

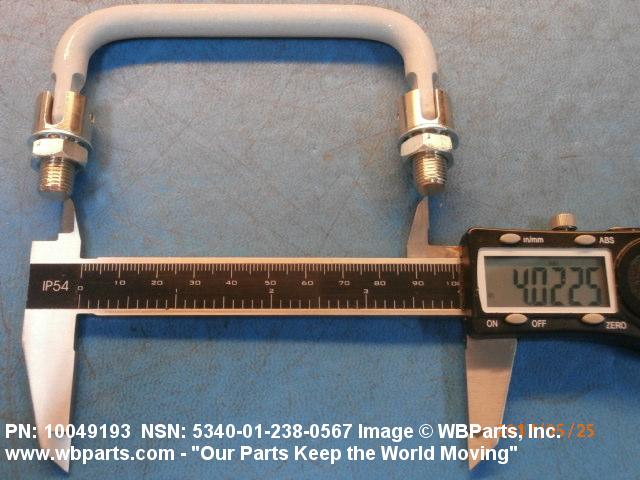

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 4.000 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD CLASS | 2A |
Restrictions/Controls & Freight Information | NSN 5340-01-238-0567
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
