NSN 5340-01-024-6178 2300094-141000.22.0, 2300094141000220, 8346130
Product Details | ROD END CLEVIS
5340-01-024-6178 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 2300094-141000.22.0, 2300094141000220, 8346130, 5340-01-024-6178, 01-024-6178, 5340010246178, 010246178
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JUL 1976 | 01-024-6178 | 03796 ( CLEVIS, ROD END ) |

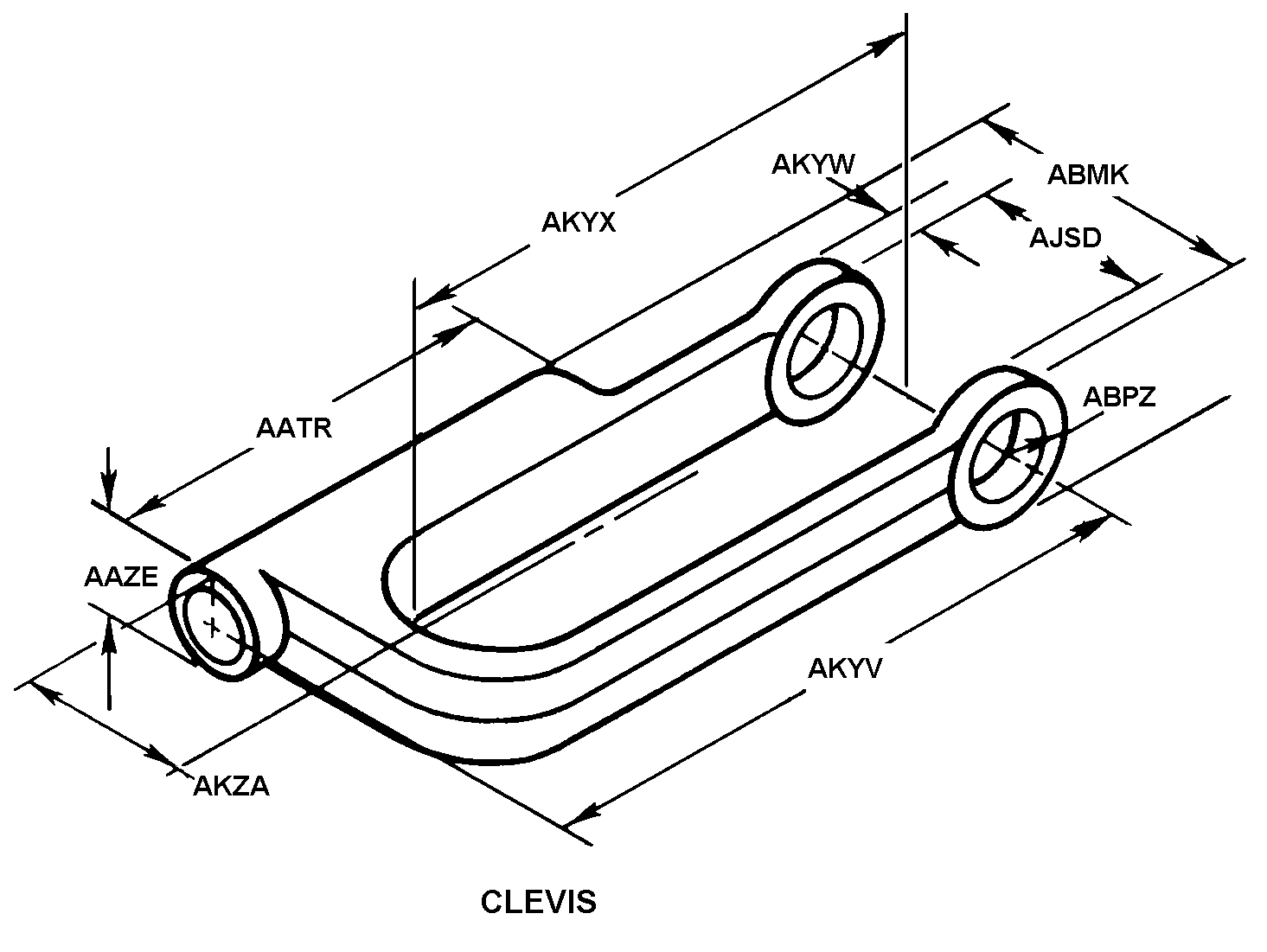

Drawings & Photos | NSN 5340-01-024-6178
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-024-6178
Technical Data | NSN 5340-01-024-6178
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS J03001 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-681,65-35 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.625 INCHES ROD CONNECTION |
| THREAD CLASS | 2B ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 2.250 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 6 CLEVIS |
| SHANK LENGTH | 3.313 INCHES NOMINAL |
| SHANK DIAMETER | 1.062 INCHES NOMINAL |
| OVERALL WIDTH | 1.661 INCHES NOMINAL |
| END RADIUS | 0.311 INCHES NOMINAL |
| OVERALL DIAMETER | 1.062 INCHES NOMINAL |
| FORK SPAN WIDTH | 0.752 INCHES MINIMUM AND 0.757 INCHES MAXIMUM |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 4.938 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.562 INCHES NOMINAL |
| FORK DEPTH | 1.625 INCHES NOMINAL |
| DISTANCE FROM FORK CENTERLINE TO ROD CONNECTION HOLE CENTERLINE | 3.313 INCHES NOMINAL |
| SECURING PIN HOLE DIAMETER | 0.078 INCHES NOMINAL |
| DISTANCE FROM CENTER OF SECURING PIN HOLE TO ROD END | 1.562 INCHES NOMINAL |
| HOLE DIAMETER | 0.623 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 8346130 |
Restrictions/Controls & Freight Information | NSN 5340-01-024-6178
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
