NSN 5340-01-045-4097 P4021559, 01-045-4097, 010454097
Product Details | ROD END CLEVIS
5340-01-045-4097 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: P4021559, 5340-01-045-4097, 01-045-4097, 5340010454097, 010454097
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 AUG 1977 | 01-045-4097 | 03796 ( CLEVIS, ROD END ) |

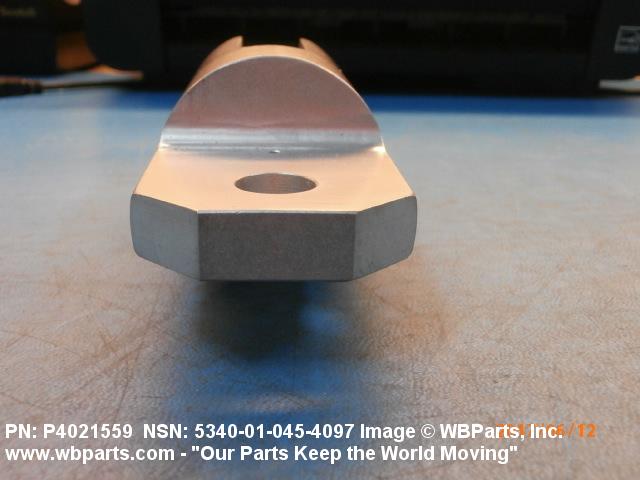

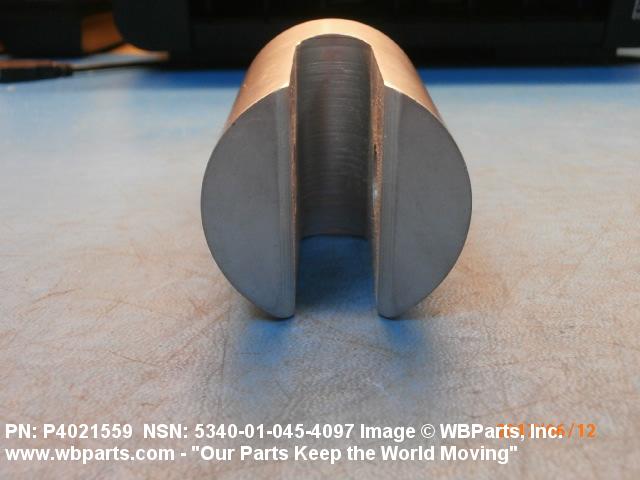

Drawings & Photos | NSN 5340-01-045-4097
Demand History | NSN 5340-01-045-4097
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| P4021559 | 2025-04-112 | 1 | Thailand |
| P4021559 | 2024-11-327 | 1 | Thailand |
| 5340-01-045-4097 | 2019-08-233 | 84 | DIBBS |
| 5340-01-045-4097 | 2017-06-152 | 1 | United States |
| 5340-01-045-4097 | 2017-01-10 | 100 | DIBBS |
| 5340-01-045-4097 | 2016-03-81 | 6 | MANUAL |
| P4021559 | 2016-03-81 | 6 | United States |
| 5340-01-045-4097 | 2012-03-61 | 110 | DIBBS |
| 5340-01-045-4097 | 2011-12-355 | 57 | DIBBS |
| 5340-01-045-4097 | 2010-03-90 | 20 | us |
| P4021559 | 2010-03-90 | 20 | us |
| 5340-01-045-4097 | 2010-02-43 | 132 | DIBBS |
| 5340-01-045-4097 | 2009-08-229 | 52 | DIBBS |
| 5340-01-045-4097 | 2009-08-217 | 54 | DIBBS |
| 5340-01-045-4097 | 2009-06-160 | 42 | DIBBS |
| 5340-01-045-4097 | 2009-01-23 | 172 | DIBBS |
| 5340-01-045-4097 | 2008-04-94 | 241 | DIBBS |
Cross Reference | NSN 5340-01-045-4097
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P4021559 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-045-4097
Related Products | NSN 5340-01-045-4097
Technical Data | NSN 5340-01-045-4097
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| METALLIC HARDNESS RATING | 35.0 MINIMUM ROCKWELL C AND 52.0 MAXIMUM ROCKWELL C |
| SHANK LENGTH | 1.940 INCHES NOMINAL |

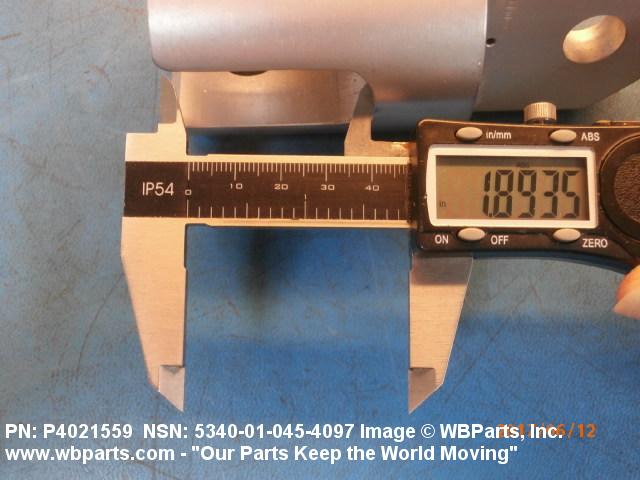

| OVERALL HEIGHT | 1.980 INCHES MINIMUM AND 2.000 INCHES MAXIMUM |
| OVERALL WIDTH | 1.980 INCHES MINIMUM AND 2.000 INCHES MAXIMUM |

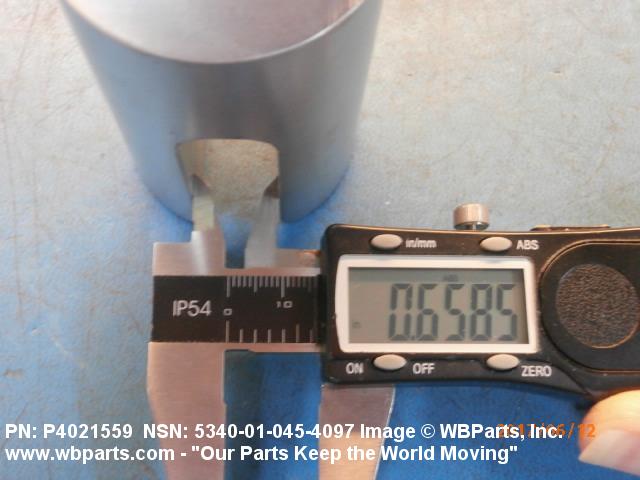

| FORK SPAN WIDTH | 0.640 INCHES MINIMUM AND 0.660 INCHES MAXIMUM |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 4.000 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.660 INCHES MINIMUM AND 0.680 INCHES MAXIMUM |
| FORK DEPTH | 1.120 INCHES MINIMUM AND 1.180 INCHES MAXIMUM |

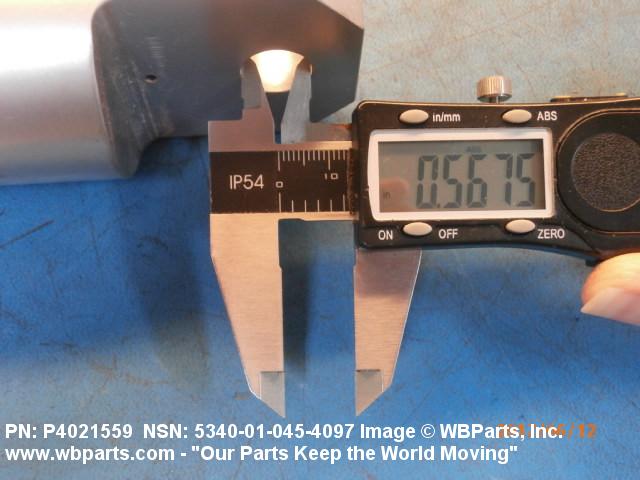

| SECURING PIN HOLE DIAMETER | 0.562 INCHES MINIMUM AND 0.578 INCHES MAXIMUM |
| DISTANCE FROM CENTER OF SECURING PIN HOLE TO ROD END | 0.531 INCHES MINIMUM AND 0.539 INCHES MAXIMUM |
| HOLE DIAMETER | 0.562 INCHES MINIMUM AND 0.578 INCHES MAXIMUM |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | P4021559 |
Restrictions/Controls & Freight Information | NSN 5340-01-045-4097
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094140 | CLEVISES IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-045-4097
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
