NSN 5340-01-099-0618 2790264005, 27-90264-005, 27902645
Product Details | ROD END CLEVIS
5340-01-099-0618 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 2790264005, 27-90264-005, 27902645, 27-90264-5, 5340-01-099-0618, 01-099-0618, 5340010990618, 010990618
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-099-0618 | 03796 ( CLEVIS, ROD END ) |

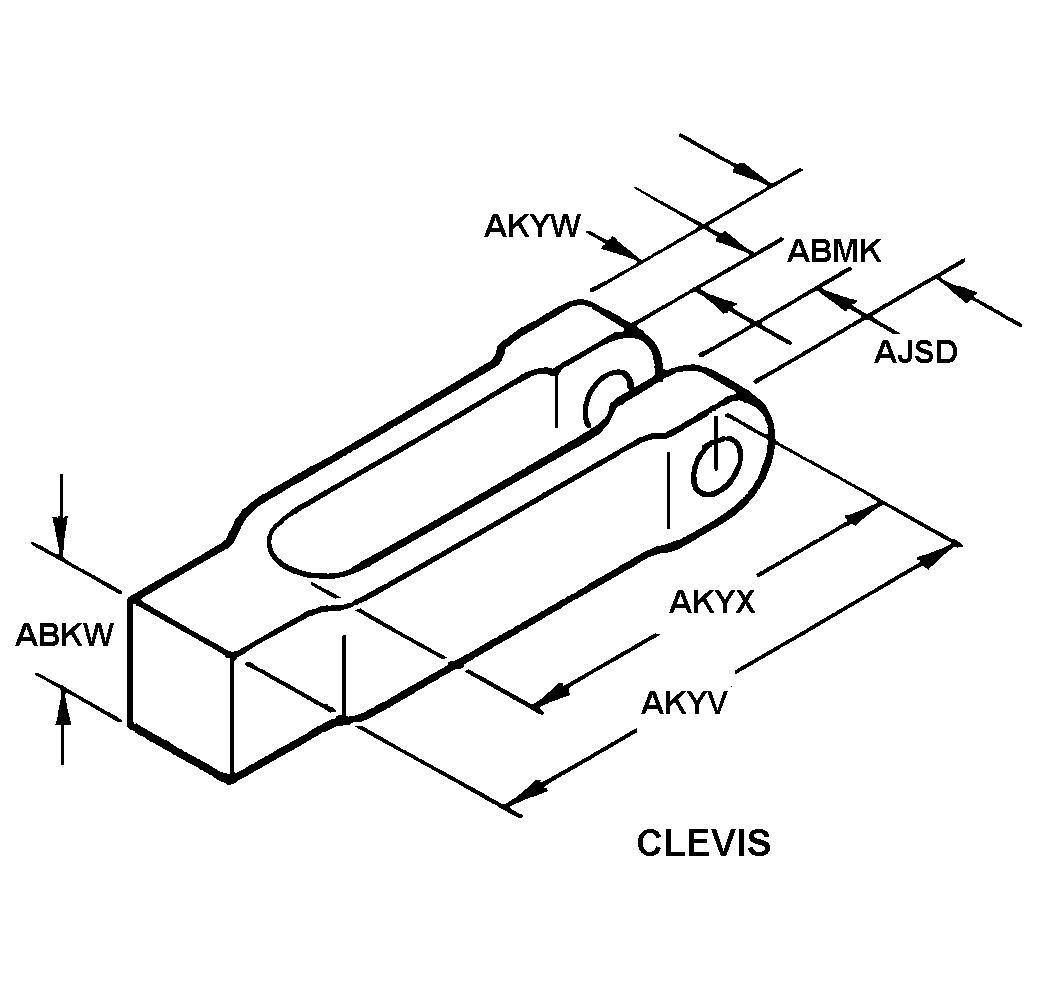

Drawings & Photos | NSN 5340-01-099-0618
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-099-0618
Technical Data | NSN 5340-01-099-0618
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/8 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.250 INCHES ROD CONNECTION |
| THREAD CLASS | 3B ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 0.500 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 33 CLEVIS |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| FORK SPAN WIDTH | 0.190 INCHES MINIMUM AND 0.194 INCHES MAXIMUM |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 1.190 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.280 INCHES NOMINAL |
| FORK DEPTH | 0.565 INCHES NOMINAL |
| ROD CONNECTION BORE DIAMETER | 0.190 INCHES MINIMUM AND 0.194 INCHES MAXIMUM |
| ROD CONNECTION BORE DEPTH | 0.525 INCHES NOMINAL |
| MANUFACTURERS CODE | 51179 |
| DESIGN CONTROL REFERENCE | 27-90264-5 |
