NSN 5340-01-131-9784 70400-06638-043, 01-131-9784, 7040006638043
Product Details | ROD END CLEVIS

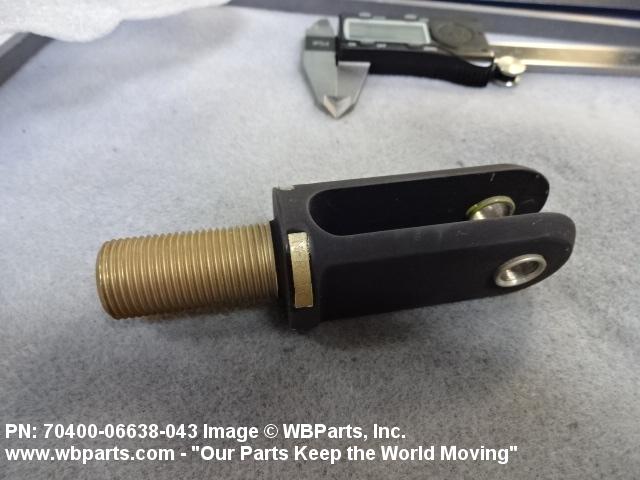

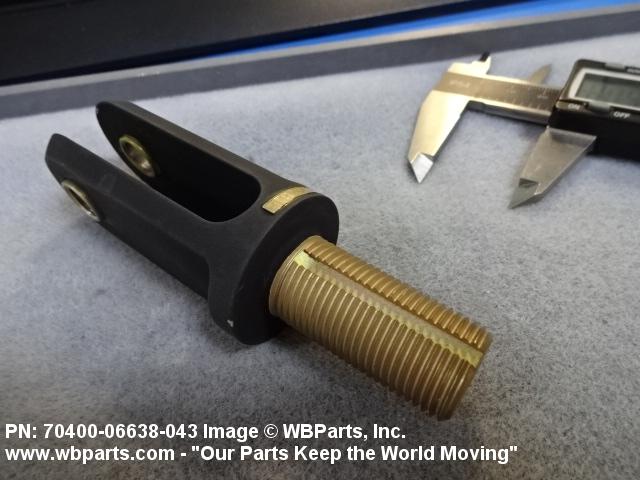

5340-01-131-9784 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 70400-06638-043, 5340-01-131-9784, 01-131-9784, 5340011319784, 7040006638043, 011319784
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 MAY 1982 | 01-131-9784 | 03796 ( CLEVIS, ROD END ) |

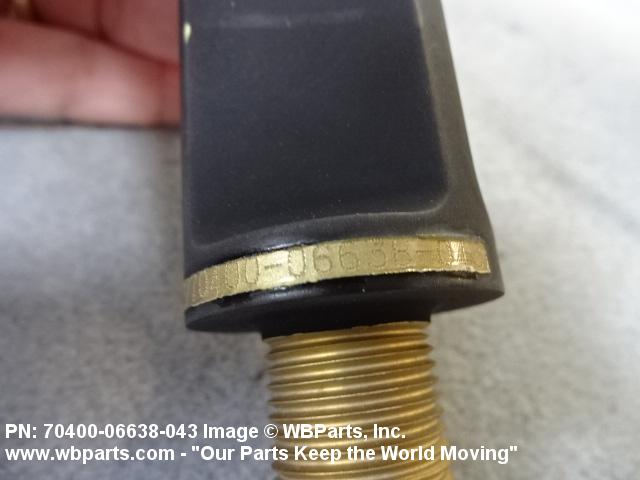

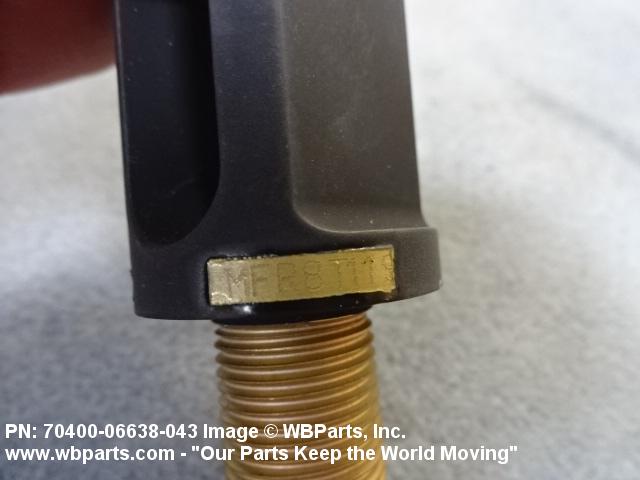

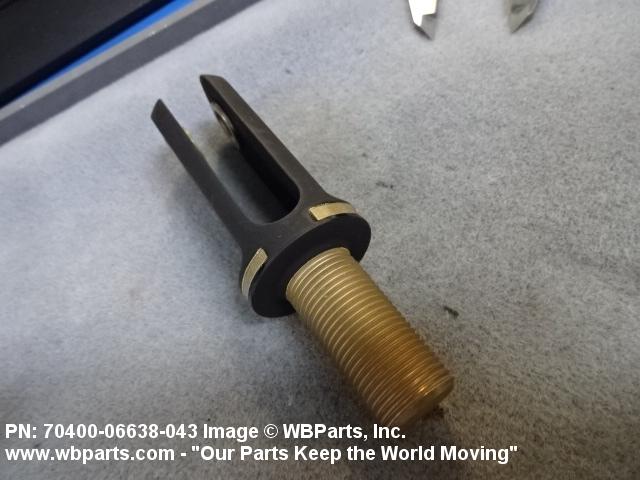

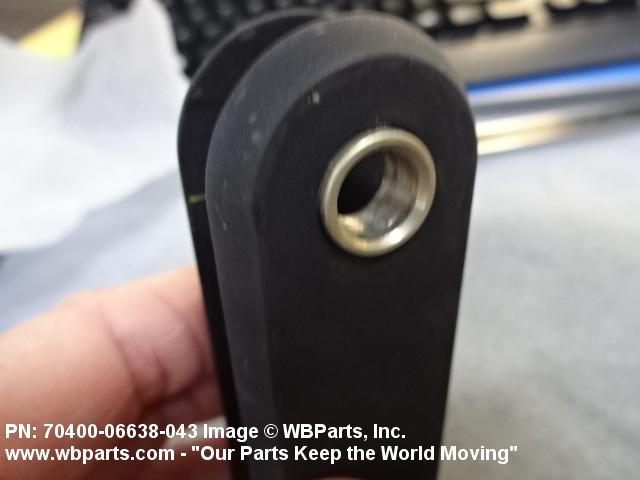

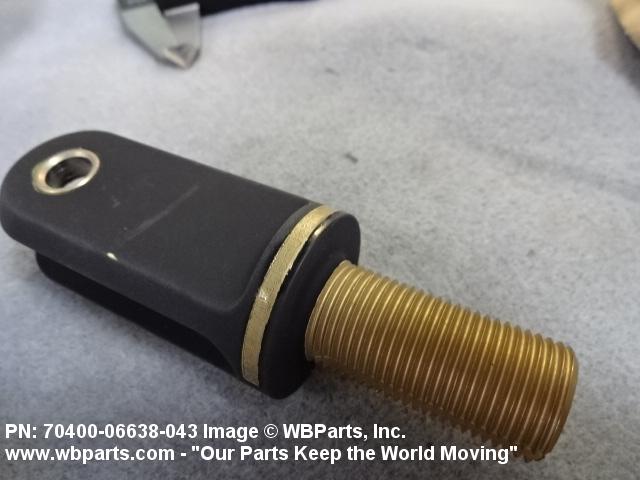

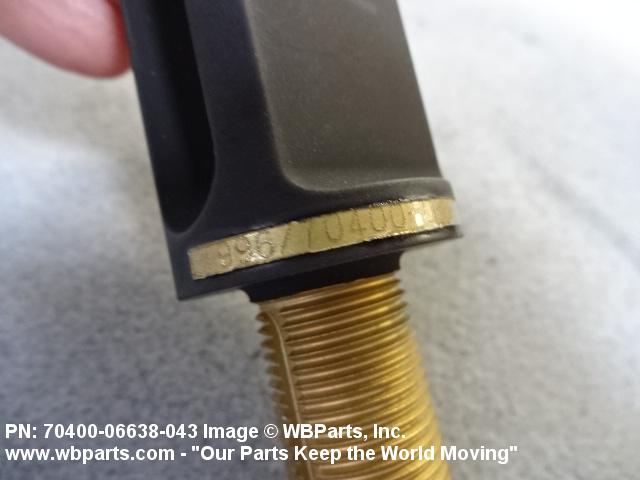

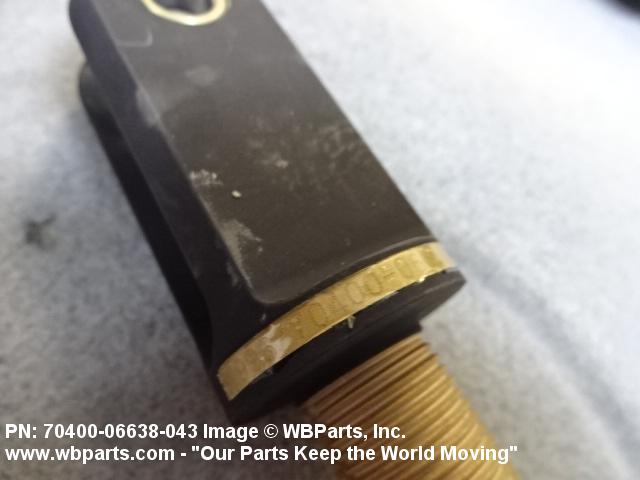

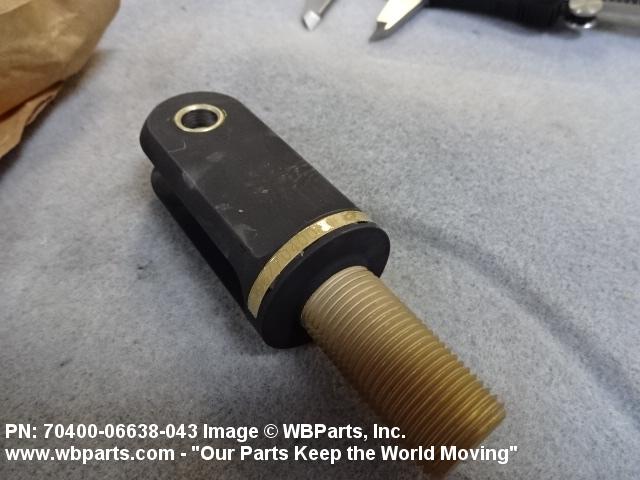

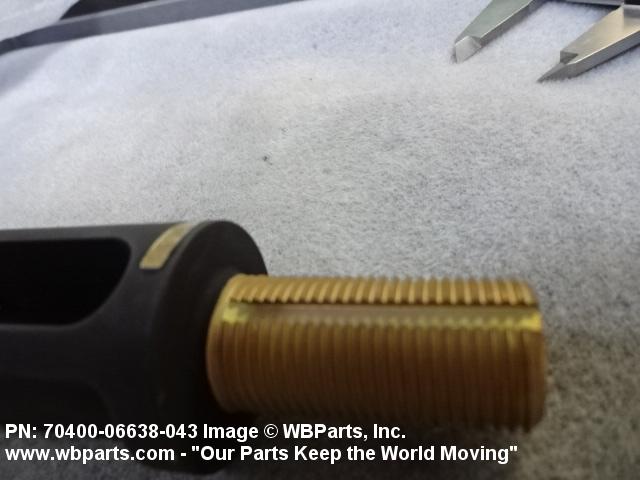

Drawings & Photos | NSN 5340-01-131-9784
Demand History | NSN 5340-01-131-9784
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 70400-06638-043 | 2025-09-246 | 298 | DIBBS |
| 70400-06638-043 | 2025-08-219 | 116 | DIBBS |
| 70400-06638-043 | 2024-07-196 | 127 | DIBBS |
| 70400-06638-043 | 2024-01-28 | 101 | DIBBS |
| 70400-06638-043 | 2023-09-270 | 44 | DIBBS |
| 70400-06638-043 | 2022-11-328 | 257 | DIBBS |
| 70400-06638-043 | 2022-10-293 | 192 | DIBBS |
| 70400-06638-043 | 2022-03-80 | 221 | DIBBS |
| 70400-06638-043 | 2022-03-68 | 51 | DIBBS |
| 70400-06638-043 | 2022-02-33 | 26 | DIBBS |
| 70400-06638-043 | 2021-10-286 | 68 | DIBBS |
| 5340-01-131-9784 | 2021-06-154 | 1 | Taiwan |
| 70400-06638-043 | 2021-05-146 | 76 | DIBBS |
| 5340-01-131-9784 | 2020-12-355 | 219 | DIBBS |
| 5340-01-131-9784 | 2020-06-155 | 219 | DIBBS |
| 5340-01-131-9784 | 2020-04-120 | 251 | DIBBS |
| 5340-01-131-9784 | 2020-04-112 | 251 | DIBBS |
| 5340-01-131-9784 | 2019-03-79 | 251 | DIBBS |
| 5340-01-131-9784 | 2018-05-130 | 2 | United States |
| 7040-00-663-8043 | 2017-04-100 | 2 | Canada |
Cross Reference | NSN 5340-01-131-9784
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70400-06638-043 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-131-9784
Related Products | NSN 5340-01-131-9784
Technical Data | NSN 5340-01-131-9784

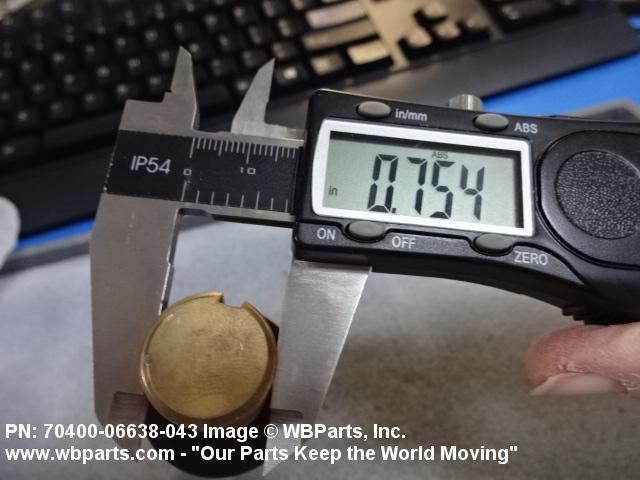

| Characteristic | Specifications |
|---|---|
| METALLIC HARDNESS RATING | 34.0 MINIMUM ROCKWELL C AND 38.0 MAXIMUM ROCKWELL C |
| THREAD SERIES DESIGNATOR | UNJF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.750 INCHES ROD CONNECTION |
| THREAD CLASS | 3A ROD CONNECTION |

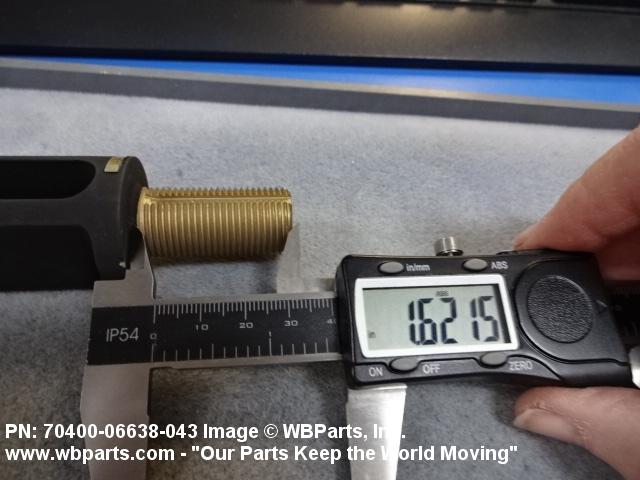

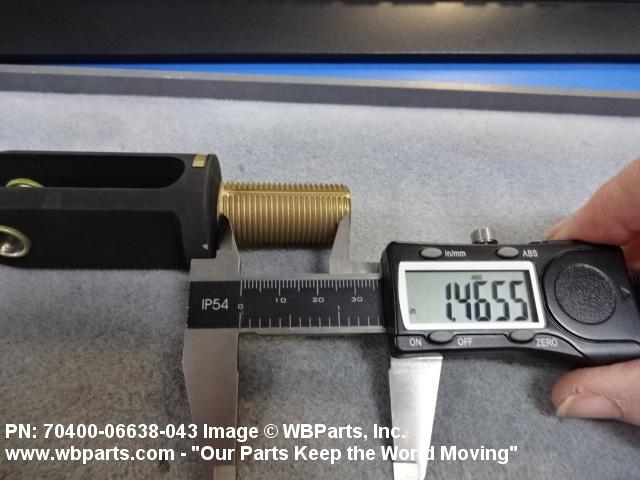

| THREAD LENGTH | 1.465 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 25 CLEVIS |
| SHANK LENGTH | 1.620 INCHES NOMINAL |

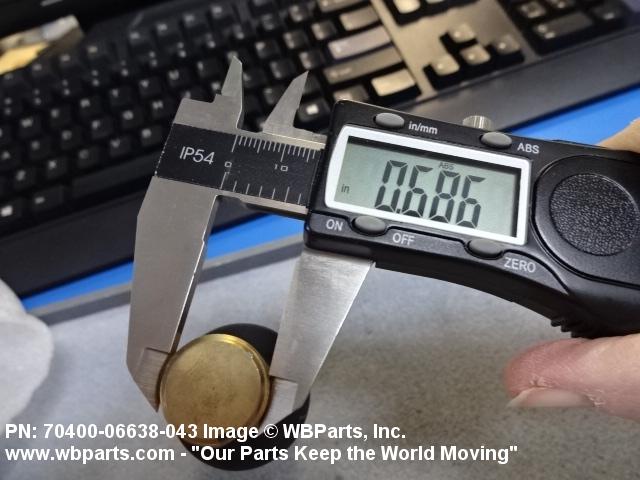

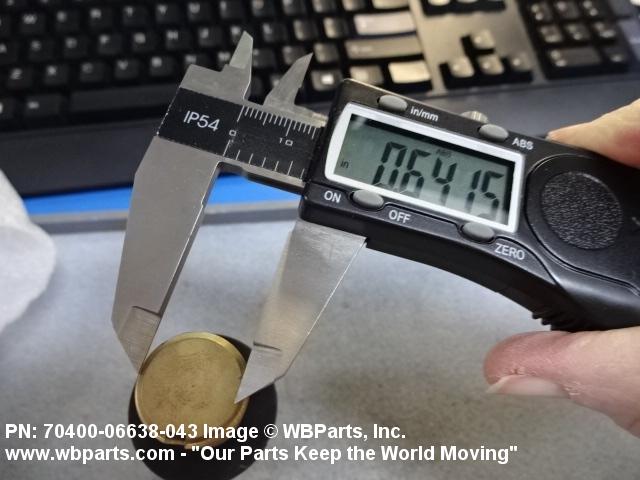

| END RADIUS | 0.688 INCHES NOMINAL |

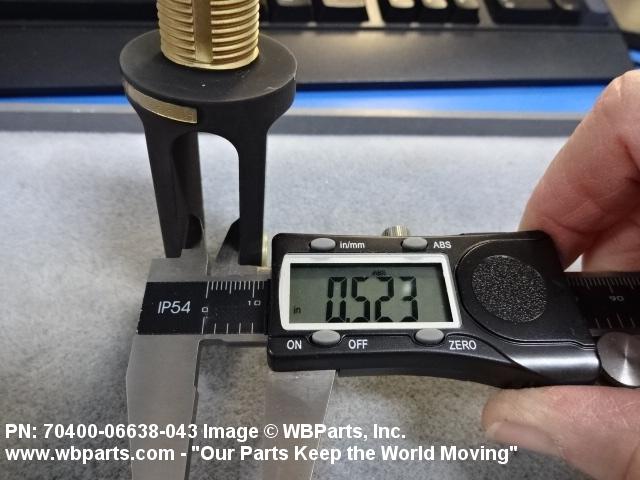

| FORK SPAN WIDTH | 0.526 INCHES NOMINAL |

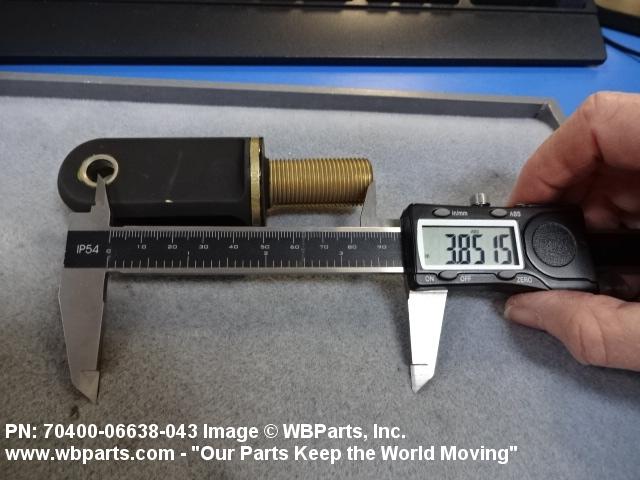

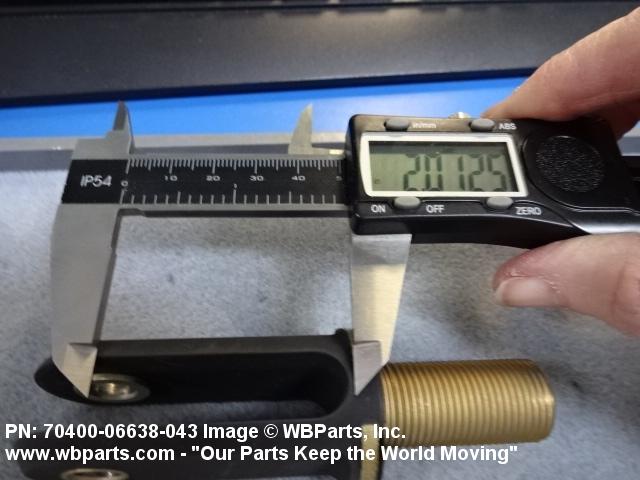

| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 3.850 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.200 INCHES NOMINAL |
| FORK DEPTH | 2.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | 70400-06638-043 |
Restrictions/Controls & Freight Information | NSN 5340-01-131-9784
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094140 | CLEVISES IRON/STEEL |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
