NSN 5340-01-137-3788 70400-06638-044, 01-137-3788, 7040006638044
Product Details | ROD END CLEVIS
5340-01-137-3788 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 70400-06638-044, 5340-01-137-3788, 01-137-3788, 5340011373788, 7040006638044, 011373788
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 AUG 1982 | 01-137-3788 | 03796 ( CLEVIS, ROD END ) |

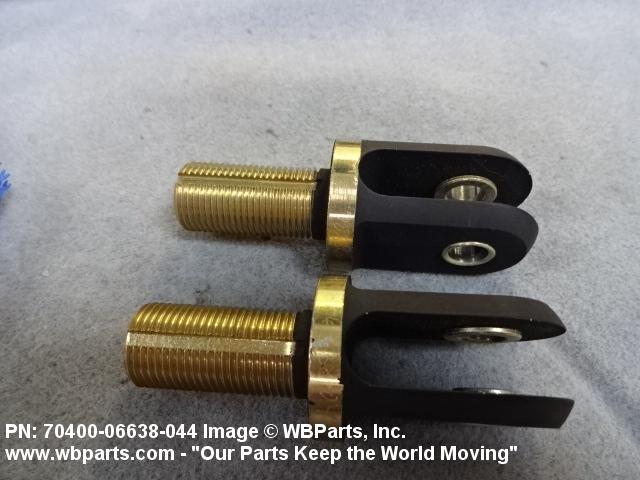

Drawings & Photos | NSN 5340-01-137-3788
Demand History | NSN 5340-01-137-3788
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-137-3788 | 2026-02-41 | 11 | United States |
| 70400-06638-044 | 2025-07-183 | 86 | DIBBS |
| 70400-06638-044 | 2025-06-170 | 42 | DIBBS |
| 70400-06638-044 | 2025-06-168 | 86 | DIBBS |
| 70400-06638-044 | 2025-06-156 | 62 | DIBBS |
| 70400-06638-044 | 2024-06-172 | 205 | DIBBS |
| 70400-06638-044 | 2024-05-151 | 142 | DIBBS |
| 70400-06638-044 | 2024-04-102 | 63 | DIBBS |
| 70400-06638-044 | 2023-12-341 | 45 | DIBBS |
| 5340-01-137-3788 | 2021-06-154 | 1 | Taiwan |
| 5340-01-137-3788 | 2020-04-94 | 10 | US |
| 7040-00-663-8044 | 2020-04-94 | 10 | US |
| 70400-06638-044 | 2019-01-30 | 91 | DIBBS |
| 5340-01-137-3788 | 2018-12-359 | 170 | DIBBS |
| 5340-01-137-3788 | 2018-11-324 | 80 | DIBBS |
| 5340-01-137-3788 | 2018-09-249 | 88 | DIBBS |
| 5340-01-137-3788 | 2018-06-166 | 69 | DIBBS |
| 5340-01-137-3788 | 2018-06-158 | 69 | DIBBS |
| 5340-01-137-3788 | 2017-09-250 | 63 | DIBBS |
| 5340-01-137-3788 | 2017-07-188 | 140 | DIBBS |
| 5340-01-137-3788 | 2017-06-180 | 140 | DIBBS |
| 5340-01-137-3788 | 2017-06-177 | 63 | DIBBS |
| 5340-01-137-3788 | 2017-06-169 | 63 | DIBBS |
| 7040-00-663-8044 | 2017-04-100 | 2 | Canada |
| 5340-01-137-3788 | 2014-11-315 | 8 | DIBBS |
| 5340-01-137-3788 | 2014-09-264 | 245 | DIBBS |
| 5340-01-137-3788 | 2014-08-229 | 123 | DIBBS |
| 5340-01-137-3788 | 2014-04-93 | 78 | DIBBS |
| 5340-01-137-3788 | 2013-08-224 | 73 | DIBBS |
| 5340-01-137-3788 | 2011-04-119 | 183 | DIBBS |
| 5340-01-137-3788 | 2011-03-66 | 110 | DIBBS |
| 5340-01-137-3788 | 2010-09-244 | 375 | DIBBS |
| 5340-01-137-3788 | 2010-06-160 | 125 | DIBBS |
| 5340-01-137-3788 | 2010-04-91 | 150 | DIBBS |
| 5340-01-137-3788 | 2009-09-246 | 100 | DIBBS |
| 5340-01-137-3788 | 2009-06-174 | 70 | DIBBS |
| 5340-01-137-3788 | 2009-06-160 | 145 | DIBBS |
| 5340-01-137-3788 | 2009-06-160 | 23 | DIBBS |
| 5340-01-137-3788 | 2009-03-64 | 94 | DIBBS |
| 5340-01-137-3788 | 2009-01-07 | 172 | DIBBS |
| 5340-01-137-3788 | 2008-08-224 | 212 | DIBBS |
| 5340-01-137-3788 | 2008-06-178 | 247 | DIBBS |
Cross Reference | NSN 5340-01-137-3788
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70400-06638-044 | 1HP47 | ATHENS INDUSTRIES, INC. |
| 70400-06638-044 | 5P733 | AERO SWAGE LTD DBA AERO-SWAGE |
| 70400-06638-044 | 60763 | CCB INDUSTRIES INC. |
| 70400-06638-044 | 63095 | SAI INDUSTRIES, INC |
| 70400-06638-044 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| 70400-06638-044 | 8T119 | G. M. J. MACHINE COMPANY, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-137-3788
Related Products | NSN 5340-01-137-3788
Technical Data | NSN 5340-01-137-3788
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| METALLIC HARDNESS RATING | 34.0 MINIMUM ROCKWELL C AND 38.0 MAXIMUM ROCKWELL C |
| THREAD SERIES DESIGNATOR | UNJF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.750 INCHES ROD CONNECTION |
| THREAD CLASS | 3A ROD CONNECTION |
| STYLE DESIGNATOR | 24 CLEVIS |

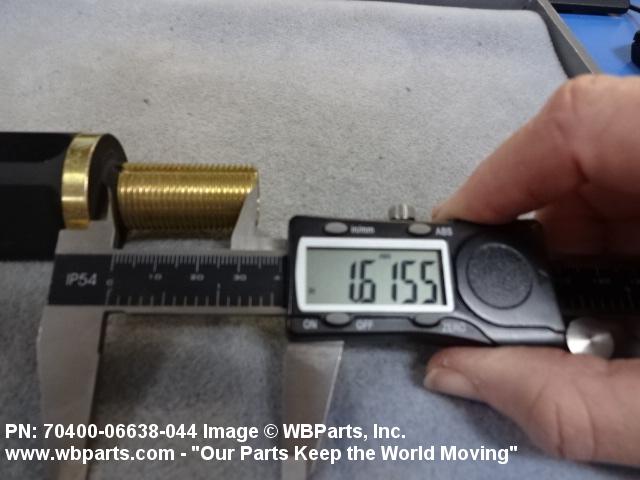

| SHANK LENGTH | 1.605 INCHES NOMINAL |

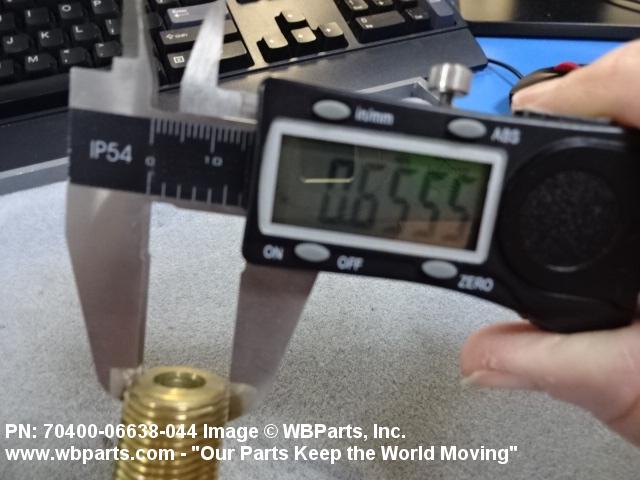

| WIDTH ACROSS FLATS | 0.658 INCHES MINIMUM AND 0.663 INCHES MAXIMUM |

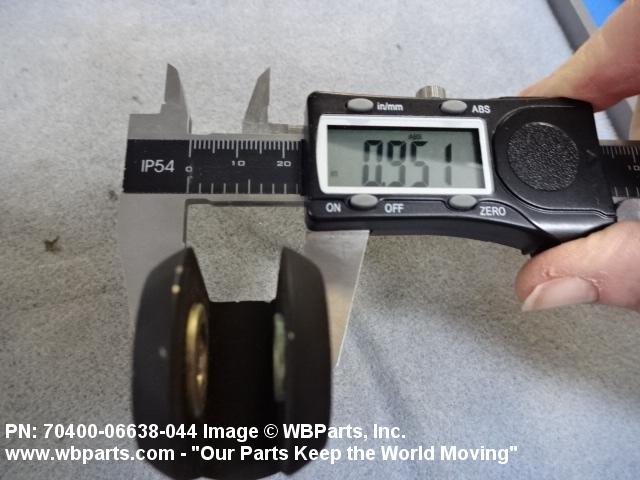

| OVERALL WIDTH | 0.926 INCHES NOMINAL |
| END RADIUS | 0.688 INCHES NOMINAL |

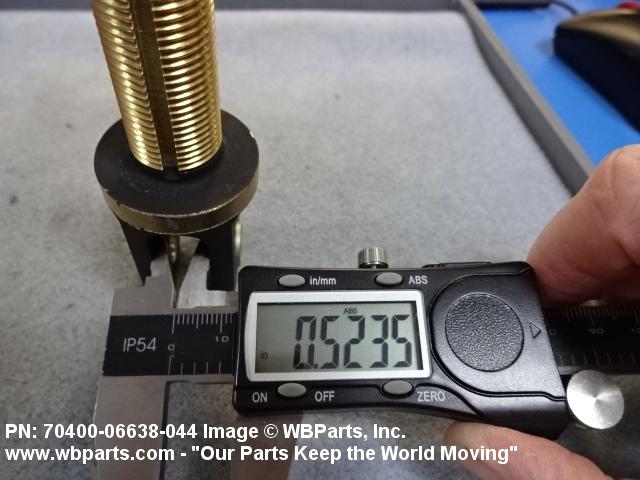

| FORK SPAN WIDTH | 0.526 INCHES NOMINAL |

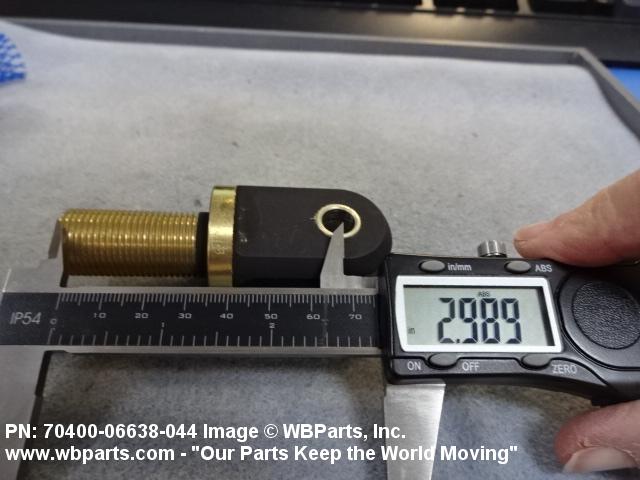

| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 2.980 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.200 INCHES NOMINAL |
| FORK DEPTH | 1.125 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | W/S: HELICOPTER, UH-60A/UH-60D; HELICOPTER, BLACK HAWK UH-60A; HELICOPTER, ELECTRONIC COUNTERMEASURES, EH-60A; HH-60L MEDIVAC |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | 70400-06638-044 |
Restrictions/Controls & Freight Information | NSN 5340-01-137-3788
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094140 | CLEVISES IRON/STEEL |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-137-3788
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | F | If condemned or uneconomically repairable, then dispose at Direct Support (DS) level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
