NSN 5340-01-218-3596 MS3581210, MS35812-10, 68D151306

Product Details | ROD END CLEVIS

5340-01-218-3596 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial

Part Alternates: MS3581210, MS35812-10, 68D151306, 68D1513062037, 68D151306-2037, 5340-01-218-3596, 01-218-3596, 5340012183596, 012183596

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	10 OCT 1985	01-218-3596	03796 ( CLEVIS, ROD END )

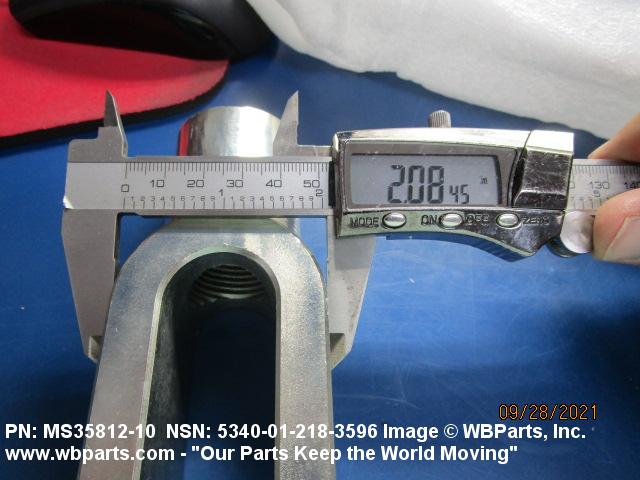

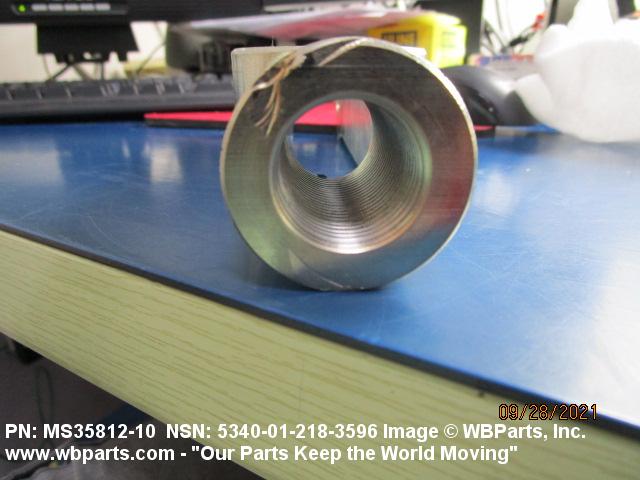

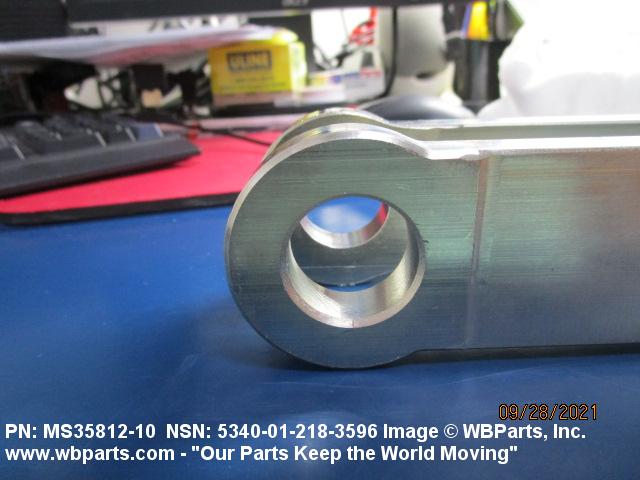

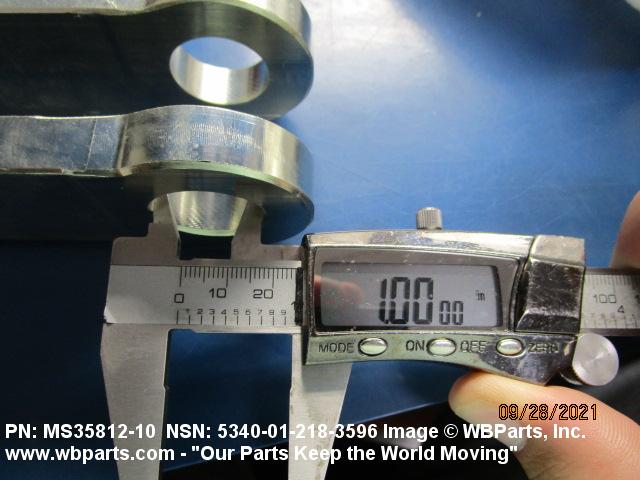

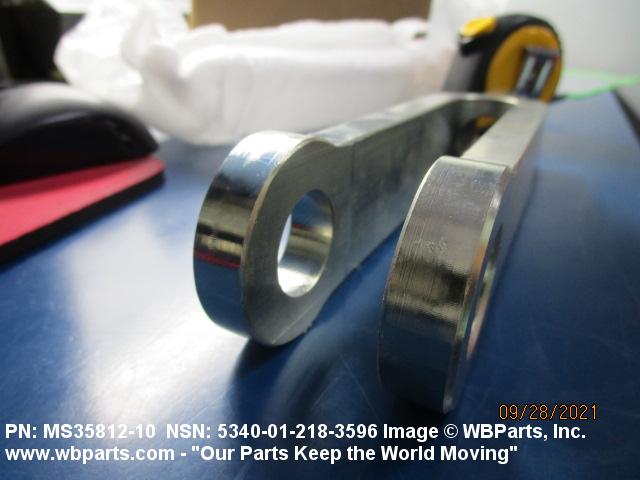

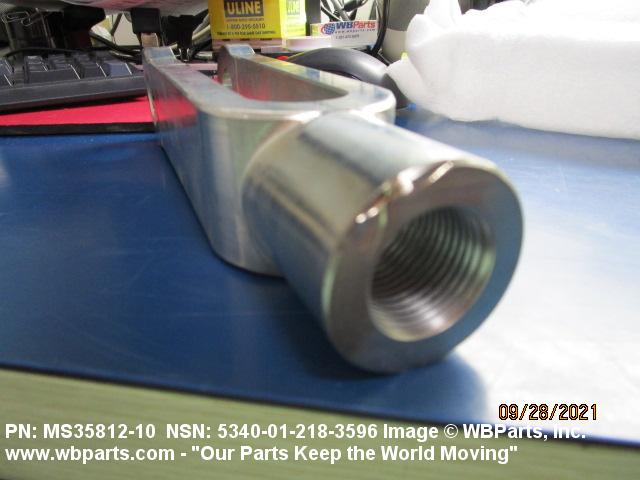

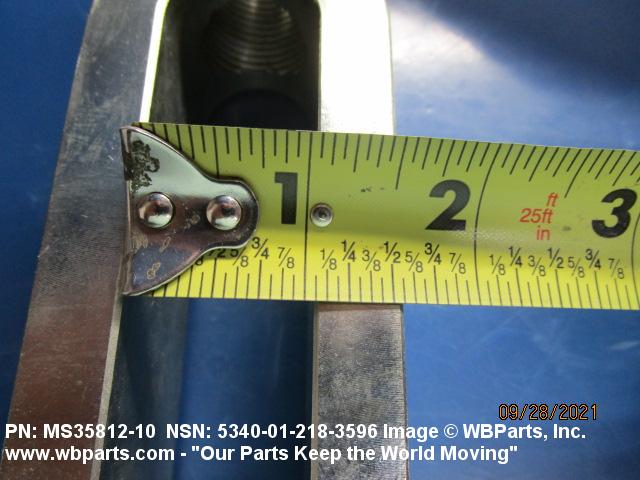

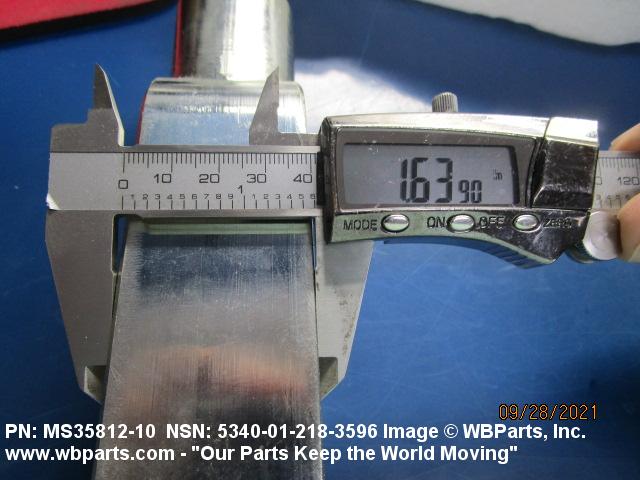

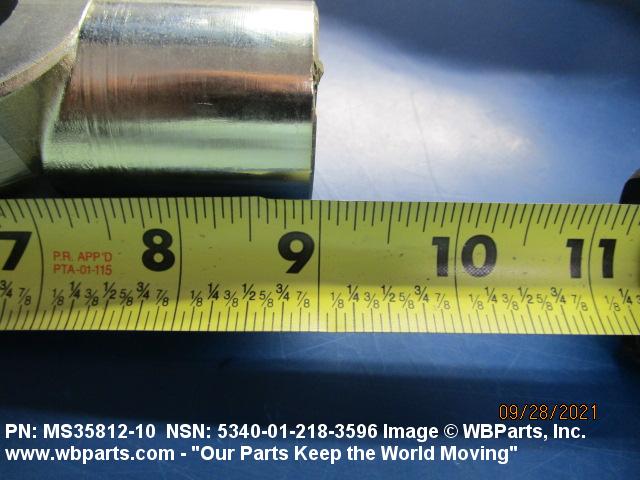

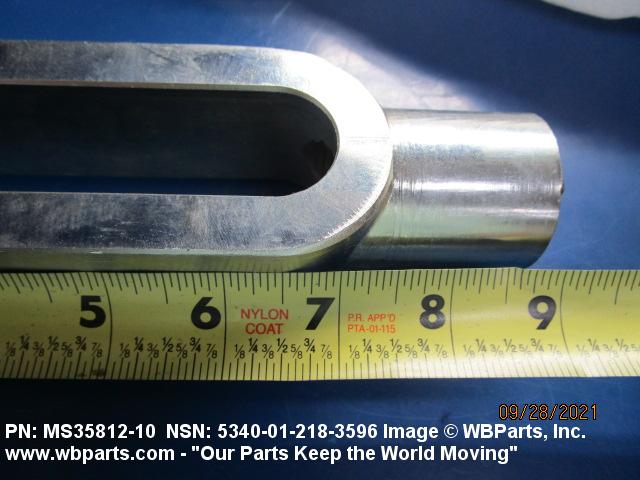

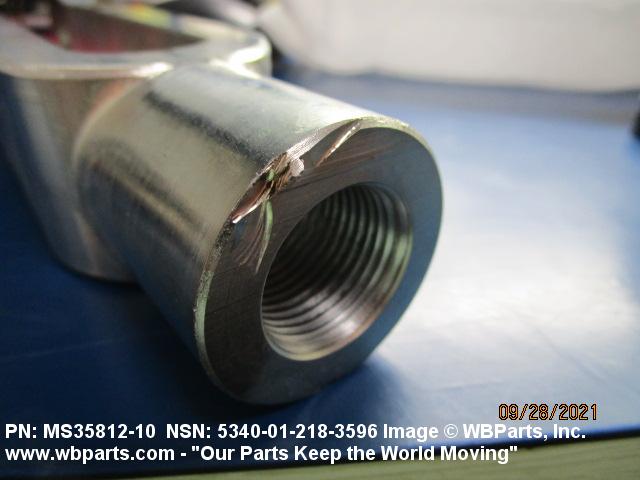

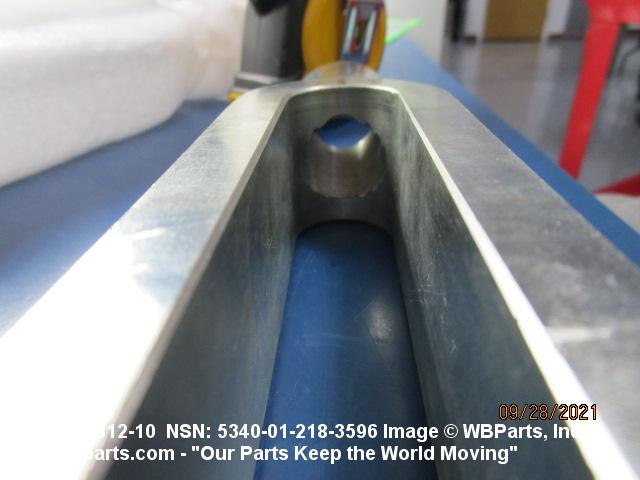

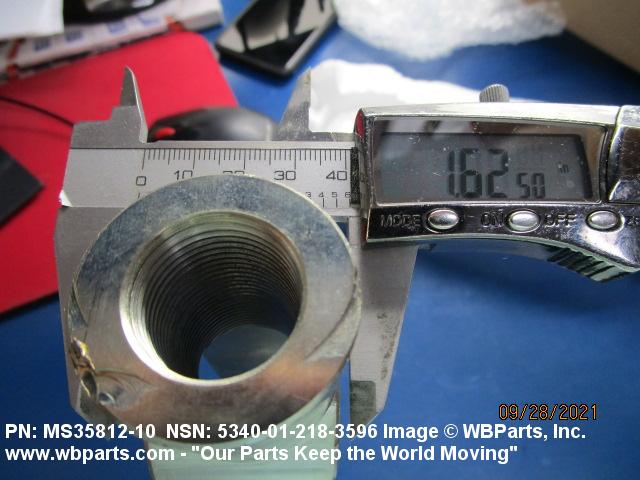

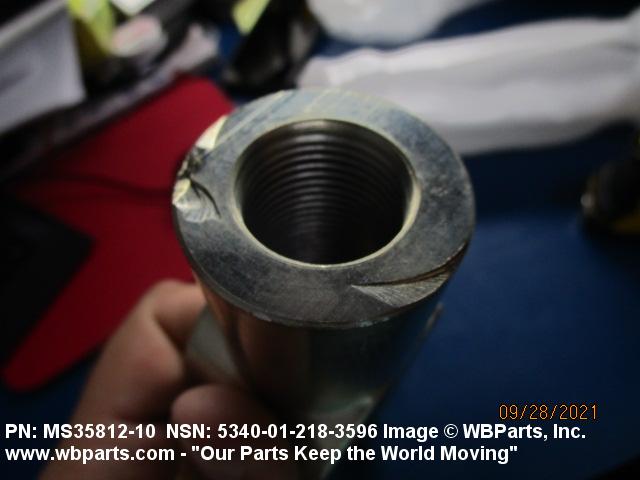

Drawings & Photos | NSN 5340-01-218-3596

Part Number	Request Date	QTY	Origin
MS3581210	2021-06-169	8	United States
MS3581210	2016-09-263	18	US
MS3581210	2009-11-327	4	US
MS3581210	2009-11-327	4	US

Cross Reference | NSN 5340-01-218-3596

Part Number	Cage Code	Manufacturer
68D151306	76301	BOEING COMPANY, THE DBA BOEING
68D151306-2037	76301	BOEING COMPANY, THE DBA BOEING
MS35812-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
