NSN 5340-01-502-4415 3C3461, 3C3461P10, 01-502-4415

Product Details | ROD END CLEVIS

5340-01-502-4415 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial

Part Alternates: 3C3461, 3C3461P10, 5340-01-502-4415, 01-502-4415, 5340015024415, 015024415

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	06 NOV 2002	01-502-4415	03796 ( CLEVIS, ROD END )

Drawings & Photos | NSN 5340-01-502-4415

Part Number	Request Date	QTY	Origin
3C3461P10	2026-01-22	24	DIBBS
3C3461P10	2025-06-154	26	DIBBS
3C3461P10	2025-05-140	26	DIBBS
3C3461P10	2025-05-132	26	DIBBS
3C3461P10	2022-12-361	2	Saudi Arabia
5340-01-502-4415	2022-12-361	2	MANUAL
5340-01-502-4415	2013-07-183	35	DIBBS
5340-01-502-4415	2013-05-135	35	DIBBS
5340-01-502-4415	2012-10-288	2	DIBBS
5340-01-502-4415	2009-05-141	6	DIBBS
5340-01-502-4415	2009-05-140	10	DIBBS
5340-01-502-4415	2009-01-14	6	DIBBS
5340-01-502-4415	2008-10-304	2	DIBBS
5340-01-502-4415	2008-07-189	4	DIBBS
5340-01-502-4415	2008-05-148	6	DIBBS

Cross Reference | NSN 5340-01-502-4415

Part Number	Cage Code	Manufacturer
3C3461	07482	GENERAL ELECTRIC COMPANY DBA GE
3C3461P10	07482	GENERAL ELECTRIC COMPANY DBA GE
3C3461P10	5QE71	RHINESTAHL CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-502-4415

Compare

Related Products | NSN 5340-01-502-4415

5340-01-502-4448, 5340-01-502-4530, 5340-01-502-4531, 5340-01-502-4533, 5340-01-502-4542

Technical Data | NSN 5340-01-502-4415

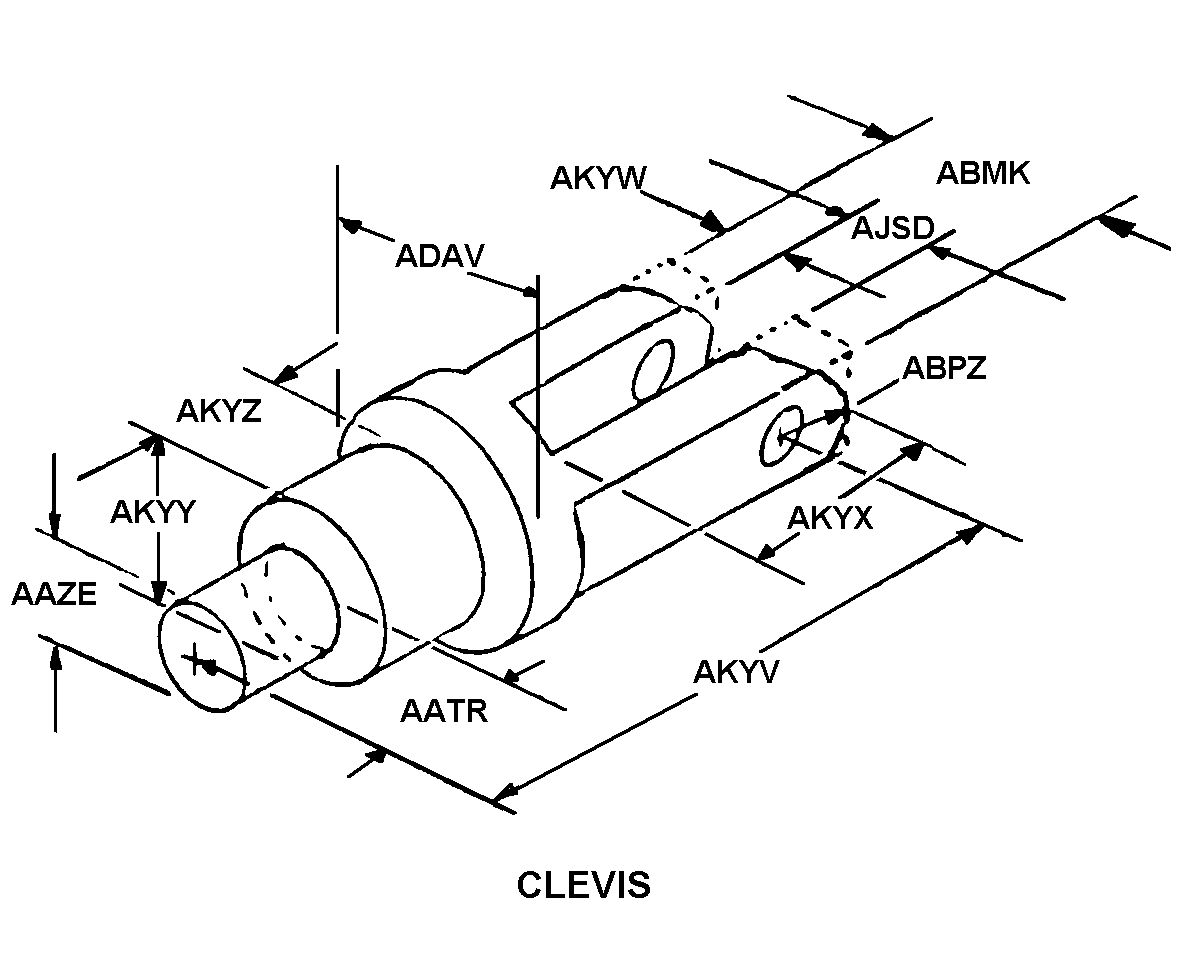

Characteristic	Specifications
MATERIAL	STEEL OVERALL
STYLE DESIGNATOR	42 CLEVIS
SHANK DIAMETER	1.500 INCHES NOMINAL
OVERALL WIDTH	1.200 INCHES NOMINAL
FORK SPAN WIDTH	0.360 INCHES NOMINAL
DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END	16.670 INCHES NOMINAL
FORK ARM THICKNESS	0.470 INCHES NOMINAL
FORK DEPTH	2.000 INCHES NOMINAL
HOLE SHAPE	ROUND
III END ITEM IDENTIFICATION	VARIOUS APPLICATIONS ON F-16 AIRCRAFT SHIPPING CONTAINERS
