Product Details | NONINDUCTIVE WIRE WOUND FIXED RESISTOR
5905-00-106-7052 INC 37404 REINSTATED ON 010303~A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The items must have inherent characteristics of inducing little or no self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, INDUCTIVE.
Part Alternates: 5905-00-106-7052, 00-106-7052, 5905001067052, 001067052
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-106-7052 | 37404 ( RESISTOR, FIXED, WIRE WOUND, NONINDUCTIVE ) |
Drawings & Photos | NSN 5905-00-106-7052
Cross Reference | NSN 5905-00-106-7052
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILR39005 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILR39005-6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RBR71L28R00FR | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RBR71S28R00FM | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5905-00-106-7052
5905-00-106-7054, 5905-00-106-7055, 5905-00-106-7056, 5905-00-106-7058, 5905-00-106-7059
Technical Data | NSN 5905-00-106-7052
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 28.000 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -1.000 TO 1.000 |
| POWER DISSIPATION RATING IN WATTS | 0.125 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 125.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 145.0 |
| TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS | -15.0 TO 15.0 |
| TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS | -65.0 TO 145.0 |
| INCLOSURE METHOD | ENCAPSULATED |

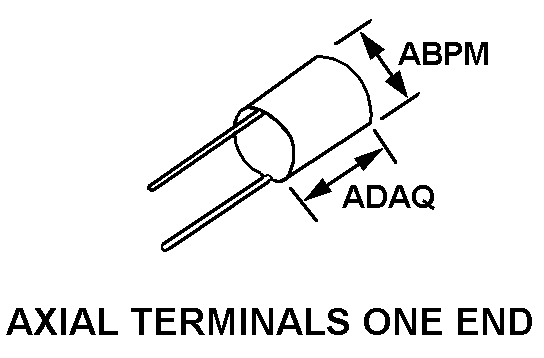

| STYLE DESIGNATOR | 48 AXIAL TERMINALS ONE END |
| BODY DIAMETER | 0.250 INCHES NOMINAL |
| BODY LENGTH | 0.312 INCHES NOMINAL |
| TERMINAL TYPE | WIRE LEAD |
| RELIABILITY INDICATOR | ESTABLISHED |
| RELIABILITY FAILURE RATE LEVEL IN PERCENT | 1.000 |
| TEST DATA DOCUMENT | 81349-MILR39005 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILR39005-6 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RBR71S28R00FM |
Restrictions/Controls & Freight Information | NSN 5905-00-106-7052
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
