NSN 5905-00-201-3670 S2200735942PC13, S2200-735942PC13, 162326
Product Details | NONINDUCTIVE WIRE WOUND FIXED RESISTOR
5905-00-201-3670 INC 37404 REINSTATED ON 010303~A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The items must have inherent characteristics of inducing little or no self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, INDUCTIVE.
Part Alternates: S2200735942PC13, S2200-735942PC13, 162326, 57449, 57-449, 5900ITEM10, 5900PC10, 651134PC13, 5905-00-201-3670, 00-201-3670, 5905002013670, 002013670
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-201-3670 | 37404 ( RESISTOR, FIXED, WIRE WOUND, NONINDUCTIVE ) |
Drawings & Photos | NSN 5905-00-201-3670
Cross Reference | NSN 5905-00-201-3670
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 162326 | 57733 | STEWART-WARNER CORPORATION |
| 57-449 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 5900ITEM10 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 5900PC10 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 651134PC13 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| S2200-735942PC13 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-201-3670
Technical Data | NSN 5905-00-201-3670
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 0.520 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -10.000 TO 10.000 |
| FIXED TAP QUANTITY | 2 |
| FIXED TAP TERMINAL TYPE | TAB W/SCREW |
| SECTION NOMINAL RESISTANCE | 0.065 OHMS 0.195 OHMS 0.260 OHMS |
| POWER DISSIPATION RATING IN WATTS | 3000.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 50.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 400.0 |
| INCLOSURE METHOD | UNINCLOSED |

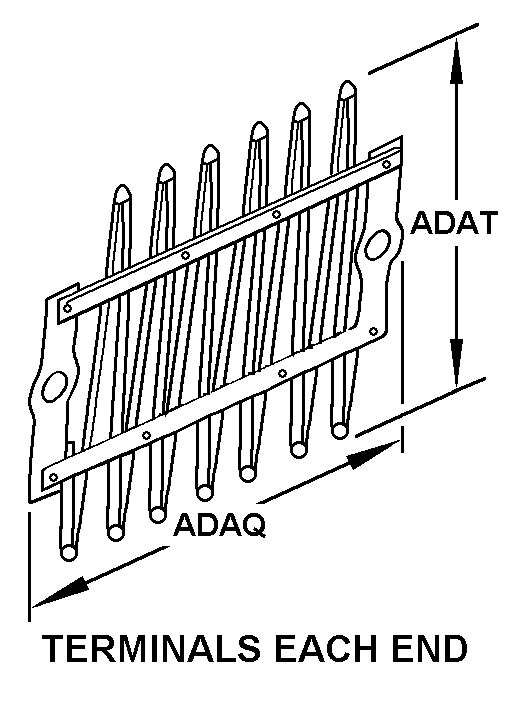

| STYLE DESIGNATOR | 165 TERMINALS EACH END |
| BODY LENGTH | 17.000 INCHES NOMINAL |
| BODY WIDTH | 9.125 INCHES NOMINAL |
| TERMINAL TYPE | TAB W/SCREW |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL LENGTH | 2.250 INCHES NOMINAL |
| TERMINAL WIDTH | 1.625 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5905-00-201-3670
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-00-201-3670
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
