Product Details | WIRE WOUND FIXED RESISTOR
5905-00-642-4821 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE.
Part Alternates: 7120141ED30533, 7120-14-1ED30533, 712014-1ED30533, 5905-00-642-4821, 00-642-4821, 5905006424821, 006424821
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-642-4821 | 00010 ( RESISTOR, FIXED, WIRE WOUND ) |
Drawings & Photos | NSN 5905-00-642-4821
Cross Reference | NSN 5905-00-642-4821
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7120-14-1ED30533 | 13743 | COLUMBUS MCKINNON CORPORATION DIV CORPORATE HEADQUARTERS |
| 7120-14-1ED30533 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
| 7120-14-1ED30533 | 71669 | GENERAL ELECTRIC CO SWITCHGEAR AND CONTROL DIVISION |
| 712014-1ED30533 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-642-4821
Technical Data | NSN 5905-00-642-4821
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 0.800 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -10.000 TO 10.000 |
| FIXED TAP QUANTITY | 9 |
| FIXED TAP TERMINAL TYPE | THREADED STUD |
| SECTION NOMINAL RESISTANCE | 0.080 OHMS 0.080 OHMS 0.080 OHMS 0.080 OHMS 0.080 OHMS 0.080 OHMS 0.080 OHMS 0.080 OHMS 0.080 OHMS 0.080 OHMS |
| POWER DISSIPATION RATING IN WATTS | 720.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 50.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 425.0 |
| INCLOSURE METHOD | UNINCLOSED |

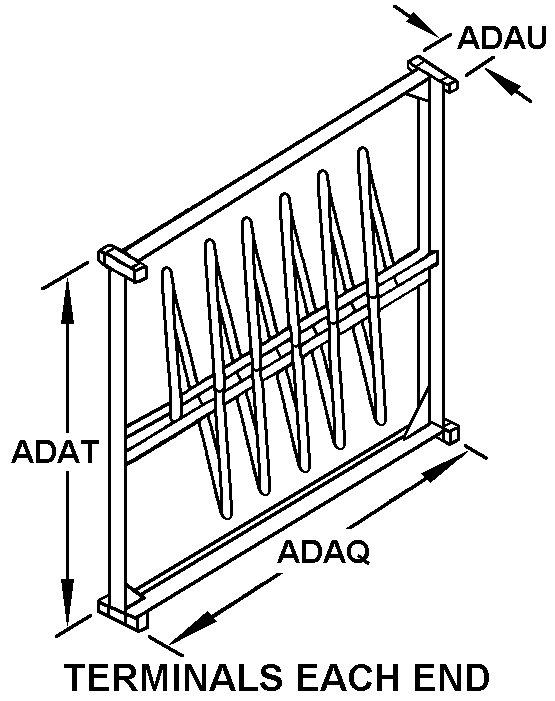

| STYLE DESIGNATOR | 164 TERMINALS EACH END |
| BODY LENGTH | 14.500 INCHES NOMINAL |
| BODY WIDTH | 18.000 INCHES NOMINAL |
| BODY HEIGHT | 3.500 INCHES NOMINAL |
| TERMINAL TYPE | THREADED STUD |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| REACTANCE CHARACTERISTIC | INDUCTIVE |
Restrictions/Controls & Freight Information | NSN 5905-00-642-4821
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
