NSN 5905-00-685-9939 78GN1K200J, 00-685-9939, 006859939
Product Details | NONINDUCTIVE WIRE WOUND FIXED RESISTOR
5905-00-685-9939 INC 37404 REINSTATED ON 010303~A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The items must have inherent characteristics of inducing little or no self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, INDUCTIVE.
Part Alternates: 78GN1K200J, 5905-00-685-9939, 00-685-9939, 5905006859939, 006859939
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-685-9939 | 37404 ( RESISTOR, FIXED, WIRE WOUND, NONINDUCTIVE ) |
Drawings & Photos | NSN 5905-00-685-9939
Cross Reference | NSN 5905-00-685-9939
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 78GN1K200J | 44655 | HEICO OHMITE, L.L.C. DBA OHMITE MANUFACTURING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-685-9939
Technical Data | NSN 5905-00-685-9939
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 1.200 KILOHMS |
| RESISTANCE TOLERANCE IN PERCENT | -5.000 TO 5.000 |
| POWER DISSIPATION RATING IN WATTS | 25.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 40.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 340.0 |
| TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS | -260.0 TO 260.0 |
| TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS | -55.0 TO 340.0 |
| INCLOSURE METHOD | ENCASED |

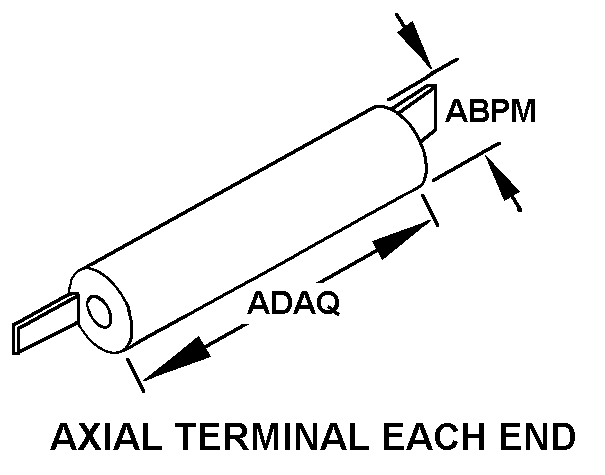

| STYLE DESIGNATOR | 58 AXIAL TERMINAL EACH END |
| BODY DIAMETER | 0.719 INCHES NOMINAL |
| BODY LENGTH | 2.875 INCHES NOMINAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL LENGTH | 0.562 INCHES NOMINAL |
| TERMINAL WIDTH | 0.188 INCHES NOMINAL |
