NSN 5905-01-528-7290 RSO 25X168 AN 2.2R 5 PERCENT , RSO 25X168 AN 2.2R 5% , RSO25X168AN22R5
Product Details | WIRE WOUND FIXED RESISTOR
5905-01-528-7290 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE.
Part Alternates: RSO 25X168 AN 2.2R 5 PERCENT , RSO 25X168 AN 2.2R 5% , RSO25X168AN22R5, RSO25X168AN22R5PERCENT, 5905-01-528-7290, 01-528-7290, 5905015287290, 015287290
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 MAR 2005 | 01-528-7290 | 00010 ( RESISTOR, FIXED, WIRE WOUND ) |
Drawings & Photos | NSN 5905-01-528-7290
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-528-7290
Technical Data | NSN 5905-01-528-7290
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 68.000 KILOHMS |
| RESISTANCE TOLERANCE IN PERCENT | -0.500 TO 0.500 |
| POWER DISSIPATION RATING IN WATTS | 0.200 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | -55.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 125.0 |
| INCLOSURE METHOD | HERMETICALLY SEALED |

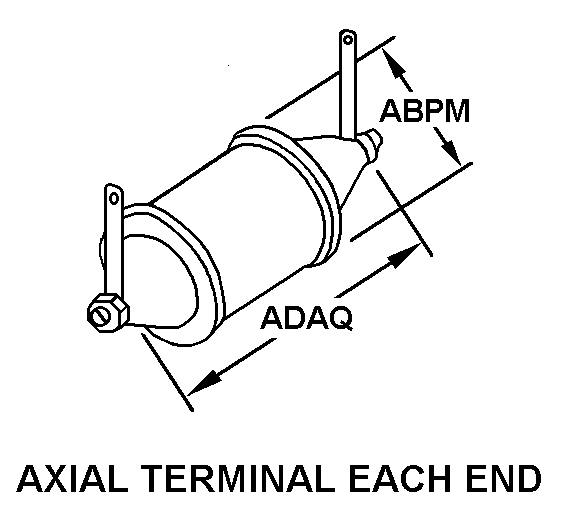

| STYLE DESIGNATOR | 8 AXIAL TERMINAL EACH END |
| BODY DIAMETER | 168.0 MILLIMETERS NOMINAL |
| MOUNTING STUD LENGTH | 25.0 MILLIMETERS NOMINAL |
| TERMINAL TYPE | SCREW BASE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| REACTANCE CHARACTERISTIC | NONINDUCTIVE |
| SPECIAL FEATURES | CORRUGATED TAPE, VERY HIGH DISSIPATION |
Restrictions/Controls & Freight Information | NSN 5905-01-528-7290
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
