NSN 5915-00-999-4911 MS25125J4, MS25125J-4, SF10326

Product Details | BAND PASS FILTER

5915-00-999-4911 An item designed to pass frequencies within a specified range (band) and to suppress frequencies outside the range (band). Excludes a single inductance, or a single capacitance, or a single resistance. See COIL (as modified); REACTOR; CAPACITOR (as modified); and RESISTOR (as modified).

Part Alternates: MS25125J4, MS25125J-4, SF10326, EF650, 65901-02011-101, 5915-00-999-4911, 00-999-4911, 5915009994911, 6590102011101, 009994911

Electrical and Electronic Equipment Components | Filters and Networks

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	16 FEB 1966	00-999-4911	00209 ( FILTER, BAND PASS )

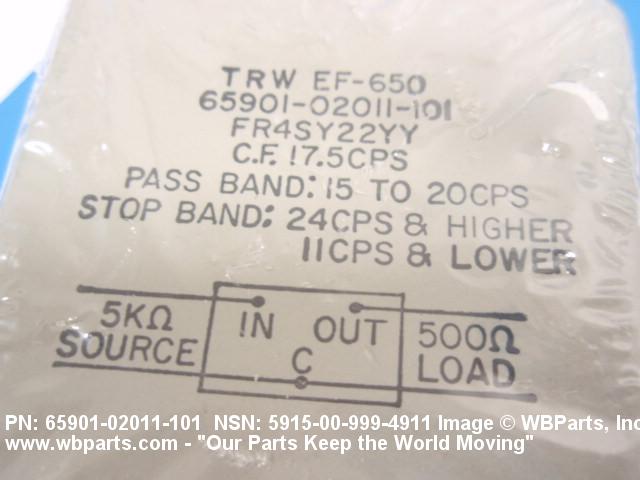

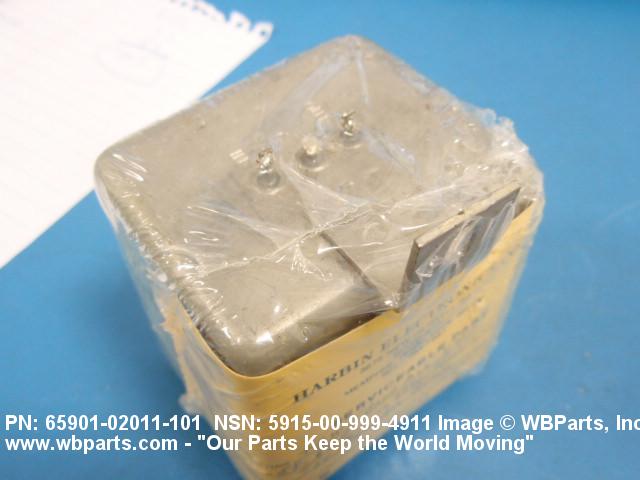

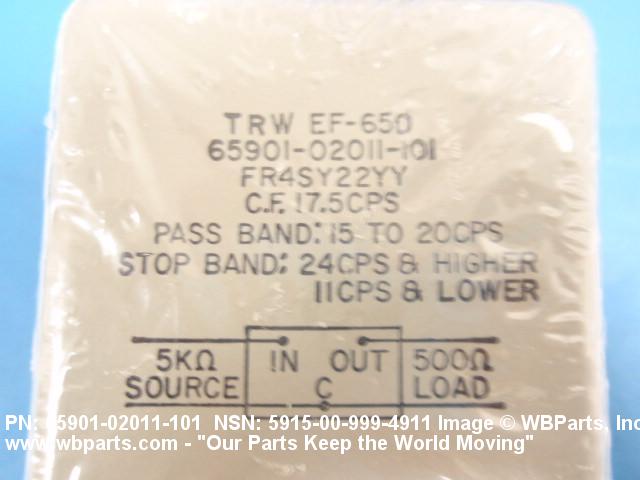

Drawings & Photos | NSN 5915-00-999-4911

Part Number	Request Date	QTY	Origin
MS25125J4	2021-05-137	2	India
MS25125J4	2020-12-357	5	India
5915-00-999-4911	2012-09-247	1	DIBBS
MS25125J4	2012-05-140	1	US
5915-00-999-4911	2011-12-336	1	DIBBS
5915-00-999-4911	2010-10-290	1	DIBBS
5915-00-999-4911	2010-07-182	1	United States
5915-00-999-4911	2010-05-144	1	United States
5915-00-999-4911	2010-05-133	1	DIBBS
5915-00-999-4911	2010-03-60	1	United States
5915-00-999-4911	2009-10-292	1	DIBBS
5915-00-999-4911	2009-01-23	1	DIBBS
5915-00-999-4911	2008-02-54	1	DIBBS

Cross Reference | NSN 5915-00-999-4911

Part Number	Cage Code	Manufacturer
65901-02011-101	21856	CENTROID, INC.
65901-02011-101	78286	SIKORSKY AIRCRAFT CORPORATION
EF650	15634	MAGNETIKA, INC
EF650	80223	UNITED TRANSFORMER CORP SUB OF OPT INDUSTRIES INC
MS25125J-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SF10326	97102	STERLING TRANSFORMER CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5915-00-999-4911

Compare

Related Products | NSN 5915-00-999-4911

5915-00-999-5216, 5915-00-999-5638, 5915-00-999-5648, 5915-00-999-7184, 5915-00-999-7338

Technical Data | NSN 5915-00-999-4911

Characteristic	Specifications
REFERENCE FREQUENCY PER FUNCTION	17.5 HERTZ BLANK
INSERTION LOSS AT REFERENCE FREQUENCY PER FUNCTION IN DECIBELS	4.4 BLANK
FREQUENCY BAND WIDTH PER FUNCTION	15.00 HERTZ BLANK AND 20.00 HERTZ BLANK
SOURCE IMPEDANCE RATING PER FUNCTION	5.0 KILOHMS BLANK
LOAD IMPEDANCE PER FUNCTION	500.0 OHMS BLANK
INCLOSURE TYPE	ENCASED
FUNCTIONAL TERMINAL TYPE AND QUANTITY	1 TURRET INPUT 1 TURRET OUTPUT 1 TURRET GROUND
STYLE DESIGNATOR	20 RECTANGULAR TERMINAL/TERMINALS ON OPPOSITE SURFACES
OVERALL HEIGHT	3.872 INCHES NOMINAL
BODY LENGTH	2.687 INCHES NOMINAL
BODY HEIGHT	2.718 INCHES NOMINAL
BODY WIDTH	2.312 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED STUD
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH	2.125 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	1.750 INCHES NOMINAL
MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD SIZE	0.138 INCHES
III SPECIFIED FREQUENCIES OF DISCRIMINATION PER FUNCTION	11.00 HERTZ BLANK AND 15.00 HERTZ BLANK AND 20.00 HERTZ BLANK AND 24.00 HERTZ BLANK
III DISCRIMINATION AT SPECIFIED FREQUENCIES PER FUNCTION IN DECIBELS	20.0 MINIMUM BLANK AND 1.5 MAXIMUM BLANK AND 1.5 MAXIMUM BLANK AND 20.0 MINIMUM BLANK
III AVERAGE LIFE RATING IN HOURS	2500.0
III VIBRATION RESISTANCE RANGE IN HERTZ	10.0 TO 55.0
III OPERATING TEMP RANGE	-55.0 TO 125.0 DEG CELSIUS

Restrictions/Controls & Freight Information | NSN 5915-00-999-4911

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061990	ELECTRICAL EQUIP:FILTERS
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	593	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5915-00-999-4911

Navy

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
