NSN 5930-00-050-1293 S13771, S1377-1, 65430007
Product Details | SENSITIVE SWITCH
5930-00-050-1293 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: S13771, S1377-1, 65430007, 65-430007, 5930-00-050-1293, 00-050-1293, 5930000501293, 000501293
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 MAY 1967 | 00-050-1293 | 00399 ( SWITCH, SENSITIVE ) |

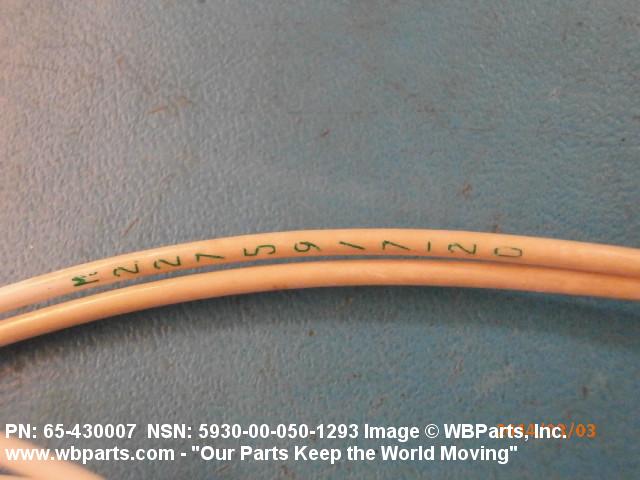

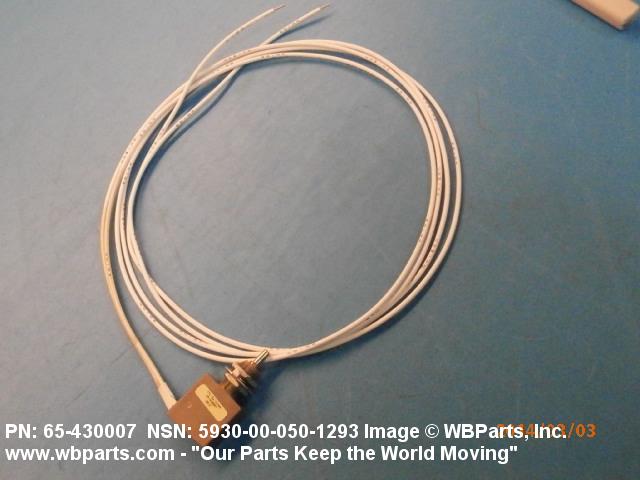

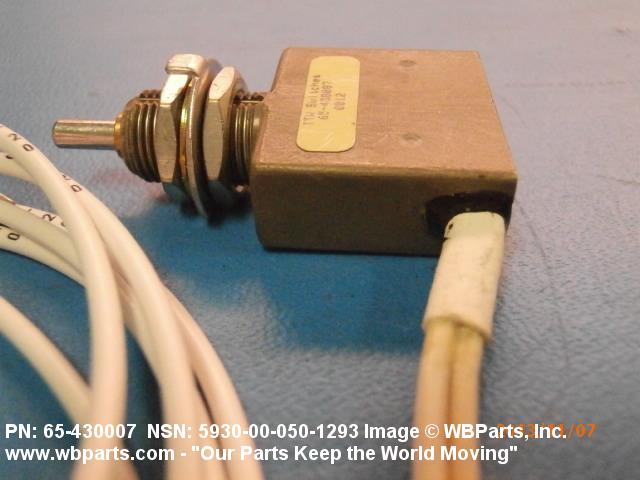

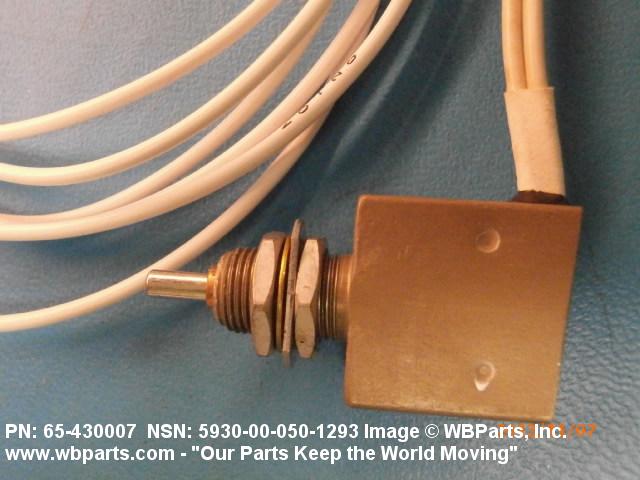

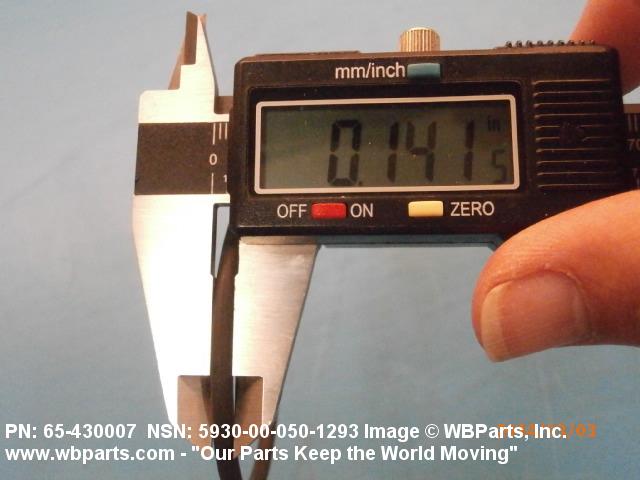

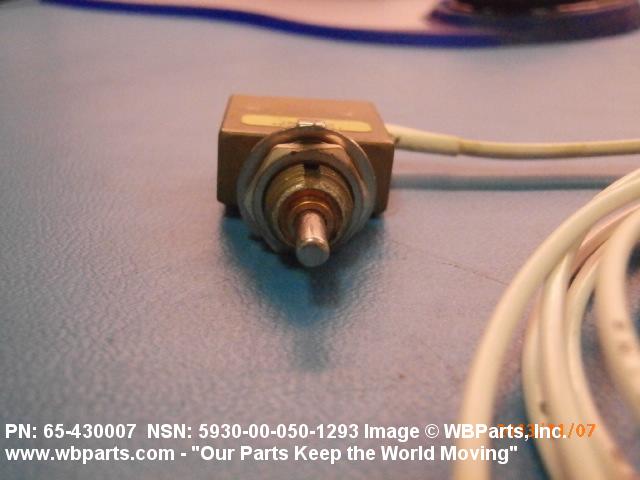

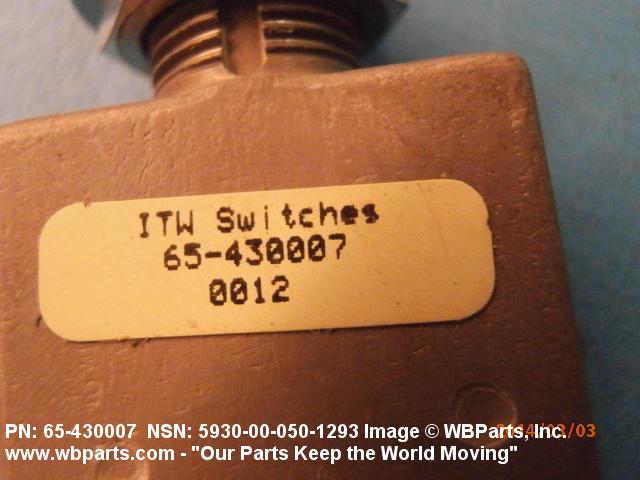

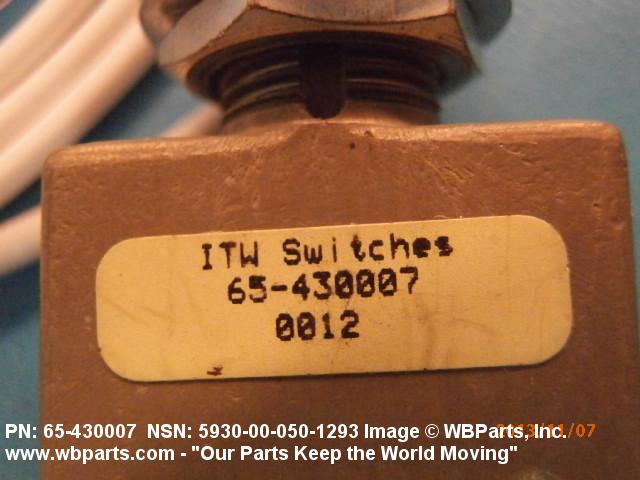

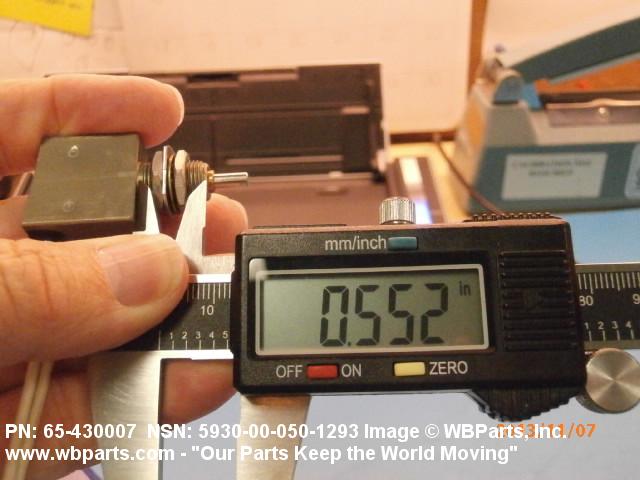

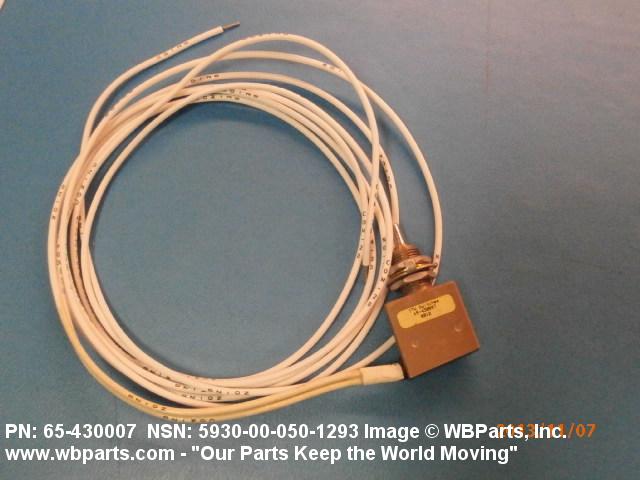

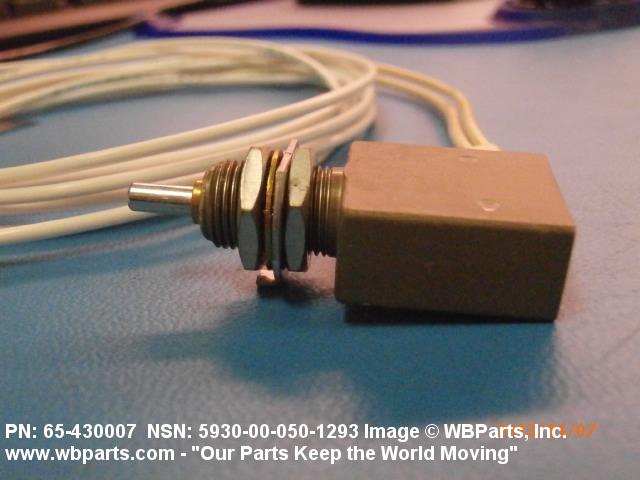

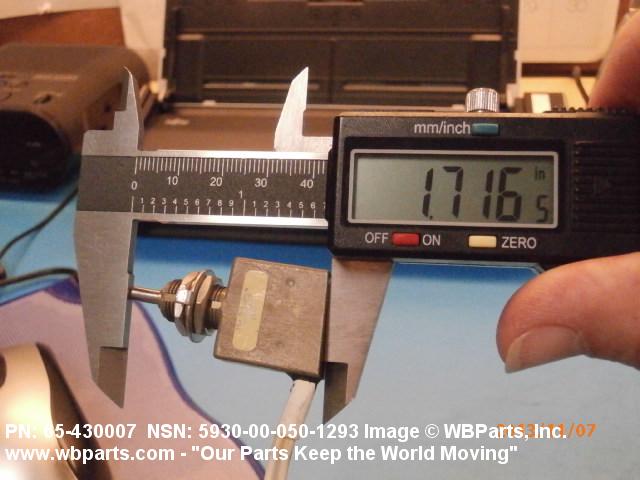

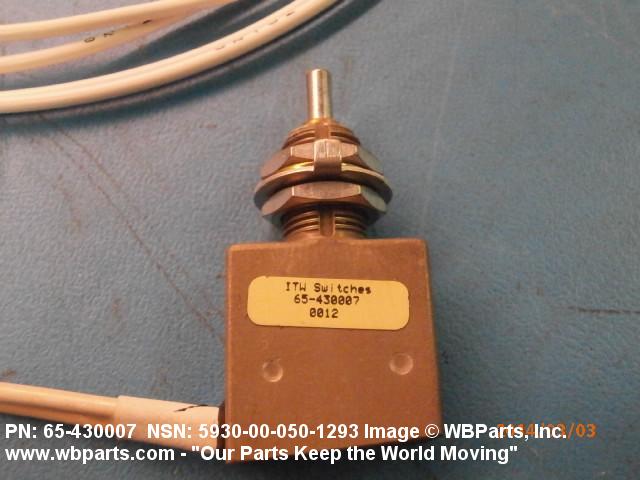

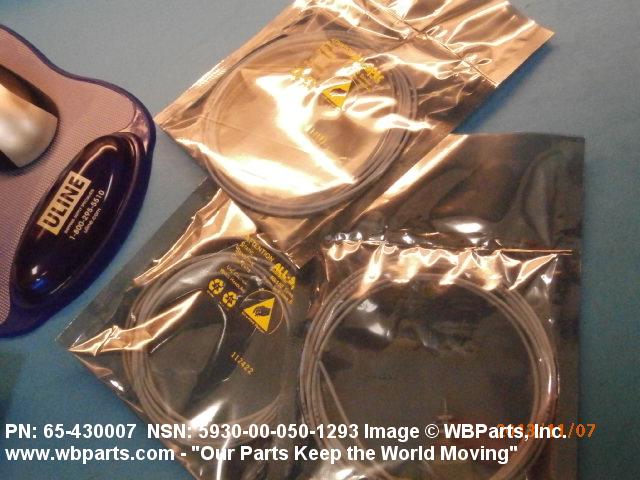

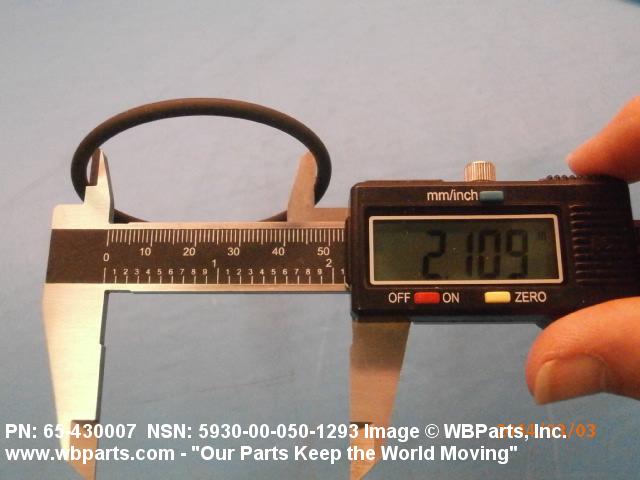

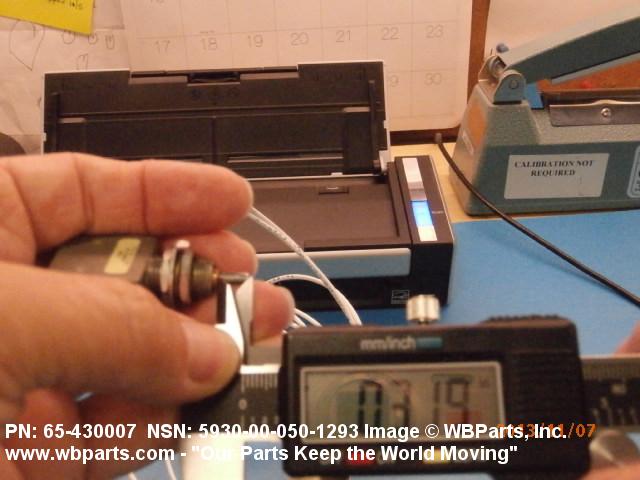

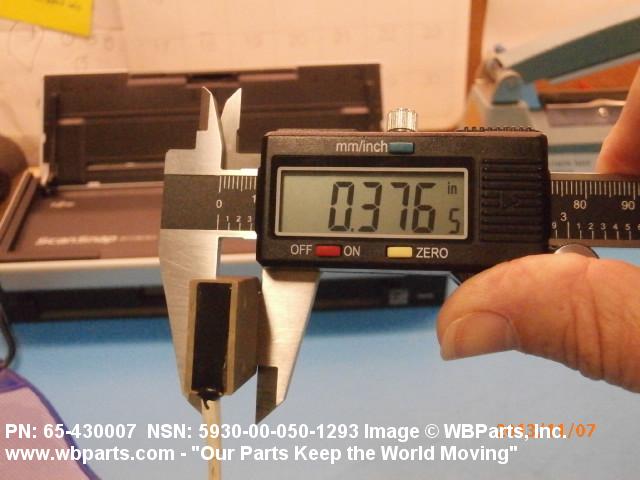

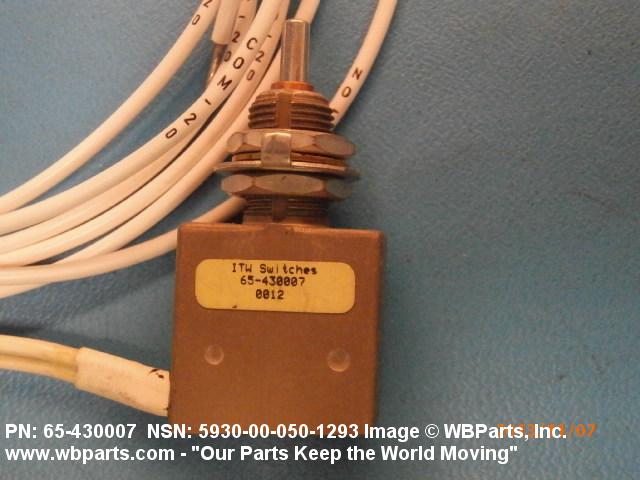

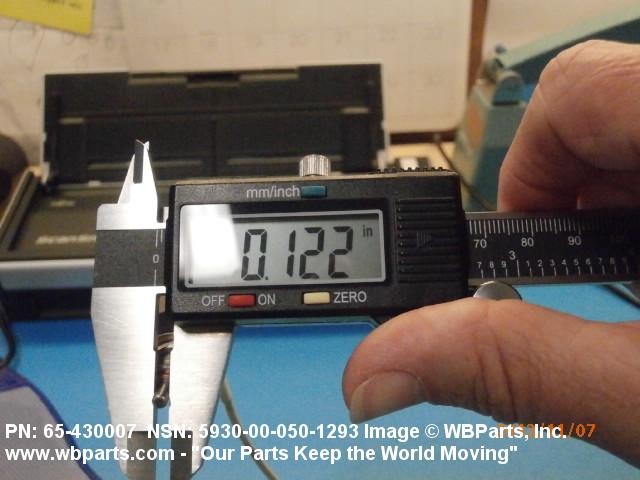

Drawings & Photos | NSN 5930-00-050-1293
Demand History | NSN 5930-00-050-1293
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-050-1293 | 2023-01-08 | 2 | AU |
| 5930-00-050-1293 | 2022-09-248 | 20 | US |
| 5930-00-050-1293 | 2021-04-105 | 1 | US |
| 5930-00-050-1293 | 2021-01-28 | 1 | US |
| 5930-00-050-1293 | 2014-02-51 | 3 | Mexico |
| 5930-00-050-1293 | 2013-10-296 | 3 | Panama |
| S13771 | 2012-01-30 | 1 | US |
| 5930-00-050-1293 | 2011-08-236 | 1 | US |
| S13771 | 2011-02-52 | 1 | US |
| S13771 | 2011-02-52 | 1 | US |
| 5930-00-050-1293 | 2011-01-12 | 1 | US |
| 5930-00-050-1293 | 2011-01-12 | 2 | US |
| S13771 | 2009-02-41 | 1 | Spain |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-050-1293
Related Products | NSN 5930-00-050-1293
Technical Data | NSN 5930-00-050-1293
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 30.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.000 AMPERES RESISTIVE DC |
| BODY STYLE | 5M BUSHING MOUNTED |
| BUSHING LENGTH | 0.515 INCHES NOMINAL |
| BODY LENGTH | 0.875 INCHES MAXIMUM |

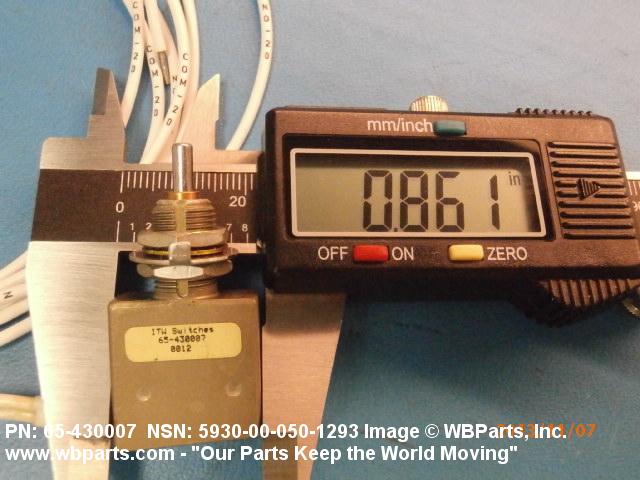

| BODY WIDTH | 0.860 INCHES MAXIMUM |
| BODY HEIGHT | 0.375 INCHES NOMINAL |
| ACTUATOR STYLE | 2 ROUND |
| ACTUATOR DIAMETER | 0.125 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.320 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 0.320 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| SWITCH ACTUATING FORCE | 36.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 10.0 OUNCES MINIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF AND MOISTURE PROOF |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| III OVERALL LENGTH | 0.860 INCHES NOMINAL |
| III OVERALL WIDTH | 0.375 INCHES NOMINAL |
| III OVERALL HEIGHT | 1.757 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5930-00-050-1293
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-050-1293
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
