NSN 5930-00-075-8310 424EN16, 424EN1-6, 5M1020102
Product Details | SENSITIVE SWITCH
5930-00-075-8310 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 424EN16, 424EN1-6, 5M1020102, 5M1020-102, 63700027, 63-700027, 5930-00-075-8310, 00-075-8310, 5930000758310, 000758310
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 AUG 1967 | 00-075-8310 | 00399 ( SWITCH, SENSITIVE ) |

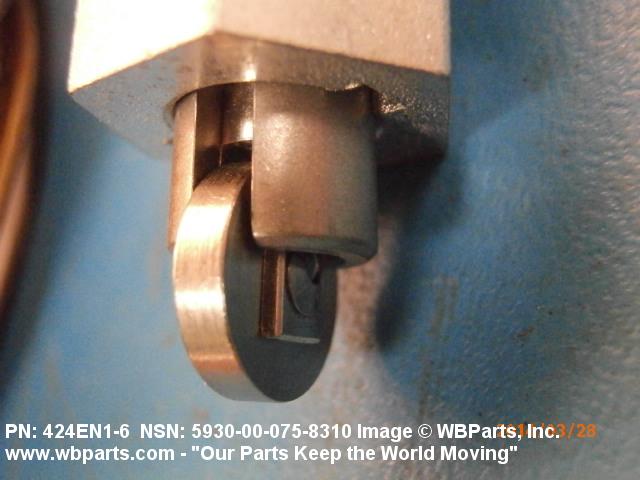

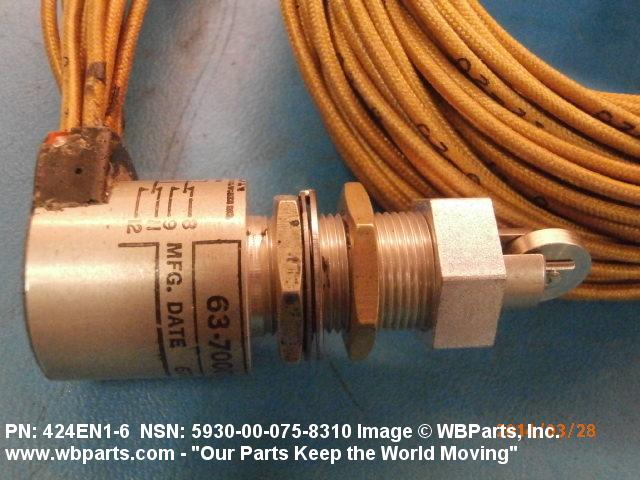

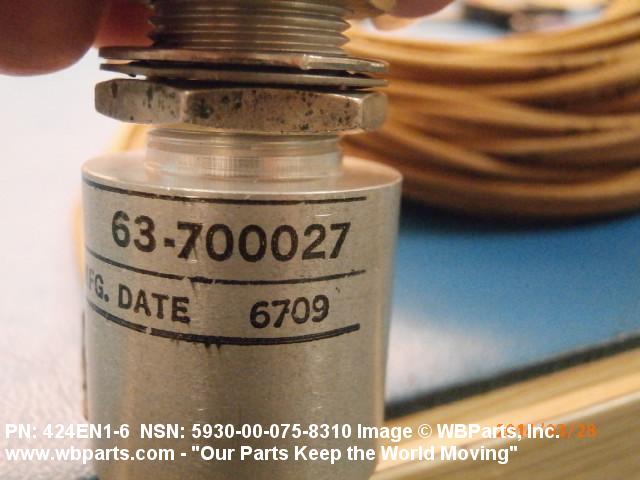

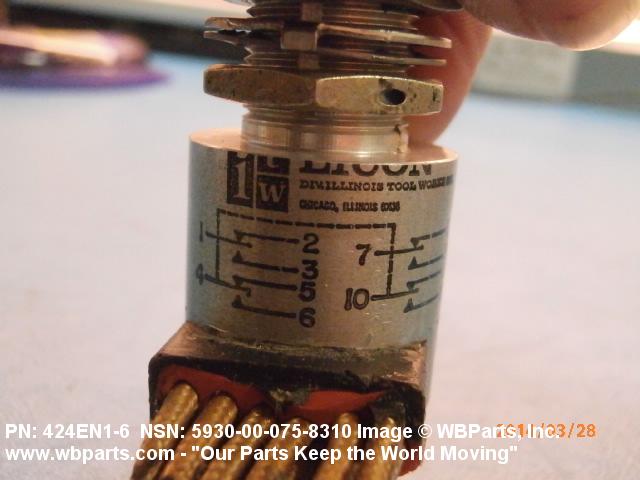

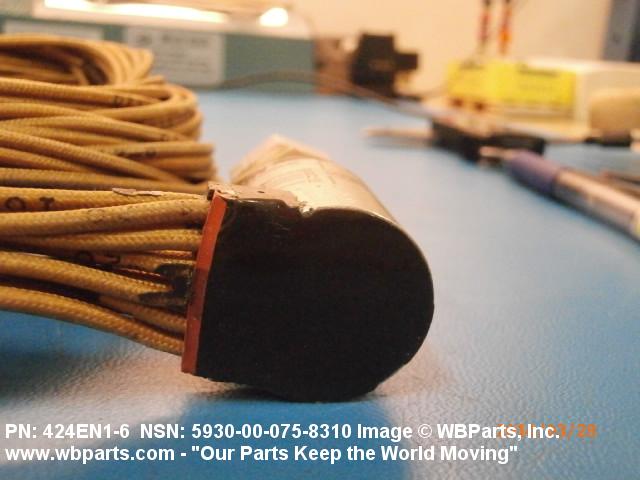

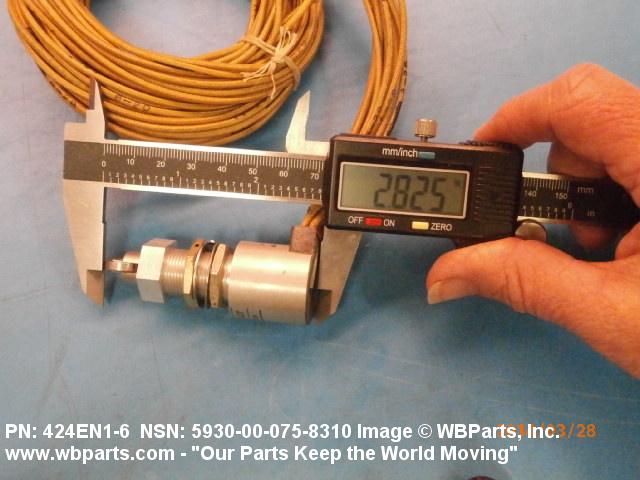

Drawings & Photos | NSN 5930-00-075-8310
Demand History | NSN 5930-00-075-8310
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-075-8310 | 2015-07-189 | 3 | United States |
| 5930-00-075-8310 | 2014-02-37 | 5 | United States |
Cross Reference | NSN 5930-00-075-8310
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 424EN1-6 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 424EN1-6 | K6596 | HONEYWELL CONTROL SYSTEMS LTD |
| 424EN1-6 | R1120 | SATAIR A/S |
| 424EN1-6 | U4042 | HONEYWELL CONTROL SYSTEMS LTD DIV AUTOMATION & CONTROL SOLUTIONS - |
| 5M1020-102 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 63-700027 | 04426 | ILLINOIS TOOL WORKS INC. DIV ILLINOIS TOOL WORKS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-075-8310
Related Products | NSN 5930-00-075-8310
Technical Data | NSN 5930-00-075-8310
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC AND 2.500 AMPERES INDUCTIVE DC AND 4.000 AMPERES LAMP DC AND 5.000 AMPERES RESISTIVE AC |
| BODY STYLE | 81M BUSHING MOUNTED |
| HOUSING DIAMETER | 1.090 INCHES MAXIMUM |
| HOUSING LENGTH | 1.300 INCHES MAXIMUM |
| HOUSING BUSHING LENGTH | 0.794 INCHES NOMINAL |
| ACTUATOR STYLE | 49 ROLLER PLUNGER |
| ACTUATOR FREE POSITION HEIGHT | 1.781 INCHES NOMINAL |
| ACTUATOR ROLLER DIAMETER | 0.500 INCHES NOMINAL |
| ACTUATOR ROLLER WIDTH | 0.120 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 12 WIRE LEAD |
| SWITCH ACTUATING FORCE | 144.0 INCH-OUNCES NOMINAL |
| SWITCH RELEASE FORCE | 64.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.040 PRETRAVEL INCHES MAXIMUM AND 0.250 OVERTRAVEL INCHES MINIMUM AND 0.020 DIFFERENTIAL INCHES NOMINAL |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| III OVERALL LENGTH | 3.081 INCHES NOMINAL |
| III OVERALL WIDTH | 1.090 INCHES MAXIMUM |
| III OVERALL HEIGHT | 1.490 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5930-00-075-8310
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-075-8310
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
