Product Details | SENSITIVE SWITCH
5930-00-124-9779 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: V3L394D8, 100954, 5930-00-124-9779, 00-124-9779, 5930001249779, 001249779
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07-SEP-74 | 00-124-9779 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-00-124-9779
Demand History | NSN 5930-00-124-9779
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 100954 | 2020-09-248 | 30 | Malaysia |
| 100954 | 2020-08-240 | 30 | MY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-124-9779
Technical Data | NSN 5930-00-124-9779
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 277.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 0.200 AMPERES RESISTIVE DC AND 11.000 AMPERES RESISTIVE AC |
| BODY STYLE | 24M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.872 INCHES MINIMUM AND 0.878 INCHES MAXIMUM |
| BODY LENGTH | 1.079 INCHES MINIMUM AND 1.109 INCHES MAXIMUM |
| BODY WIDTH | 0.401 INCHES MINIMUM AND 0.411 INCHES MAXIMUM |
| BODY HEIGHT | 0.610 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.403 INCHES MINIMUM AND 0.409 INCHES MAXIMUM |
| SWITCH ACTUATOR QUANTITY | 1 |

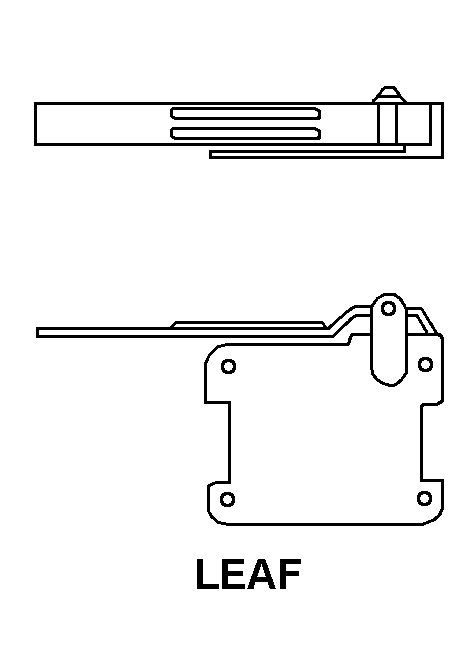

| ACTUATOR STYLE | 41 LEAF |
