NSN 5930-00-126-0527 1LS10, 00-126-0527, 001260527

Product Details | SENSITIVE SWITCH

5930-00-126-0527 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.

Part Alternates: 1LS10, 5930-00-126-0527, 00-126-0527, 5930001260527, 001260527

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	15 NOV 1968	00-126-0527	00399 ( SWITCH, SENSITIVE )

Drawings & Photos | NSN 5930-00-126-0527

Part Number	Request Date	QTY	Origin
1LS10	2025-03-86	26	DIBBS
1LS10	2025-03-62	41	DIBBS
1LS10	2025-02-51	41	DIBBS
1LS10	2025-01-31	106	DIBBS
1LS10	2025-01-13	106	DIBBS
1LS10	2023-09-256	52	DIBBS
1LS10	2023-08-219	52	DIBBS
1LS10	2023-04-117	65	DIBBS
1LS10	2023-04-103	12	DIBBS
1LS10	2023-02-58	53	DIBBS
1LS10	2023-02-47	100	DIBBS
1LS10	2023-02-43	53	DIBBS
1LS10	2023-01-26	53	DIBBS
1LS10	2022-09-252	90	DIBBS
1LS10	2022-09-249	97	DIBBS
1LS10	2022-08-237	90	DIBBS
1LS10	2022-08-237	97	DIBBS
1LS10	2022-06-153	64	DIBBS
1LS10	2021-09-245	53	DIBBS
1LS10	2020-10-282	76	DIBBS
1LS10	2020-08-233	5	DIBBS
1LS10	2020-04-100	48	DIBBS
5930-00-126-0527	2018-11-305	93	DIBBS
5930-00-126-0527	2018-06-158	72	DIBBS
5930-00-126-0527	2017-12-340	33	DIBBS
5930-00-126-0527	2017-02-54	30	DIBBS
5930-00-126-0527	2012-03-90	52	DIBBS
5930-00-126-0527	2009-09-254	47	DIBBS
5930-00-126-0527	2009-09-254	55	DIBBS
5930-00-126-0527	2009-07-183	55	DIBBS
5930-00-126-0527	2009-05-122	47	DIBBS
5930-00-126-0527	2009-04-111	29	DIBBS
5930-00-126-0527	2009-04-100	5	DIBBS
5930-00-126-0527	2009-02-57	20	DIBBS
5930-00-126-0527	2009-02-43	24	DIBBS
5930-00-126-0527	2008-12-340	5	DIBBS
5930-00-126-0527	2008-10-281	28	DIBBS
5930-00-126-0527	2008-08-234	1	DIBBS
5930-00-126-0527	2008-07-204	1	DIBBS
5930-00-126-0527	2008-07-186	1	DIBBS
5930-00-126-0527	2008-06-181	1	DIBBS
5930-00-126-0527	2008-06-165	1	DIBBS
5930-00-126-0527	2007-03-64	1	DIBBS
5930-00-126-0527	2007-02-50	3	DIBBS
5930-00-126-0527	2007-02-50	12	DIBBS
5930-00-126-0527	2007-02-36	2	DIBBS
5930-00-126-0527	2007-02-32	15	DIBBS

Cross Reference | NSN 5930-00-126-0527

Part Number	Cage Code	Manufacturer
1LS10	0FW39	BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP
1LS10	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-126-0527

Compare

Related Products | NSN 5930-00-126-0527

5930-00-126-0654, 5930-00-126-0674, 5930-00-126-0688, 5930-00-126-1149, 5930-00-126-1159

Technical Data | NSN 5930-00-126-0527

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 TWO CIRCUIT, DOUBLE BREAK/DOUBLE MAKE, ONE POSITION MOMENTARY SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	480.0 AC AND 550.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	100.000 MILLIAMPERES RESISTIVE DC AND 10.000 AMPERES RESISTIVE AC
BODY STYLE	80M HOLE MOUNTED
HOUSING LENGTH	3.700 INCHES NOMINAL
HOUSING WIDTH	1.570 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH	2.310 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO WIDTH	1.190 INCHES NOMINAL

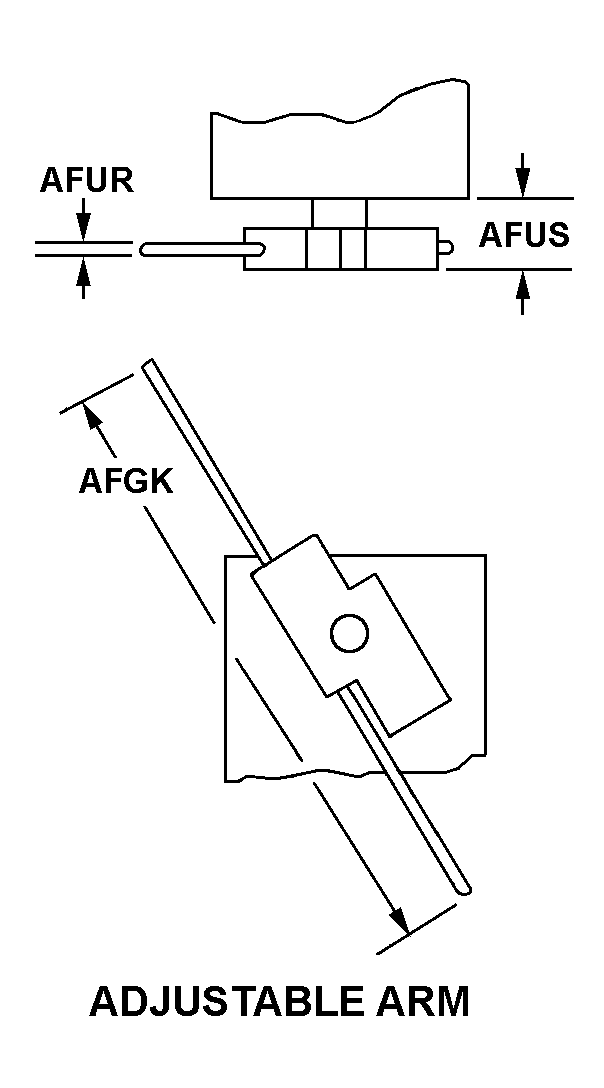

ACTUATOR STYLE	52 ADJUSTABLE ARM
