NSN 5930-00-234-0699 YZRQ1, 7634149, 8D1722
Product Details | SENSITIVE SWITCH
5930-00-234-0699 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: YZRQ1, 7634149, 8D1722, 5930-00-234-0699, 00-234-0699, 5930002340699, 002340699
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-234-0699 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-00-234-0699
Cross Reference | NSN 5930-00-234-0699
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7634149 | 19200 | US ARMY ARDEC RDECOM |
| 8D1722 | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
| 8D1722 | 3B4M0 | LUCENT TECHNOLOGIES INC CORPORATE HEADQUARTERS |
| 8D1722 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 8D1722 | 70408 | AT AND T CORP |
| YZRQ1 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-234-0699
Related Products | NSN 5930-00-234-0699
Technical Data | NSN 5930-00-234-0699
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 460.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 25.000 MILLIAMPERES RESISTIVE DC AND 15.000 AMPERES RESISTIVE AC |

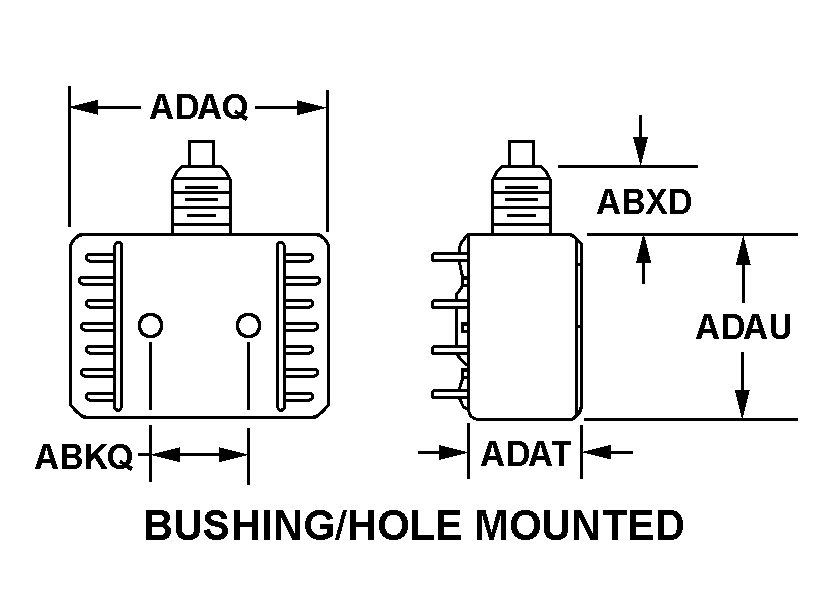

| BODY STYLE | 15M BUSHING/HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.000 INCHES NOMINAL |
| BUSHING LENGTH | 0.516 INCHES NOMINAL |
| BODY LENGTH | 1.938 INCHES NOMINAL |
| BODY WIDTH | 0.688 INCHES NOMINAL |
| BODY HEIGHT | 0.891 INCHES NOMINAL |
| ACTUATOR STYLE | 7 ROUND |
| ACTUATOR DIAMETER | 0.328 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.359 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 1.558 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| SWITCH ACTUATING FORCE | 6.0 OUNCES MINIMUM AND 9.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 4.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.012 PRETRAVEL INCHES MAXIMUM AND 0.219 OVERTRAVEL INCHES MINIMUM AND 0.0005 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED BUSHING |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.140 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.469 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
Restrictions/Controls & Freight Information | NSN 5930-00-234-0699
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-234-0699
