NSN 5930-00-259-3365 IC/N31A12, ICN31A12, MILS16032
Product Details | THERMOSTATIC SWITCH
5930-00-259-3365 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: IC/N31A12, ICN31A12, MILS16032, 1CN31A12, 22232NL12222348, 222-32NL1-2222348, 22232NL1222348, 222-32NL1-222348, 9000S650473935, 5930-00-259-3365, 00-259-3365, 5930002593365, 002593365
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-259-3365 | 00451 ( SWITCH, THERMOSTATIC ) |

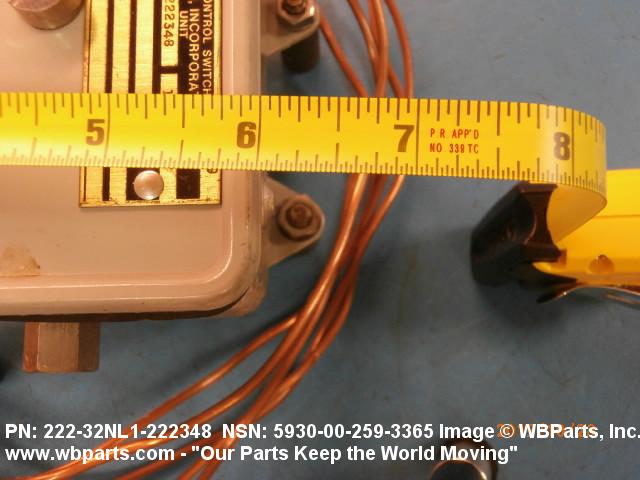

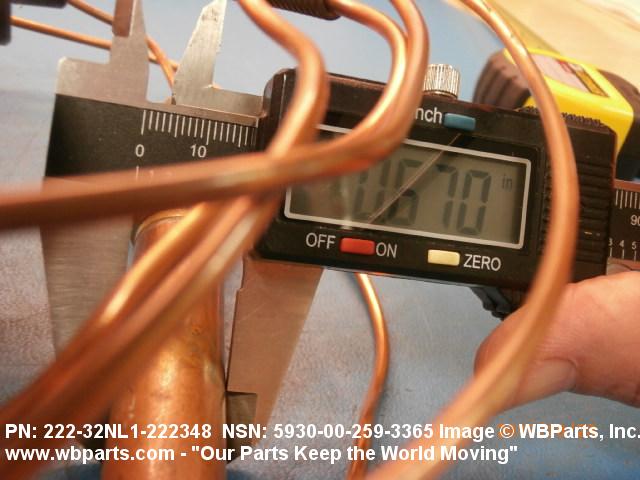

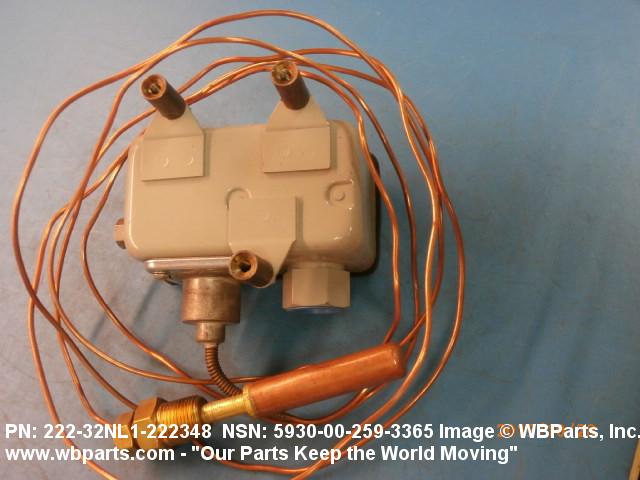

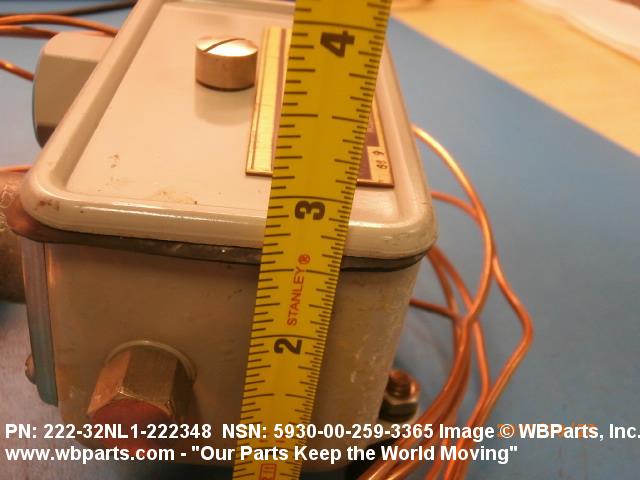

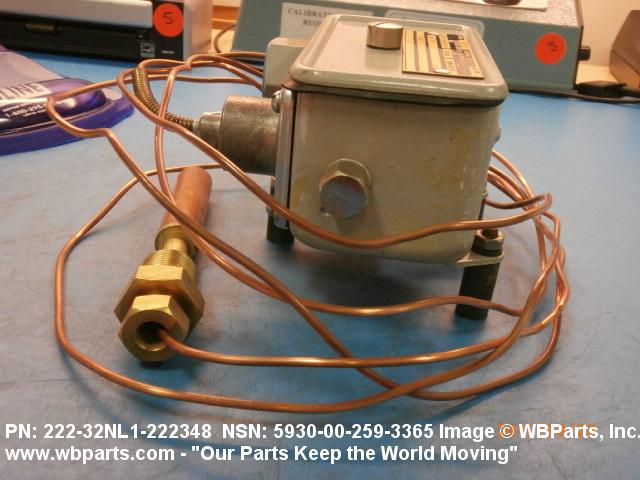

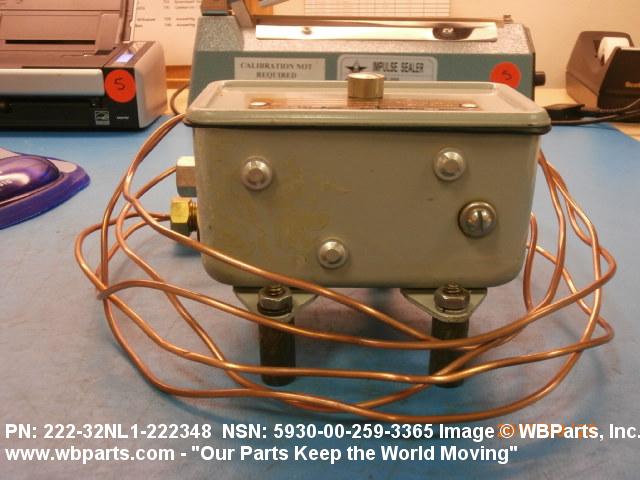

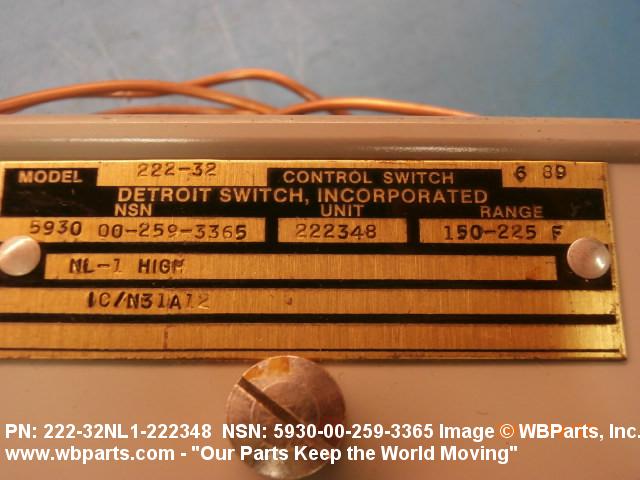

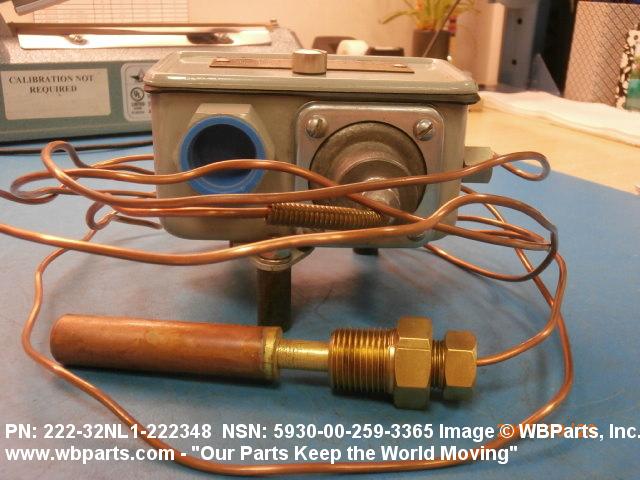

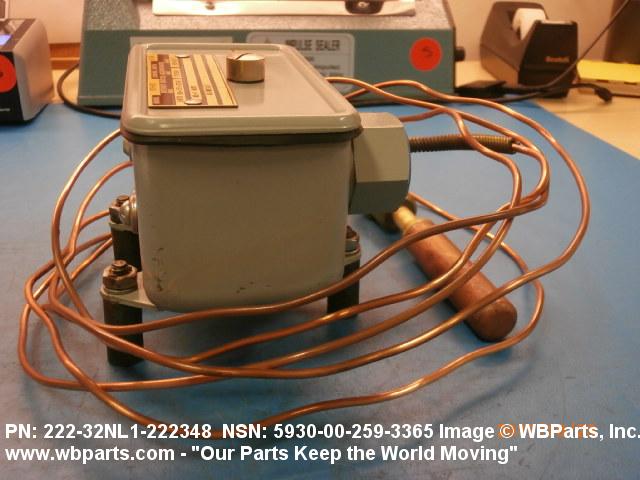

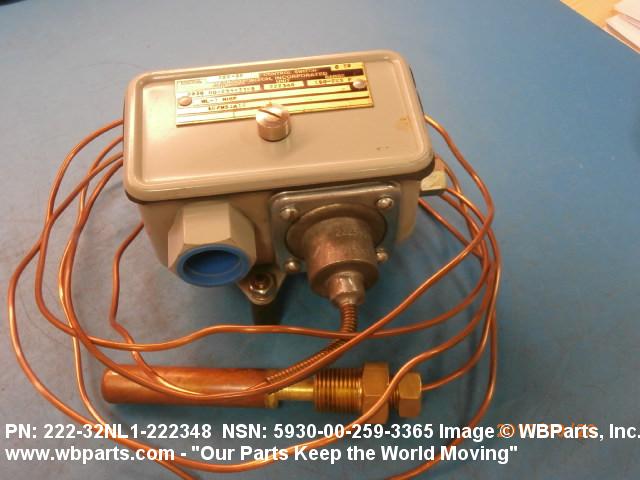

Drawings & Photos | NSN 5930-00-259-3365
Demand History | NSN 5930-00-259-3365
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-259-3365 | 2025-05-150 | 17 | DIBBS |
| 5930-00-259-3365 | 2025-05-139 | 17 | DIBBS |
| 5930-00-259-3365 | 2024-08-244 | 6 | US |
| 5930-00-259-3365 | 2024-01-25 | 23 | DIBBS |
| 5930-00-259-3365 | 2023-05-138 | 26 | DIBBS |
| 5930-00-259-3365 | 2023-04-103 | 20 | DIBBS |
| 5930-00-259-3365 | 2022-12-363 | 32 | DIBBS |
| 5930-00-259-3365 | 2021-06-161 | 21 | DIBBS |
| 5930-00-259-3365 | 2021-05-136 | 21 | DIBBS |
| 5930-00-259-3365 | 2021-04-119 | 21 | DIBBS |
| 5930-00-259-3365 | 2021-02-56 | 17 | DIBBS |
| 5930-00-259-3365 | 2020-02-58 | 19 | DIBBS |
| 5930-00-259-3365 | 2018-09-263 | 30 | DIBBS |
| 5930-00-259-3365 | 2018-05-144 | 18 | DIBBS |
| 5930-00-259-3365 | 2018-02-53 | 15 | DIBBS |
| 5930-00-259-3365 | 2017-01-25 | 15 | DIBBS |
| 5930-00-259-3365 | 2016-04-120 | 2 | United States |
| 5930-00-259-3365 | 2015-09-273 | 2 | United States |
| 5930-00-259-3365 | 2015-07-209 | 2 | United States |
| 5930-00-259-3365 | 2015-04-104 | 29 | DIBBS |
| 5930-00-259-3365 | 2015-04-103 | 2 | United States |
| 5930-00-259-3365 | 2015-04-103 | 2 | United States |
| 5930-00-259-3365 | 2013-06-156 | 12 | DIBBS |
| 5930-00-259-3365 | 2013-05-121 | 9 | DIBBS |
| 5930-00-259-3365 | 2013-02-32 | 14 | DIBBS |
| 5930-00-259-3365 | 2011-09-244 | 18 | DIBBS |
| 5930-00-259-3365 | 2010-05-121 | 3 | DIBBS |
| 5930-00-259-3365 | 2010-03-63 | 14 | DIBBS |
| 5930-00-259-3365 | 2009-11-307 | 2 | DIBBS |
| MILS16032 | 2009-10-299 | 8 | US |
| 5930-00-259-3365 | 2009-09-251 | 13 | DIBBS |
| 5930-00-259-3365 | 2009-06-167 | 18 | DIBBS |
| 5930-00-259-3365 | 2009-06-166 | 88 | DIBBS |
| 5930-00-259-3365 | 2009-04-106 | 8 | DIBBS |
| 5930-00-259-3365 | 2009-03-76 | 18 | DIBBS |
| 5930-00-259-3365 | 2009-01-29 | 17 | DIBBS |
| 5930-00-259-3365 | 2008-09-253 | 11 | DIBBS |
| 5930-00-259-3365 | 2008-08-217 | 21 | DIBBS |
| 5930-00-259-3365 | 2008-07-185 | 32 | DIBBS |
| 5930-00-259-3365 | 2007-11-333 | 14 | DIBBS |
| 5930-00-259-3365 | 2007-09-269 | 14 | DIBBS |
Cross Reference | NSN 5930-00-259-3365
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1CN31A12 | 91475 | AMERICAN STANDARD INC PLUMBING PRODUCTS DIV |
| 222-32NL1-2222348 | 19278 | DETROIT SWITCH, INC. |
| 222-32NL1-222348 | 19278 | DETROIT SWITCH, INC. |
| 9000S650473935 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| IC/N31A12 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS16032 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-259-3365
Related Products | NSN 5930-00-259-3365
Technical Data | NSN 5930-00-259-3365
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 73 RECTANGULAR |

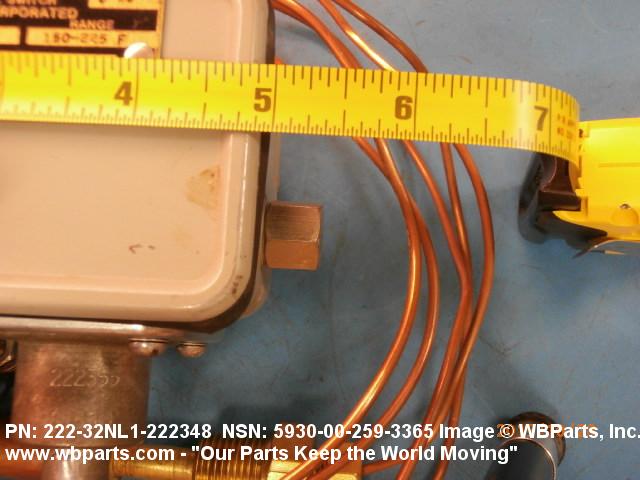

| OVERALL LENGTH | 6.969 INCHES NOMINAL |
| OVERALL HEIGHT | 2.813 INCHES NOMINAL |
| OVERALL WIDTH | 5.000 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT ADJUSTABLE |
| CONTACT ADJUSTMENT RANGE | 100.00 TO 225.00 ACTUATION POINT DEGREES FAHRENHEIT |
| CONTACT ADJUSTMENT TYPE | EXTERNAL ACTUATION POINT SCREW |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL FIRST VOLTAGE 115.0 DC AT SEA LEVEL SECOND VOLTAGE |
| CONTACT LOAD CURRENT RATING | 4.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 3.0 AMPERES RESISTIVE LOAD SECOND VOLTAGE |
| OPERATING TEMP RATING | -273.1 DEG CELSIUS MINIMUM AND 300.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | LIQUID |

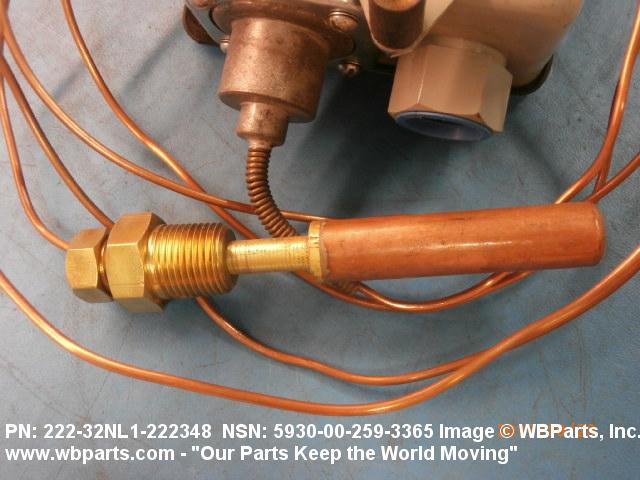

| TEMP SENSING ELEMENT TYPE | CAPILLARY TUBE-BULB |
| CAPILLARY TUBE LENGTH | 120.000 INCHES NOMINAL |

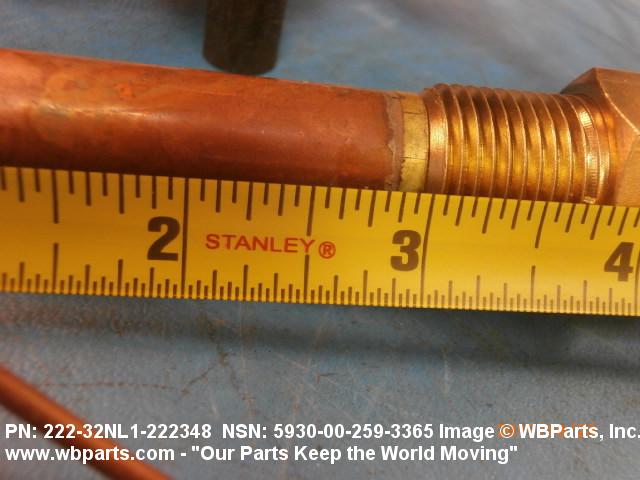

| BULB LENGTH | 3.000 INCHES NOMINAL |
| BULB DIAMETER | 0.500 INCHES NOMINAL |
| TERMINAL TYPE | TAB W/SCREW |
| MOUNTING METHOD | BASE |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| TEST DATA DOCUMENT | 81349-MILS16032 SPECIFICATION |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | FORRESTAL CLASS CV; LANDING CRAFT, UTILITY, 115 FT; NIMITZ CLASS CVN; WASP CLASS LHD; TARAWA CLASS LHA; WHIDBEY ISLAND CLASS LSD; SUBMARINE AUXILLARY AND MISCELLANOUS SYSTEMS; L.P. COMPRESSORS; IWO JIMA CLASS LPH; VIRGINIA CLASS CGN (41) |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | IC/N31A12 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS16032 |
Restrictions/Controls & Freight Information | NSN 5930-00-259-3365
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
