Product Details | SENSITIVE SWITCH

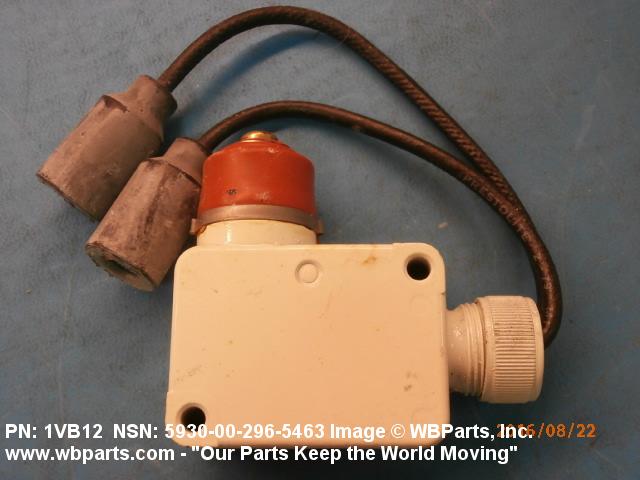

5930-00-296-5463 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 1VB12, 2HF2, 2PF2, 59011, 59302965463, 5930-296-5463 , 7973708, 5930-00-296-5463, 00-296-5463, 5930002965463, 002965463
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-296-5463 | 00399 ( SWITCH, SENSITIVE ) |

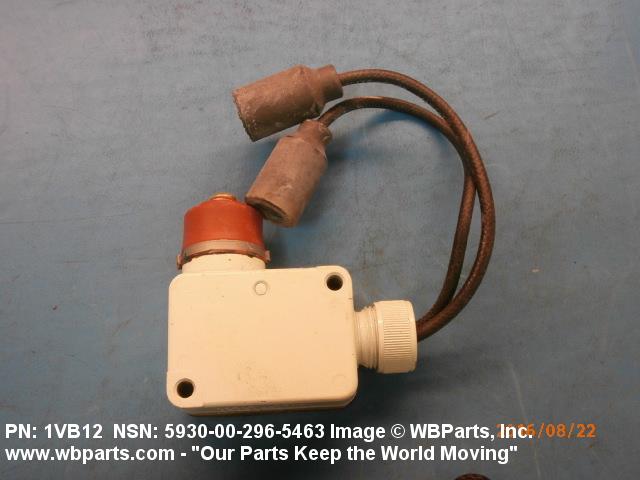

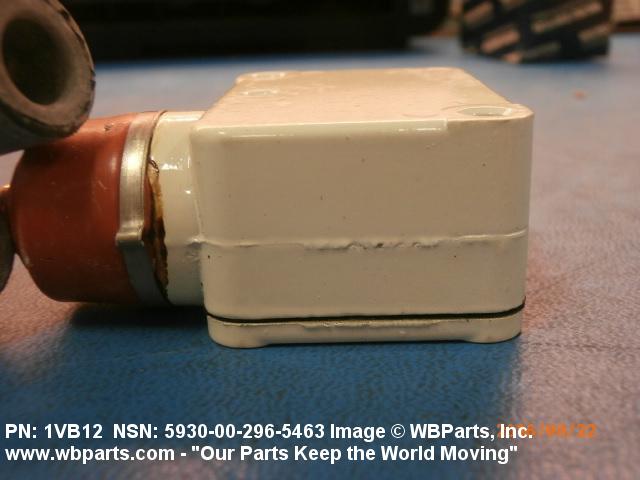

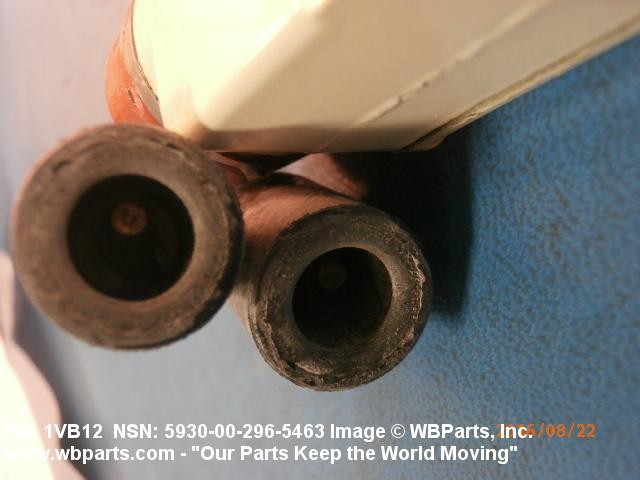

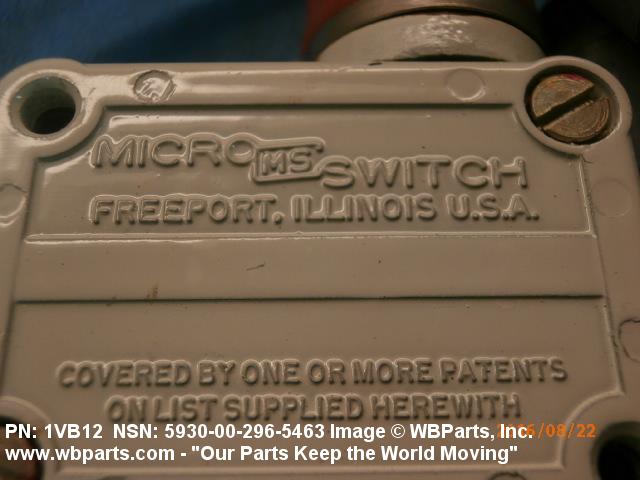

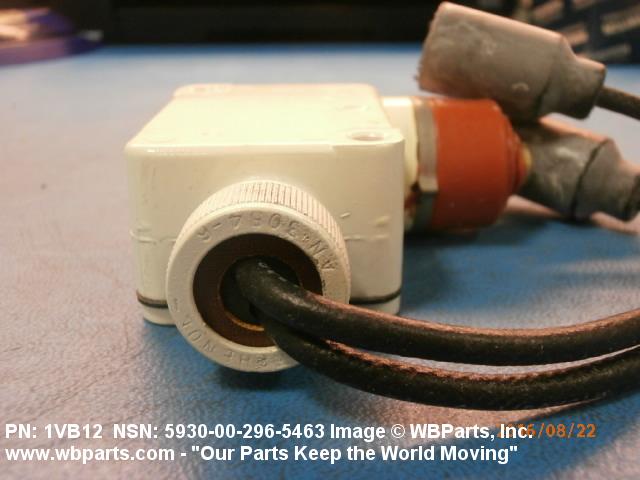

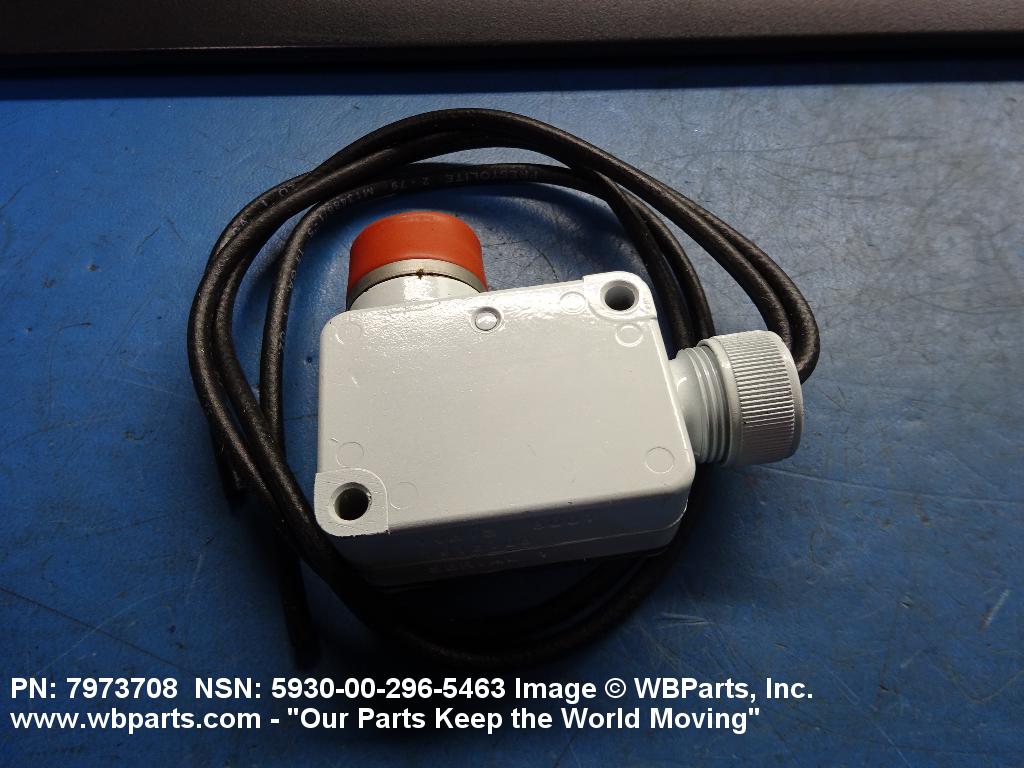

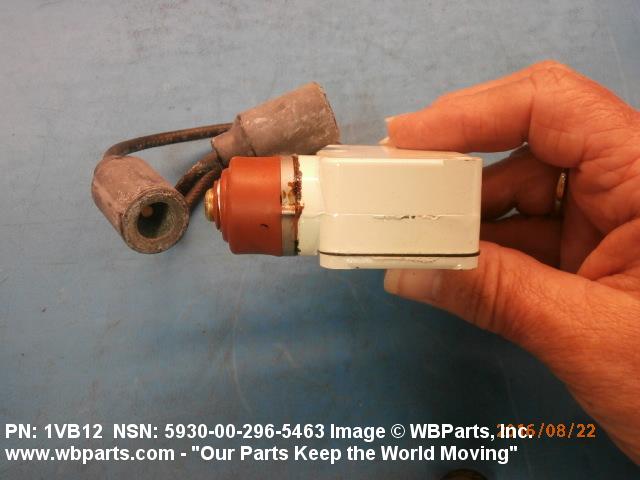

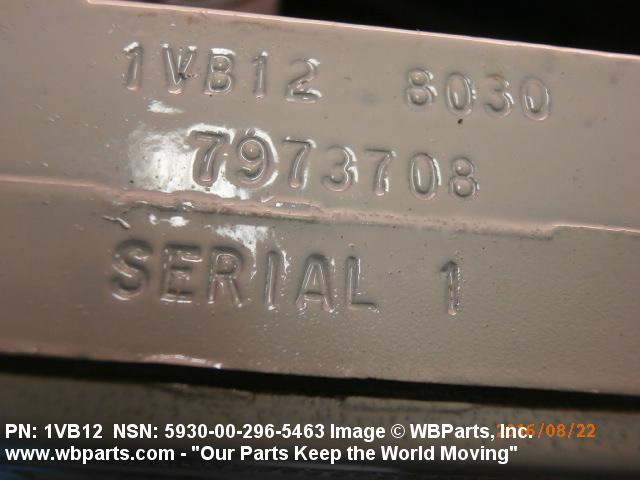

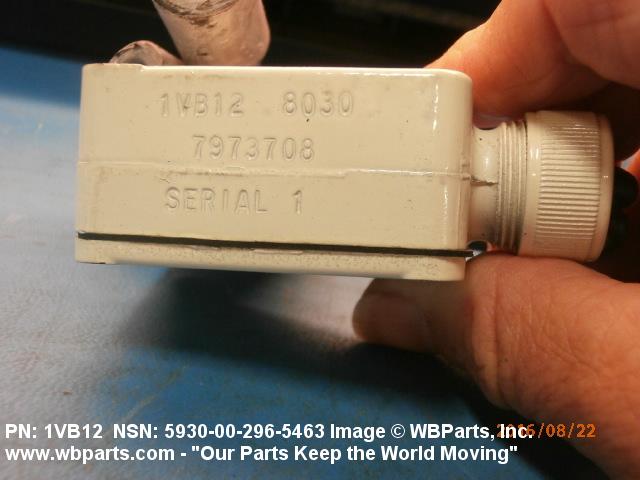

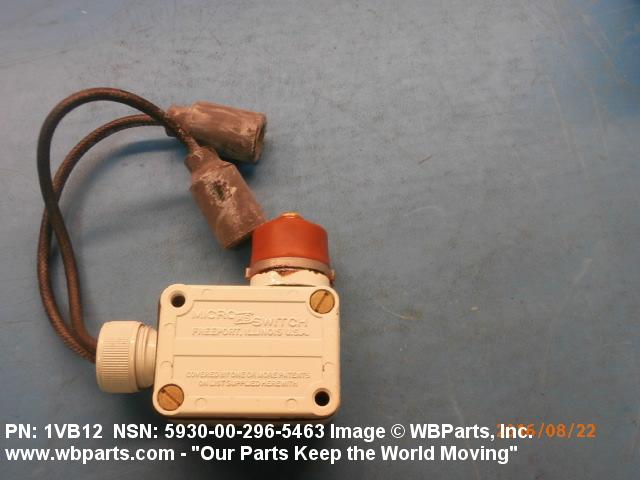

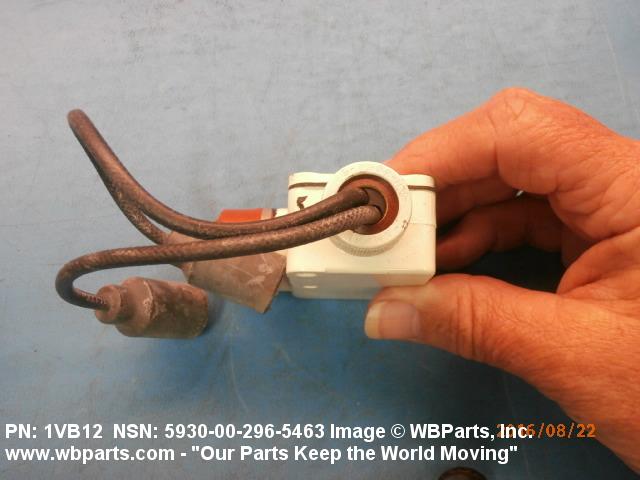

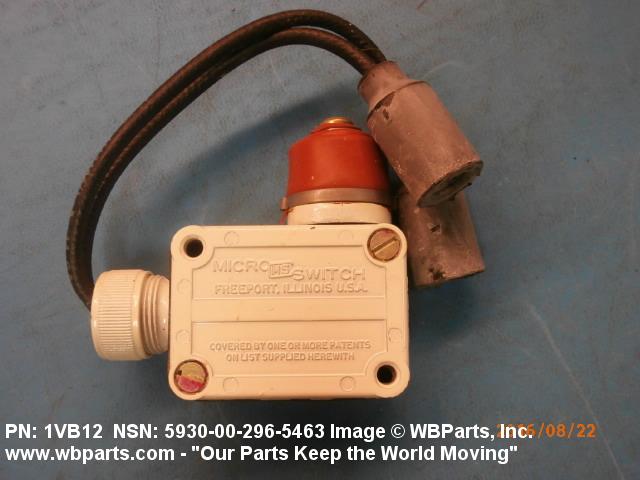

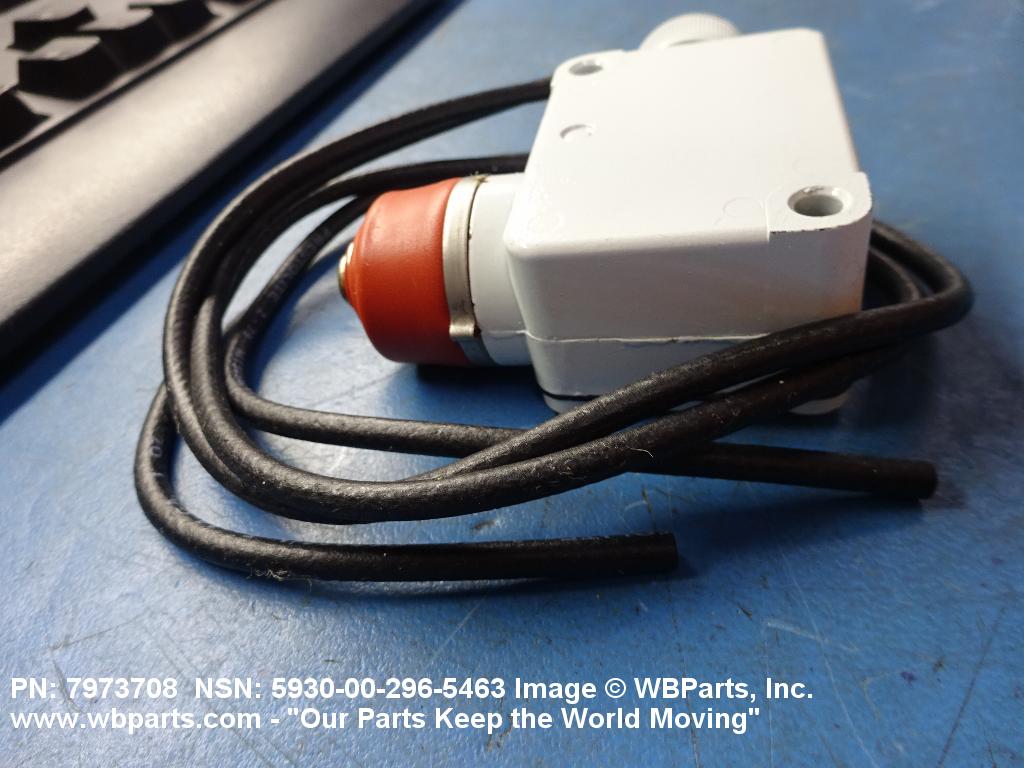

Drawings & Photos | NSN 5930-00-296-5463
Demand History | NSN 5930-00-296-5463
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2PF2 | 2025-05-128 | 15 | DIBBS |
| 59011 | 2025-05-128 | 15 | DIBBS |
| 2PF2 | 2025-04-114 | 13 | DIBBS |
| 59011 | 2025-04-114 | 13 | DIBBS |
| 2PF2 | 2025-01-30 | 49 | DIBBS |
| 59011 | 2025-01-30 | 49 | DIBBS |
| 2PF2 | 2025-01-27 | 49 | DIBBS |
| 59011 | 2025-01-27 | 49 | DIBBS |
| 2PF2 | 2025-01-15 | 49 | DIBBS |
| 59011 | 2025-01-15 | 49 | DIBBS |
| 5930-00-296-5463 | 2024-11-331 | 50 | IL |
| 2PF2 | 2024-11-317 | 17 | DIBBS |
| 59011 | 2024-11-317 | 17 | DIBBS |
| 2PF2 | 2024-09-270 | 22 | DIBBS |
| 59011 | 2024-09-270 | 22 | DIBBS |
| 002965463 | 2024-08-229 | 22 | Saudi Arabia |
| 5930-00-296-5463 | 2024-07-205 | 50 | Israel |
| 5930-00-296-5463 | 2024-05-150 | 40 | Israel |
| 5930-00-296-5463 | 2024-02-58 | 100 | Israel |
| 2PF2 | 2024-02-39 | 48 | DIBBS |
| 59011 | 2024-02-39 | 48 | DIBBS |
| 2PF2 | 2024-01-16 | 132 | DIBBS |
| 59011 | 2024-01-16 | 132 | DIBBS |
| 2PF2 | 2024-01-04 | 132 | DIBBS |
| 59011 | 2024-01-04 | 132 | DIBBS |
| 2PF2 | 2023-12-362 | 21 | DIBBS |
| 59011 | 2023-12-362 | 21 | DIBBS |
| 5930-00-296-5463 | 2023-11-313 | 80 | us |
| 5930-00-296-5463 | 2023-11-312 | 80 | Israel |
| 5930-00-296-5463 | 2023-10-299 | 80 | us |
| 2PF2 | 2023-10-295 | 30 | DIBBS |
| 59011 | 2023-10-295 | 30 | DIBBS |
| 2PF2 | 2023-09-261 | 102 | DIBBS |
| 59011 | 2023-09-261 | 102 | DIBBS |
| 2PF2 | 2023-09-250 | 102 | DIBBS |
| 59011 | 2023-09-250 | 102 | DIBBS |
| 7973708 | 2022-12-361 | 40 | us |
| 5930-00-296-5463 | 2022-10-279 | 5 | us |
| 5930-00-296-5463 | 2022-09-253 | 50 | Israel |
| 5930-00-296-5463 | 2020-12-348 | 130 | Taiwan |
| 5930-00-296-5463 | 2018-05-137 | 173 | DIBBS |
| 5930-00-296-5463 | 2017-11-316 | 128 | DIBBS |
| 5930-00-296-5463 | 2017-06-155 | 132 | DIBBS |
| 5930-00-296-5463 | 2016-10-280 | 42 | DIBBS |
| 5930-00-296-5463 | 2016-08-229 | 2 | United States |
| 5930-00-296-5463 | 2016-07-213 | 49 | DIBBS |
| 5930-00-296-5463 | 2011-10-278 | 100 | IL |
| 5930-00-296-5463 | 2011-04-109 | 57 | DIBBS |
| 5930-00-296-5463 | 2011-01-12 | 174 | DIBBS |
| 5930-00-296-5463 | 2011-01-06 | 153 | DIBBS |
| 5930-00-296-5463 | 2010-11-314 | 177 | DIBBS |
| 5930-00-296-5463 | 2010-11-305 | 143 | DIBBS |
| 7973708 | 2009-11-333 | 30 | IL |
| 5930-00-296-5463 | 2009-05-122 | 130 | DIBBS |
| 5930-00-296-5463 | 2008-12-340 | 334 | DIBBS |
| 5930-00-296-5463 | 2008-10-281 | 207 | DIBBS |
| 5930-00-296-5463 | 2008-09-269 | 6 | DIBBS |
| 5930-00-296-5463 | 2008-09-247 | 33 | DIBBS |
| 5930-00-296-5463 | 2008-06-155 | 67 | DIBBS |
| 5930-00-296-5463 | 2008-05-141 | 50 | DIBBS |
| 5930-00-296-5463 | 2008-05-127 | 96 | DIBBS |
| 5930-00-296-5463 | 2008-02-36 | 138 | DIBBS |
| 5930-00-296-5463 | 2007-08-221 | 140 | DIBBS |
| 5930-00-296-5463 | 2007-07-199 | 45 | DIBBS |
| 5930-00-296-5463 | 2007-02-36 | 39 | DIBBS |
Cross Reference | NSN 5930-00-296-5463
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1VB12 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 2HF2 | 60198 | SAINT TECHNOLOGIES INC. |
| 2PF2 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 59011 | 62577 | ANK TECHNOLOGY, INC. DBA MAPEX CO |
| 5930-296-5463 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5930002965463 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 7973708 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-296-5463
Related Products | NSN 5930-00-296-5463
Technical Data | NSN 5930-00-296-5463
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.000 AMPERES INDUCTIVE DC |

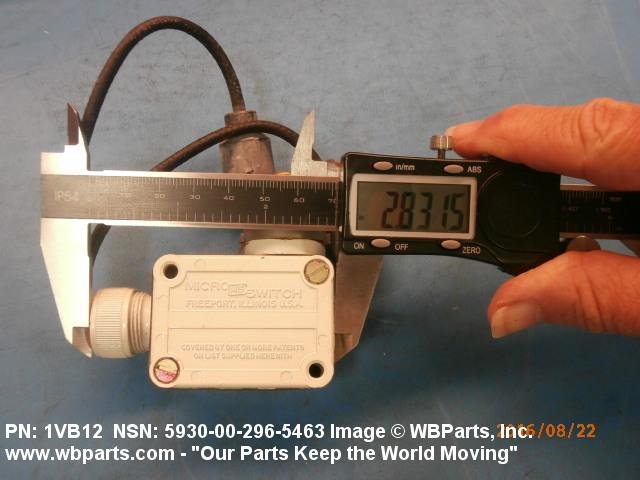

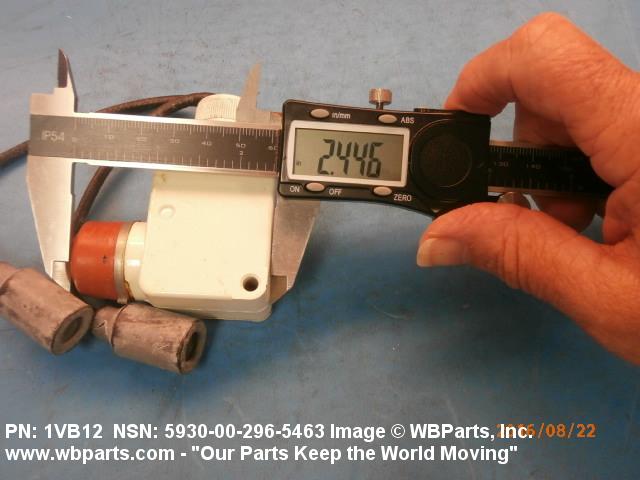

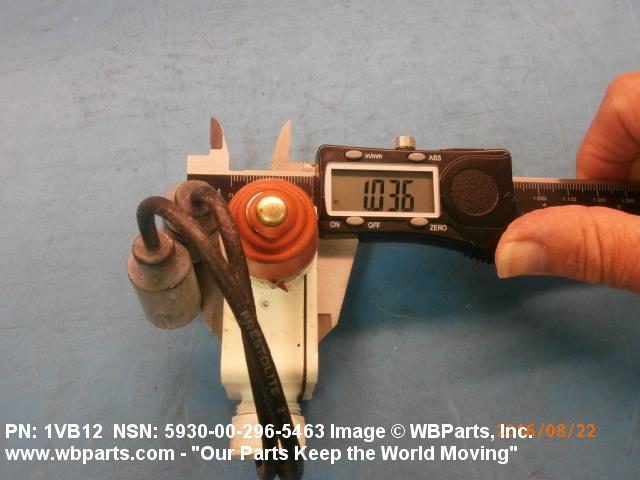

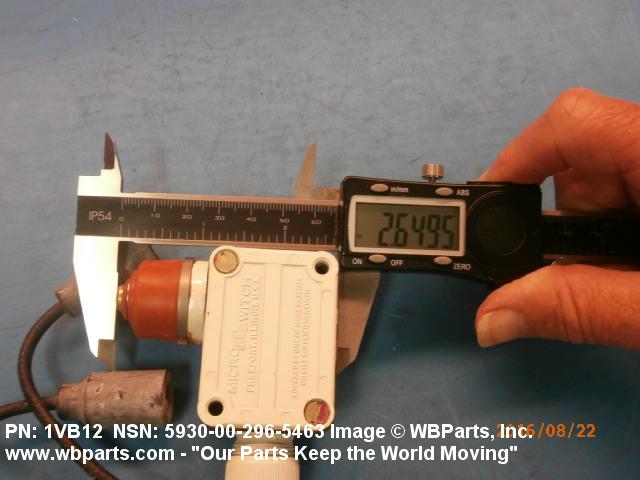

| OVERALL LENGTH | 2.740 INCHES NOMINAL |
| OVERALL WIDTH | 1.040 INCHES NOMINAL |
| OVERALL HEIGHT | 2.606 INCHES NOMINAL |

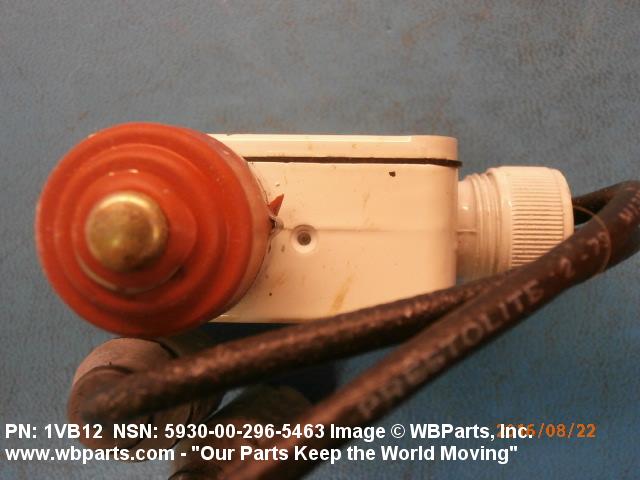

| ACTUATOR STYLE | 2 ROUND |
