Product Details | SENSITIVE SWITCH
5930-00-321-0406 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 0110210001, 011021-0001, 11687093, 1851817, 1HS41, 2557-43336, 5930-00-321-0406, 00-321-0406, 5930003210406, 003210406, 255743336
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-321-0406 | 00399 ( SWITCH, SENSITIVE ) |

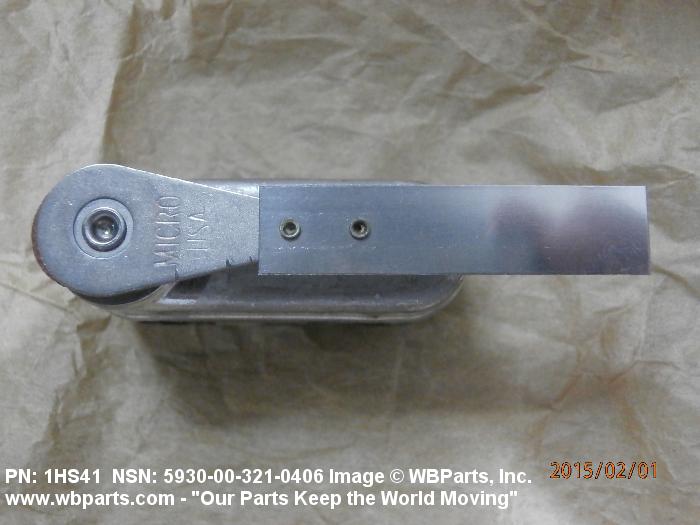

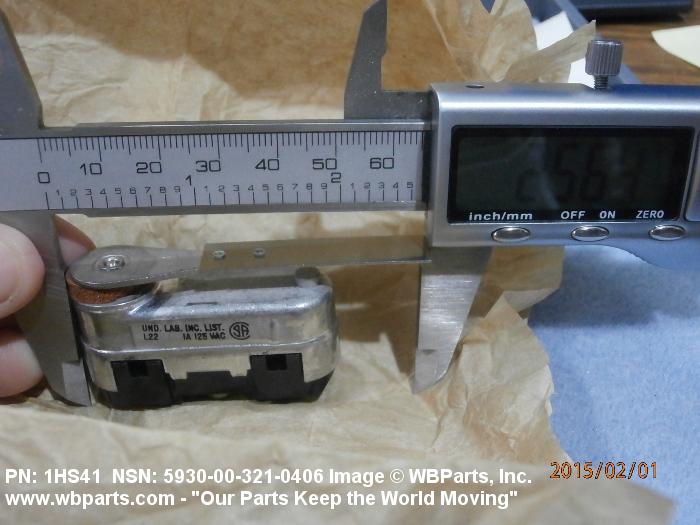

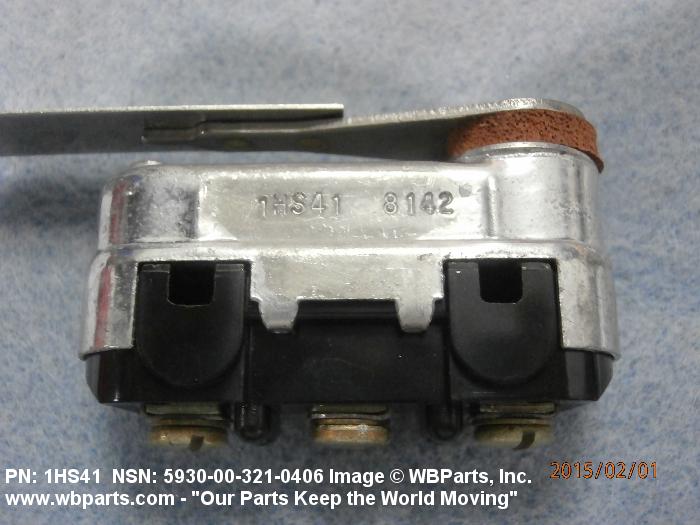

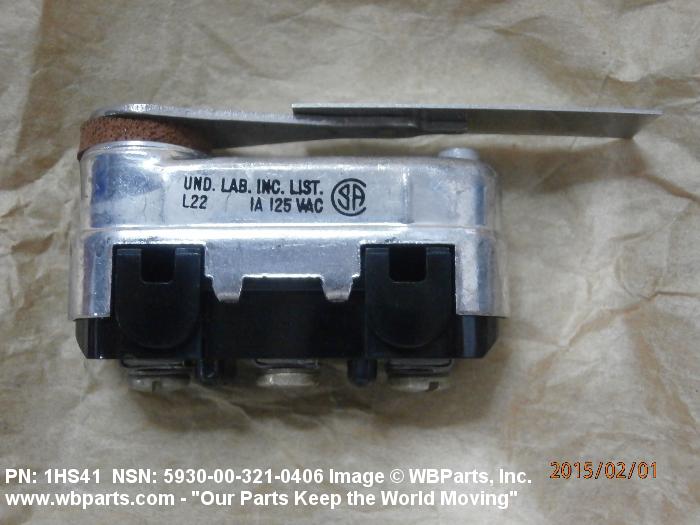

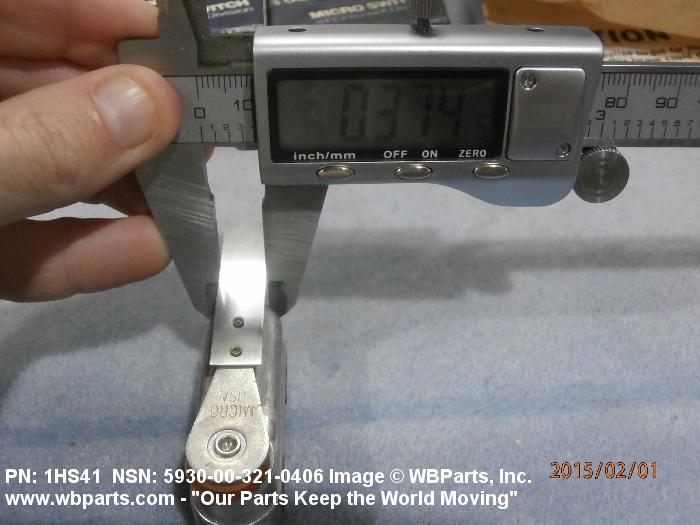

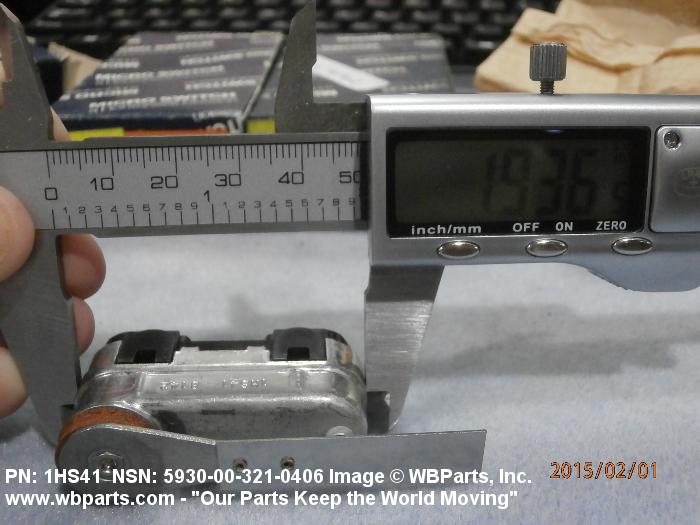

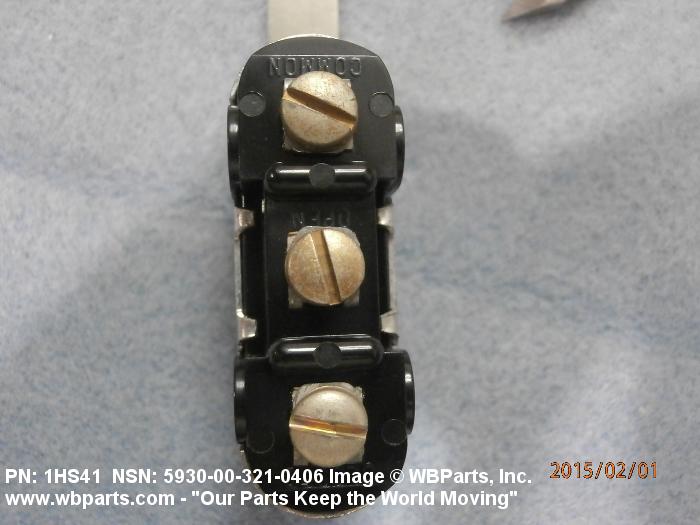

Drawings & Photos | NSN 5930-00-321-0406
Demand History | NSN 5930-00-321-0406
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1HS41 | 2017-11-311 | 19 | United States |
| 5930-00-321-0406 | 2016-07-213 | 65 | DIBBS |
| 1HS41 | 2014-10-281 | 13 | United States |
| 5930-00-321-0406 | 2013-06-171 | 6 | US |
| 1HS41 | 2010-10-285 | 2 | United States |
| 1HS41 | 2010-06-181 | 1 | US |
| 1HS41 | 2010-05-132 | 8 | US |
| 1HS41 | 2008-11-323 | 4 | Philippines |
Cross Reference | NSN 5930-00-321-0406
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 011021-0001 | 65597 | THALES DEFENSE & SECURITY, INC. |
| 11687093 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 1851817 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 1HS41 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 1HS41 | K1401 | HONEYWELL CONTROL SYSTEMS LIMITED |
| 2557-43336 | 08241 | LOCKHEED MARTIN CORP LOCKHEED MARTIN MISSION SYSTEMS |
