NSN 5930-00-401-7276 VD0004, 281-0004-00, 14012
Product Details | SENSITIVE SWITCH

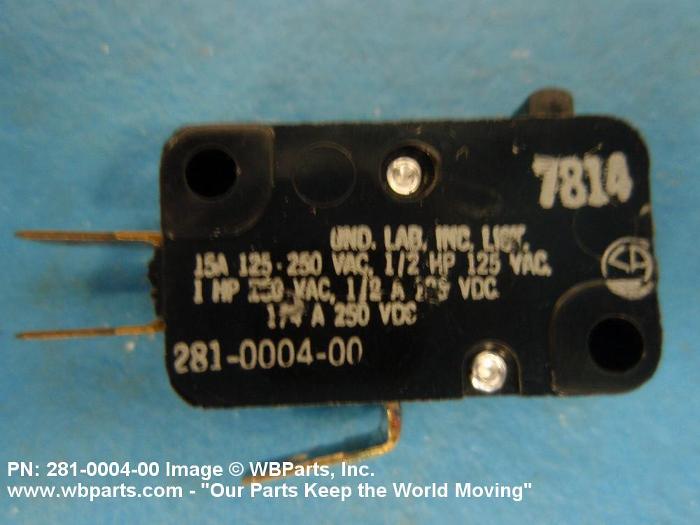

5930-00-401-7276 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: VD0004, 281-0004-00, 14012, 14-012, 5930-00-401-7276, 00-401-7276, 5930004017276, 004017276, 281000400
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 APR 1970 | 00-401-7276 | 00399 ( SWITCH, SENSITIVE ) |

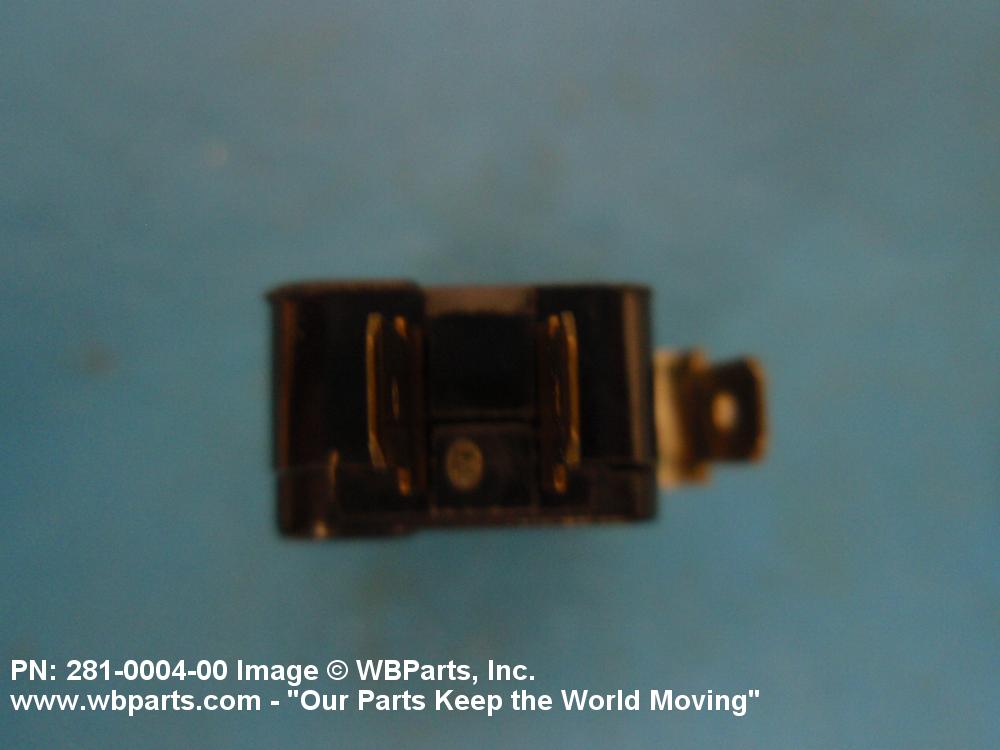

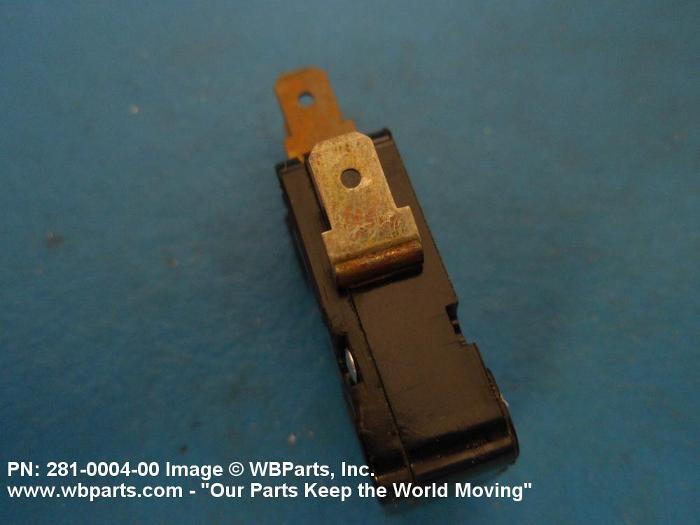

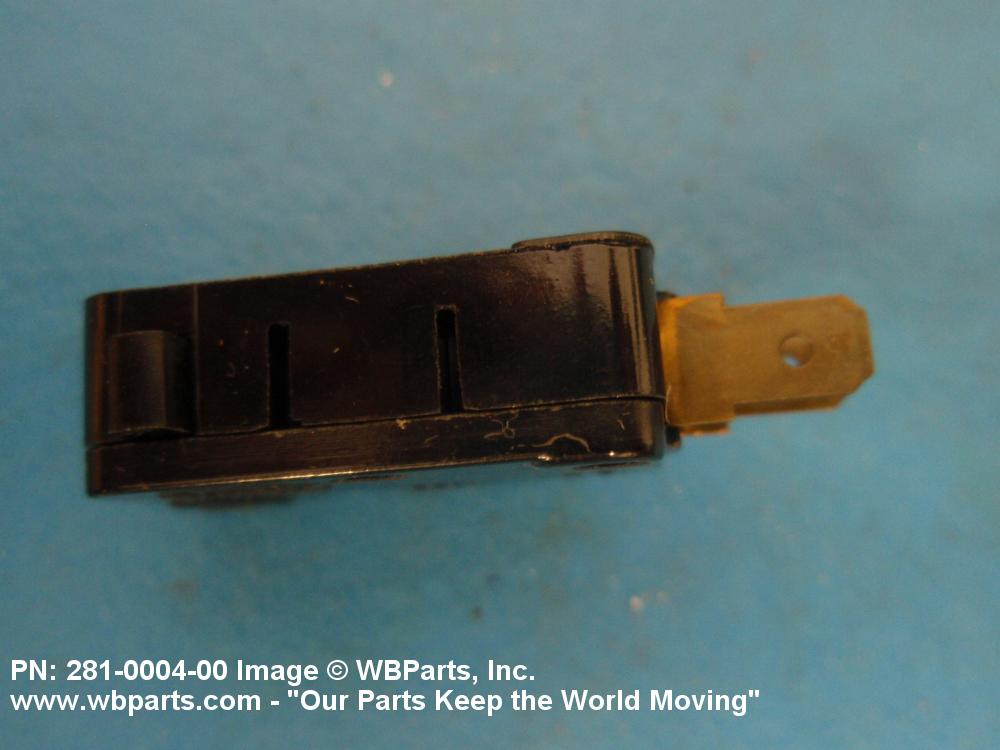

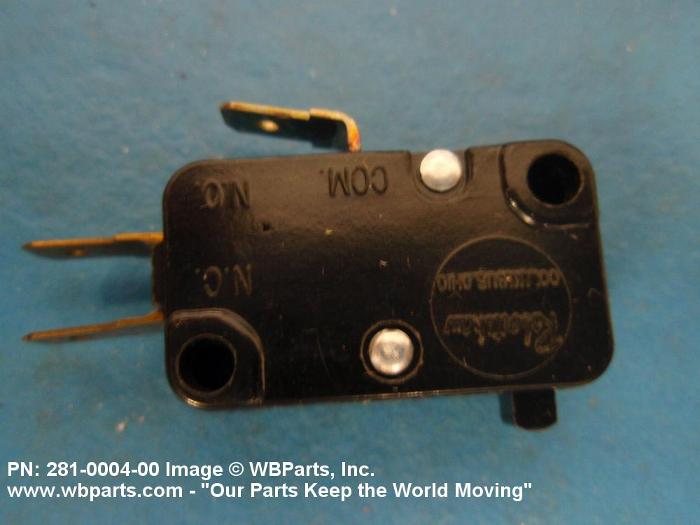

Drawings & Photos | NSN 5930-00-401-7276
Demand History | NSN 5930-00-401-7276
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-401-7276 | 2024-05-122 | 1 | us |
| 5930-00-401-7276 | 2023-12-347 | 1 | US |
| 5930-00-401-7276 | 2023-07-200 | 2 | US |
| 5930-00-401-7276 | 2023-04-118 | 1 | US |
| 5930-00-401-7276 | 2023-04-118 | 2 | US |
| 281000400 | 2022-12-361 | 2 | US |
| 5930-00-401-7276 | 2022-11-322 | 4 | US |
| 5930-00-401-7276 | 2021-02-54 | 2 | US |
| 5930-00-401-7276 | 2019-11-329 | 3 | US |
| 5930-00-401-7276 | 2019-02-33 | 1 | US |
| 5930-00-401-7276 | 2012-03-61 | 4 | US |
| 5930-00-401-7276 | 2012-02-37 | 4 | United States |
| 5930-00-401-7276 | 2011-05-143 | 1 | US |
| 281000400 | 2011-03-68 | 4 | United States |
| 5930-00-401-7276 | 2011-03-68 | 4 | United States |
