NSN 5930-00-420-8517 MS272571, MS27257-1, MIL-PRF-8805/76
Product Details | SENSITIVE SWITCH
5930-00-420-8517 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: MS272571, MS27257-1, MIL-PRF-8805/76, MILPRF880576, MILS880576, MILS8805-76, 1840421, 18-404-21, 18488051, 18-488051, 5930-00-420-8517, 00-420-8517, 5930004208517, 004208517
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 MAR 1969 | 00-420-8517 | 00399 ( SWITCH, SENSITIVE ) |

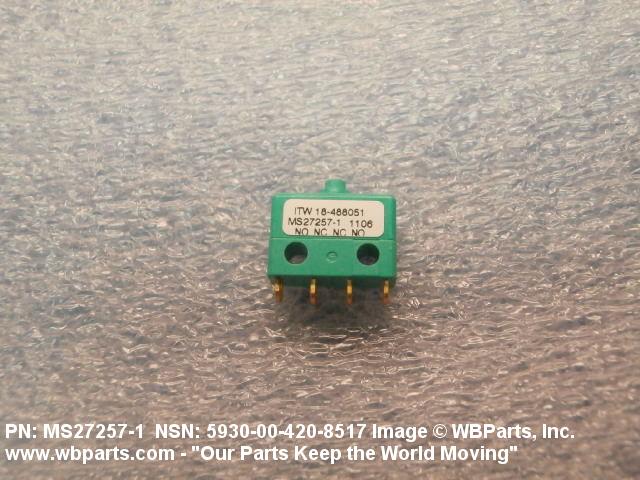

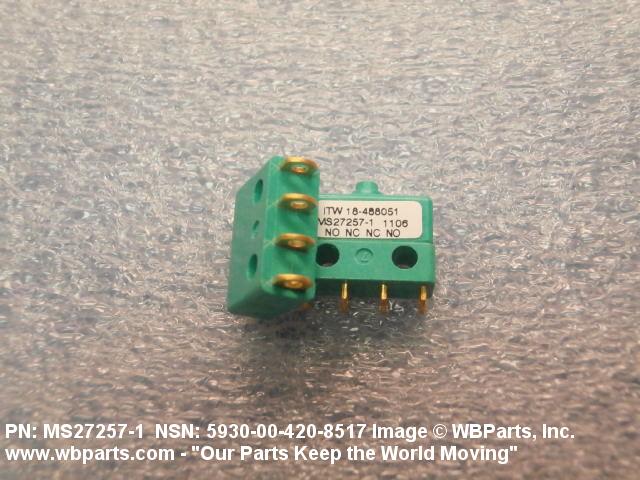

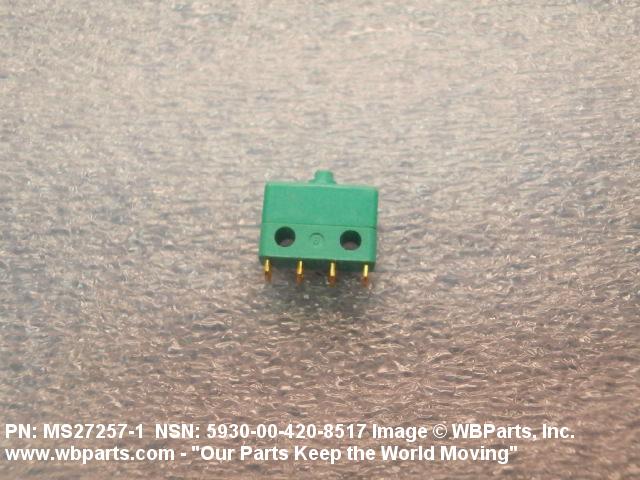

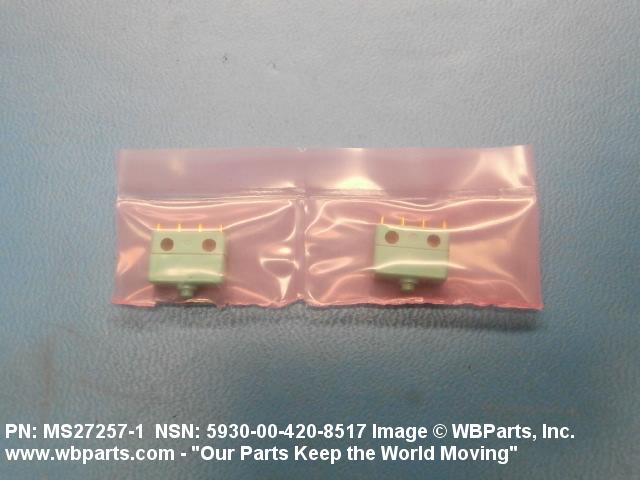

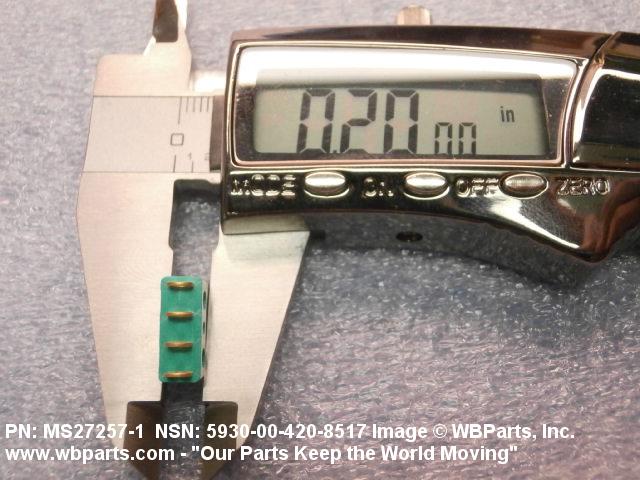

Drawings & Photos | NSN 5930-00-420-8517
Demand History | NSN 5930-00-420-8517
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-420-8517 | 2024-07-193 | 183 | DIBBS |
| 5930-00-420-8517 | 2021-02-46 | 46 | DIBBS |
| 5930-00-420-8517 | 2017-08-214 | 398 | DIBBS |
| 5930-00-420-8517 | 2015-03-78 | 4 | Malaysia |
| MS272571 | 2015-03-75 | 10 | Ukraine |
| MS272571 | 2014-12-363 | 2 | Malaysia |
| MS272571 | 2008-11-316 | 2 | Malaysia |
| 5930-00-420-8517 | 2008-01-31 | 533 | DIBBS |
| 5930-00-420-8517 | 2007-02-47 | 284 | DIBBS |
Cross Reference | NSN 5930-00-420-8517
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 18-404-21 | 30323 | ILLINOIS TOOL WORKS INC |
| 18-488051 | 04426 | ILLINOIS TOOL WORKS INC. DIV ILLINOIS TOOL WORKS |
| MIL-PRF-8805/76 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS8805-76 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS27257-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-420-8517
Related Products | NSN 5930-00-420-8517
Technical Data | NSN 5930-00-420-8517
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 8.000 AMPERES RESISTIVE DC AND 5.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES MOTOR DC |
| BODY STYLE | 20M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.279 INCHES MINIMUM AND 0.283 INCHES MAXIMUM |

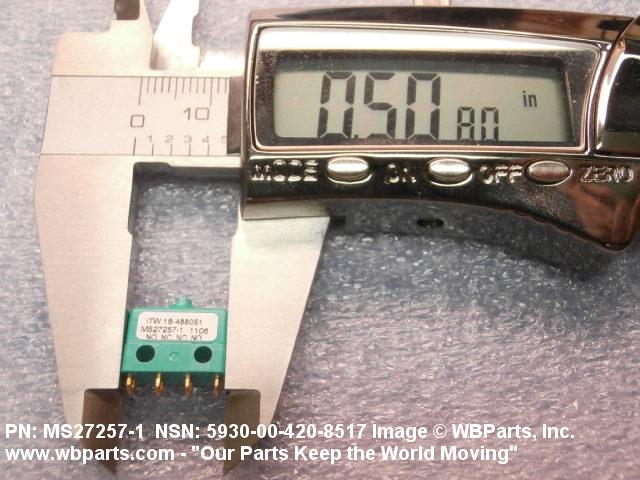

| BODY LENGTH | 0.510 INCHES MAXIMUM |
| BODY WIDTH | 0.190 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |

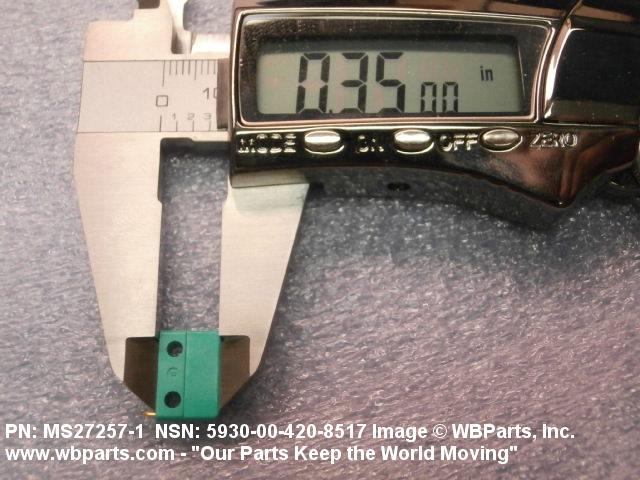

| BODY HEIGHT | 0.335 INCHES MINIMUM AND 0.365 INCHES MAXIMUM |
| ACTUATOR STYLE | 2 ROUND |

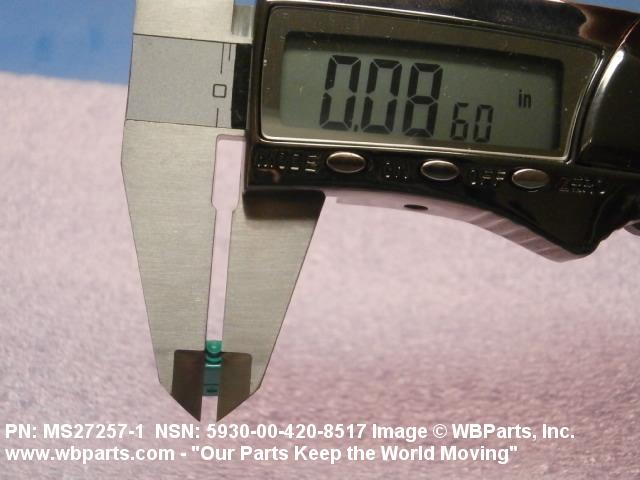

| ACTUATOR DIAMETER | 0.088 INCHES MINIMUM AND 0.098 INCHES MAXIMUM |

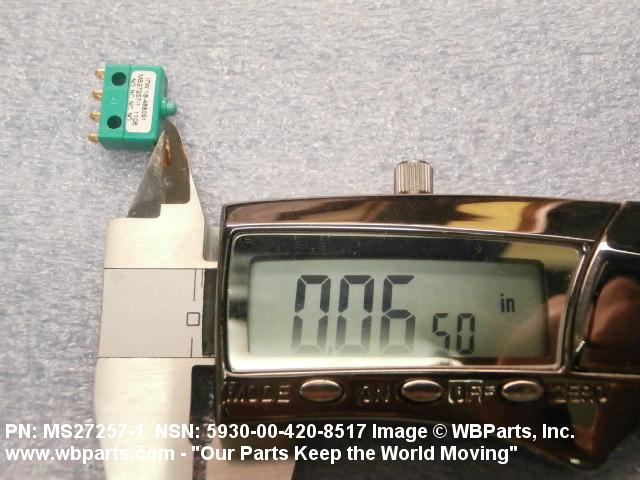

| ACTUATOR HEIGHT | 0.065 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 0.085 INCHES MINIMUM AND 0.095 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| SWITCH ACTUATING FORCE | 8.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 8.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.035 PRETRAVEL INCHES MAXIMUM AND 0.004 OVERTRAVEL INCHES MINIMUM AND 0.010 DIFFERENTIAL INCHES MINIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.132 INCHES MINIMUM AND 0.162 INCHES MAXIMUM |
| TEST DATA DOCUMENT | 81349-MILS8805-76A SPECIFICATION |
| III OVERALL LENGTH | 0.510 INCHES MAXIMUM |
| III OVERALL HEIGHT | 0.400 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-8805/76 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27257-1 |
Restrictions/Controls & Freight Information | NSN 5930-00-420-8517
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
