NSN 5930-00-433-3920 C21032, C2-1032, SMA718654
Product Details | SENSITIVE SWITCH
5930-00-433-3920 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: C21032, C2-1032, SMA718654, SM-A-718654, 28882961, 2888296-1, 2AC60, 32547661, 3254766-1, 483778, 5930-00-433-3920, 00-433-3920, 5930004333920, 004333920
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 MAY 1974 | 00-433-3920 | 00399 ( SWITCH, SENSITIVE ) |

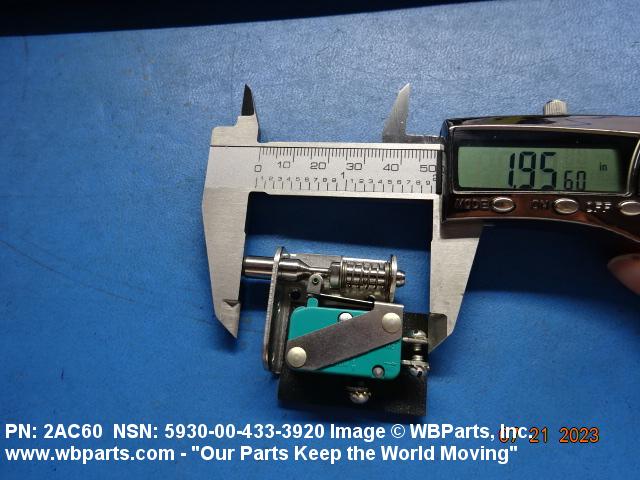

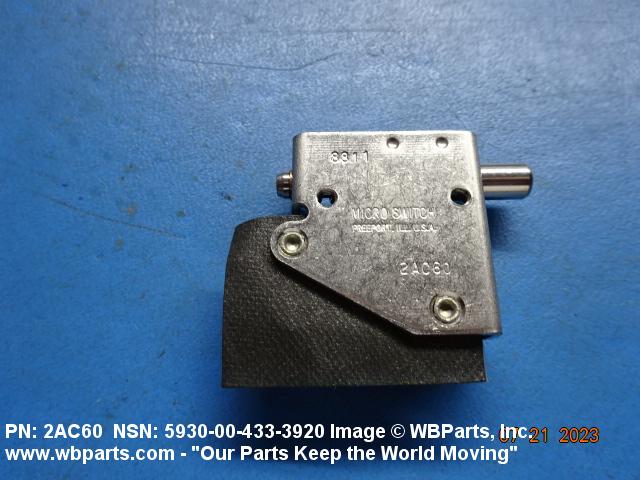

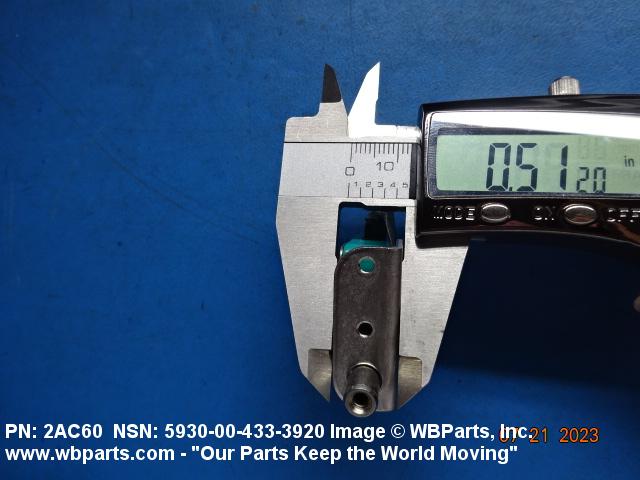

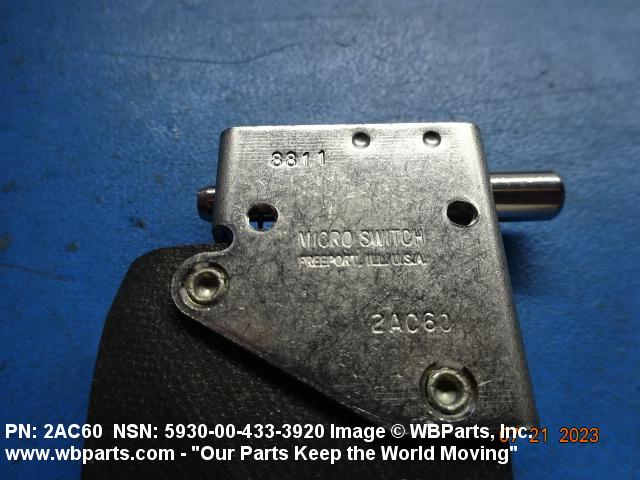

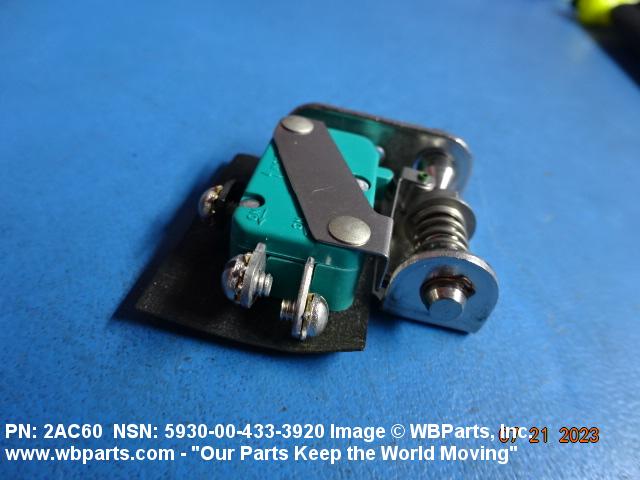

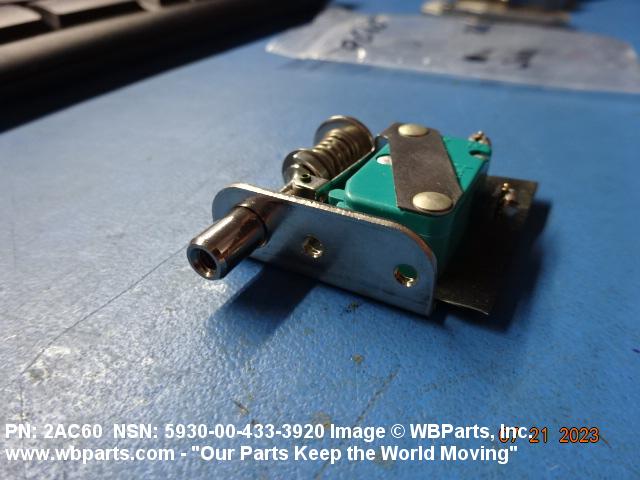

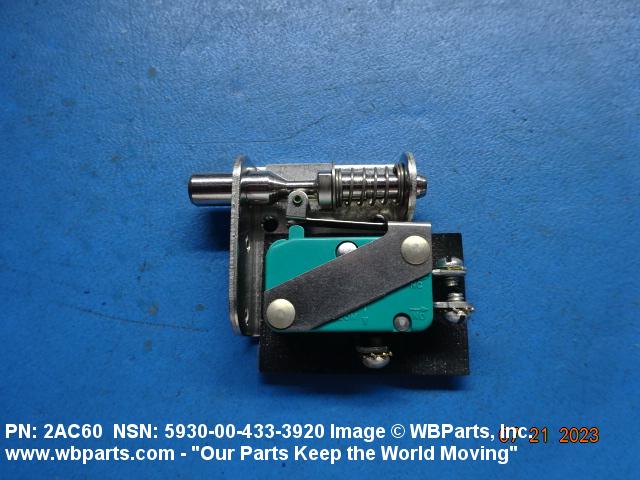

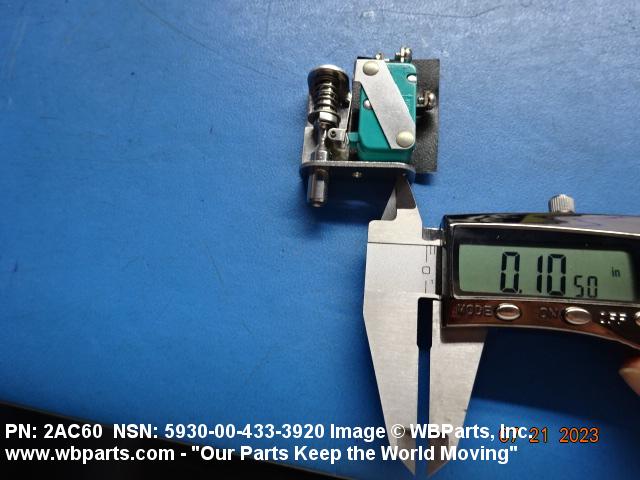

Drawings & Photos | NSN 5930-00-433-3920
Demand History | NSN 5930-00-433-3920
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-433-3920 | 2025-08-220 | 20 | US |
| 32547661 | 2025-01-22 | 1 | United States |
| 5930-00-433-3920 | 2023-07-186 | 1 | United States |
| C21032 | 2020-12-337 | 1 | US |
| 5930-00-433-3920 | 2018-02-36 | 2 | United States |
| 5930-00-433-3920 | 2018-01-26 | 2 | United States |
| 5930-00-433-3920 | 2017-10-284 | 2 | US |
| C21032 | 2014-03-76 | 1 | United States |
| 5930-00-433-3920 | 2008-01-04 | 1 | DIBBS |
Cross Reference | NSN 5930-00-433-3920
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2888296-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 2AC60 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 3254766-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 483778 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 483778 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| C2-1032 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| SM-A-718654 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-433-3920
Related Products | NSN 5930-00-433-3920
Technical Data | NSN 5930-00-433-3920
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC AND 3.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES RESISTIVE AC AND 5.000 AMPERES INDUCTIVE AC |
| BODY STYLE | 25M HOLE MOUNTED |
| BODY LENGTH | 1.660 INCHES MAXIMUM |
| BODY WIDTH | 0.490 INCHES MINIMUM AND 0.550 INCHES MAXIMUM |
| BODY HEIGHT | 1.300 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| ACTUATOR STYLE | 2 ROUND |
| ACTUATOR DIAMETER | 0.245 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| ACTUATOR HEIGHT | 0.375 INCHES MAXIMUM |
| ACTUATOR FREE POSITION HEIGHT | 0.375 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 3 SCREW |
| SWITCH ACTUATING FORCE | 0.203 INCH-OUNCES MINIMUM |
| SWITCH RELEASE FORCE | 0.125 INCH-OUNCES MAXIMUM |
| ACTUATOR MOVEMENT | 0.172 PRETRAVEL INCHES MAXIMUM AND 0.078 OVERTRAVEL INCHES MINIMUM AND 0.078 DIFFERENTIAL INCHES NOMINAL |
| INCLOSURE TYPE | UNINCLOSED |
| MOUNTING METHOD | THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
Restrictions/Controls & Freight Information | NSN 5930-00-433-3920
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-433-3920
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
