NSN 5930-00-501-4874 1PB51T, 9741001, 974100-1
Product Details | SENSITIVE SWITCH
5930-00-501-4874 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 1PB51T, 9741001, 974100-1, 5930-00-501-4874, 00-501-4874, 5930005014874, 005014874
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-501-4874 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-00-501-4874
Demand History | NSN 5930-00-501-4874
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-501-4874 | 2022-01-19 | 30 | TR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-501-4874
Related Products | NSN 5930-00-501-4874
Technical Data | NSN 5930-00-501-4874
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 30.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 3.000 AMPERES RESISTIVE DC AND 5.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES RESISTIVE AC |
| BODY STYLE | 22M HOLE MOUNTED |
| BODY LENGTH | 0.765 INCHES MINIMUM AND 0.795 INCHES MAXIMUM |
| BODY WIDTH | 0.325 INCHES MINIMUM AND 0.345 INCHES MAXIMUM |
| BODY HEIGHT | 0.625 INCHES MINIMUM AND 0.645 INCHES MAXIMUM |
| OVERALL LENGTH | 0.780 INCHES NOMINAL |
| OVERALL WIDTH | 0.390 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.120 INCHES NOMINAL |
| ACTUATOR STYLE | 2 ROUND |
| ACTUATOR LENGTH | 0.075 INCHES MINIMUM AND 0.105 INCHES MAXIMUM |
| ACTUATOR DIAMETER | 0.100 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 6 SCREW |
| SWITCH ACTUATING FORCE | 11.0 OUNCES MINIMUM AND 21.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 4.0 OUNCES MINIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |

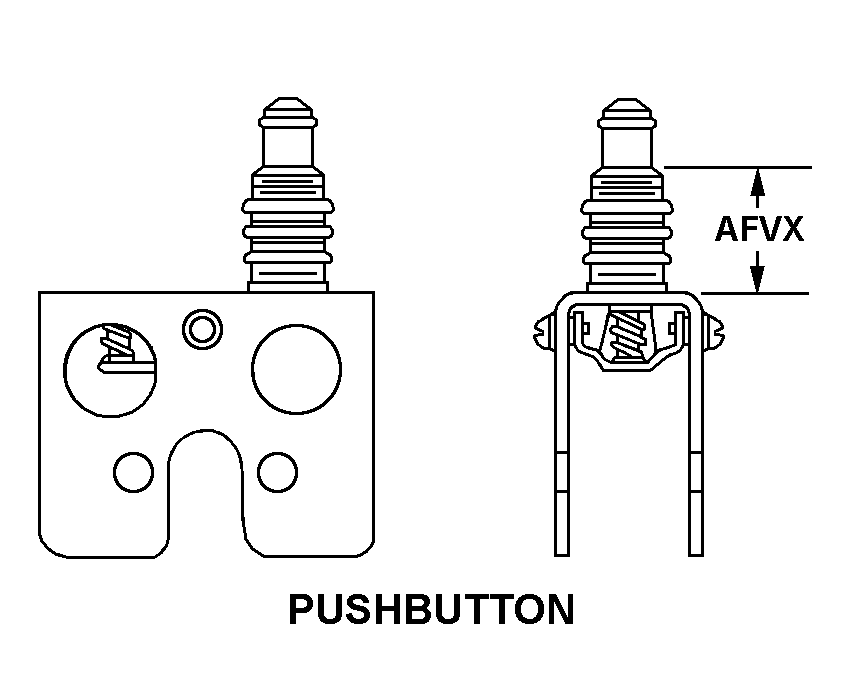

| ACTUATOR ADAPTER STYLE | 6 PUSHBUTTON |
| ADAPTER BUSHING LENGTH | 0.380 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | F-14A,F-4 |
