NSN 5930-00-636-0226 K9388137, P26009, P2600-9
Product Details | SENSITIVE SWITCH
5930-00-636-0226 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: K9388137, P26009, P2600-9, V31ANDJV5, V3-1ANDJV5, V31PJV5, V3-1PJV5, V31WACTUAT0RJV5, V3-1WACTUAT0RJV5, V31WITHJV5ACTUAT0R, V3-1WITHJV5ACTUAT0R, V31XJV5, V3-1XJV5, VBE414, VBE4-14, ZCC40815, 21339, 300165, 352242452800, 55A5504ITEM2, 708288, 7430842P3, 5930-00-636-0226, 00-636-0226, 5930006360226, 006360226
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-636-0226 | 00399 ( SWITCH, SENSITIVE ) |

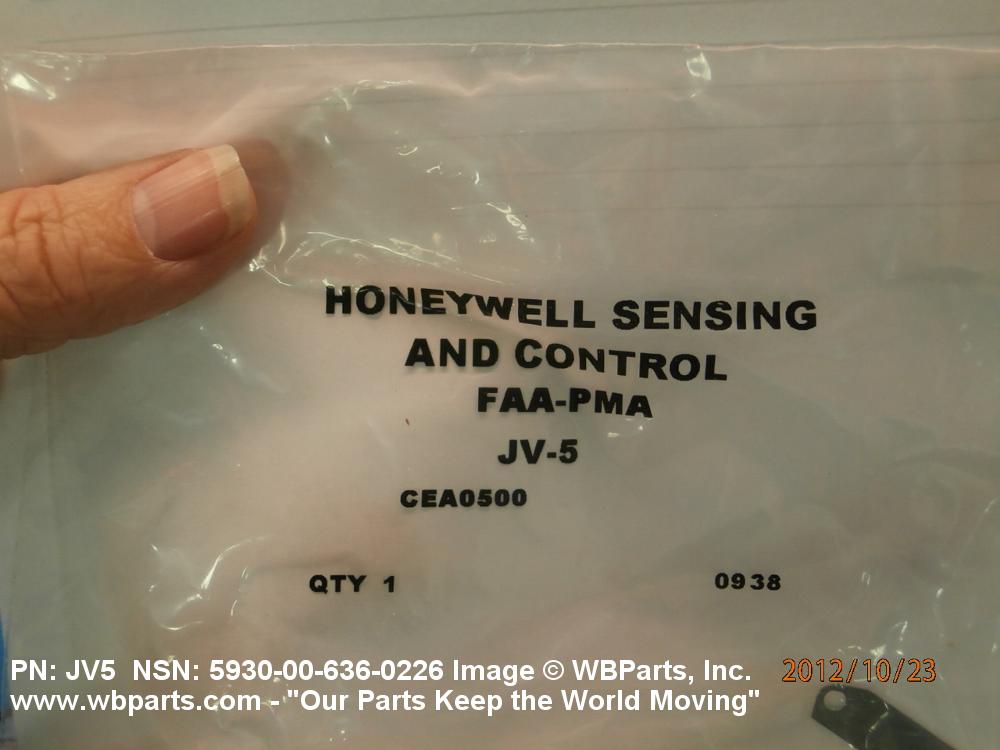

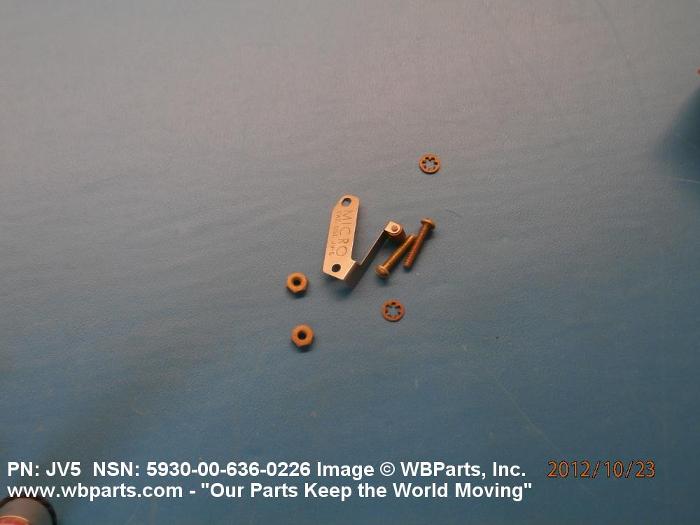

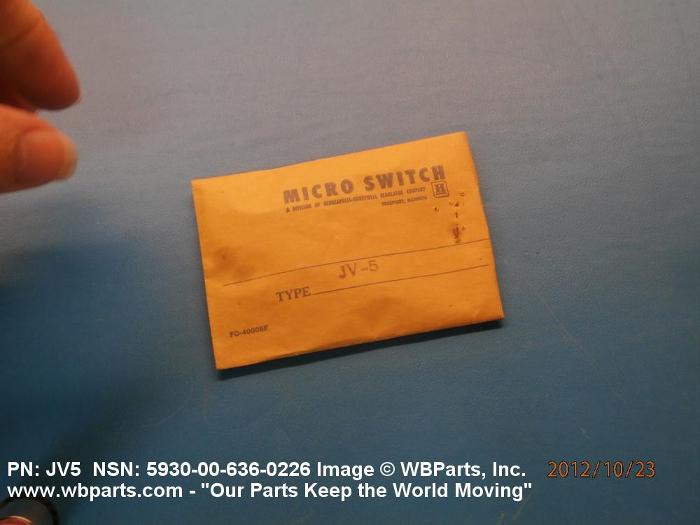

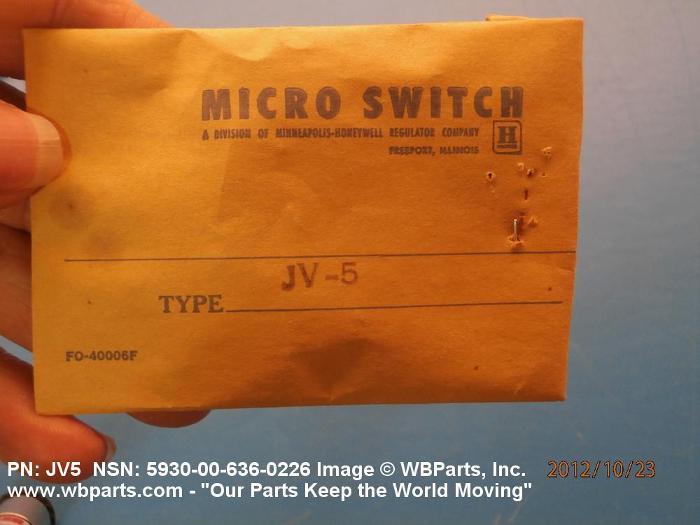

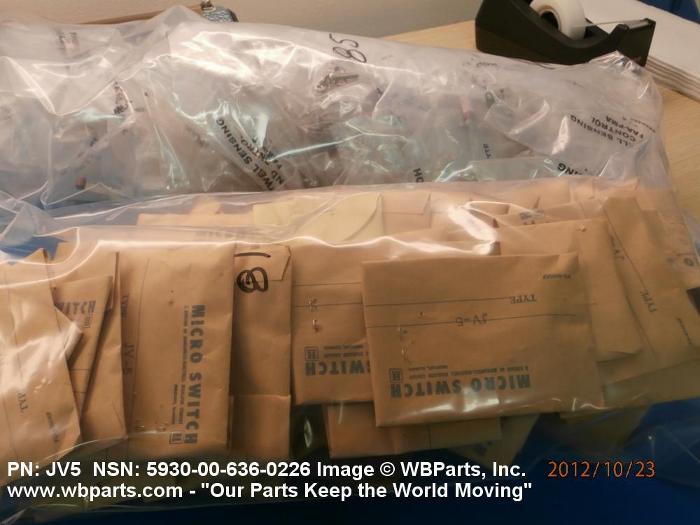

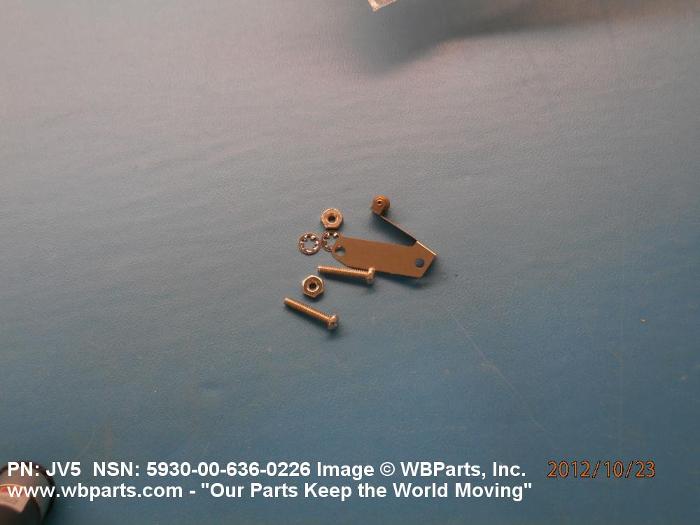

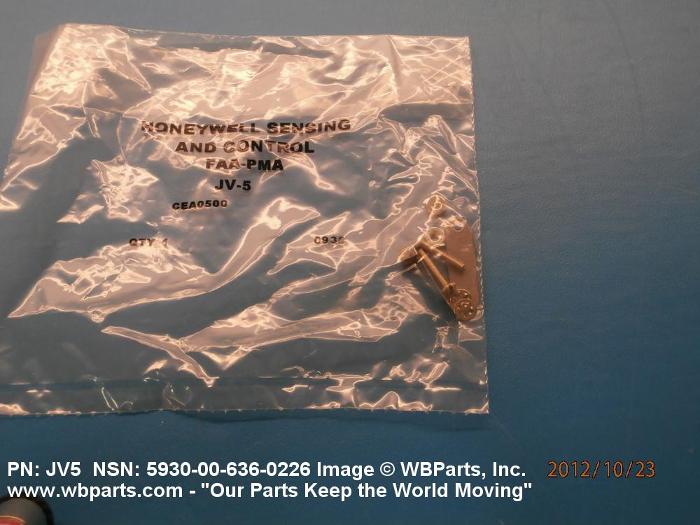

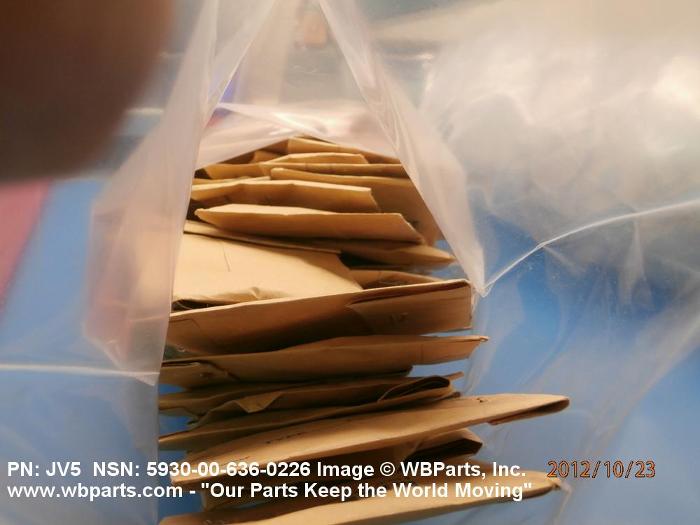

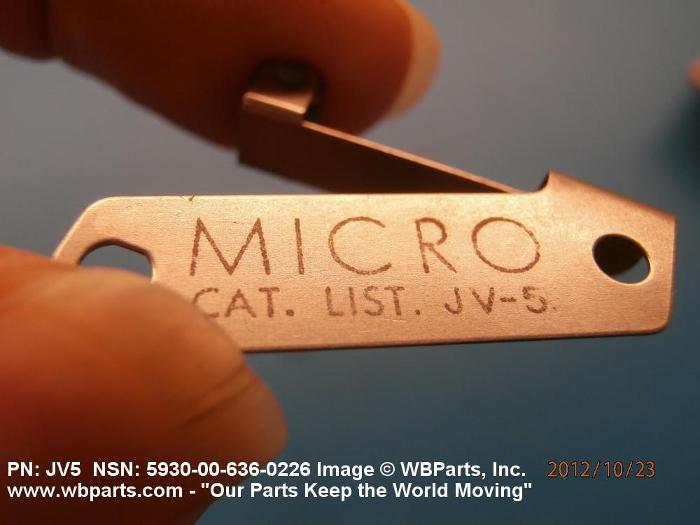

Drawings & Photos | NSN 5930-00-636-0226
Demand History | NSN 5930-00-636-0226
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 55A5504ITEM2 | 2024-04-95 | 500 | DIBBS |
| P2600-9 | 2024-04-95 | 500 | DIBBS |
| V3-1ANDJV5 | 2024-04-95 | 500 | DIBBS |
| V3-1WACTUAT0RJV5 | 2024-04-95 | 500 | DIBBS |
| 55A5504ITEM2 | 2022-09-254 | 500 | DIBBS |
| P2600-9 | 2022-09-254 | 500 | DIBBS |
| V3-1ANDJV5 | 2022-09-254 | 500 | DIBBS |
| V3-1WACTUAT0RJV5 | 2022-09-254 | 500 | DIBBS |
| 55A5504ITEM2 | 2022-09-244 | 500 | DIBBS |
| P2600-9 | 2022-09-244 | 500 | DIBBS |
| V3-1ANDJV5 | 2022-09-244 | 500 | DIBBS |
| V3-1WACTUAT0RJV5 | 2022-09-244 | 500 | DIBBS |
| 55A5504ITEM2 | 2022-04-97 | 500 | DIBBS |
| P2600-9 | 2022-04-97 | 500 | DIBBS |
| V3-1ANDJV5 | 2022-04-97 | 500 | DIBBS |
| V3-1WACTUAT0RJV5 | 2022-04-97 | 500 | DIBBS |
| 5930-00-636-0226 | 2021-05-134 | 1 | us |
| 300165 | 2020-02-44 | 507 | DIBBS |
| 55A5504ITEM2 | 2020-02-44 | 507 | DIBBS |
| P2600-9 | 2020-02-44 | 507 | DIBBS |
| V3-1ANDJV5 | 2020-02-44 | 507 | DIBBS |
| V3-1WACTUAT0RJV5 | 2020-02-44 | 507 | DIBBS |
| 5930-00-636-0226 | 2016-07-192 | 1496 | DIBBS |
| 5930-00-636-0226 | 2016-06-153 | 857 | DIBBS |
| 5930-00-636-0226 | 2016-03-67 | 520 | DIBBS |
| 5930-00-636-0226 | 2012-11-319 | 500 | DIBBS |
| 5930-00-636-0226 | 2012-11-310 | 0 | DIBBS |
| 5930-00-636-0226 | 2012-09-249 | 335 | DIBBS |
| 5930-00-636-0226 | 2012-05-136 | 324 | DIBBS |
| 5930-00-636-0226 | 2012-03-68 | 0 | DIBBS |
| 5930-00-636-0226 | 2010-12-351 | 285 | DIBBS |
| 5930-00-636-0226 | 2010-07-211 | 112 | DIBBS |
| 5930-00-636-0226 | 2009-05-121 | 204 | DIBBS |
| 5930-00-636-0226 | 2007-09-264 | 287 | DIBBS |
Cross Reference | NSN 5930-00-636-0226
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21339 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 300165 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 300165 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 352242452800 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
| 55A5504ITEM2 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 708288 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 7430842P3 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| K9388137 | 72799 | GENERAL ELECTRIC CO PLASTIC OPN/HDQS SHEET PRODUCT DEPT |
| P2600-9 | 34228 | L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO |
| V3-1ANDJV5 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| V3-1PJV5 | H2292 | HONEYWELL B.V. |
| V3-1WACTUAT0RJV5 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| V3-1WITHJV5ACTUAT0R | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| V3-1XJV5 | R1120 | SATAIR A/S |
| VBE4-14 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
| ZCC40815 | 94285 | CANADIAN ARSENALS LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-636-0226
Related Products | NSN 5930-00-636-0226
Technical Data | NSN 5930-00-636-0226
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 28.5 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.000 AMPERES RESISTIVE DC AND 10.000 AMPERES RESISTIVE AC |
| BODY STYLE | 24M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.870 INCHES MINIMUM AND 0.880 INCHES MAXIMUM |
| BODY LENGTH | 1.079 INCHES MINIMUM AND 1.109 INCHES MAXIMUM |
| BODY WIDTH | 0.406 INCHES NOMINAL |
| BODY HEIGHT | 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.401 INCHES MINIMUM AND 0.411 INCHES MAXIMUM |
| ACTUATOR STYLE | 2 ROUND |
| ACTUATOR HEIGHT | 0.014 INCHES MINIMUM AND 0.034 INCHES MAXIMUM |
| ACTUATOR FREE POSITION HEIGHT | 0.859 INCHES MAXIMUM |
| ACTUATOR ROLLER DIAMETER | 0.859 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 3 SCREW |
| SWITCH ACTUATING FORCE | 14.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 4.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.046 PRETRAVEL INCHES MAXIMUM AND 0.031 OVERTRAVEL INCHES MINIMUM AND 0.020 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| ACTUATOR ADAPTER STYLE | 15 ROLLER LEAF |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.114 INCHES NOMINAL |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III OVERALL LENGTH | 1.365 INCHES MINIMUM AND 1.385 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | AIRCRAFT, B-52, C-135, T-37 |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
Restrictions/Controls & Freight Information | NSN 5930-00-636-0226
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-636-0226
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | S | Surveillance Target Acquisition and Night Observation (STANO) |
| Weapons Systems/End Item or Homogeneous Group | SA | Radar and Sensor |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
