NSN 5930-00-636-1302 2CE21, 7984111, 00-636-1302
Product Details | SENSITIVE SWITCH
5930-00-636-1302 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 2CE21, 7984111, 5930-00-636-1302, 00-636-1302, 5930006361302, 006361302
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-636-1302 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-00-636-1302
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-636-1302
Technical Data | NSN 5930-00-636-1302
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 3.000 AMPERES RESISTIVE DC |

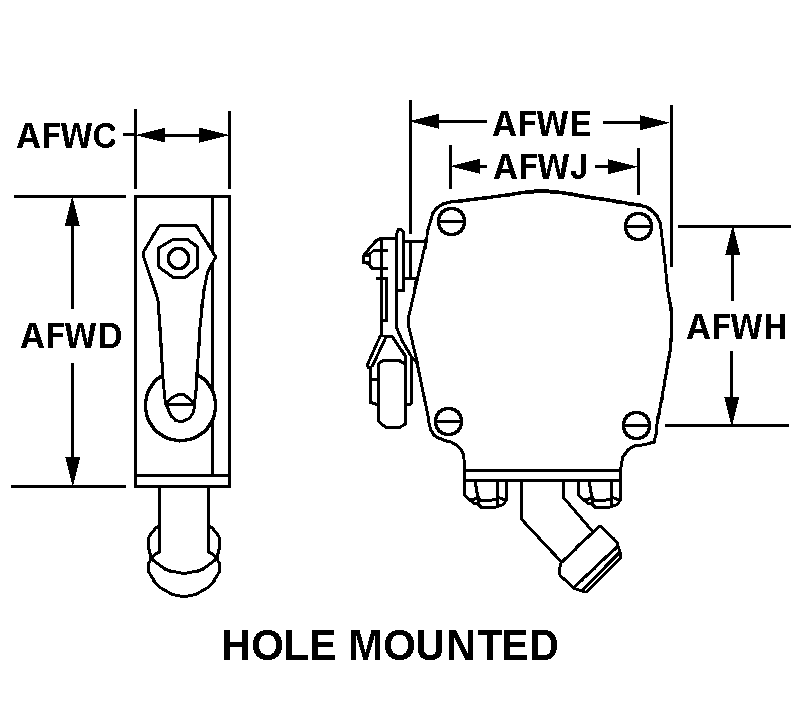

| BODY STYLE | 74M HOLE MOUNTED |
| HOUSING LENGTH | 3.440 INCHES NOMINAL |
| HOUSING WIDTH | 1.440 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH | 2.625 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO WIDTH | 0.875 INCHES NOMINAL |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.440 INCHES NOMINAL |
| OVERALL HEIGHT | 4.240 INCHES NOMINAL |
| ACTUATOR STYLE | 1 ROUND |
| ACTUATOR DIAMETER | 0.330 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 1.318 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 1 CABLE W/CONNECTOR |
| SWITCH ACTUATING FORCE | 28.0 OUNCES MINIMUM AND 60.0 OUNCES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
Restrictions/Controls & Freight Information | NSN 5930-00-636-1302
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
