NSN 5930-00-636-4345 MS250111, MS25011-1, SW1208
Product Details | SENSITIVE SWITCH
5930-00-636-4345 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: MS250111, MS25011-1, SW1208, U15075, MIL-PRF-8805/47, MILPRF880547, MILS880547, MIL-S-8805-47, 1HS1, 4029928A83, 40-29928A83, 612987, 83583, 84170, 91369 PIECE 1, 91369PIECE1, 5930-00-636-4345, 00-636-4345, 5930006364345, 006364345
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-636-4345 | 00399 ( SWITCH, SENSITIVE ) |

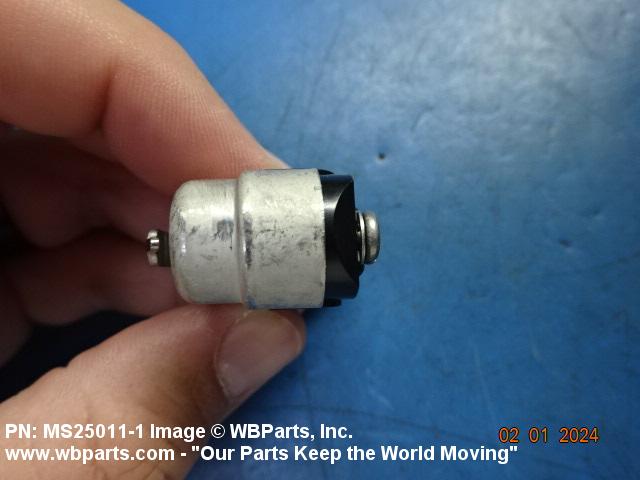

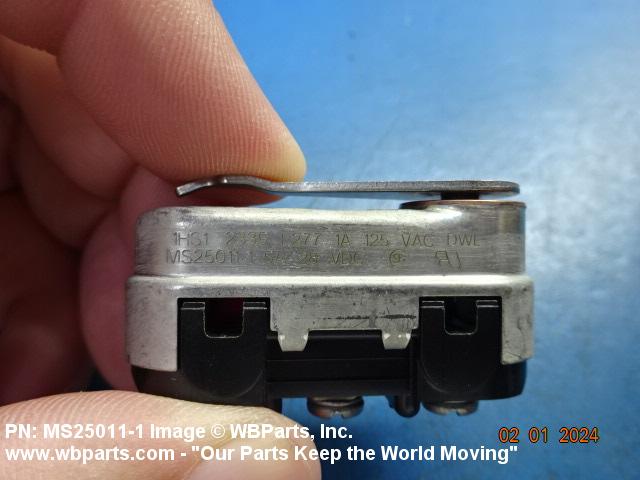

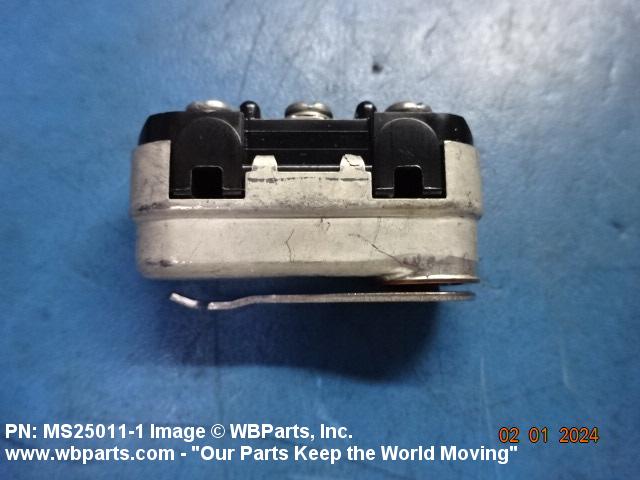

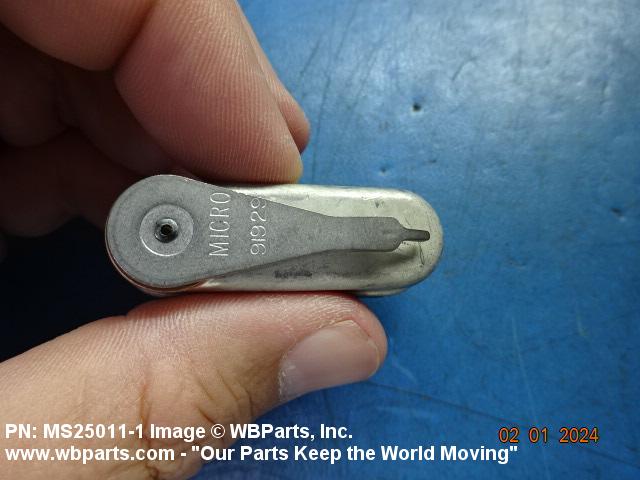

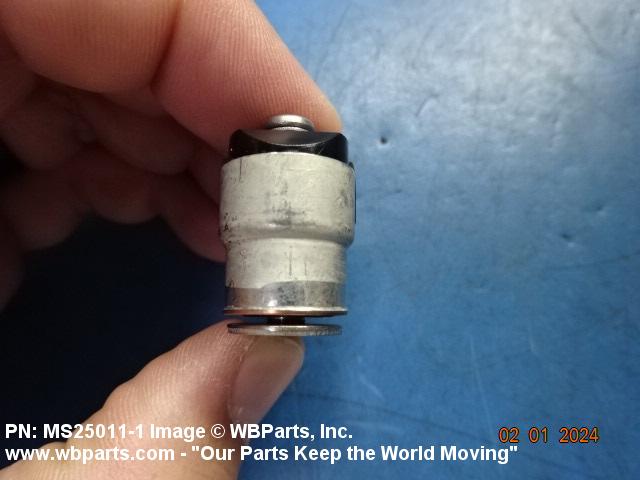

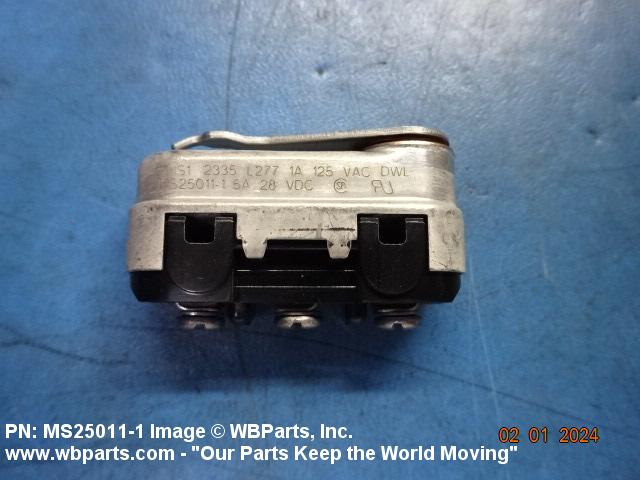

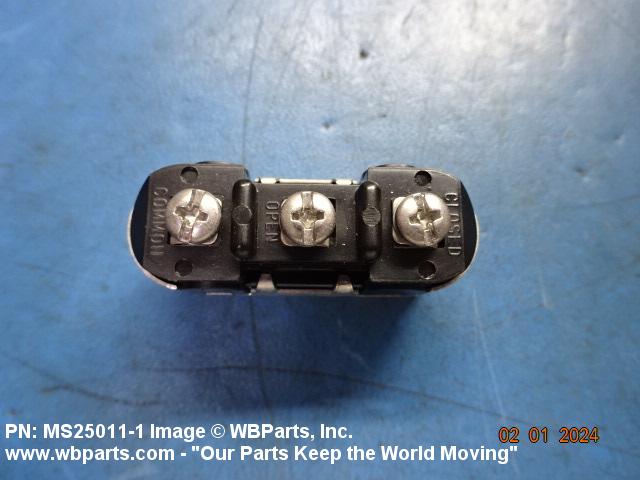

Drawings & Photos | NSN 5930-00-636-4345
Demand History | NSN 5930-00-636-4345
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-636-4345 | 2025-09-261 | 141 | DIBBS |
| 5930-00-636-4345 | 2025-07-198 | 152 | DIBBS |
| 5930-00-636-4345 | 2024-12-347 | 152 | DIBBS |
| 5930-00-636-4345 | 2024-06-162 | 110 | DIBBS |
| 5930-00-636-4345 | 2024-05-151 | 110 | DIBBS |
| 5930-00-636-4345 | 2024-03-88 | 83 | DIBBS |
| 5930-00-636-4345 | 2024-03-81 | 77 | DIBBS |
| MS250111 | 2024-01-18 | 30 | Denmark |
| 5930-00-636-4345 | 2023-07-201 | 72 | DIBBS |
| 5930-00-636-4345 | 2023-02-52 | 29 | DIBBS |
| 5930-00-636-4345 | 2022-12-364 | 110 | DIBBS |
| 5930-00-636-4345 | 2022-12-349 | 110 | DIBBS |
| 5930-00-636-4345 | 2022-09-272 | 72 | DIBBS |
| 5930-00-636-4345 | 2022-09-261 | 72 | DIBBS |
| MILS880547 | 2022-09-250 | 5 | US |
| 5930-00-636-4345 | 2022-06-165 | 287 | DIBBS |
| 5930-00-636-4345 | 2022-05-150 | 287 | DIBBS |
| 5930-00-636-4345 | 2022-03-87 | 10 | Sweden |
| 5930-00-636-4345 | 2021-06-159 | 282 | DIBBS |
| 5930-00-636-4345 | 2020-05-139 | 239 | DIBBS |
| 5930-00-636-4345 | 2020-05-124 | 239 | DIBBS |
| 5930-00-636-4345 | 2020-01-23 | 103 | DIBBS |
| 5930-00-636-4345 | 2019-07-192 | 121 | DIBBS |
| 5930-00-636-4345 | 2019-04-115 | 132 | DIBBS |
| 5930-00-636-4345 | 2018-06-179 | 188 | DIBBS |
| 5930-00-636-4345 | 2018-03-88 | 133 | DIBBS |
| 5930-00-636-4345 | 2018-03-63 | 188 | DIBBS |
| 5930-00-636-4345 | 2017-06-180 | 161 | DIBBS |
| 5930-00-636-4345 | 2017-06-155 | 156 | DIBBS |
| 5930-00-636-4345 | 2016-01-28 | 147 | DIBBS |
| 5930-00-636-4345 | 2015-10-279 | 86 | DIBBS |
| 5930-00-636-4345 | 2015-09-271 | 60 | DIBBS |
| 5930-00-636-4345 | 2014-04-93 | 20 | US |
| 5930-00-636-4345 | 2013-05-145 | 0 | DIBBS |
| 5930-00-636-4345 | 2012-05-126 | 0 | DIBBS |
| 5930-00-636-4345 | 2010-02-36 | 118 | DIBBS |
| 5930-00-636-4345 | 2009-12-355 | 74 | DIBBS |
| 5930-00-636-4345 | 2009-11-322 | 84 | DIBBS |
| 5930-00-636-4345 | 2009-10-278 | 60 | PK |
| 5930-00-636-4345 | 2009-09-261 | 171 | DIBBS |
| 5930-00-636-4345 | 2009-09-245 | 98 | DIBBS |
| 5930-00-636-4345 | 2009-06-155 | 65 | DIBBS |
| 5930-00-636-4345 | 2009-06-155 | 69 | DIBBS |
| 5930-00-636-4345 | 2009-06-155 | 132 | DIBBS |
| 5930-00-636-4345 | 2009-06-155 | 136 | DIBBS |
| 5930-00-636-4345 | 2009-05-125 | 69 | DIBBS |
| 5930-00-636-4345 | 2009-04-105 | 65 | DIBBS |
| 5930-00-636-4345 | 2009-04-93 | 4 | India |
| 5930-00-636-4345 | 2009-04-92 | 4 | India |
| 5930-00-636-4345 | 2009-03-71 | 132 | DIBBS |
| 5930-00-636-4345 | 2009-01-30 | 136 | DIBBS |
Cross Reference | NSN 5930-00-636-4345
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1HS1 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 40-29928A83 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 612987 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| 83583 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| 84170 | 86184 | GRISWOLD INDUSTRIES, CO. DBA CLA-VAL CO |
| 84170 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 91369 PIECE 1 | 86184 | GRISWOLD INDUSTRIES, CO. DBA CLA-VAL CO |
| MIL-PRF-8805/47 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-8805-47 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS25011-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SW1208 | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| U15075 | 79172 | SIEMENS WATER TECHNOLOGIES CORP. DIV WALLACE & TIERNAN PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-636-4345
Related Products | NSN 5930-00-636-4345
Technical Data | NSN 5930-00-636-4345
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 120.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 1.000 AMPERES RESISTIVE DC AND 0.500 AMPERES INDUCTIVE DC AND 1.000 AMPERES RESISTIVE AC AND 1.000 AMPERES INDUCTIVE AC |
| BODY STYLE | 21M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM |
| BODY LENGTH | 2.000 INCHES MAXIMUM |
| BODY WIDTH | 0.703 INCHES MAXIMUM |
| BODY HEIGHT | 1.200 INCHES MAXIMUM |
| ACTUATOR STYLE | 40 LEAF |
| ACTUATOR LENGTH | 0.907 INCHES MINIMUM AND 0.937 INCHES MAXIMUM |
| ACTUATOR FREE POSITION HEIGHT | 0.515 INCHES MINIMUM AND 0.545 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 3 SCREW |
| SWITCH ACTUATING FORCE | 8.0 OUNCES MINIMUM AND 28.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 4.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.065 PRETRAVEL INCHES MAXIMUM |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | PRESSURE PROOF |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.140 INCHES NOMINAL |
| FEATURES PROVIDED | ACTUATOR SEAL |
| TEST DATA DOCUMENT | 81349-MIL-S-8805 SPECIFICATION |
| III CASE MATERIAL | METAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-8805/47 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25011-1 |
Restrictions/Controls & Freight Information | NSN 5930-00-636-4345
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-636-4345
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
