NSN 5930-00-669-7342 BZ2RL2A2, 1068100, 00-669-7342
Product Details | SENSITIVE SWITCH
5930-00-669-7342 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: BZ2RL2A2, 1068100, 5930-00-669-7342, 00-669-7342, 5930006697342, 006697342
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-669-7342 | 00399 ( SWITCH, SENSITIVE ) |

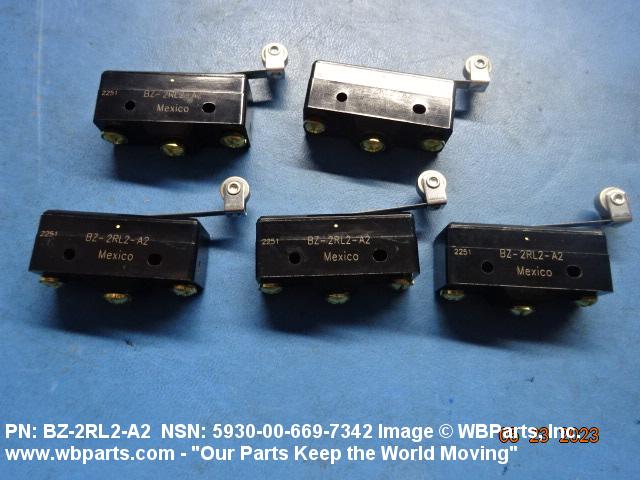

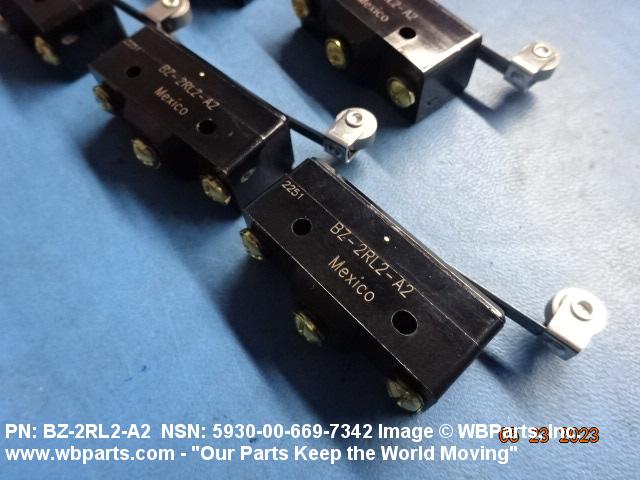

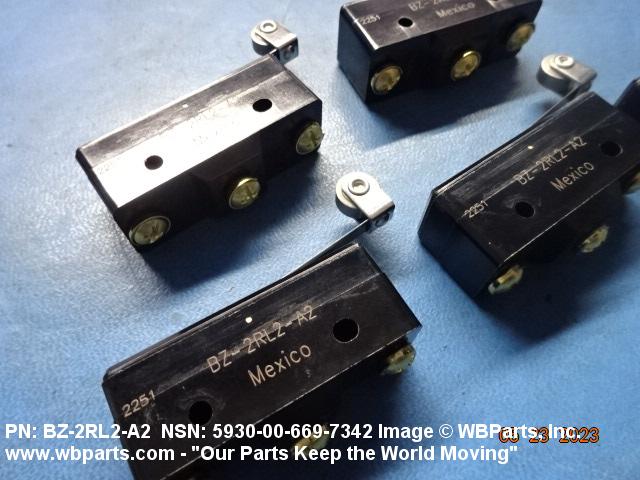

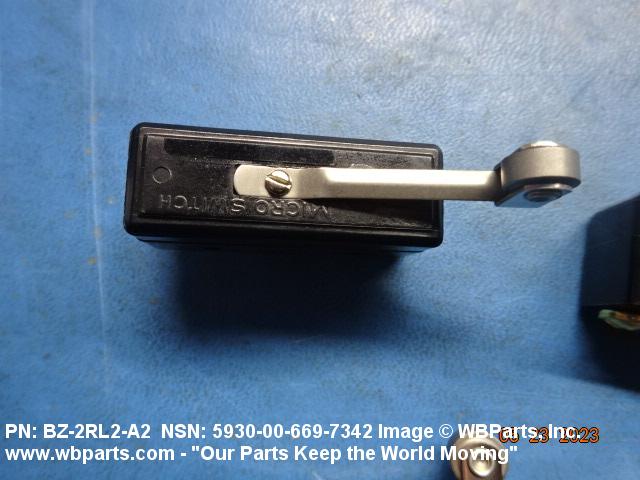

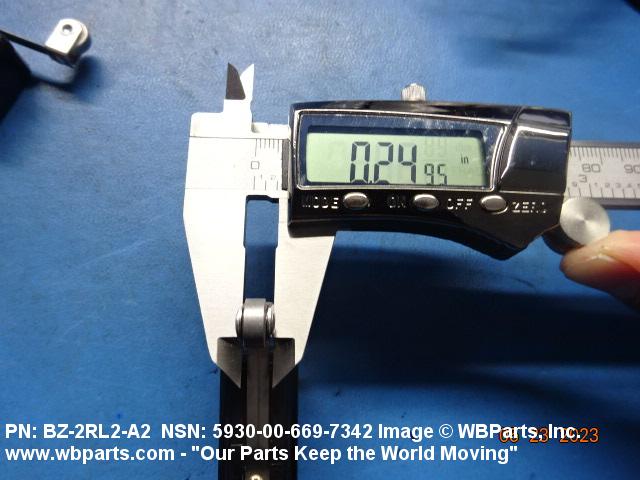

Drawings & Photos | NSN 5930-00-669-7342
Demand History | NSN 5930-00-669-7342
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-669-7342 | 2023-05-125 | 5 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-669-7342
Technical Data | NSN 5930-00-669-7342
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 460.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 250.000 MILLIAMPERES RESISTIVE DC AND 15.000 AMPERES RESISTIVE AC |
| BODY STYLE | 21M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.000 INCHES NOMINAL |

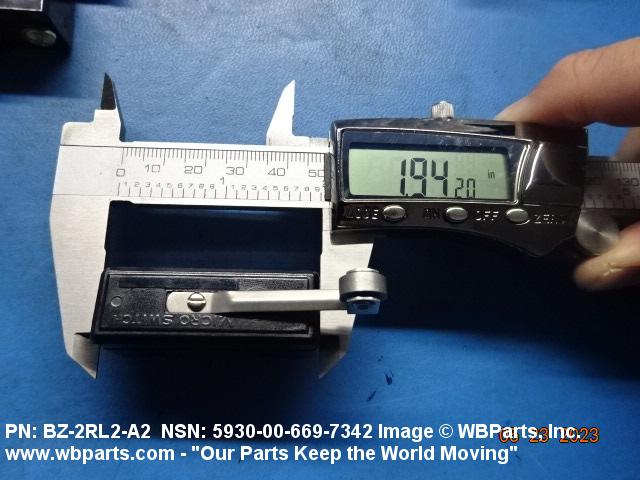

| BODY LENGTH | 1.938 INCHES NOMINAL |

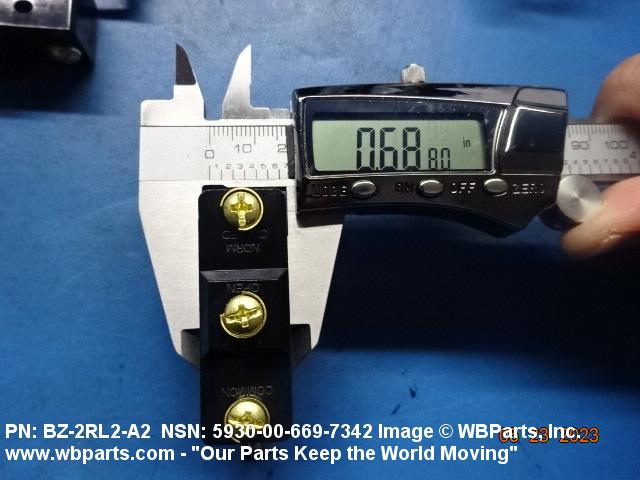

| BODY WIDTH | 0.688 INCHES NOMINAL |

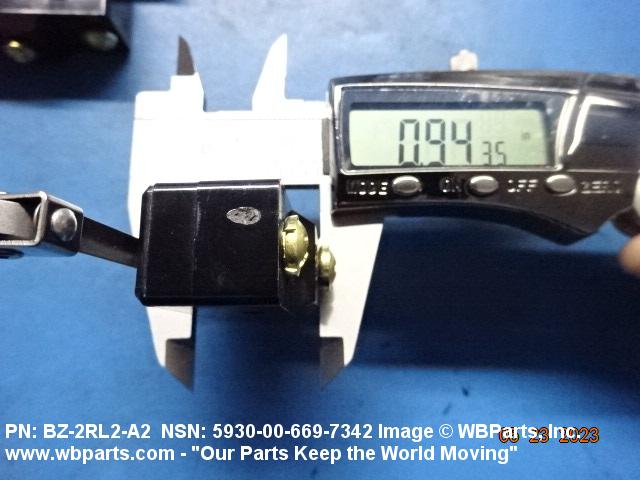

| BODY HEIGHT | 0.828 INCHES NOMINAL |
| SWITCH ACTUATOR QUANTITY | 1 |
| ACTUATOR FREE POSITION HEIGHT | 1.250 INCHES MAXIMUM |

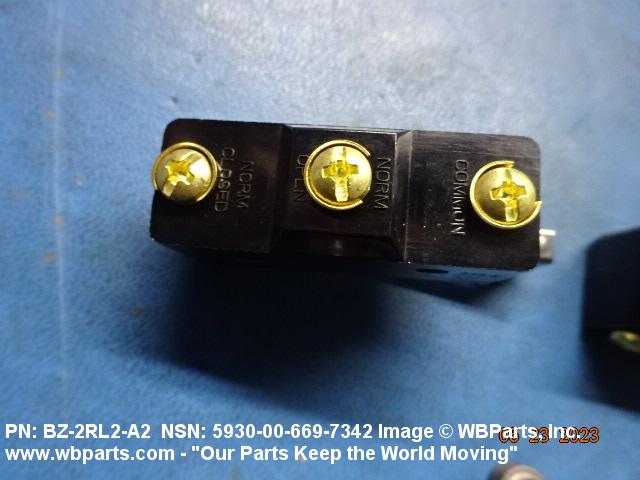

| TERMINAL TYPE AND QUANTITY | 3 SCREW |
| SWITCH ACTUATING FORCE | 5.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 0.5 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.050 DIFFERENTIAL INCHES MAXIMUM AND 0.156 PRETRAVEL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.140 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5930-00-669-7342
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
