NSN 5930-00-730-1285 1ML16, 00-730-1285, 007301285
Product Details | SENSITIVE SWITCH
5930-00-730-1285 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 1ML16, 5930-00-730-1285, 00-730-1285, 5930007301285, 007301285
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-730-1285 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-00-730-1285
Cross Reference | NSN 5930-00-730-1285
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1ML16 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-730-1285
Technical Data | NSN 5930-00-730-1285
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 750.000 MILLIAMPERES RESISTIVE DC AND 30.000 AMPERES RESISTIVE AC |

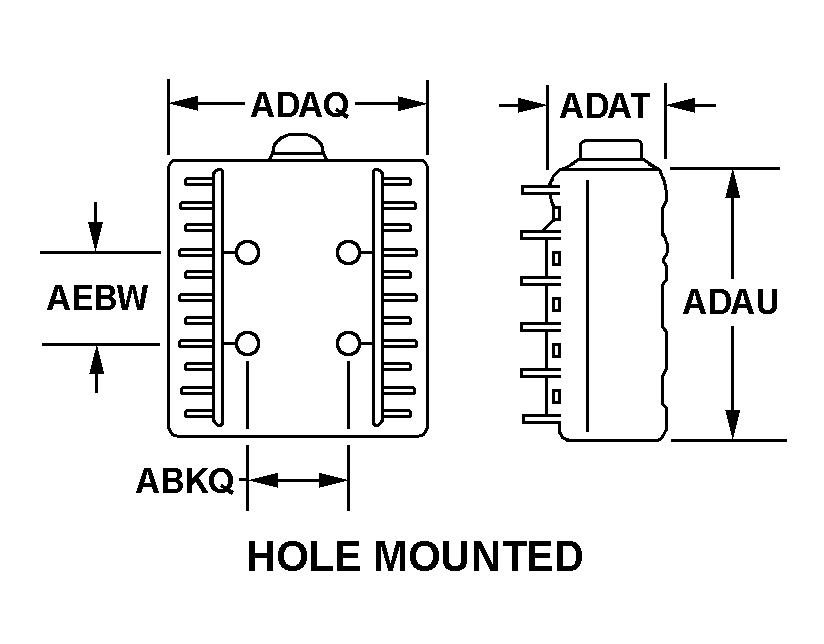

| BODY STYLE | 13M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.375 INCHES NOMINAL |
| BODY WIDTH | 2.120 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.500 INCHES NOMINAL |
| HOUSING HEIGHT | 1.920 INCHES NOMINAL |
| HOUSING LENGTH | 6.620 INCHES NOMINAL |
| HOUSING WIDTH | 2.420 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH | 3.375 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO WIDTH | 1.500 INCHES NOMINAL |
| SWITCH ACTUATOR QUANTITY | 1 |
| ACTUATOR STYLE | 47 ROLLER ARM |
| ACTUATOR FREE POSITION HEIGHT | 3.030 INCHES MAXIMUM |
| ACTUATOR ROLLER DIAMETER | 0.875 INCHES NOMINAL |
| ACTUATOR ROLLER WIDTH | 0.300 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| SWITCH ACTUATING FORCE | 20.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 4.0 OUNCES MINIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| III CASE MATERIAL | PLASTIC |
| MANUFACTURERS CODE | 91929 |
| DESIGN CONTROL REFERENCE | 1ML16 |
Restrictions/Controls & Freight Information | NSN 5930-00-730-1285
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
