NSN 5930-00-801-0120 41EN272, 41EN27-2, 6136721
Product Details | SENSITIVE SWITCH
5930-00-801-0120 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 41EN272, 41EN27-2, 6136721, 613672-1, 5930-00-801-0120, 00-801-0120, 5930008010120, 008010120
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-801-0120 | 00399 ( SWITCH, SENSITIVE ) |

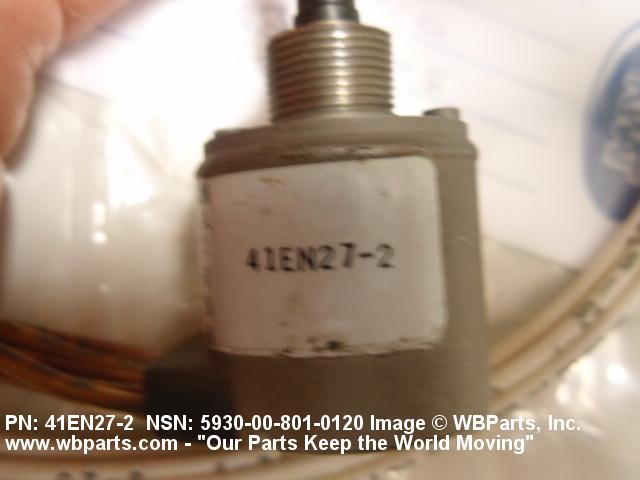

Drawings & Photos | NSN 5930-00-801-0120
Demand History | NSN 5930-00-801-0120
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-801-0120 | 2018-05-151 | 14 | DIBBS |
| 5930-00-801-0120 | 2015-05-131 | 7 | DIBBS |
| 5930-00-801-0120 | 2015-04-120 | 7 | DIBBS |
| 5930-00-801-0120 | 2011-04-105 | 6 | DIBBS |
| 5930-00-801-0120 | 2010-12-337 | 6 | DIBBS |
| 5930-00-801-0120 | 2010-10-291 | 2 | DIBBS |
| 41EN27-2 | 2010-05-134 | 1 | United States |
| 6136721 | 2010-05-134 | 1 | United States |
| 5930-00-801-0120 | 2009-12-365 | 9 | DIBBS |
| 5930-00-801-0120 | 2008-09-263 | 4 | DIBBS |
| 5930-00-801-0120 | 2008-01-02 | 2 | DIBBS |
| 5930-00-801-0120 | 2007-12-337 | 4 | DIBBS |
| 5930-00-801-0120 | 2007-09-248 | 3 | DIBBS |
| 5930-00-801-0120 | 2007-02-43 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-801-0120
Related Products | NSN 5930-00-801-0120
Technical Data | NSN 5930-00-801-0120
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, TWO POSITIONS MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 4.000 AMPERES RESISTIVE DC AND 3.000 AMPERES INDUCTIVE DC AND 3.000 AMPERES MOTOR DC AND 5.000 AMPERES RESISTIVE AC AND 5.000 AMPERES INDUCTIVE AC |
| BODY STYLE | 2M BUSHING MOUNTED |
| BODY DIAMETER | 1.000 INCHES NOMINAL |
| BUSHING LENGTH | 0.340 INCHES NOMINAL |
| BODY LENGTH | 1.000 INCHES NOMINAL |
| ACTUATOR STYLE | 64 ROUND, THREADED |
| ACTUATOR HEIGHT | 1.240 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 6 WIRE LEAD |
| SWITCH ACTUATING FORCE | 24.0 INCH-OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 0.125 INCH-OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 225.0 PRETRAVEL DEGREES NOMINAL AND 0.188 OVERTRAVEL INCHES NOMINAL AND 0.062 DIFFERENTIAL INCHES NOMINAL |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.469 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| FEATURES PROVIDED | ACTUATOR SEAL |
