NSN 5930-00-803-4570 MS24547, MS245471, MS24547-1

Product Details | SENSITIVE SWITCH

5930-00-803-4570 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.

Part Alternates: MS24547, MS245471, MS24547-1, MS245471PLUSJX512, MS24547-1PLUSJX-512, MS24571, MS2457-1, MS245771, MS24577-1, M88054001, M8805-4-001, M880541, M8805-4-1, S611686, S61-1686, SMC20077761, SMC2007776-1, VBE40443, VBE404-43, MIL-PRF-8805/4P, MILPRF88054P, MILS6743, MIL-S-8805/4, MILS88054, G122288001, G122-288-001, IS17MS245571, IS17MS24557-1, ISX1T, 260-0612-00, 2667002000, 266-7002-000, SXIT, 100C02561, 100C0256-1, 10135290 , 110441, 1104-41, 1460290001, 146-029-0001, 15179, 15X1T, 1754381, 18X1T, 1SX1TN1, 20887141, 2088714-1, 210090, 21SX39TJX512, 21SX39T-JX512, 234066, 23-4066, 339529-001, 352250008552, 432208076020, 432208076021 , 4759651, 475965-1, 59080011D, 6053, 611686, 61-1686, 75305M027001, 7769632X5PC37, 77696-32X5PC37, 9460981, 946098-1, 992116A16522, 99-211-6A1-6522, 5930-00-803-4570, 00-803-4570, 5930008034570, 260061200, 008034570, 339529001

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1962	00-803-4570	00399 ( SWITCH, SENSITIVE )

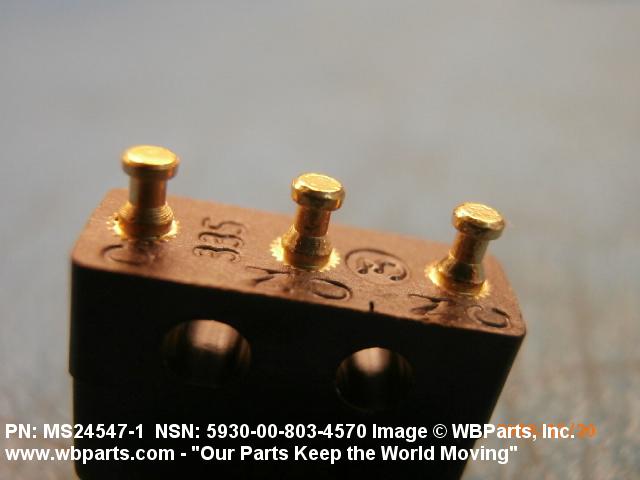

Drawings & Photos | NSN 5930-00-803-4570

Part Number	Request Date	QTY	Origin
5930-00-803-4570	2024-11-319	5262	DIBBS
5930-00-803-4570	2024-01-19	4	IT
5930-00-803-4570	2023-02-52	1100	Germany
5930-00-803-4570	2022-11-313	50	IN
5930-00-803-4570	2019-06-154	7995	DIBBS
5930-00-803-4570	2019-05-141	7995	DIBBS
5930-00-803-4570	2018-08-219	10	Malaysia
MS245471	2017-06-171	1	United States
MS245471	2016-08-229	33	US
5930-00-803-4570	2015-11-327	33	Turkey
5930-00-803-4570	2015-10-300	33	Turkey
MS245471	2015-05-138	33	Turkey
MS245471	2014-11-316	33	Turkey
5930-00-803-4570	2013-03-66	393	DIBBS
ISX1T	2011-01-17	3	MY
MS245471	2010-11-333	1	Korea
MS245471	2010-01-08	2	United States
5930-00-803-4570	2009-02-49	10	Hong Kong
5930-00-803-4570	2009-01-30	1368	DIBBS
5930-00-803-4570	2009-01-26	2649	DIBBS
ISX1T	2008-10-298	400	United States
5930-00-803-4570	2008-06-182	3172	DIBBS
5930-00-803-4570	2008-05-150	1432	DIBBS
5930-00-803-4570	2008-05-148	13558	DIBBS
5930-00-803-4570	2007-10-295	5000	DIBBS
5930-00-803-4570	2007-06-159	3544	DIBBS
5930-00-803-4570	2007-04-102	1955	DIBBS
5930-00-803-4570	2007-03-61	403	DIBBS
5930-00-803-4570	2007-03-61	1080	DIBBS
MS245471	2006-06-178	1	US

Cross Reference | NSN 5930-00-803-4570

Part Number	Cage Code	Manufacturer
100C0256-1	09062	CRANE ELECTRONICS, INC.
1104-41	97485	AVIEN INC
146-029-0001	95542	NORTHROP GRUMMAN SYSTEMS CORPORATION
15179	03003	FAIRCHILD AVIATION RECORDERS DATA SYSTEMS DIV OF SANGAMO WESTON
15X1T	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
1754381	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
18X1T	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
1SX1TN1	K0656	BAE SYSTEMS (OPERATIONS) LTD
2088714-1	27914	HONEYWELL INTERNATIONAL INC DBA HONEYWELL
210090	D0411	AIRBUS DS OPTRONICS GMBH
210090	D1072	WICHMANN KG
210090	S3890	LEICA GEOSYSTEMS AG
21SX39T-JX512	13800	PARKER-HANNIFIN CORPORATION DBA PROCESS ADVANCED FILTRATION
23-4066	21793	ASTRONICS TEST SYSTEMS INC.
260-0612-00	80009	TEKTRONIX, INC. DBA TEKTRONIX
266-7002-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
339529-001	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
352250008552	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
432208076020	H0D18	THALES NEDERLAND B.V. DBA LAND & JOINT SYSTEMS
432208076020	H2294	THALES OPTRONICS B.V.
432208076021	H0D18	THALES NEDERLAND B.V. DBA LAND & JOINT SYSTEMS
432208076021	H2294	THALES OPTRONICS B.V.
475965-1	96214	RAYTHEON COMPANY DBA RAYTHEON
59080011D	K1182	THALES UK LIMITED DBA THALES UK LTDTRAINING AND SIMULATION
5930008034570	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6053	91816	CIRCOR AEROSPACE, INC. DBA CIRCLE SEAL CONTROLS
61-1686	48294	PSI-PERIPHERAL SUPPORT
75305M027001	A0810	SELEX ES SPA
77696-32X5PC37	96169	ELECTRIC BOAT CORPORATION
946098-1	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
99-211-6A1-6522	32245	AEROSPACE OPTICS, INC. DBA VIVISUN
G122-288-001	84347	SINGER CO THE KEARFOTT DIV
IS17MS24557-1	F9111	THALES AVIONICS SAS DIV AVIONICS
ISX+1+T	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
M8805-4-001	80207	C AND K COMPONENTS INC CLAYTON/UNIMAX DIV
M8805-4-001	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
M8805-4-1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-8805/4P	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-8805/4	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILS6743	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS24547	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24547-1	21649	OTTO ENGINEERING, INC. DBA OTTO CONTROLS
MS24547-1	2B428	MJO INDUSTRIES, INC. DBA HUGHES-PETERS
MS24547-1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS24547-1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24547-1PLUSJX-512	20441	POWELL ELECTRONICS INC.
MS24547-1PLUSJX-512	77657	RUMSEY ELECTRIC COMPANY
MS2457-1	21649	OTTO ENGINEERING, INC. DBA OTTO CONTROLS
MS24577-1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
S61-1686	48294	PSI-PERIPHERAL SUPPORT
SMC2007776-1	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SXIT	91291	FRENCH R T CO THE
VBE404-43	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-803-4570

Compare

Related Products | NSN 5930-00-803-4570

5930-00-803-5634, 5930-00-803-5682, 5930-00-803-5873, 5930-00-803-5875, 5930-00-803-6016

Technical Data | NSN 5930-00-803-4570

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	7.000 AMPERES RESISTIVE DC AND 4.000 AMPERES INDUCTIVE DC AND 2.500 AMPERES LAMP DC AND 7.000 AMPERES RESISTIVE AC AND 7.000 AMPERES INDUCTIVE AC AND 2.000 AMPERES LAMP AC
BODY STYLE	23M HOLE MOUNTED
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	0.186 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
BODY LENGTH	0.510 INCHES MAXIMUM
BODY WIDTH	0.210 INCHES MAXIMUM
BODY HEIGHT	0.340 INCHES MINIMUM AND 0.360 INCHES MAXIMUM
OVERALL LENGTH	0.510 INCHES MAXIMUM
OVERALL WIDTH	0.210 INCHES MAXIMUM
OVERALL HEIGHT	0.500 INCHES NOMINAL
ACTUATOR STYLE	8 ROUND
ACTUATOR DIAMETER	0.057 INCHES MINIMUM AND 0.067 INCHES MAXIMUM
ACTUATOR HEIGHT	0.080 INCHES NOMINAL
ACTUATOR FREE POSITION HEIGHT	0.305 INCHES MINIMUM AND 0.335 INCHES MAXIMUM
TERMINAL TYPE AND QUANTITY	3 TURRET
SWITCH ACTUATING FORCE	5.0 OUNCES MAXIMUM
SWITCH RELEASE FORCE	1.0 OUNCES MINIMUM
ACTUATOR MOVEMENT	0.020 PRETRAVEL INCHES MAXIMUM AND 0.004 OVERTRAVEL INCHES MINIMUM AND 0.005 DIFFERENTIAL INCHES MAXIMUM
INCLOSURE TYPE	FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	DUSTPROOF
MOUNTING METHOD	UNTHREADED HOLE
UNTHREADED MOUNTING HOLE DIAMETER	0.087 INCHES MINIMUM AND 0.090 INCHES MAXIMUM
TEST DATA DOCUMENT	81349-MIL-S-8805 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS24547 GOVERNMENT STANDARD
III CASE MATERIAL	PLASTIC
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-S-8805/4
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS24547-1

Restrictions/Controls & Freight Information | NSN 5930-00-803-4570

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-00-803-4570

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	T
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each
