NSN 5930-00-823-2054 A264704, A26470-4, B110177

Product Details | SENSITIVE SWITCH

5930-00-823-2054 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.

Part Alternates: A264704, A26470-4, B110177, B1-1017-7, B4082891, B408289-1, BZE2RN2, BZE-2RN2, BZE62RN2, BZE6-2RN2, BZE62RN2SPDT, BZE6-2RN2-SPDT, KSBPT, KSBP-T, KSBPTS, 33-503933-1, 33748, 4627, 6510011, 65-1001-1, 79Z2453, 8385319, 5930-00-823-2054, 00-823-2054, 5930008232054, 335039331, 008232054

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1962	00-823-2054	00399 ( SWITCH, SENSITIVE )

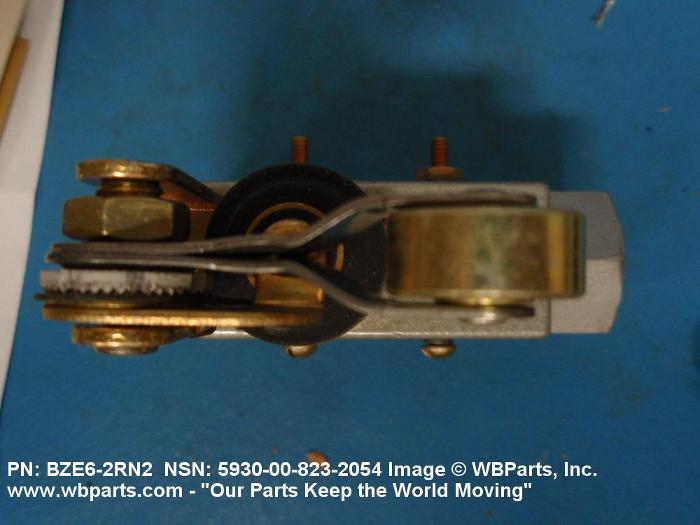

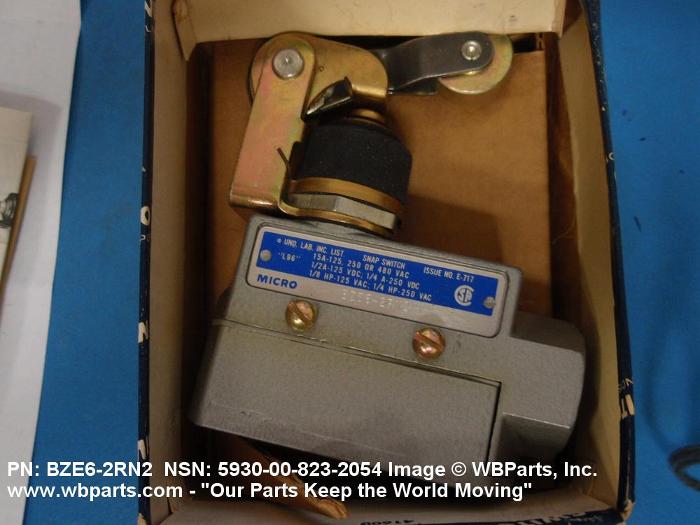

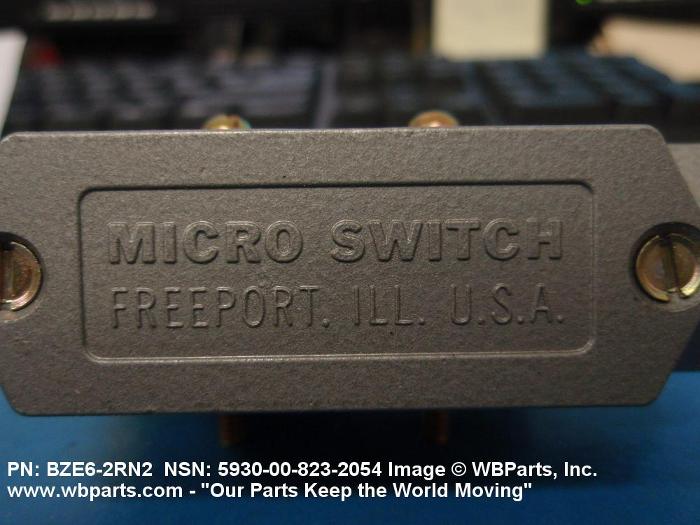

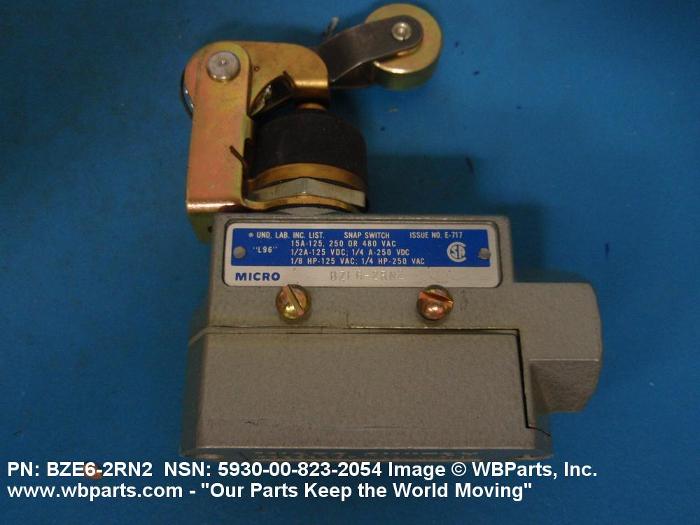

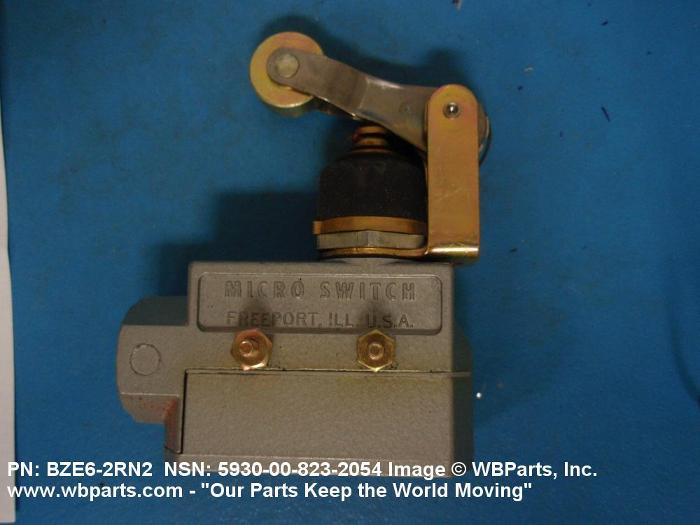

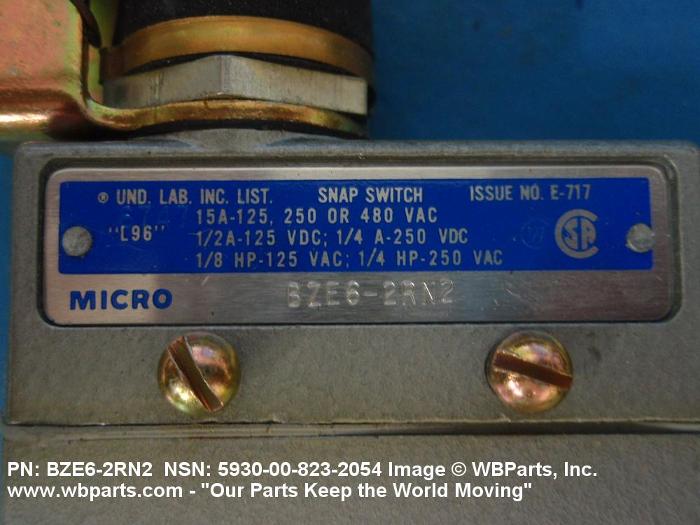

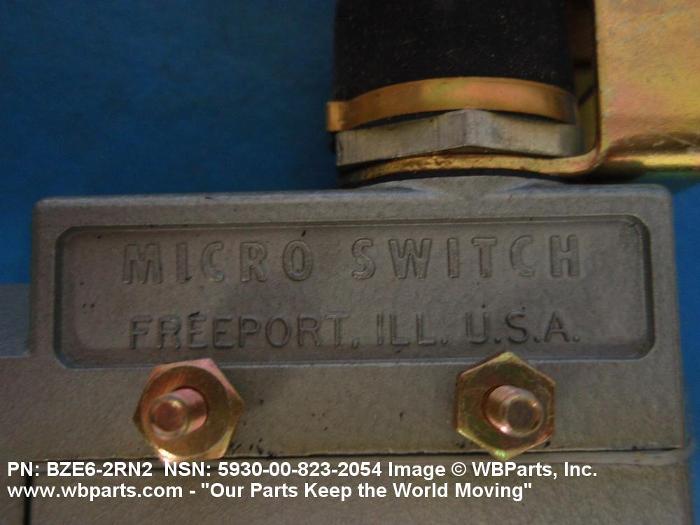

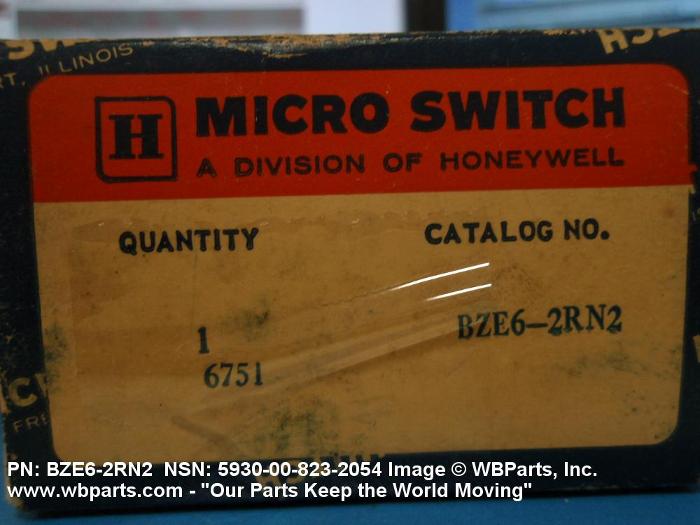

Drawings & Photos | NSN 5930-00-823-2054

Part Number	Request Date	QTY	Origin
5930-00-823-2054	2018-01-23	62	DIBBS
4627	2015-06-174	48	United States
4627	2013-09-270	1	Brazil
5930-00-823-2054	2013-02-32	67	DIBBS
5930-00-823-2054	2012-08-226	14	DIBBS
5930-00-823-2054	2012-04-96	32	DIBBS
79Z2453	2011-03-76	1	United States
5930-00-823-2054	2008-07-185	39	DIBBS
5930-00-823-2054	2006-05-136	37	DIBBS
5930-00-823-2054	2006-01-24	5	DIBBS

Cross Reference | NSN 5930-00-823-2054

Part Number	Cage Code	Manufacturer
33-503933-1	04655	GENERAL DYNAMICS C4 SYSTEMS, INC.
33748	59500	TENNANT COMPANY
4627	05690	BARKER & WILLIAMSON
4627	4W146	SMART MACHINES, INC. DBA BARKER & WILLIAMSON
65-1001-1	02031	ENTWISTLE CO THE VAN ZELM DIV
79Z2453	0FNE7	PPM CRANES INC
8385319	19204	ARMY UNITED STATES DEPARTMENT OF THE
A26470-4	46717	PETTIBONE LLC
B1-1017-7	02031	ENTWISTLE CO THE VAN ZELM DIV
B408289-1	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
BZE-2RN2	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
BZE6-2RN2	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
BZE6-2RN2-SPDT	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
KSBP-T	0CY71	C AND K COMPONENTS INC UNIMAX DIV
KSBP-T	80207	C AND K COMPONENTS INC CLAYTON/UNIMAX DIV
KSBPTS	0CY71	C AND K COMPONENTS INC UNIMAX DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-823-2054

Compare

Related Products | NSN 5930-00-823-2054

5930-00-823-2059, 5930-00-823-2063, 5930-00-823-2074, 5930-00-823-2089, 5930-00-823-2094

Technical Data | NSN 5930-00-823-2054

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	600.0 AC AND 250.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	250.000 MILLIAMPERES RESISTIVE DC AND 2.000 AMPERES RESISTIVE AC
BODY STYLE	48M HOLE MOUNTED
HOUSING HEIGHT	1.720 INCHES MINIMUM AND 1.780 INCHES MAXIMUM
HOUSING LENGTH	2.740 INCHES NOMINAL
HOUSING WIDTH	1.000 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH	1.000 INCHES NOMINAL
ACTUATOR STYLE	46 ROLLER ARM
ACTUATOR LENGTH	1.570 INCHES NOMINAL
ACTUATOR FREE POSITION HEIGHT	2.850 INCHES MAXIMUM
ACTUATOR ROLLER DIAMETER	0.720 INCHES MINIMUM AND 0.780 INCHES MAXIMUM
ACTUATOR ROLLER WIDTH	0.282 INCHES MINIMUM AND 0.342 INCHES MAXIMUM
TERMINAL TYPE AND QUANTITY	3 SCREW
SWITCH ACTUATING FORCE	10.0 OUNCES MINIMUM AND 20.0 OUNCES MAXIMUM
SWITCH RELEASE FORCE	6.0 OUNCES MINIMUM
ACTUATOR MOVEMENT	0.188 PRETRAVEL INCHES MAXIMUM AND 0.219 OVERTRAVEL INCHES MINIMUM AND 0.006 DIFFERENTIAL INCHES NOMINAL
INCLOSURE TYPE	FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	DUSTPROOF
MOUNTING METHOD	UNTHREADED HOLE
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD QUANTITY PER INCH	32
SPECIAL FEATURES	WEAPON SYSTEM ESSENTIAL
CRITICALITY CODE JUSTIFICATION	FEAT
III CASE MATERIAL	PLASTIC
III OVERALL LENGTH	3.125 INCHES MAXIMUM
III OVERALL WIDTH	1.125 INCHES MAXIMUM
III OVERALL HEIGHT	3.875 INCHES NOMINAL
III END ITEM IDENTIFICATION	C-130 HERCULES AIRCRAFT, SUPPORT EQUIPMENT C-5, F-106, B-52 AIRCRAFT.

Restrictions/Controls & Freight Information | NSN 5930-00-823-2054

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-00-823-2054

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
