NSN 5930-00-841-1506 00-841-1506, 008411506
Product Details | SENSITIVE SWITCH
5930-00-841-1506 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 5930-00-841-1506, 00-841-1506, 5930008411506, 008411506
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-841-1506 | 00399 ( SWITCH, SENSITIVE ) |

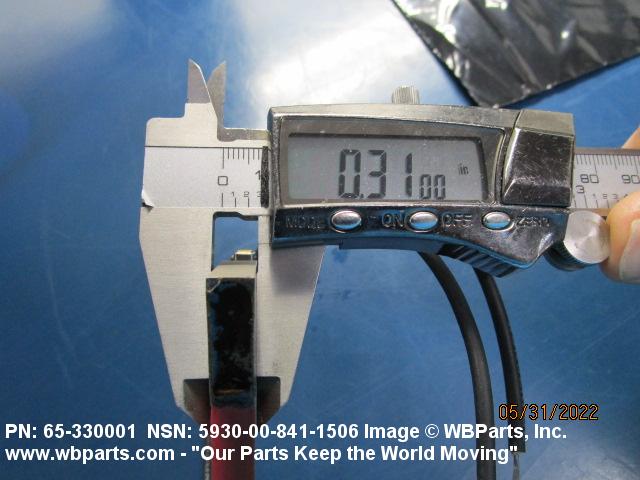

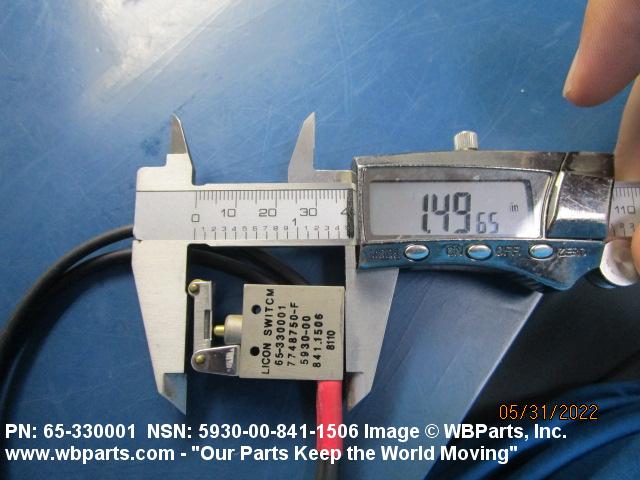

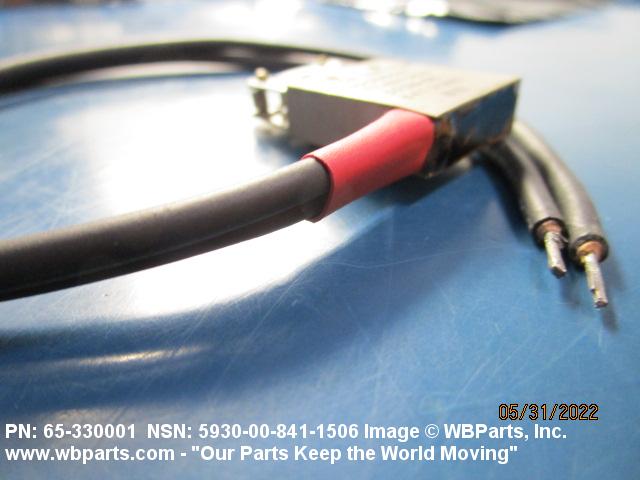

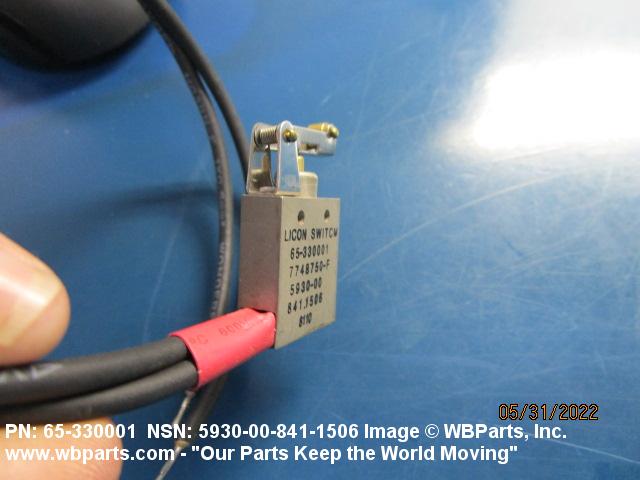

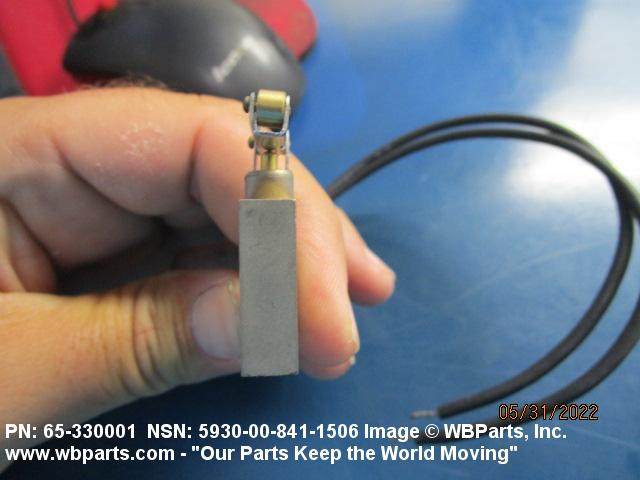

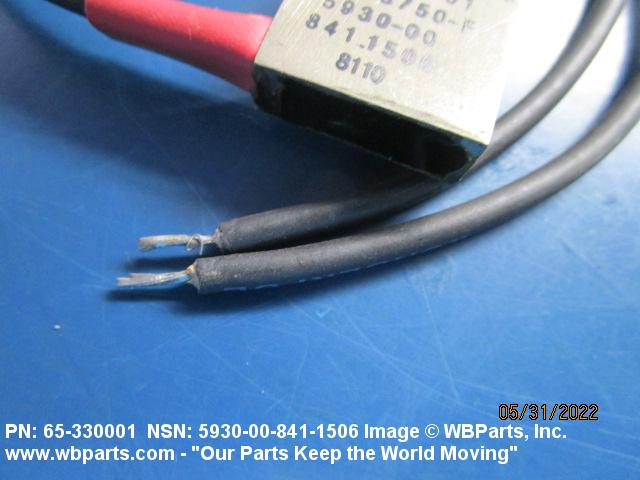

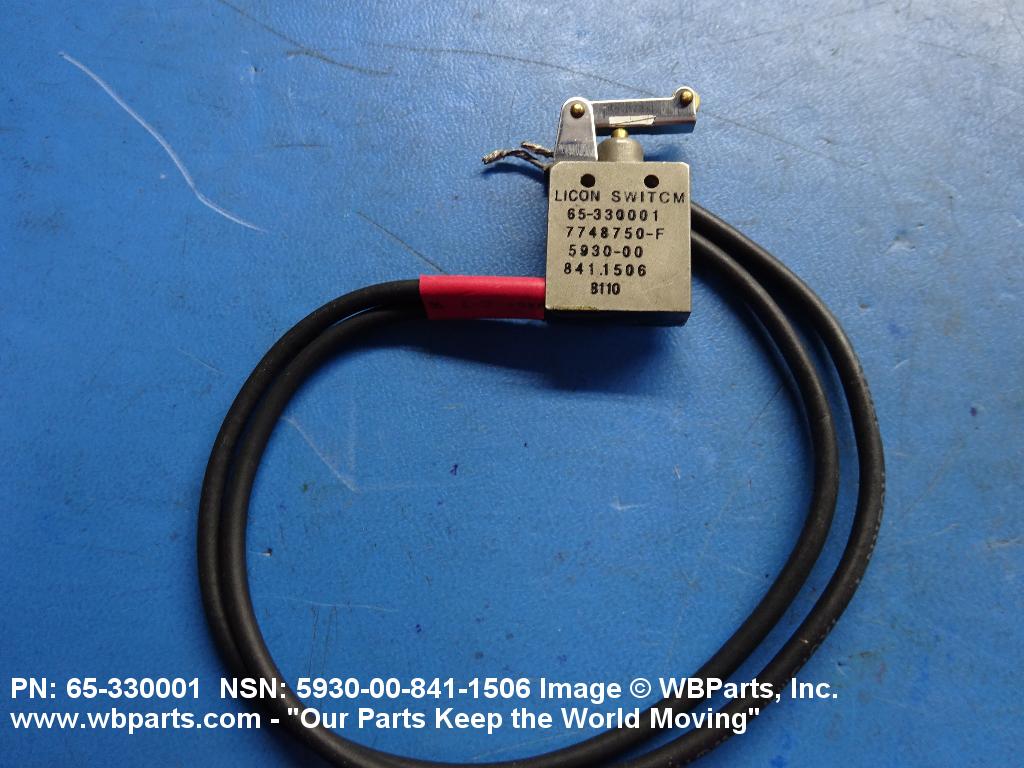

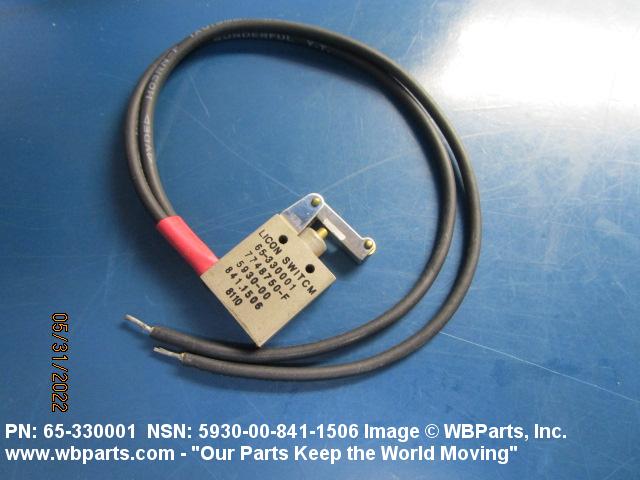

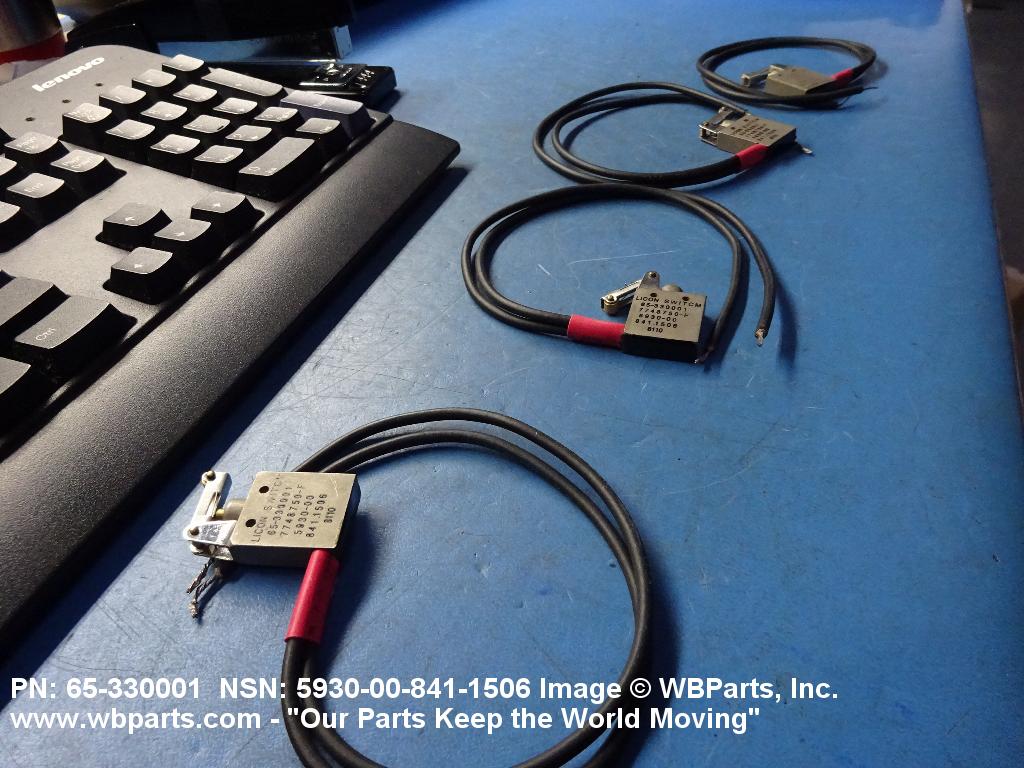

Drawings & Photos | NSN 5930-00-841-1506
Demand History | NSN 5930-00-841-1506
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-841-1506 | 2025-09-251 | 50 | TR |
| 5930-00-841-1506 | 2025-06-162 | 16 | IL |
| 5930-00-841-1506 | 2025-02-51 | 15 | IL |
| 65-330001 | 2024-10-298 | 99 | DIBBS |
| 7748750 | 2024-10-298 | 99 | DIBBS |
| PL-100 | 2024-10-298 | 99 | DIBBS |
| 65-330001 | 2024-10-284 | 40 | DIBBS |
| 7748750 | 2024-10-284 | 40 | DIBBS |
| PL-100 | 2024-10-284 | 40 | DIBBS |
| 65-330001 | 2024-09-248 | 478 | DIBBS |
| 7748750 | 2024-09-248 | 478 | DIBBS |
| PL-100 | 2024-09-248 | 478 | DIBBS |
| 5930-00-841-1506 | 2024-05-149 | 3 | GR |
| 5930-00-841-1506 | 2024-03-61 | 50 | JO |
| 5930-00-841-1506 | 2024-02-57 | 50 | JO |
| 65-330001 | 2023-09-250 | 176 | DIBBS |
| 7748750 | 2023-09-250 | 176 | DIBBS |
| PL-100 | 2023-09-250 | 176 | DIBBS |
| 65-330001 | 2023-08-235 | 201 | DIBBS |
| 7748750 | 2023-08-235 | 201 | DIBBS |
| PL-100 | 2023-08-235 | 201 | DIBBS |
| 5930-00-841-1506 | 2023-07-212 | 200 | US |
| 5930-00-841-1506 | 2023-06-167 | 100 | US |
| 65-330001 | 2023-04-100 | 177 | DIBBS |
| 7748750 | 2023-04-100 | 177 | DIBBS |
| PL-100 | 2023-04-100 | 177 | DIBBS |
| 65-330001 | 2023-01-23 | 177 | DIBBS |
| 7748750 | 2023-01-23 | 177 | DIBBS |
| PL-100 | 2023-01-23 | 177 | DIBBS |
| 65-330001 | 2023-01-12 | 177 | DIBBS |
| 7748750 | 2023-01-12 | 177 | DIBBS |
| PL-100 | 2023-01-12 | 177 | DIBBS |
| 65-330001 | 2022-12-339 | 105 | DIBBS |
| 7748750 | 2022-12-339 | 105 | DIBBS |
| PL-100 | 2022-12-339 | 105 | DIBBS |
| 65-330001 | 2022-10-304 | 105 | DIBBS |
| 7748750 | 2022-10-304 | 105 | DIBBS |
| PL-100 | 2022-10-304 | 105 | DIBBS |
| 65-330001 | 2022-10-293 | 105 | DIBBS |
| 7748750 | 2022-10-293 | 105 | DIBBS |
| PL-100 | 2022-10-293 | 105 | DIBBS |
| 65-330001 | 2022-05-129 | 400 | DIBBS |
| 7748750 | 2022-05-129 | 400 | DIBBS |
| PL-100 | 2022-05-129 | 400 | DIBBS |
| 65-330001 | 2022-04-118 | 400 | DIBBS |
| 7748750 | 2022-04-118 | 400 | DIBBS |
| PL-100 | 2022-04-118 | 400 | DIBBS |
| 5930-00-841-1506 | 2022-04-112 | 30 | Taiwan |
| 65-330001 | 2022-04-108 | 279 | DIBBS |
| 7748750 | 2022-04-108 | 279 | DIBBS |
| PL-100 | 2022-04-108 | 279 | DIBBS |
| 65-330001 | 2022-04-97 | 279 | DIBBS |
| 7748750 | 2022-04-97 | 279 | DIBBS |
| PL-100 | 2022-04-97 | 279 | DIBBS |
| 5930-00-841-1506 | 2021-06-167 | 35 | US |
| 5930-00-841-1506 | 2020-07-184 | 1 | Brazil |
| 65-330001 | 2019-10-283 | 182 | DIBBS |
| 7748750 | 2019-10-283 | 182 | DIBBS |
| PL-100 | 2019-10-283 | 182 | DIBBS |
| 65-330001 | 2019-07-196 | 152 | DIBBS |
| 7748750 | 2019-07-196 | 152 | DIBBS |
| PL-100 | 2019-07-196 | 152 | DIBBS |
| 65-330001 | 2019-07-185 | 152 | DIBBS |
| 7748750 | 2019-07-185 | 152 | DIBBS |
| PL-100 | 2019-07-185 | 152 | DIBBS |
| 65-330001 | 2019-04-115 | 104 | DIBBS |
| 7748750 | 2019-04-115 | 104 | DIBBS |
| PL-100 | 2019-04-115 | 104 | DIBBS |
| 5930-00-841-1506 | 2019-04-99 | 1 | Brazil |
| 5930-00-841-1506 | 2019-02-52 | 106 | US |
| 5930-00-841-1506 | 2018-10-291 | 162 | DIBBS |
| 5930-00-841-1506 | 2018-08-227 | 146 | DIBBS |
| 5930-00-841-1506 | 2018-06-158 | 2 | Taiwan |
| 5930-00-841-1506 | 2017-12-362 | 3 | US |
| 5930-00-841-1506 | 2017-12-345 | 129 | DIBBS |
| 5930-00-841-1506 | 2017-07-192 | 232 | MANUAL |
| 5930-00-841-1506 | 2017-04-113 | 259 | DIBBS |
| 5930-00-841-1506 | 2017-04-99 | 259 | DIBBS |
| 5930-00-841-1506 | 2017-02-37 | 259 | DIBBS |
| 5930-00-841-1506 | 2017-02-32 | 7 | MANUAL |
| 5930-00-841-1506 | 2016-11-318 | 187 | DIBBS |
| 5930-00-841-1506 | 2016-07-213 | 91 | DIBBS |
| 5930-00-841-1506 | 2016-05-146 | 52 | DIBBS |
| 5930-00-841-1506 | 2016-03-69 | 50 | PK |
| 5930-00-841-1506 | 2016-01-19 | 25 | Pakistan |
| 5930-00-841-1506 | 2016-01-18 | 134 | DIBBS |
| 5930-00-841-1506 | 2015-10-285 | 85 | DIBBS |
| 5930-00-841-1506 | 2015-08-223 | 69 | DIBBS |
| 5930-00-841-1506 | 2015-07-211 | 69 | DIBBS |
| 5930-00-841-1506 | 2015-04-101 | 200 | Pakistan |
| 5930-00-841-1506 | 2014-10-274 | 3 | Pakistan |
| 5930-00-841-1506 | 2013-03-63 | 310 | DIBBS |
| 5930-00-841-1506 | 2012-10-290 | 150 | DIBBS |
| 5930-00-841-1506 | 2012-10-276 | 100 | DIBBS |
| 5930-00-841-1506 | 2012-09-264 | 35 | DIBBS |
| 5930-00-841-1506 | 2012-08-215 | 80 | MANUAL |
| 5930-00-841-1506 | 2012-05-152 | 37 | DIBBS |
| 5930-00-841-1506 | 2012-04-107 | 183 | DIBBS |
| 5930-00-841-1506 | 2012-02-46 | 17 | DIBBS |
| 5930-00-841-1506 | 2011-11-314 | 100 | PK |
| 5930-00-841-1506 | 2011-09-250 | 302 | DIBBS |
| 5930-00-841-1506 | 2011-07-201 | 77 | MANUAL |
| 5930-00-841-1506 | 2011-05-126 | 51 | Turkey |
| 5930-00-841-1506 | 2011-03-87 | 50 | Turkey |
| 5930-00-841-1506 | 2010-05-131 | 25 | IL |
| 5930-00-841-1506 | 2009-09-257 | 20 | US |
| 5930-00-841-1506 | 2008-06-165 | 55 | DIBBS |
| 5930-00-841-1506 | 2008-02-32 | 61 | DIBBS |
| 5930-00-841-1506 | 2007-12-346 | 164 | DIBBS |
| 5930-00-841-1506 | 2007-10-278 | 107 | DIBBS |
| 5930-00-841-1506 | 2007-06-156 | 51 | DIBBS |
| 5930-00-841-1506 | 2007-05-143 | 24 | DIBBS |
| 5930-00-841-1506 | 2007-05-127 | 12 | DIBBS |
| 5930-00-841-1506 | 2007-03-78 | 61 | DIBBS |
Cross Reference | NSN 5930-00-841-1506
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5930008411506 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 65-330001 | 04426 | ILLINOIS TOOL WORKS INC. DIV ILLINOIS TOOL WORKS |
| 7748750 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| PL-100 | 60198 | SAINT TECHNOLOGIES INC. |
| PL-100 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-841-1506
Related Products | NSN 5930-00-841-1506
Technical Data | NSN 5930-00-841-1506
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 7.500 AMPERES INDUCTIVE DC AND 10.000 AMPERES RESISTIVE AC |
| BODY STYLE | 23M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.370 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |

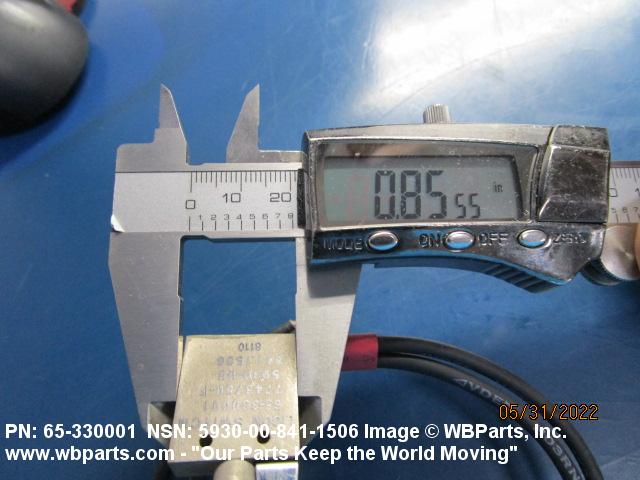

| BODY LENGTH | 0.850 INCHES NOMINAL |
| BODY WIDTH | 0.335 INCHES MAXIMUM |
| BODY HEIGHT | 0.825 INCHES MAXIMUM |
| OVERALL LENGTH | 0.850 INCHES NOMINAL |
| OVERALL WIDTH | 0.335 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.610 INCHES MAXIMUM |
| ACTUATOR STYLE | 47 ROLLER ARM |
| ACTUATOR LENGTH | 0.531 INCHES MINIMUM AND 0.593 INCHES MAXIMUM |
| ACTUATOR FREE POSITION HEIGHT | 0.785 INCHES MAXIMUM |
| ACTUATOR ROLLER DIAMETER | 0.190 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| SWITCH ACTUATING FORCE | 16.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 5.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.115 PRETRAVEL INCHES MAXIMUM AND 0.025 OVERTRAVEL INCHES MINIMUM AND 0.058 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.086 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| FEATURES PROVIDED | ACTUATOR SEAL |
| III CASE MATERIAL | PLASTIC |
Restrictions/Controls & Freight Information | NSN 5930-00-841-1506
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
