NSN 5930-00-897-4293 BZE7RN14, BZE-7RN14, 2116146
Product Details | SENSITIVE SWITCH
5930-00-897-4293 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: BZE7RN14, BZE-7RN14, 2116146, 5930-00-897-4293, 00-897-4293, 5930008974293, 008974293
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-897-4293 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-00-897-4293
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-897-4293
Technical Data | NSN 5930-00-897-4293
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 460.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 250.000 MILLIAMPERES RESISTIVE DC AND 15.000 AMPERES RESISTIVE AC |

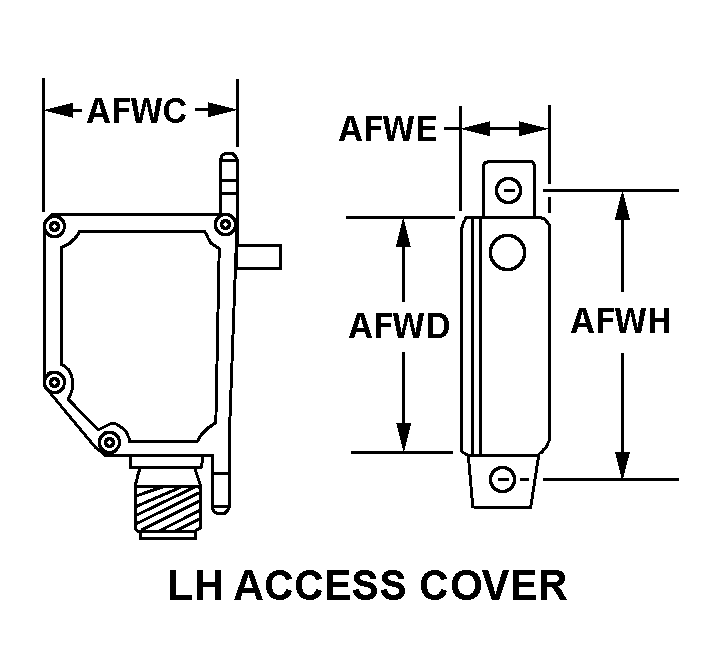

| BODY STYLE | 60M LH ACCESS COVER |
| HOUSING HEIGHT | 1.780 INCHES NOMINAL |
| HOUSING LENGTH | 2.250 INCHES NOMINAL |
| HOUSING WIDTH | 1.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH | 2.250 INCHES NOMINAL |
| ACTUATOR STYLE | 1 ROUND |
| ACTUATOR DIAMETER | 0.330 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 1.719 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 SCREW |
| SWITCH ACTUATING FORCE | 28.0 OUNCES MINIMUM AND 54.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 10.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.078 PRETRAVEL INCHES MAXIMUM AND 0.219 OVERTRAVEL INCHES MINIMUM AND 0.005 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED BUSHING AND UNTHREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| III OVERALL LENGTH | 3.020 INCHES NOMINAL |
| III OVERALL HEIGHT | 2.749 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5930-00-897-4293
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
