NSN 5930-00-931-9370 2-300-176-01, 2-300-176-02, 2LM110C
Product Details | SENSITIVE SWITCH
5930-00-931-9370 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 2-300-176-01, 2-300-176-02, 2LM110C, 5LM1E, 5LM1-E, 5930-00-931-9370, 00-931-9370, 5930009319370, 009319370, 230017601, 230017602
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 MAY 1968 | 00-931-9370 | 00399 ( SWITCH, SENSITIVE ) |

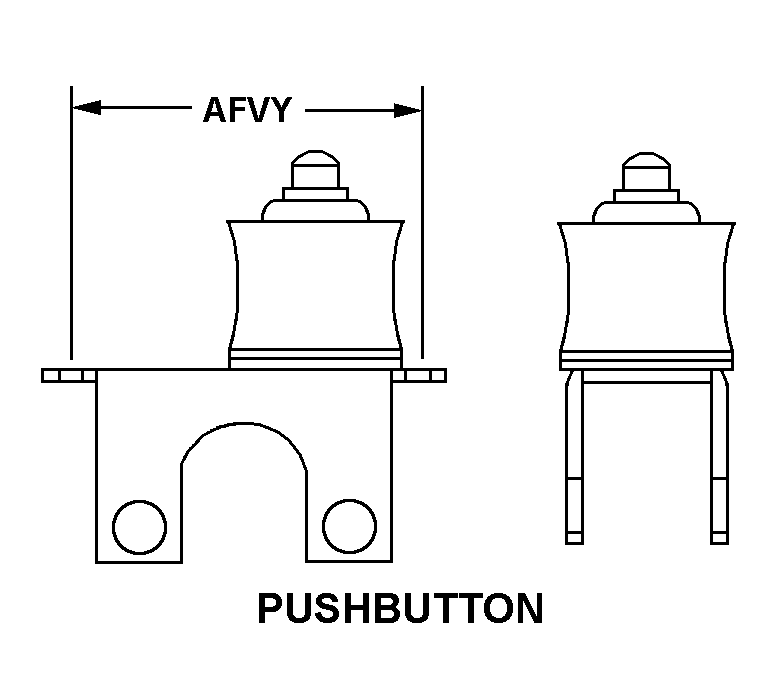

Drawings & Photos | NSN 5930-00-931-9370
Demand History | NSN 5930-00-931-9370
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 230017601 | 2009-12-351 | 300 | US |
Cross Reference | NSN 5930-00-931-9370
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-300-176-01 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 2-300-176-02 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 2LM110C | 80207 | C AND K COMPONENTS INC CLAYTON/UNIMAX DIV |
| 2LM110C | K0316 | ITT INDUSTRIES LIMITED ITT CANNON UK |
| 5LM1-E | 80207 | C AND K COMPONENTS INC CLAYTON/UNIMAX DIV |
| 5LM1-E | K0316 | ITT INDUSTRIES LIMITED ITT CANNON UK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-931-9370
Related Products | NSN 5930-00-931-9370
Technical Data | NSN 5930-00-931-9370
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 30.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES RESISTIVE AC |
| BODY STYLE | 23M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.375 INCHES NOMINAL |
| BODY LENGTH | 0.781 INCHES NOMINAL |
| BODY WIDTH | 0.250 INCHES NOMINAL |
| BODY HEIGHT | 0.359 INCHES NOMINAL |
| HOUSING HEIGHT | 0.359 INCHES NOMINAL |
| HOUSING LENGTH | 0.781 INCHES NOMINAL |
| HOUSING WIDTH | 0.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.297 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH | 0.377 INCHES MAXIMUM |
| SWITCH ACTUATOR QUANTITY | 1 |
| ACTUATOR STYLE | 2 ROUND |
| ACTUATOR DIAMETER | 0.091 INCHES MINIMUM AND 0.101 INCHES MAXIMUM |
| ACTUATOR HEIGHT | 0.297 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 0.315 INCHES MINIMUM AND 0.345 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| SWITCH ACTUATING FORCE | 5.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 1.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.030 PRETRAVEL INCHES MAXIMUM AND 0.005 OVERTRAVEL INCHES MINIMUM AND 0.004 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| ACTUATOR ADAPTER STYLE | 14 PUSHBUTTON |
| CENTER TO CENTER DISTANCE BETWEEN ADAPTER MOUNTING FACILITIES PARALLEL TO LENGTH | 0.373 INCHES MINIMUM AND 0.377 INCHES MAXIMUM |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.088 INCHES NOMINAL |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| MANUFACTURERS CODE | 99193 |
| MFR SOURCE CONTROLLING REFERENCE | 2-300-176-01 |
