NSN 5930-00-949-1166 MS213212, MS21321-2, MIL-PRF-8805/39
Product Details | SENSITIVE SWITCH
5930-00-949-1166 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: MS213212, MS21321-2, MIL-PRF-8805/39, MILPRF880539, MILS880539, MILS8805-39, 1561776, 5930-00-949-1166, 00-949-1166, 5930009491166, 009491166
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 APR 1966 | 00-949-1166 | 00399 ( SWITCH, SENSITIVE ) |

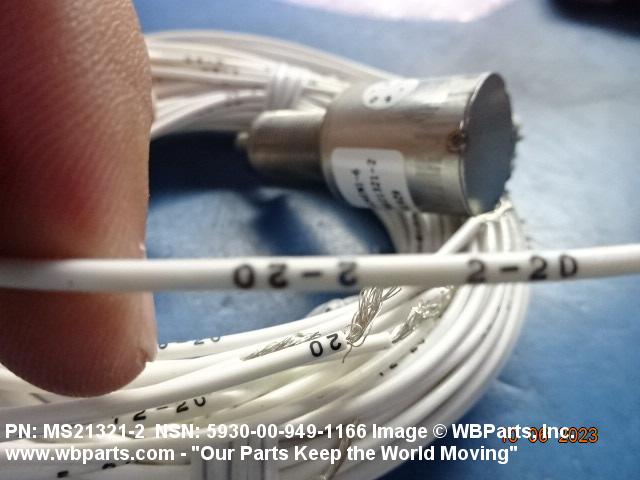

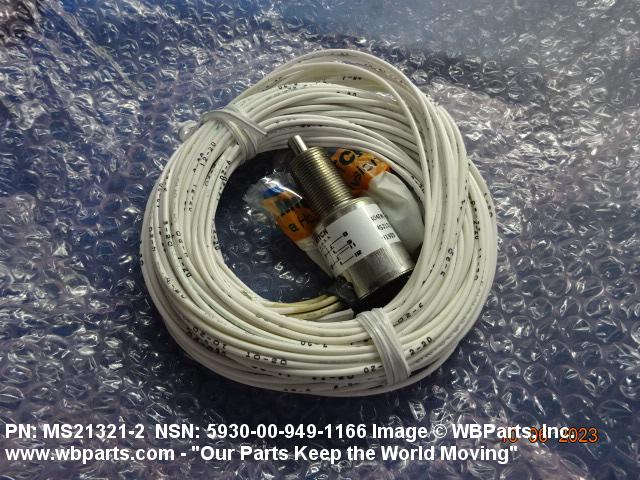

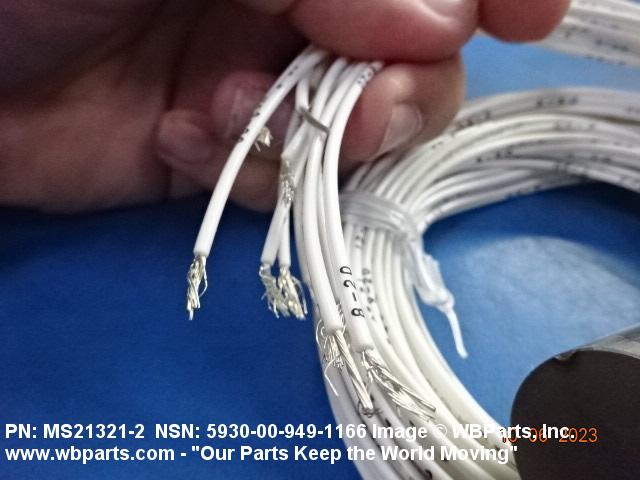

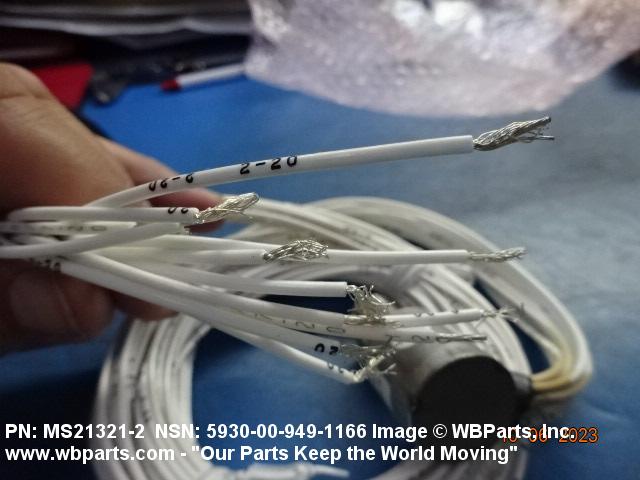

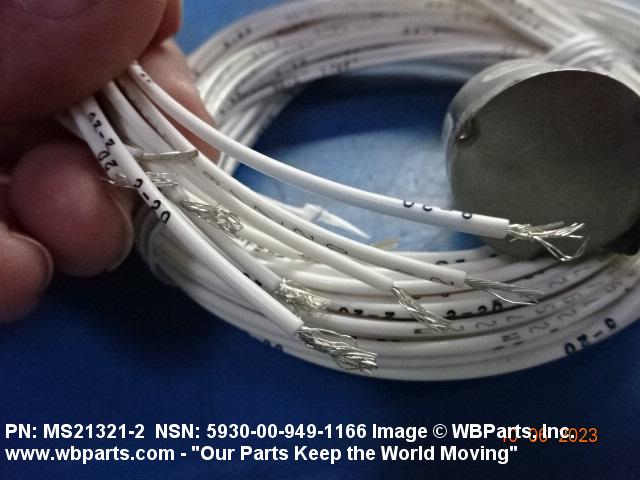

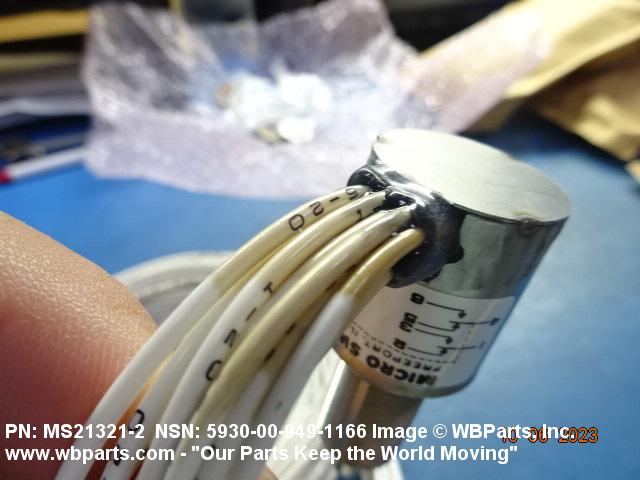

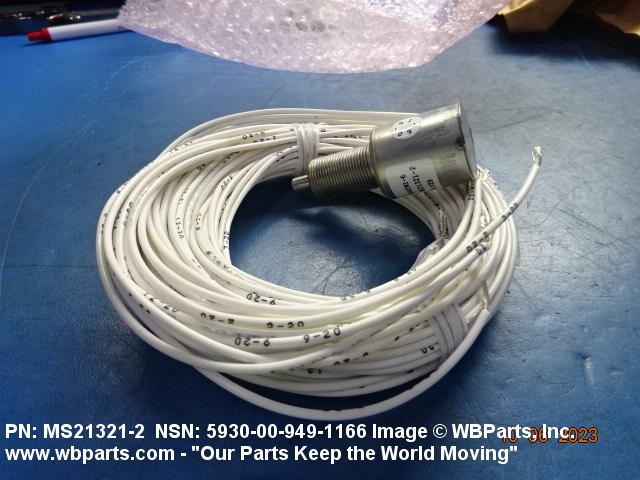

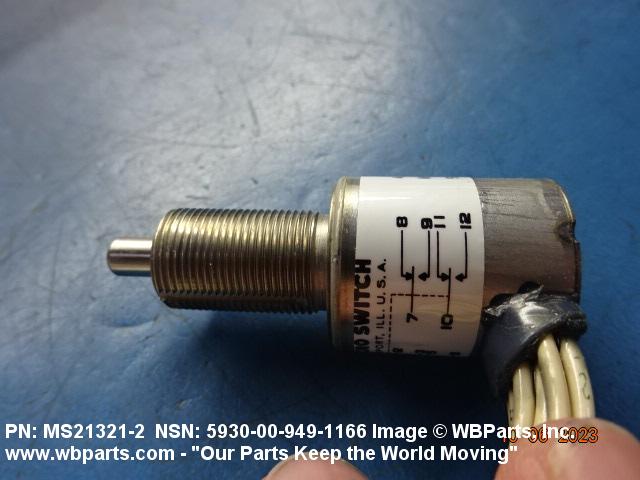

Drawings & Photos | NSN 5930-00-949-1166
Demand History | NSN 5930-00-949-1166
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-949-1166 | 2025-02-50 | 100 | Taiwan |
| 5930-00-949-1166 | 2025-02-35 | 37 | DIBBS |
| 5930-00-949-1166 | 2024-04-112 | 33 | DIBBS |
| 5930-00-949-1166 | 2023-11-325 | 4 | Taiwan |
| 5930-00-949-1166 | 2023-11-316 | 41 | DIBBS |
| 5930-00-949-1166 | 2023-10-285 | 5 | Taiwan |
| 5930-00-949-1166 | 2023-09-262 | 4 | Taiwan |
| 5930-00-949-1166 | 2023-09-249 | 28 | DIBBS |
| 5930-00-949-1166 | 2023-08-240 | 72 | DIBBS |
| MS213212 | 2022-10-276 | 175 | Taiwan |
| MS213212 | 2022-03-81 | 152 | Taiwan |
| 5930-00-949-1166 | 2021-08-214 | 77 | DIBBS |
| 5930-00-949-1166 | 2020-10-278 | 7 | Taiwan |
| 5930-00-949-1166 | 2020-09-268 | 77 | DIBBS |
| 5930-00-949-1166 | 2020-09-252 | 190 | DIBBS |
| 5930-00-949-1166 | 2020-08-240 | 68 | DIBBS |
| MS213212 | 2020-06-160 | 1 | United States |
| 5930-00-949-1166 | 2019-05-139 | 3 | Taiwan |
| 5930-00-949-1166 | 2019-05-136 | 3 | Taiwan |
| 5930-00-949-1166 | 2017-01-18 | 23 | DIBBS |
| 5930-00-949-1166 | 2017-01-10 | 204 | DIBBS |
| 5930-00-949-1166 | 2015-01-28 | 179 | DIBBS |
| 5930-00-949-1166 | 2014-11-314 | 192 | DIBBS |
| 5930-00-949-1166 | 2014-08-233 | 113 | DIBBS |
| MS213212 | 2011-04-108 | 120 | Taiwan |
| 5930-00-949-1166 | 2010-06-159 | 108 | DIBBS |
| MS213212 | 2010-05-145 | 70 | US |
| 5930-00-949-1166 | 2010-05-132 | 280 | DIBBS |
| 5930-00-949-1166 | 2010-05-126 | 258 | DIBBS |
| MS213212 | 2010-04-97 | 270 | Taiwan |
| MS213212 | 2010-03-88 | 10 | Taiwan |
| 5930-00-949-1166 | 2010-02-36 | 242 | DIBBS |
| 5930-00-949-1166 | 2009-10-275 | 319 | DIBBS |
| 5930-00-949-1166 | 2009-06-161 | 390 | DIBBS |
| 5930-00-949-1166 | 2008-03-71 | 500 | DIBBS |
| 5930-00-949-1166 | 2008-01-08 | 230 | DIBBS |
| 5930-00-949-1166 | 2007-10-297 | 200 | DIBBS |
| 5930-00-949-1166 | 2007-07-187 | 52 | DIBBS |
| 5930-00-949-1166 | 2007-03-69 | 88 | DIBBS |
Cross Reference | NSN 5930-00-949-1166
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1561776 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| MIL-PRF-8805/39 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS8805-39 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21321-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21321-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-949-1166
Related Products | NSN 5930-00-949-1166
Technical Data | NSN 5930-00-949-1166
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 7.000 AMPERES RESISTIVE DC AND 4.000 AMPERES INDUCTIVE DC AND 4.000 AMPERES MOTOR DC |
| BODY STYLE | 2M BUSHING MOUNTED |
| BODY DIAMETER | 1.031 INCHES MAXIMUM |
| BUSHING LENGTH | 0.970 INCHES MINIMUM AND 1.030 INCHES MAXIMUM |
| BODY LENGTH | 1.200 INCHES MAXIMUM |
| ACTUATOR STYLE | 2 ROUND |
| ACTUATOR DIAMETER | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| ACTUATOR HEIGHT | 1.345 INCHES MINIMUM AND 1.405 INCHES MAXIMUM |
| ACTUATOR FREE POSITION HEIGHT | 0.375 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 12 WIRE LEAD |
| SWITCH ACTUATING FORCE | 96.0 OUNCES MINIMUM AND 192.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 64.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.040 PRETRAVEL INCHES MAXIMUM AND 0.250 OVERTRAVEL INCHES MINIMUM AND 0.020 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| ACTUATOR ADAPTER STYLE | 4 PUSHBUTTON |
| ADAPTER BUSHING LENGTH | 0.970 INCHES MINIMUM AND 1.030 INCHES MAXIMUM |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD CLASS | 2A |
| TEST DATA DOCUMENT | 81349-MIL-S-8805 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-8805/39 GOVERNMENT SPECIFICATION |
| III OVERALL LENGTH | 2.575 INCHES NOMINAL |
| III OVERALL WIDTH | 1.031 INCHES MAXIMUM |
| III OVERALL HEIGHT | 1.031 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-8805/39 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21321-2 |
Restrictions/Controls & Freight Information | NSN 5930-00-949-1166
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-949-1166
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
