NSN 5930-01-034-0432 2HBT175E1, 2HBT175E-1, 01-034-0432
Product Details | SENSITIVE SWITCH
5930-01-034-0432 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 2HBT175E1, 2HBT175E-1, 5930-01-034-0432, 01-034-0432, 5930010340432, 010340432
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 JAN 1977 | 01-034-0432 | 00399 ( SWITCH, SENSITIVE ) |

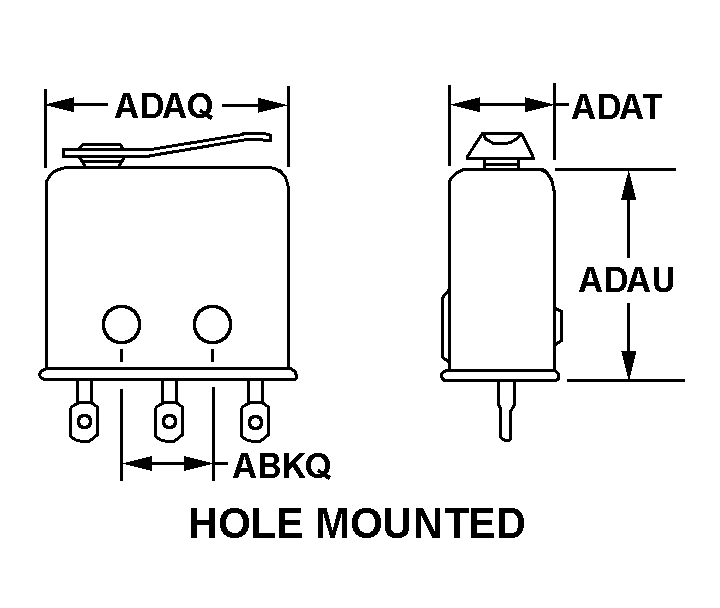

Drawings & Photos | NSN 5930-01-034-0432
Demand History | NSN 5930-01-034-0432
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-034-0432 | 2010-04-95 | 1 | US |
Cross Reference | NSN 5930-01-034-0432
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2HBT175E-1 | 80207 | C AND K COMPONENTS INC CLAYTON/UNIMAX DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-034-0432
Technical Data | NSN 5930-01-034-0432
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 480.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 250.000 MILLIAMPERES RESISTIVE DC AND 20.000 AMPERES RESISTIVE AC |
| BODY STYLE | 20M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM |
| BODY LENGTH | 1.925 INCHES MINIMUM AND 1.955 INCHES MAXIMUM |
| BODY WIDTH | 0.675 INCHES MINIMUM AND 0.705 INCHES MAXIMUM |
| BODY HEIGHT | 0.105 INCHES NOMINAL |
| ACTUATOR STYLE | 41 LEAF |
| ACTUATOR LENGTH | 2.500 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.175 INCHES MINIMUM AND 0.205 INCHES MAXIMUM |
| ACTUATOR FREE POSITION HEIGHT | 0.660 INCHES MINIMUM AND 0.780 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 3 SCREW AND 3 TAB, SOLDER LUG |
| SWITCH ACTUATING FORCE | 85.0 GRAMS MAXIMUM |
| SWITCH RELEASE FORCE | 21.0 GRAMS MINIMUM |
| ACTUATOR MOVEMENT | 0.380 PRETRAVEL INCHES MAXIMUM AND 0.160 OVERTRAVEL INCHES MINIMUM AND 0.125 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | UNINCLOSED |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.139 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |
| MANUFACTURERS CODE | 80207 |
| DESIGN CONTROL REFERENCE | 2HBT175E-1 |
Restrictions/Controls & Freight Information | NSN 5930-01-034-0432
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
