NSN 5930-01-041-4178 GV3, 01-041-4178, 010414178
Product Details | SENSITIVE SWITCH
5930-01-041-4178 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: GV3, 5930-01-041-4178, 01-041-4178, 5930010414178, 010414178
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 MAY 1977 | 01-041-4178 | 00399 ( SWITCH, SENSITIVE ) |

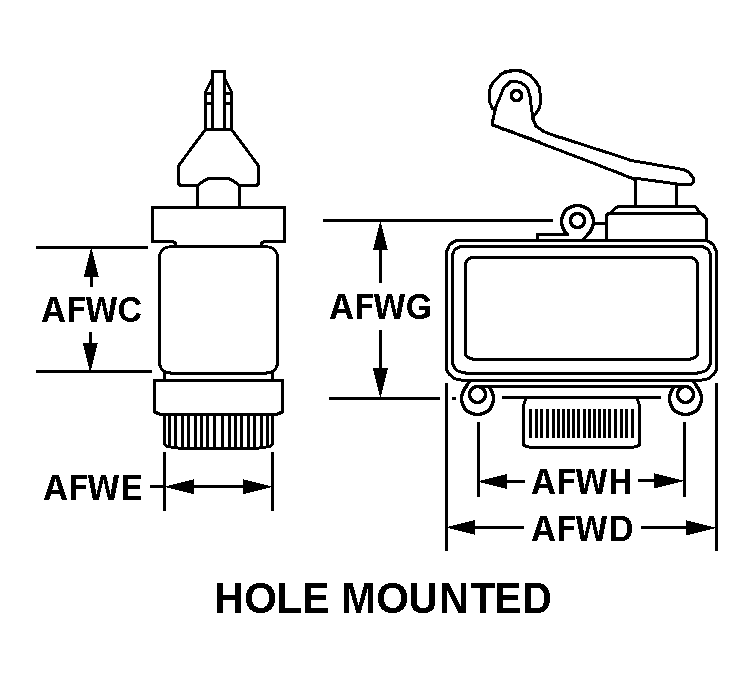

Drawings & Photos | NSN 5930-01-041-4178
Cross Reference | NSN 5930-01-041-4178
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GV3 | K1749 | SAIA- BURGESS GATESHEAD LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-041-4178
Technical Data | NSN 5930-01-041-4178
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 53M HOLE MOUNTED |
| SWITCH ACTUATOR QUANTITY | 1 |
| ACTUATOR STYLE | 47 ROLLER ARM |
| TERMINAL TYPE AND QUANTITY | 1 SCREW |
| ACTUATOR ADAPTER STYLE | 15 ROLLER LEAF |
| MANUFACTURERS CODE | K1749 |
| DESIGN CONTROL REFERENCE | GV3 |
Restrictions/Controls & Freight Information | NSN 5930-01-041-4178
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
