NSN 5930-01-069-7176 6984H54, 6984H54A, 6984NLH54
Product Details | SENSITIVE SWITCH
5930-01-069-7176 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 6984H54, 6984H54A, 6984NLH54, 698NLH54, 698R1T54, 5930-01-069-7176, 01-069-7176, 5930010697176, 010697176
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 DEC 1978 | 01-069-7176 | 00399 ( SWITCH, SENSITIVE ) |

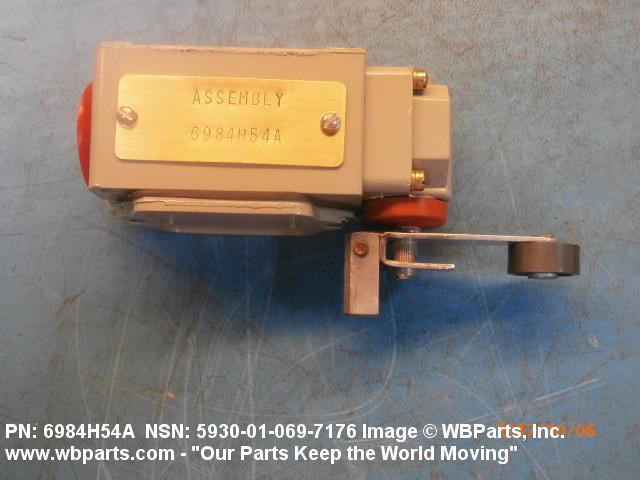

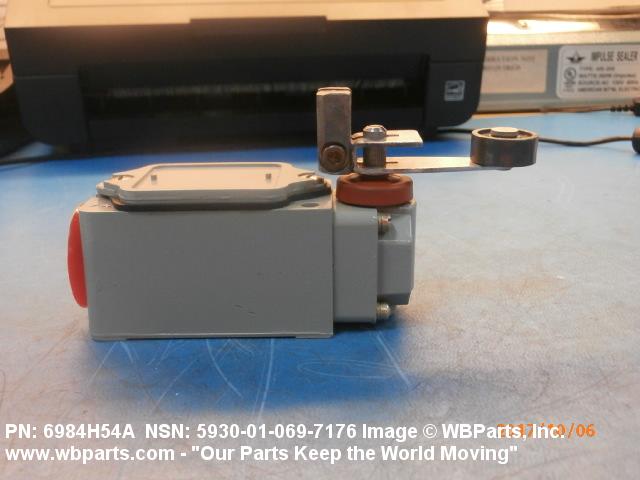

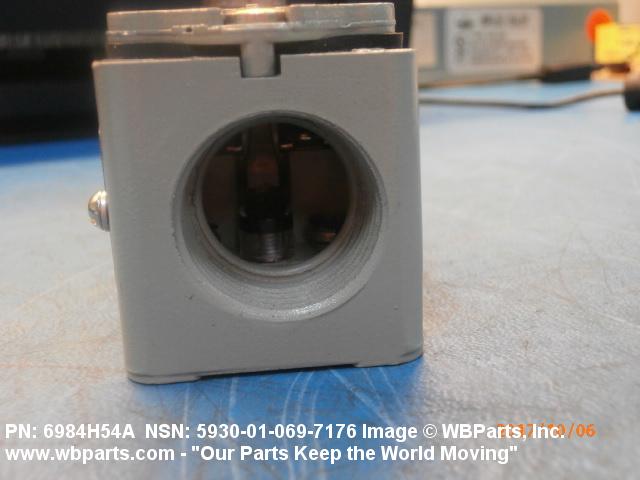

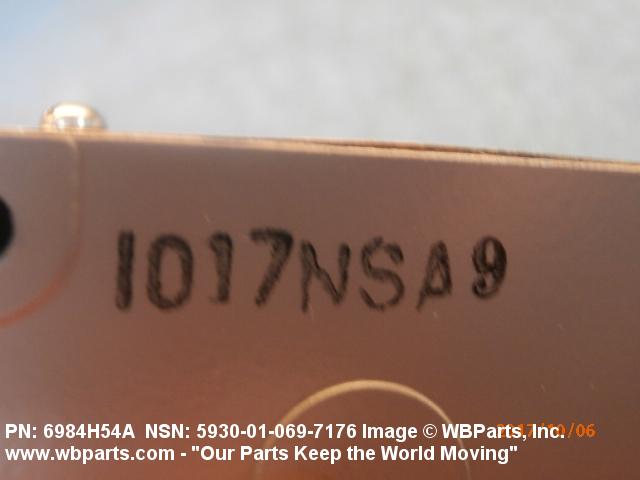

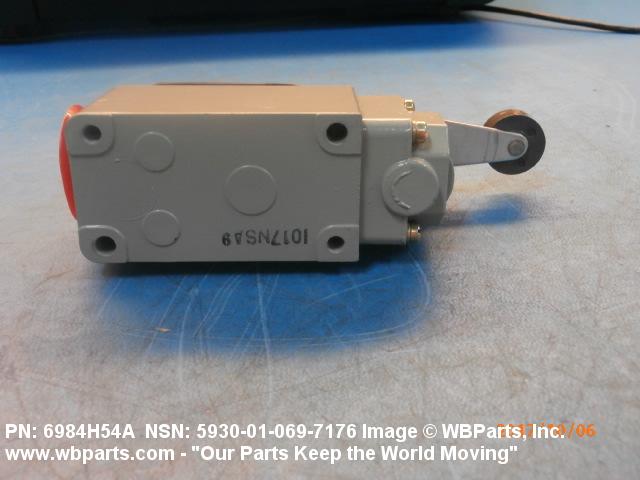

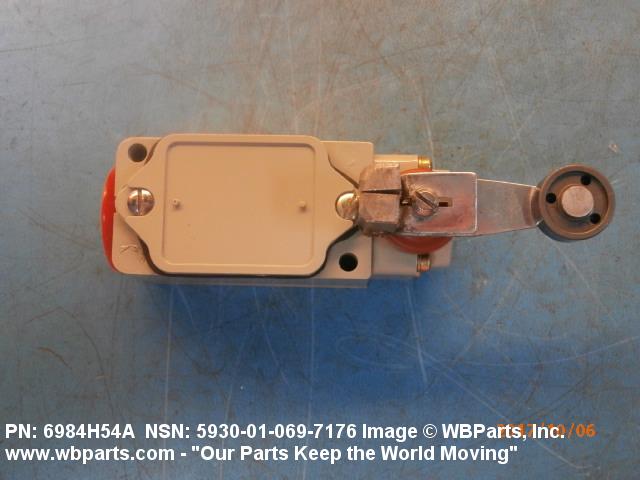

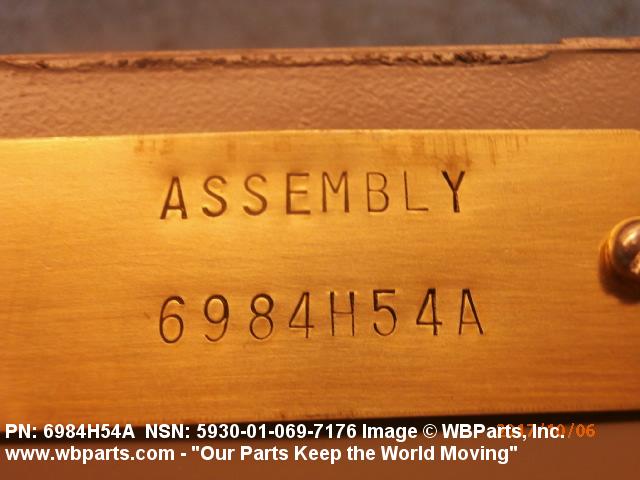

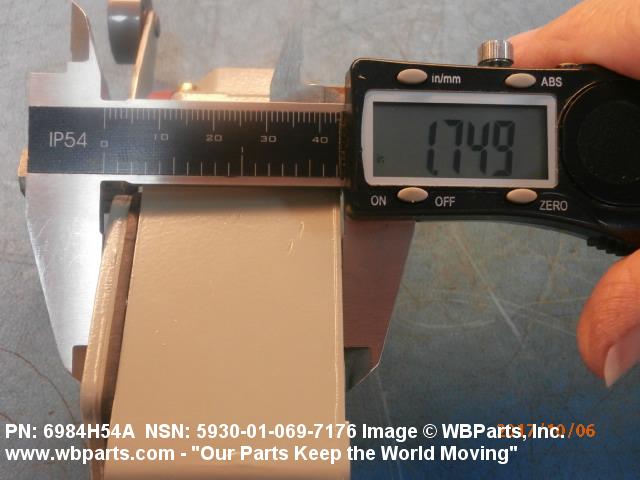

Drawings & Photos | NSN 5930-01-069-7176
Demand History | NSN 5930-01-069-7176
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6984H54A | 2025-08-219 | 15 | DIBBS |
| 6984H54A | 2023-09-250 | 8 | DIBBS |
| 6984H54A | 2023-05-138 | 9 | DIBBS |
| 6984H54A | 2022-06-160 | 6 | DIBBS |
| 5930-01-069-7176 | 2021-03-83 | 4 | PL |
| 5930-01-069-7176 | 2021-02-48 | 4 | Poland |
| 5930-01-069-7176 | 2021-02-48 | 4 | Poland |
| 6984H54A | 2020-03-72 | 19 | DIBBS |
| 5930-01-069-7176 | 2018-09-263 | 17 | DIBBS |
| 5930-01-069-7176 | 2018-09-253 | 16 | DIBBS |
| 5930-01-069-7176 | 2018-08-242 | 16 | DIBBS |
| 5930-01-069-7176 | 2017-09-262 | 1 | Taiwan |
| 5930-01-069-7176 | 2013-03-60 | 13 | DIBBS |
| 5930-01-069-7176 | 2013-01-03 | 6 | DIBBS |
Cross Reference | NSN 5930-01-069-7176
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6984H54 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6984H54A | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 6984H54A | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6984NLH54 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 698NLH54 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 698R1T54 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-069-7176
Related Products | NSN 5930-01-069-7176
Technical Data | NSN 5930-01-069-7176
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 440.0 AC AND 355.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 100.000 MILLIAMPERES RESISTIVE DC AND 6.000 AMPERES RESISTIVE AC |
| BODY STYLE | 80M HOLE MOUNTED |
| HOUSING HEIGHT | 1.780 INCHES NOMINAL |

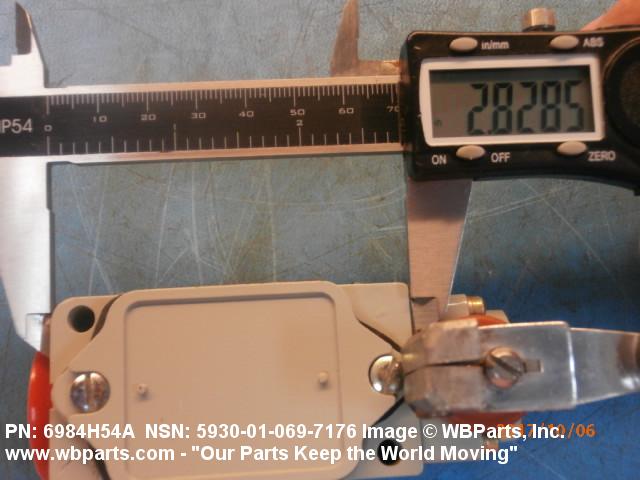

| HOUSING LENGTH | 2.840 INCHES NOMINAL |

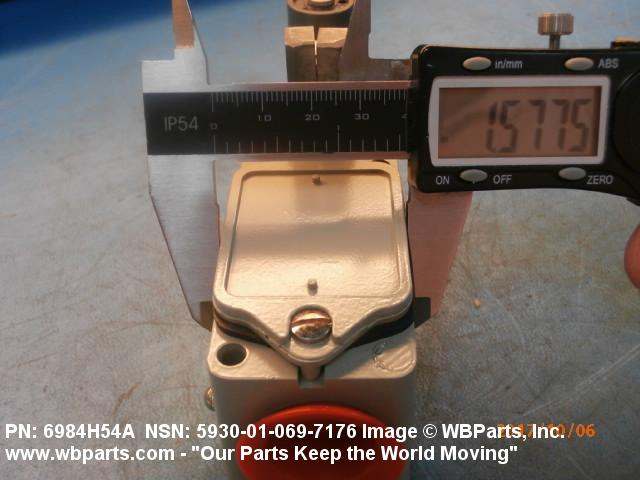

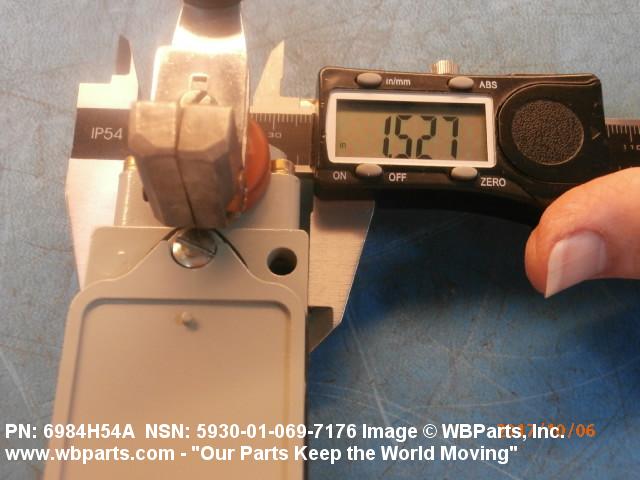

| HOUSING WIDTH | 1.650 INCHES NOMINAL |

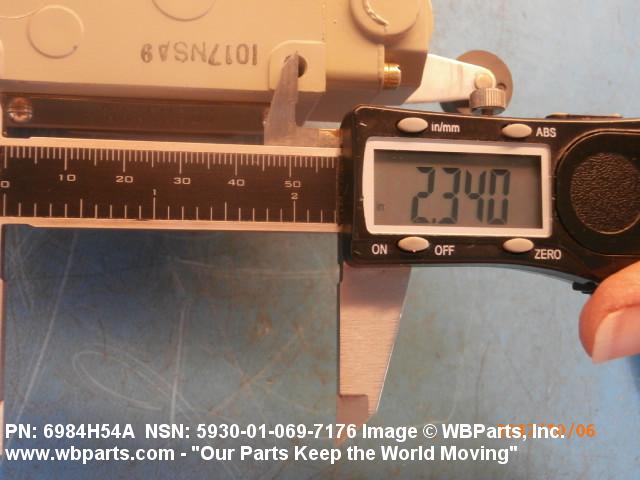

| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH | 2.342 INCHES NOMINAL |

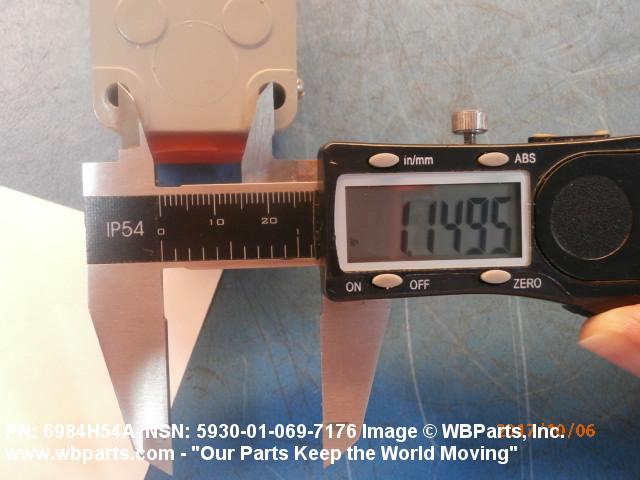

| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO WIDTH | 1.156 INCHES NOMINAL |
| OVERALL WIDTH | 1.650 INCHES NOMINAL |

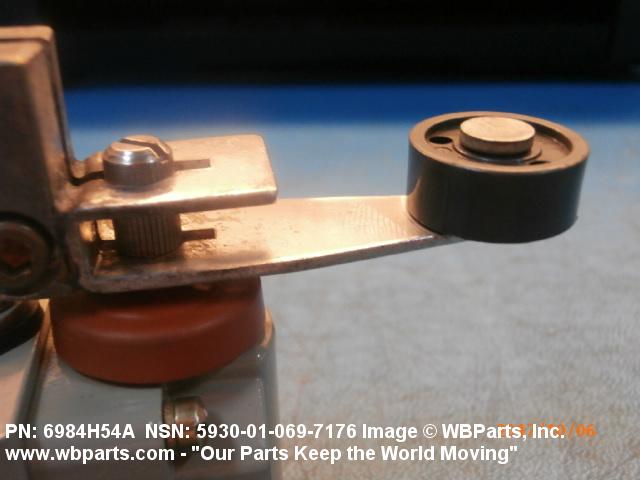

| ACTUATOR STYLE | 45 ROLLER ARM |

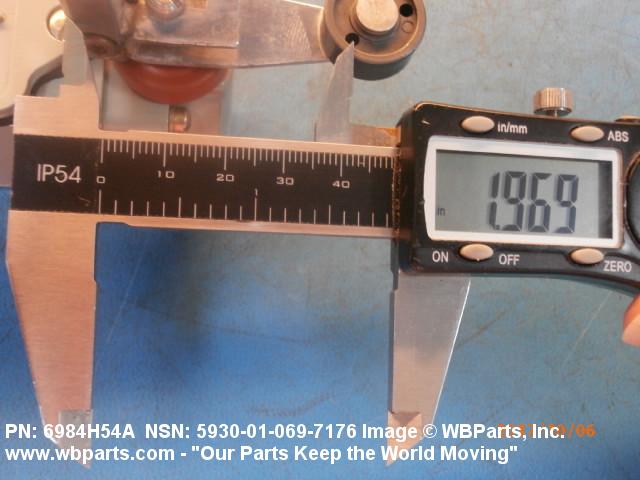

| ACTUATOR FREE POSITION HEIGHT | 1.940 INCHES NOMINAL |

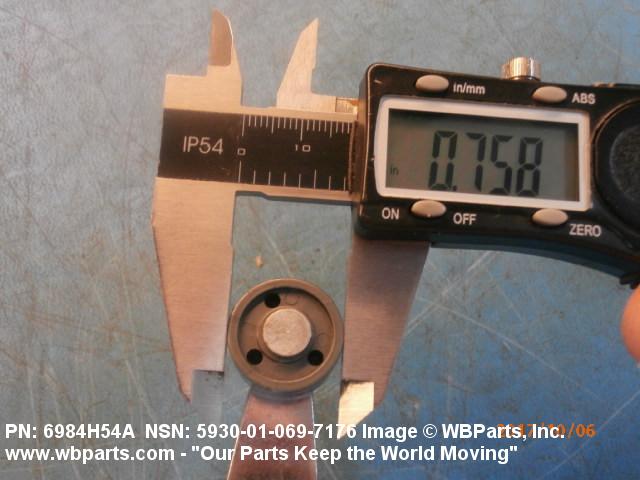

| ACTUATOR ROLLER DIAMETER | 0.750 INCHES NOMINAL |

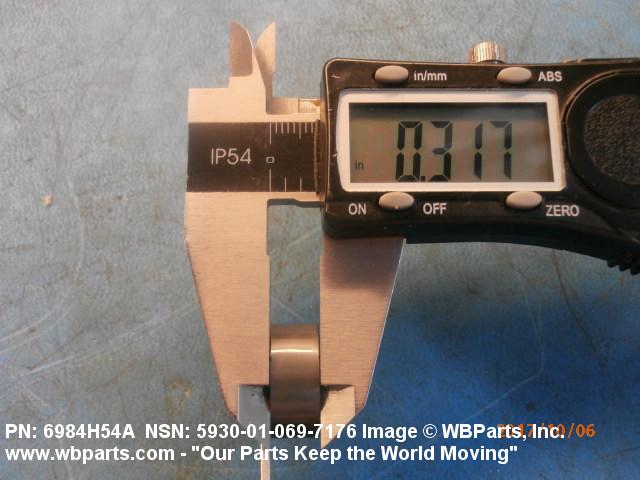

| ACTUATOR ROLLER WIDTH | 0.320 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE |
| SWITCH ACTUATING FORCE | 40.0 OUNCES NOMINAL |
| SWITCH RELEASE FORCE | 2.0 OUNCES NOMINAL |
| ACTUATOR MOVEMENT | 0.040 PRETRAVEL INCHES NOMINAL AND 0.280 OVERTRAVEL INCHES NOMINAL AND 0.020 DIFFERENTIAL INCHES NOMINAL |
| INCLOSURE TYPE | FULLY INCLOSED |
| ACTUATOR ADAPTER STYLE | 18 ROLLER ARM |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
| SPECIAL FEATURES | COUNTER BALANCED ROLLER LEVER |
| III CASE MATERIAL | METAL |
Restrictions/Controls & Freight Information | NSN 5930-01-069-7176
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-069-7176
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
