NSN 5930-01-107-6719 1LJ12C, 1LJ1-2C, 01-107-6719
Product Details | SENSITIVE SWITCH
5930-01-107-6719 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 1LJ12C, 1LJ1-2C, 5930-01-107-6719, 01-107-6719, 5930011076719, 011076719
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 FEB 1981 | 01-107-6719 | 00399 ( SWITCH, SENSITIVE ) |

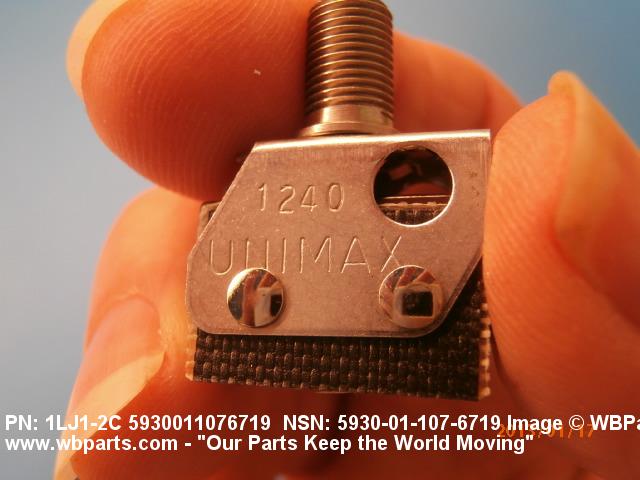

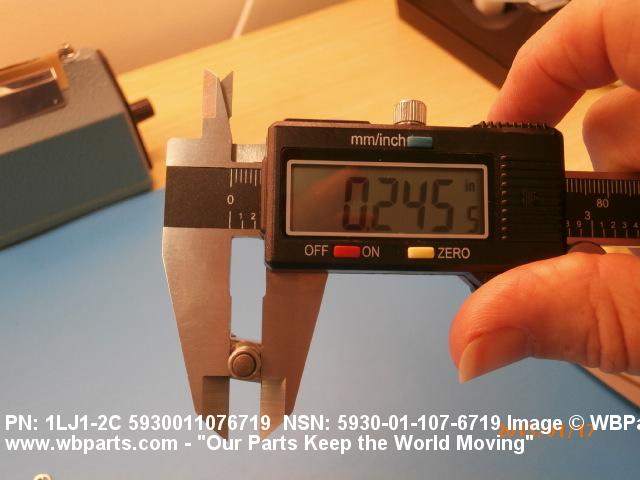

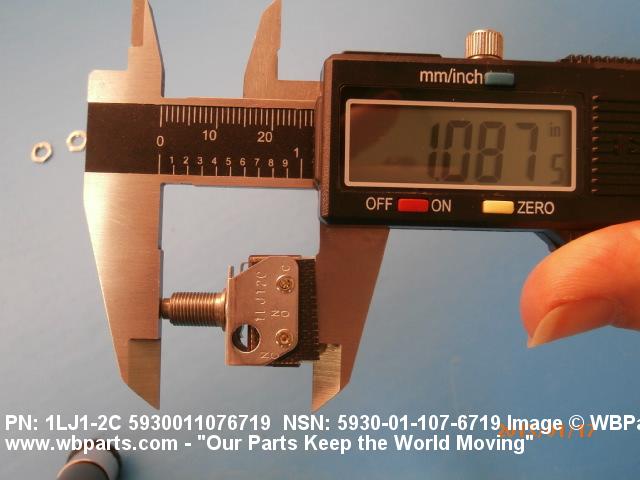

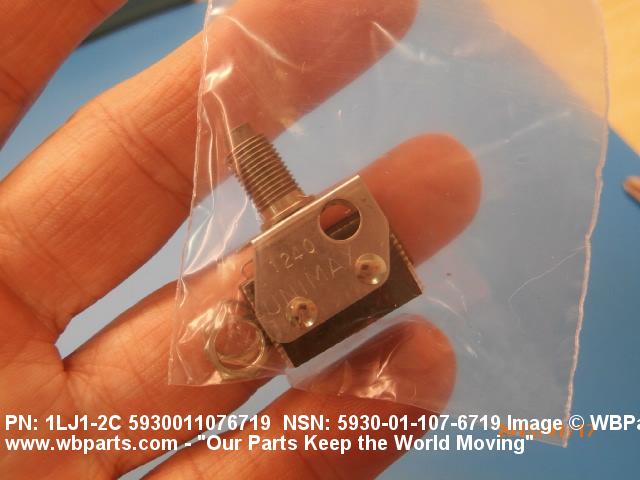

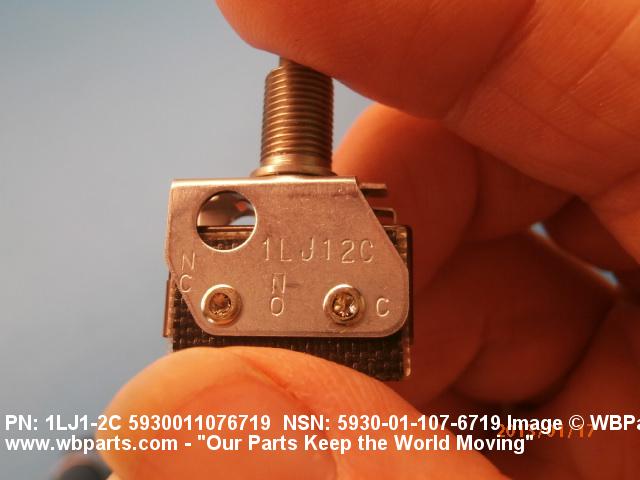

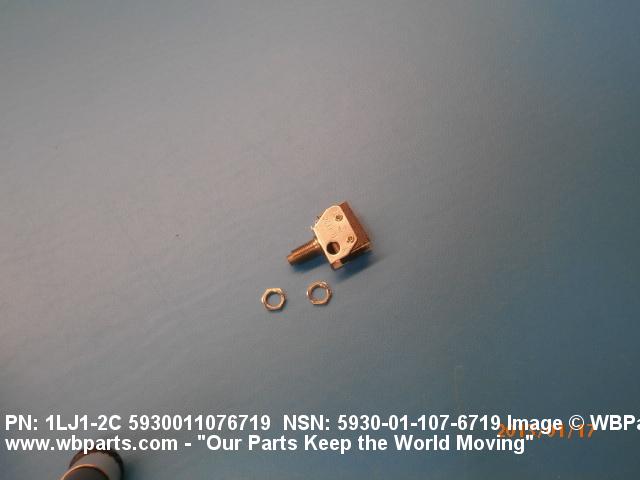

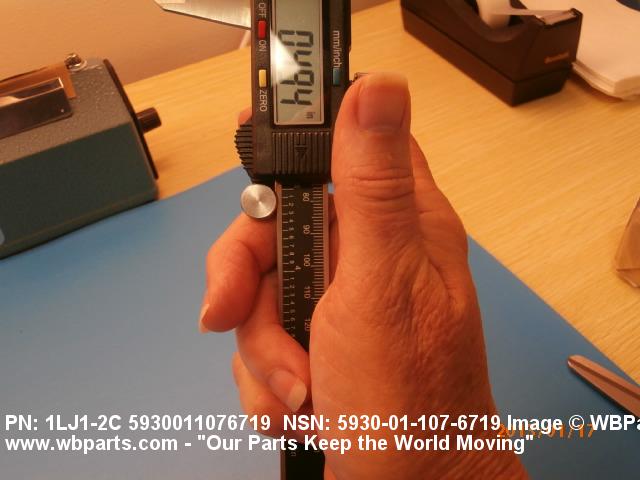

Drawings & Photos | NSN 5930-01-107-6719
Demand History | NSN 5930-01-107-6719
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-107-6719 | 2018-10-274 | 4 | US |
| 1LJ12C | 2015-12-362 | 12 | US |
| 5930-01-107-6719 | 2015-08-243 | 1 | US |
| 5930-01-107-6719 | 2013-10-303 | 12 | US |
| 5930-01-107-6719 | 2013-01-04 | 12 | United States |
| 1LJ12C | 2011-08-222 | 12 | US |
| 5930-01-107-6719 | 2010-11-320 | 8 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-107-6719
Related Products | NSN 5930-01-107-6719
Technical Data | NSN 5930-01-107-6719
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 30.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC AND 3.000 AMPERES INDUCTIVE DC AND 10.000 AMPERES RESISTIVE AC AND 10.000 AMPERES INDUCTIVE AC |
| BODY STYLE | 19M BUSHING/HOLE MOUNTED |
| BUSHING LENGTH | 0.370 INCHES NOMINAL |

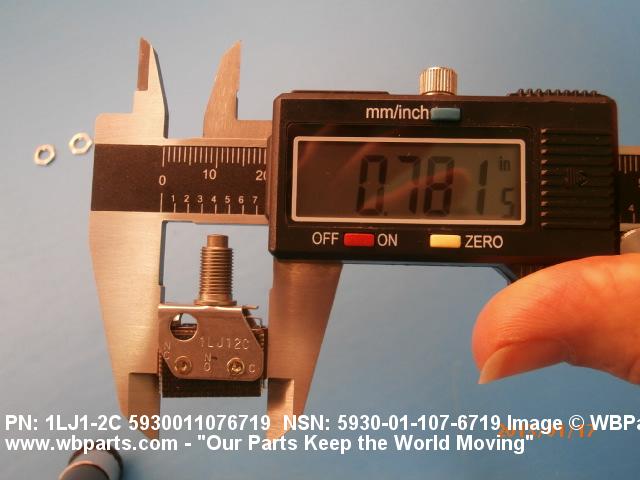

| BODY LENGTH | 0.780 INCHES NOMINAL |

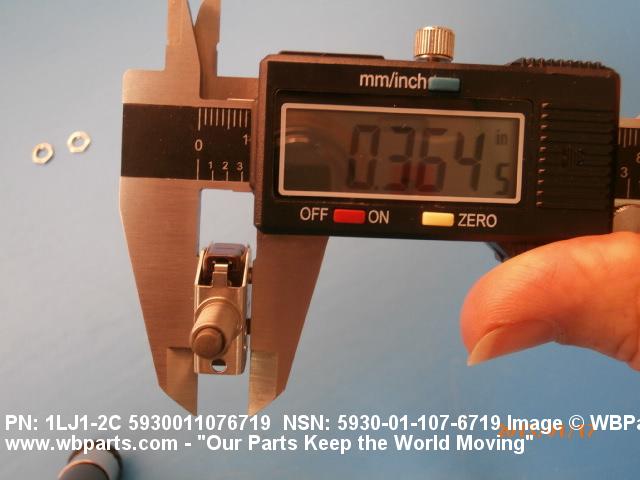

| BODY WIDTH | 0.375 INCHES MAXIMUM |
| BODY HEIGHT | 0.660 INCHES NOMINAL |
| ACTUATOR STYLE | 1 ROUND |

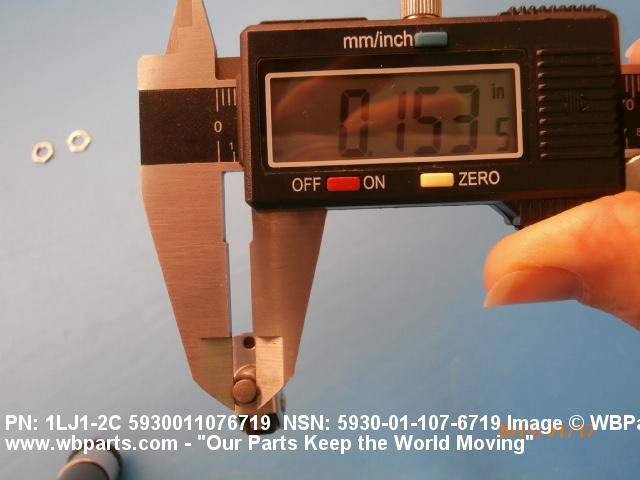

| ACTUATOR DIAMETER | 0.156 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.090 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 0.460 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 PIN |
| SWITCH ACTUATING FORCE | 12.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 1.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.030 PRETRAVEL INCHES MAXIMUM AND 0.005 OVERTRAVEL INCHES NOMINAL AND 0.004 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| ACTUATOR ADAPTER STYLE | 4 PUSHBUTTON |
| ADAPTER BUSHING LENGTH | 0.370 INCHES NOMINAL |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| III CASE MATERIAL | PLASTIC |
| III OVERALL LENGTH | 0.780 INCHES NOMINAL |
| III OVERALL WIDTH | 0.375 INCHES MAXIMUM |
| III OVERALL HEIGHT | 1.120 INCHES NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
